003 - ROLL BAR

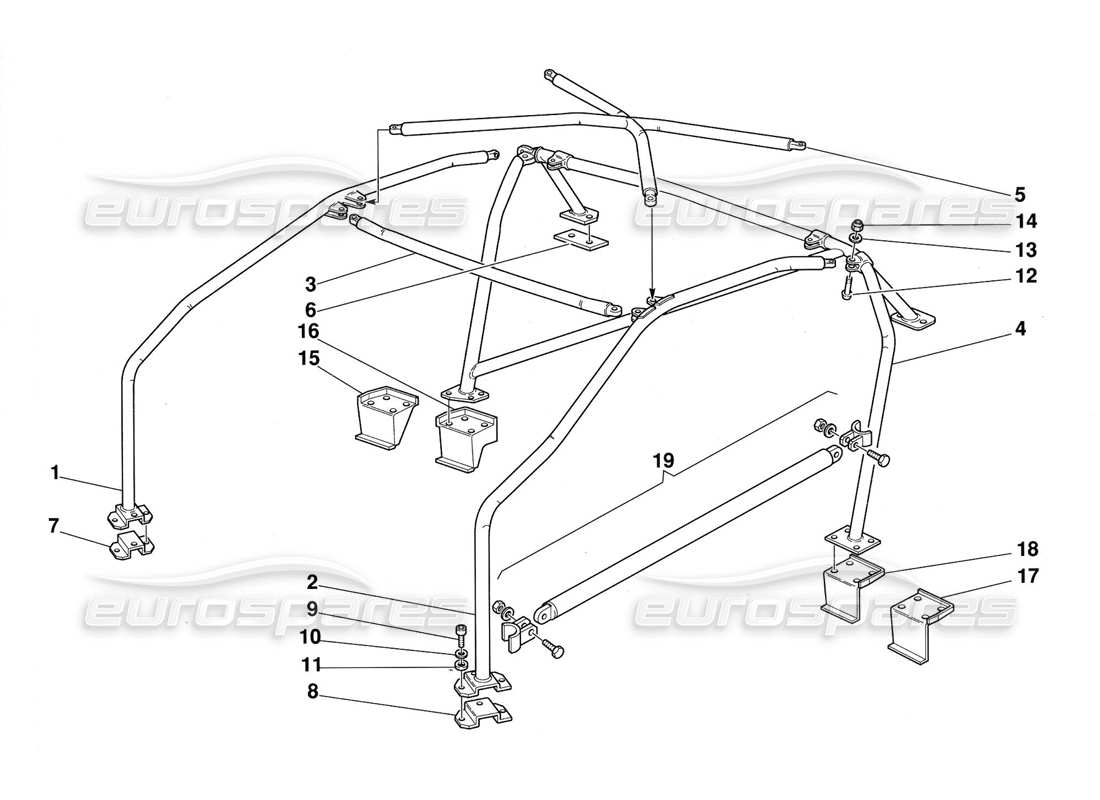

Ferrari 348 Challenge (1995) Roll Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 145217
LH STEERING COMPL-ROLL BAR
# 000
MPN: 145218
RH STEERING COMPL-ROLL BAR
from £1,469.38
from £1,469.38
# 000
MPN: 62965100
PLATES ASSEMBLY
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions)
from £38.82
from £38.82
# 000
MPN: 62965300
PLATES ASSEMBLY
(Valid for 2nd series 348 TS only from N 94269 USA version car and 94905 for all other versions).
# 001
MPN: 62964300
RH CROSS MEMBER
(Supplied with roll bar assembly only)
# 002
MPN: 62964300
L H. CROSS MEMBER
(Supplied with roll bar assembly only)
# 003
MPN: 62964400
FRONI CROSS MEMBER
(Supplied with roll bar assembly only)
# 004
MPN: 62907100
MAIN FRAME RIB FOR L H. SLEERING
(Supplied with roll bar assembly only)
# 004
MPN: 62923700
MAIN FRAME RIB FOR R H. STEERING
(Supplied with roll bar assembly only)
# 005
MPN: 62971400
X-STRUCTURE ON THE TOP
(Supplied with roll bar assembly only)
# 006
MPN: 62969900
REAR PLATE
(Supplied with plates assembly only)
# 007
MPN: 62967200
R.H FRONT PLALE
(Supplied with plates assembly only)
# 008
MPN: 62967300
L.H FRONT PLATE
(Supplied with plates assembly only)
# 009
MPN: 14306424
SCREW
from £0.48
from £0.48
This part replaces part number 14306324 - and 2 more. Click to view details
# 010
MPN: 11198079
CONIC WASHER
from £1.20
from £1.20
This part replaces part number 11198070
# 011
MPN: 13550301
WASHER
from £0.48
from £0.48
# 012
MPN: 147798
SCREW
from £2.36
from £2.36
# 013
MPN: 12638601
WASHER
from £0.52
from £0.52
This part replaces part number 20232104
# 014
MPN: 147799
NUT
from £0.78
from £0.78
# 015
MPN: 62965700
RH REAR REINFORCED HOUSING
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
# 016
MPN: 62967000
RH REAR REINFORCED HOUSING
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
# 017
MPN: 62966600
LH REAR REINFORCED HOUSING
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
# 018
MPN: 62967100
LH REAR REINFORCED HOUSING
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
# 019
MPN: 62974600
PROTECTION CROSS MEMBER KIT
(Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)
from £264.92
from £264.92
This part replaces part number 167193
