ferrari 348 challenge (1995) wheels and brake air intakes parts diagram

008 - Wheels and Brake Air Intakes

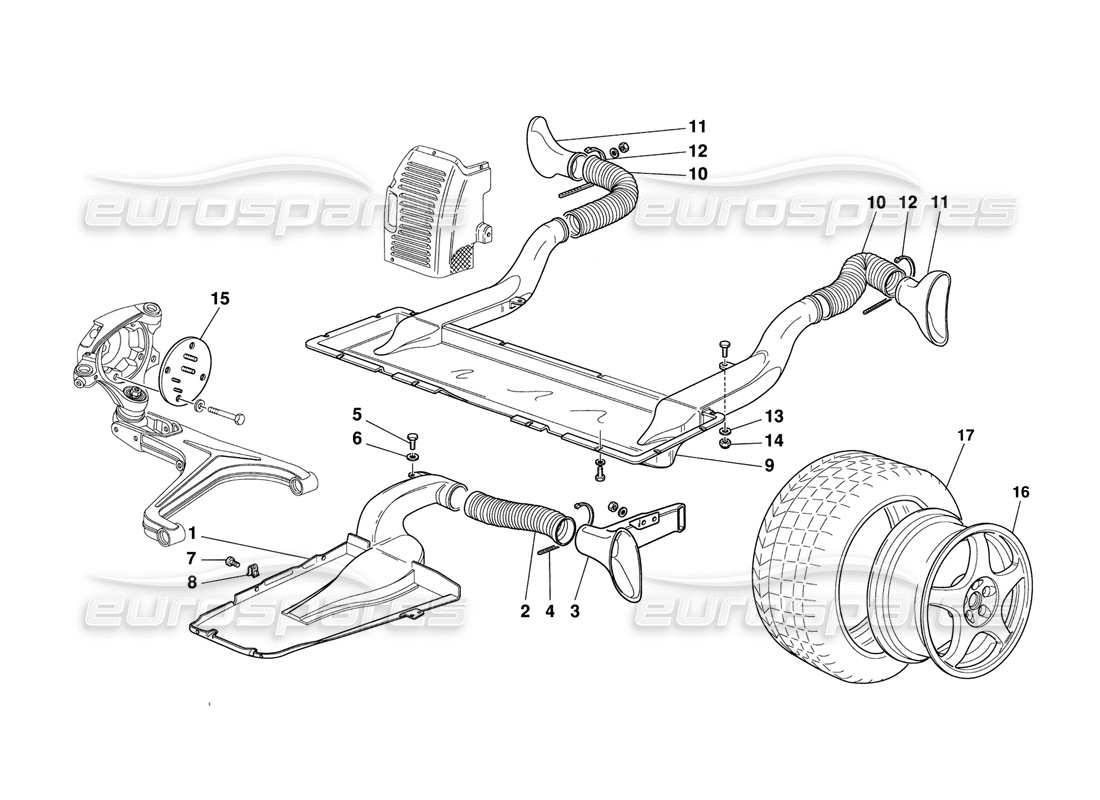

Ferrari 348 Challenge (1995) Wheels and Brake Air Intakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 145250
                                    LH INSIDE INTAKE
                                    from £765.62
                                    from £765.62
                                    # 002
                                    MPN: 145249
                                    RH INSIDE INTAKE
                                    from £803.90
                                    from £803.90
                                    # 002
                                    MPN: 145252
                                    PIPE
                                    from £25.64
                                    from £25.64
                                    # 003
                                    MPN: 167197
                                    RH OUTSIDE INTAKE
                                    from £391.04
                                    from £391.04
                                    # 003
                                    MPN: 167198
                                    LH OUTSIDE INTAKE
                                    from £391.04
                                    from £391.04
                                    # 004
                                    MPN: 157409
                                    CLAMP
                                    from £0.75
                                    from £0.75
                                    # 005
                                    MPN: 15783501
                                    SCREW
                                    from £1.08
                                    from £1.08
                                    # 006
                                    MPN: 14496324
                                    WASHER
                                    from £1.39
                                    from £1.39
                                    This part replaces part number 14496301
                                    # 007
                                    MPN: 62940900
                                    SCREW
                                    from £0.73
                                    from £0.73
                                    This part replaces part number 67352400
                                    # 008
                                    MPN: 147781
                                    CLAMP
                                    from £1.53
                                    from £1.53
                                    # 009
                                    MPN: 167196

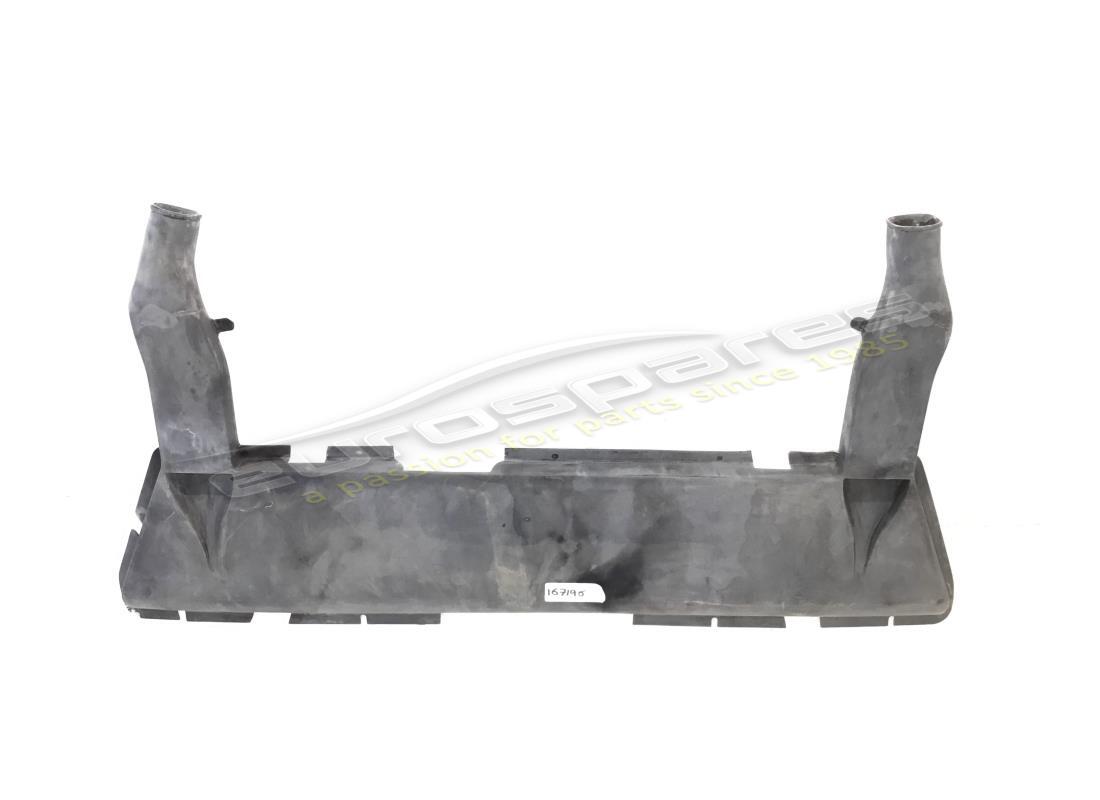

                                    REAR BOTTOM INTAKE
                                    from £1,960.94
                                    from £1,960.94
                                    # 010
                                    MPN: 64784300
                                    PIPE
                                    from £215.20
                                    from £215.20
                                    This part replaces part number 145252 which we have in stock
                                    # 011
                                    MPN: 167194
                                    RH OUTSIDE INTAKE
                                    from £315.00
                                    from £315.00
                                    # 011
                                    MPN: 167195
                                    LH OUTSIDE INTAKE
                                    from £315.00
                                    from £315.00
                                    # 012
                                    MPN: 157409
                                    CLAMP
                                    from £0.75
                                    from £0.75
                                    # 013
                                    MPN: 14496401
                                    WASHER
                                    Supersession
                                    Supersession
                                    # 014
                                    MPN: 12574211
                                    NUT
                                    from £0.71
                                    from £0.71
                                    # 015
                                    MPN: 159055
                                    LH COVER
                                    from £17.80
                                    from £17.80
                                    # 015
                                    MPN: 159056
                                    RH COVER
                                    from £17.80
                                    from £17.80
                                    # 016
                                    MPN: 167493

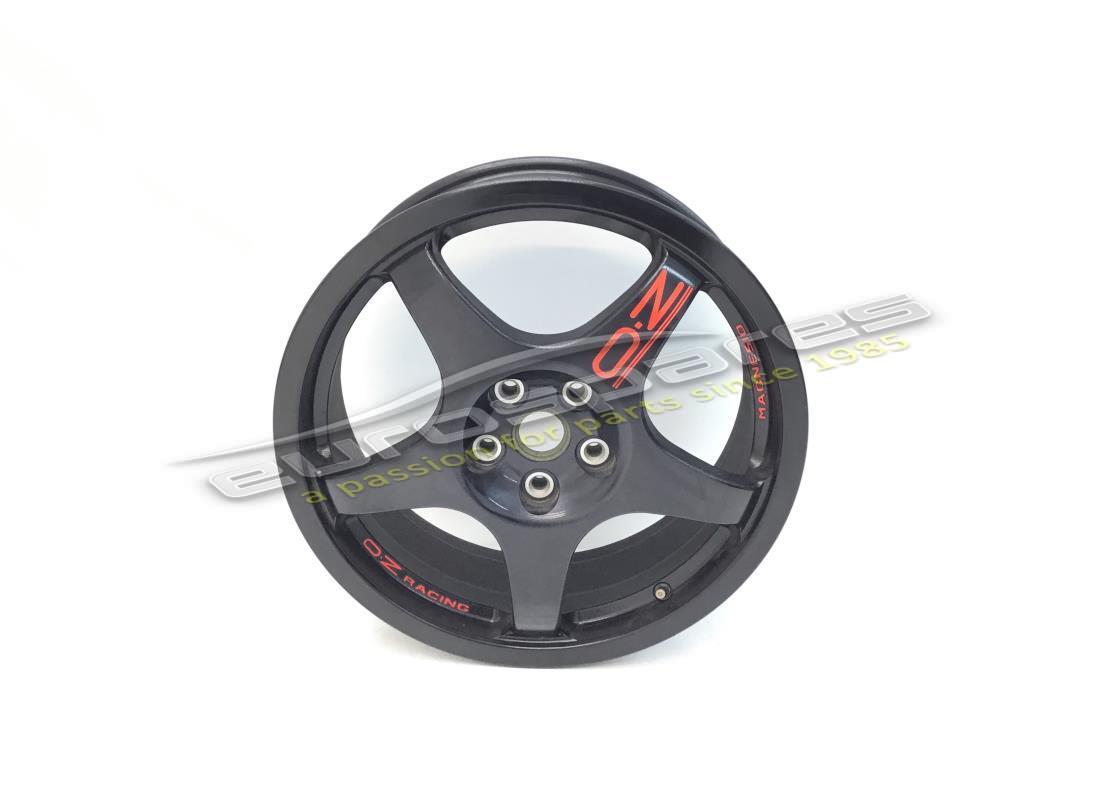

                                    FRONT WHEEL RIM
                                    from £1,569.75
                                    from £1,569.75
                                    # 016
                                    MPN: 167494

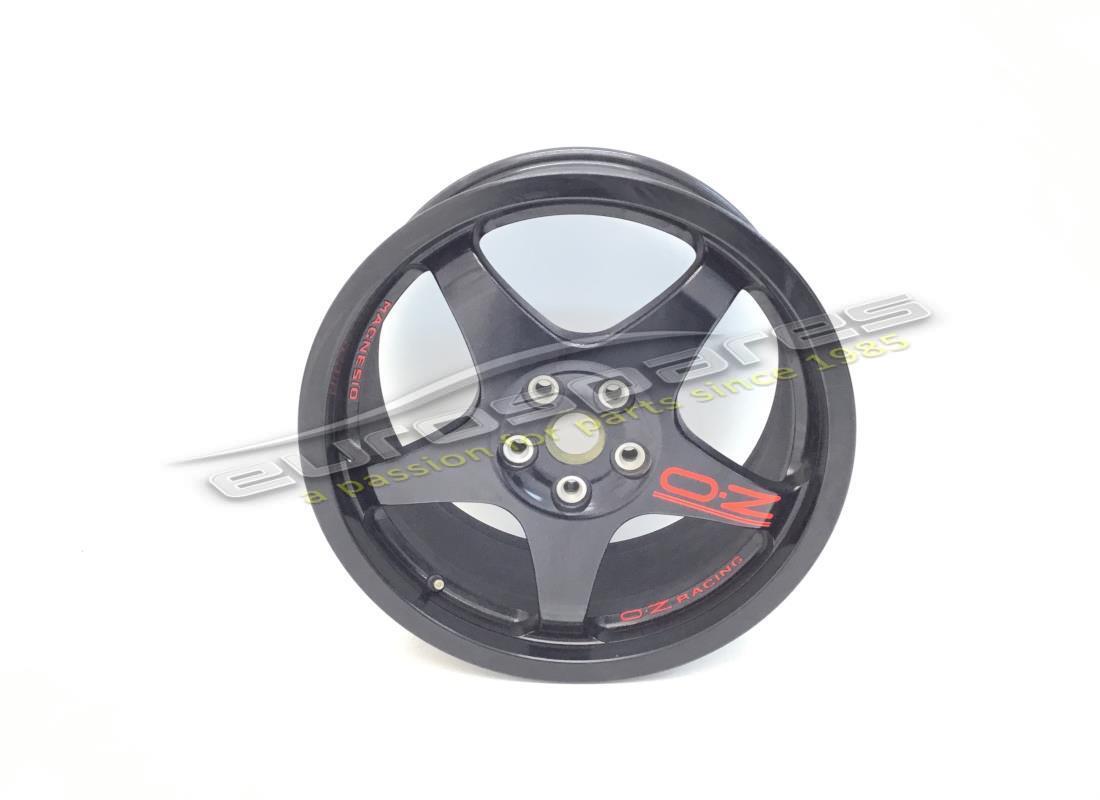

                                    REAR WHEEL RIM
                                    from £1,989.75
                                    from £1,989.75
                                    # 017
                                    MPN: 163366
                                    SLICK TIRE - PIRELLI 245/645X1 8
                                    # 017
                                    MPN: 163367
                                    SLICK TIRE - PIRELLI 305/645X1 8
                                    # 017
                                    MPN: 163368
                                    RAIN TIRE - PIRELLI 225/40 ZR 18
                                    # 017
                                    MPN: 163369
                                    RAIN TIRE - PIRELLI 265/40 ZR 18
