ferrari 348 challenge (1995) front suspension pads and brake pipes parts diagram

009 - Front Suspension Pads and Brake Pipes

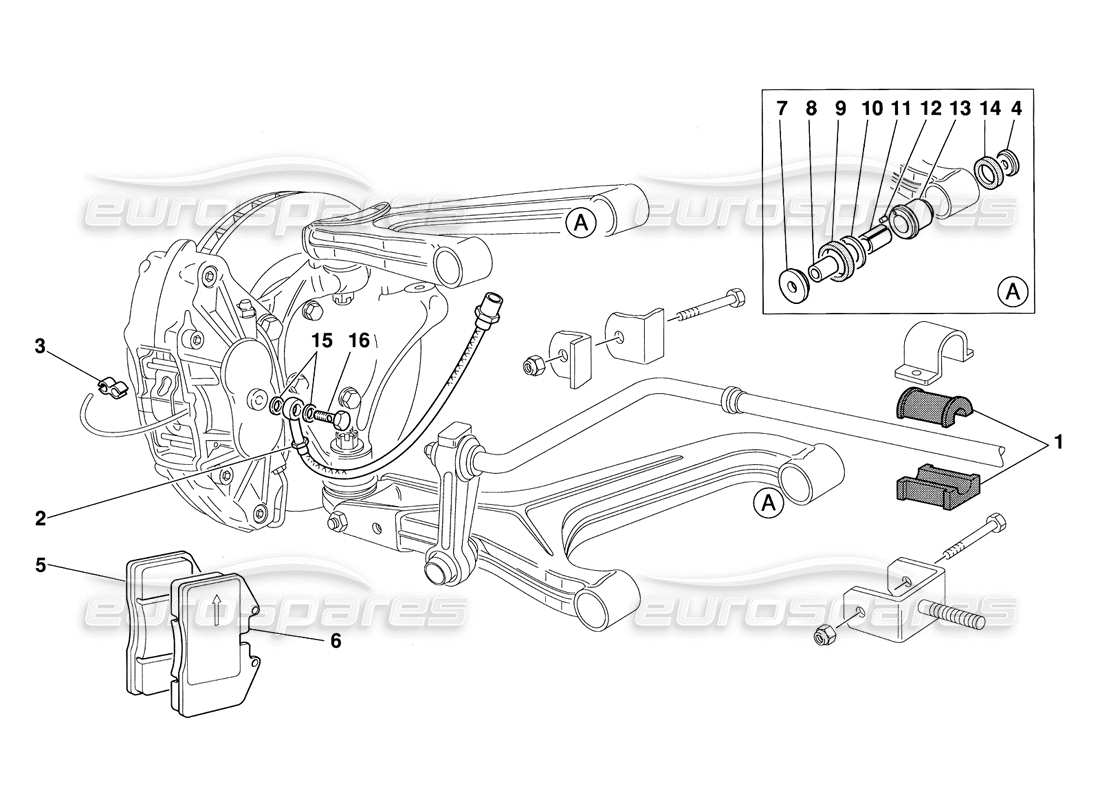

Ferrari 348 Challenge (1995) Front Suspension Pads and Brake Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 000
                              MPN: 70000796
                              BRAKE PADS KIT
                              (on request)
                              from £138.60
                              from £138.60
                              # 001
                              MPN: 153179
                              BUMPER
                              from £118.13
                              from £118.13
                              # 002
                              MPN: 164757
                              BRAKE PIPE
                              from £34.72
                              from £34.72
                              # 003
                              MPN: 124551
                              SPRING
                              from £0.71
                              from £0.71
                              # 004
                              MPN: 149564
                              THRUST WASHER
                              from £16.79
                              from £16.79
                              # 005
                              MPN: 147782

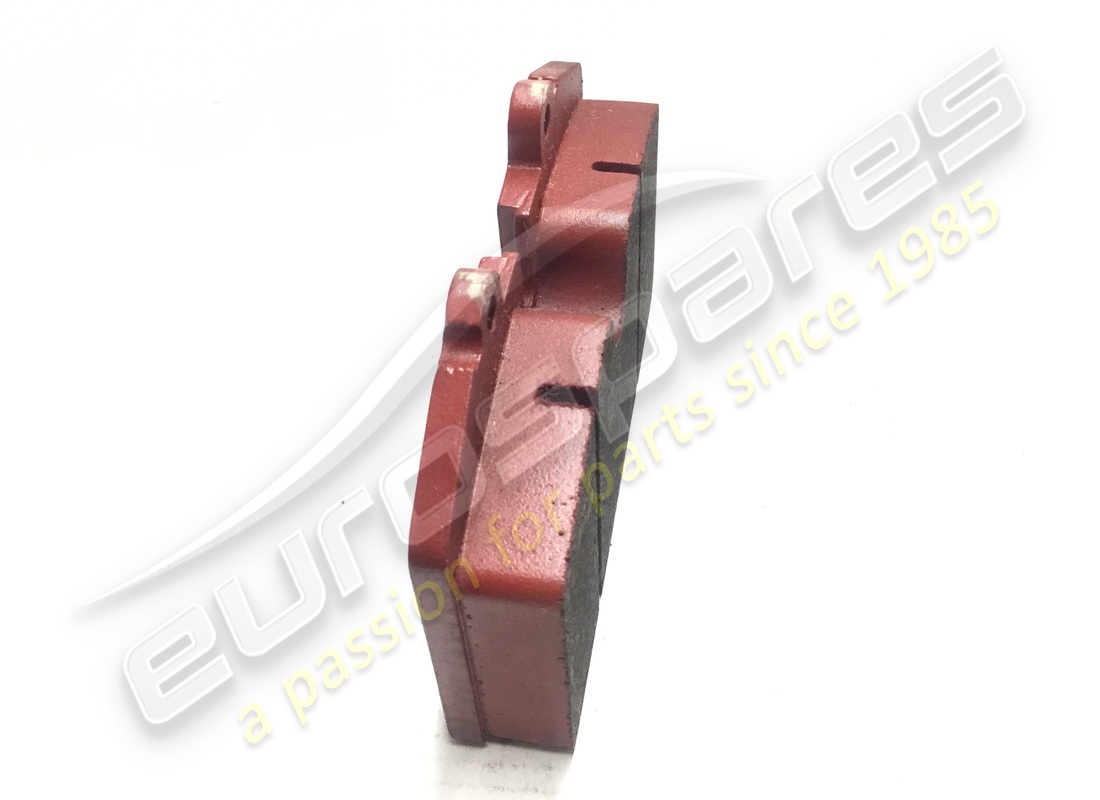

                              RH FRONT AND REAR PAD
                              (With 70000796 kit only)
                              # 006
                              MPN: 147783

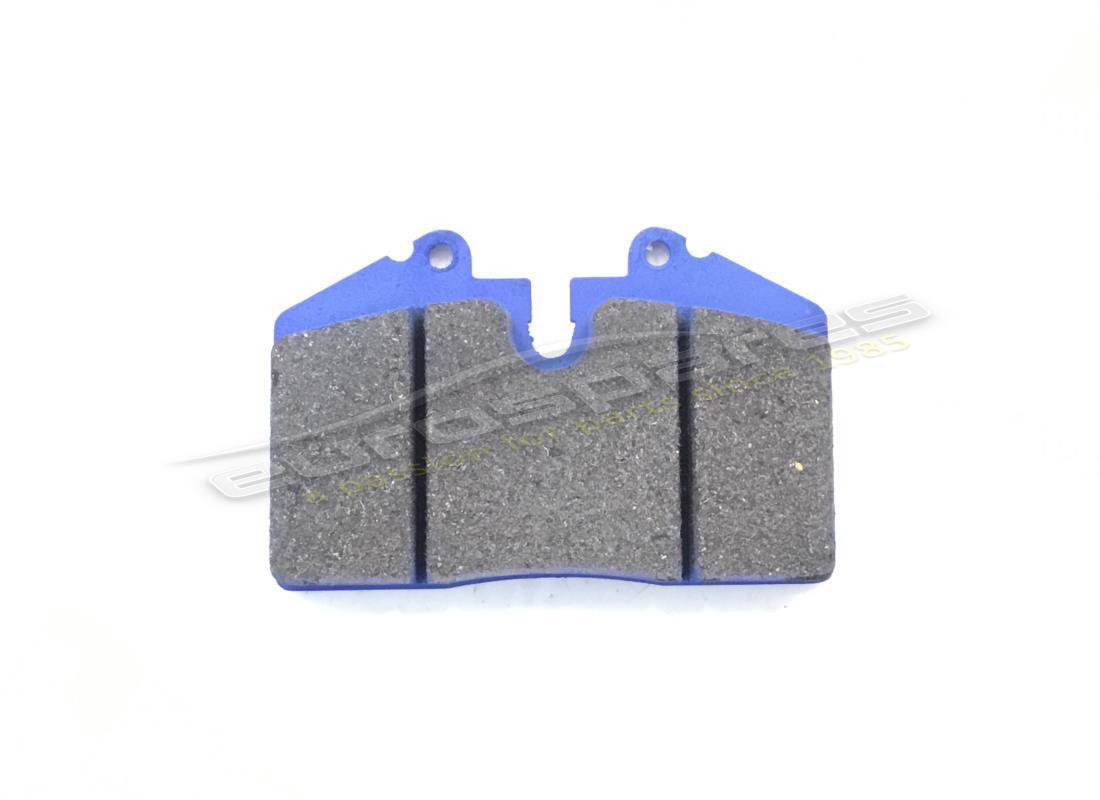

                              LH FRONT AND REAR PAD
                              (With 70000796 kit only)
                              from £114.85
                              from £114.85
                              # 007
                              MPN: 149746
                              THRUST WASHER
                              from £28.94
                              from £28.94
                              # 008
                              MPN: 150379
                              SPACER
                              from £63.14
                              from £63.14
                              # 009
                              MPN: 148729
                              DUST SEAL
                              from £5.94
                              from £5.94
                              # 010
                              MPN: 101009
                              THRUST WASHER
                              from £6.85
                              from £6.85
                              This part replaces part number 600771
                              # 011
                              MPN: 101010
                              BUSH
                              from £4.86
                              from £4.86
                              This part replaces part number 600786
                              # 012
                              MPN: 100796
                              DOWEL
                              from £2.26
                              from £2.26
                              This part replaces part number 94943
                              # 013
                              MPN: 149563
                              OUTSIDE BUSH
                              from £65.51
                              from £65.51
                              # 014
                              MPN: 148599
                              DUST SEAL
                              from £1.80
                              from £1.80
                              # 015
                              MPN: 10260160
                              WASHER
                              from £0.47
                              from £0.47
                              This part replaces part number 10260170
                              # 016
                              MPN: 113670
                              SCREW
                              from £17.58
                              from £17.58
                              This part replaces part number 113664 which we have in stock - and 7 more. Click to view details
