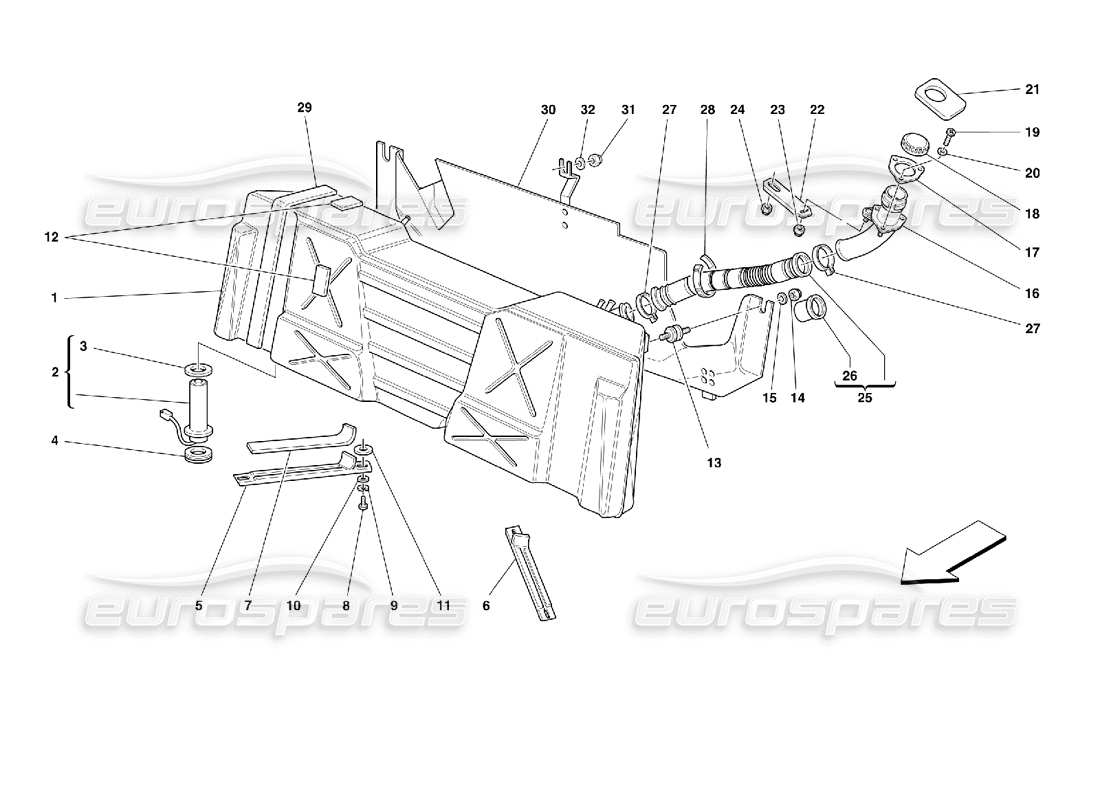

011 - FUEL TANK
Ferrari 355 (2.7 Motronic) Fuel Tank Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 149037
FUEL TANK
-Valid for cars With double FUEL pump - Valid till car Ass. Nr. 17074 - Not as spare part now - Replace with parts 157685 + 157977 + 157979 + 10441290 + 12574211 + 14496421 - See also Table 11
Supersession
Supersession
# 001
MPN: 157685

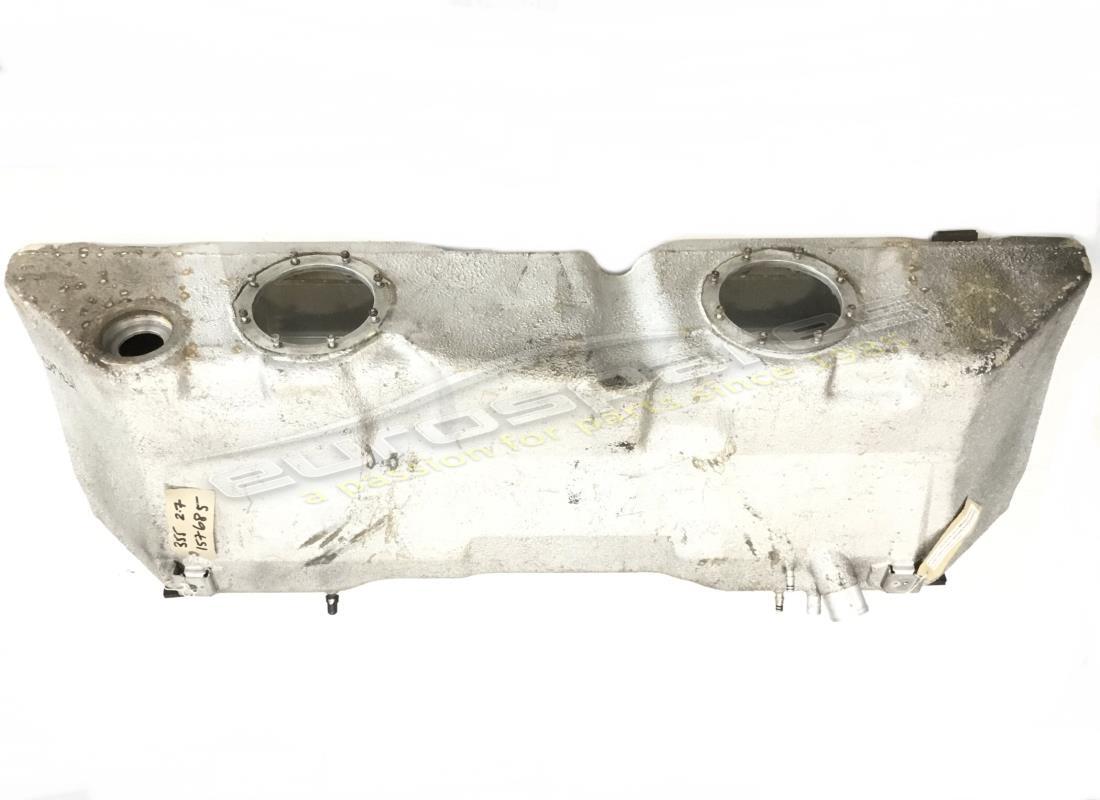

FUEL TANK
-Valid for cars With double FUEL pump - Valid from car Ass. Nr. 17075
from £2,074.92
from £2,074.92
This part replaces part number 149037 - and 1 more. Click to view details
# 001
MPN: 165652
FUEL TANK
-Valid for Cars With Single Fuel Pump
from £1,907.12
from £1,907.12
# 002
MPN: 146648
FUEL LEVEL INDICATOR CONTROL
from £414.75
from £414.75
This part replaces part number 134492 - and 2 more. Click to view details
# 003
MPN: 154802
GASKET
from £17.11
from £17.11
This part replaces part number 116792 - and 2 more. Click to view details
# 004
MPN: 121435
RING NUT
from £44.76
from £44.76
This part replaces part number 116012 - and 6 more. Click to view details
# 005
MPN: 135035
RH SUPPORT
from £14.92
from £14.92
# 006
MPN: 135036
LH SUPPORT
from £14.92
from £14.92
# 007
MPN: 125035
RUBBER THICKNESS
from £1.37
from £1.37
This part replaces part number 141261
# 008
MPN: 15970721
SCREW
from £0.47
from £0.47
# 009
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 010
MPN: 14496621
WASHER
Supersession
Supersession
# 011
MPN: 140745
SPACER WASHER MM. 2,0
from £0.67
from £0.67
# 011
MPN: 140746
SPACER WASHER MM. 3,0
from £0.47
from £0.47
# 011
MPN: 140747
SPACER WASHER MM. 4,0
from £25.22
from £25.22
# 012
MPN: 127403
RUBBER THICKNESS
from £0.58
from £0.58
# 013
MPN: 137994
ANTI-VIBRATION SUPPORT
from £22.28
from £22.28
# 014
MPN: 102742
NUT
from £0.47
from £0.47
This part replaces part number 12557621 - and 2 more. Click to view details
# 015
MPN: 12644301
WASHER
from £0.62
from £0.62
# 016
MPN: 153965
FUEL FILLER NECK
-Valid for catalyzed cars
from £145.50
from £145.50
# 016
MPN: 160719
FUEL FILLER NECK
-Valid for non-catalyzed cars
from £118.48
from £118.48
# 017
MPN: 123897
GASKET
Supersession
Supersession
# 018
MPN: 180320
FUEL CAP
from £95.00
from £95.00
# 019
MPN: 62926700
SCREW
from £0.71
from £0.71
This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
# 020
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 021
MPN: 62943200
RUBBER PROTECTION
from £14.54
from £14.54
This part replaces part number 60134202
# 022
MPN: 141507
BRACKET
from £22.03
from £22.03
# 023
MPN: 14058511
NUT
from £0.47
from £0.47
# 024
MPN: 14058411
NUT
from £0.47
from £0.47
# 025
MPN: 141066
UNION-TANK CONNECTING PIPE
from £97.52
from £97.52
# 026
MPN: 141033
GASKET
from £12.17
from £12.17
# 027
MPN: 163944
COLLAR FOR SLEEVE
-Not as spare part now - Replaced by 165398
# 027
MPN: 165398
COLLAR FOR SLEEVE
from £0.68
from £0.68
# 028
MPN: 145855
CLAMP
from £0.53
from £0.53
This part replaces part number 14560287 - and 1 more. Click to view details
# 029
MPN: 125036
RUBBER THICKNESS
from £4.11
from £4.11
# 030
MPN: 163981
SHIELD FOR TANK PROTECTION
-Valid for Cars With Double Fuel Pump
from £214.17
from £214.17
# 030
MPN: 168374
SHIELD FOR TANK PROTECTION
-Valid for Cars With Single Fuel Pump
from £141.00
from £141.00
# 031
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 032
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
