ferrari 355 (2.7 motronic) throttle holders and controls parts diagram

015 - Throttle Holders and Controls

Ferrari 355 (2.7 Motronic) Throttle Holders and Controls Parts Diagram

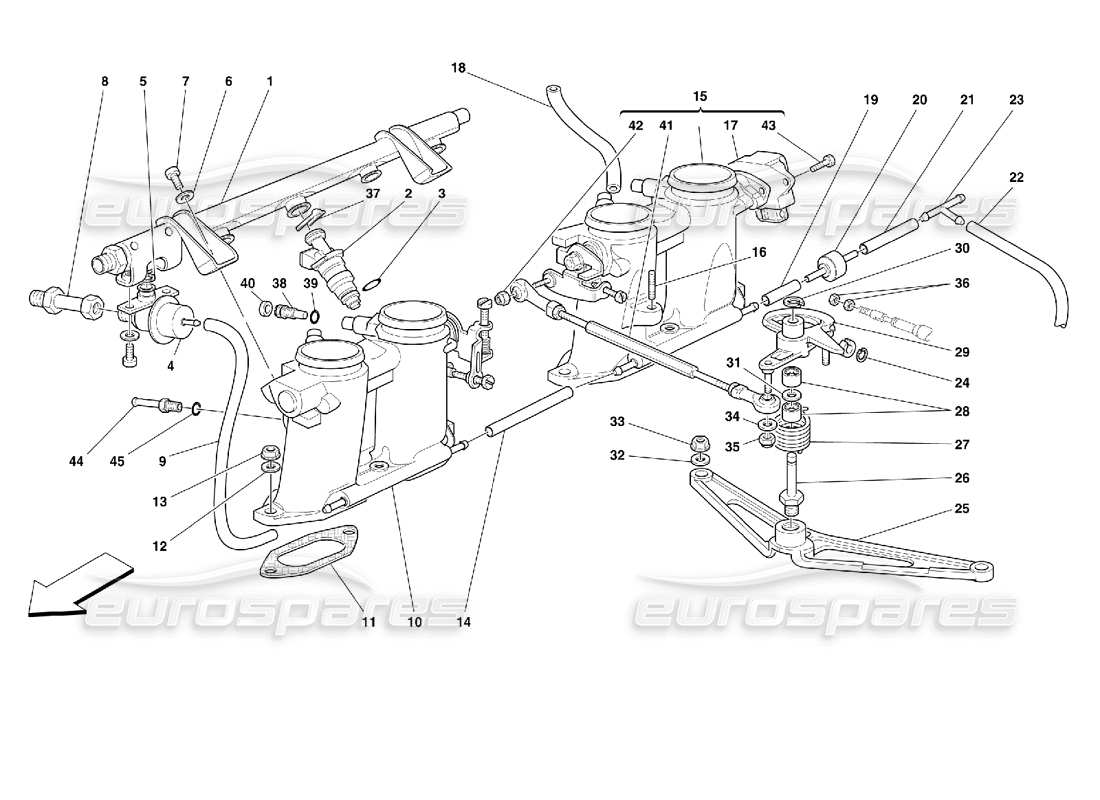

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 150221
                                                                                    RH TUBE FOR INJECTORS
                                                                                    -For F355 not as spare part - till engine Nr.42568 Replace with 171796
                                                                                    from £1,125.54
                                                                                    from £1,125.54
                                                                                    # 001
                                                                                    MPN: 171796

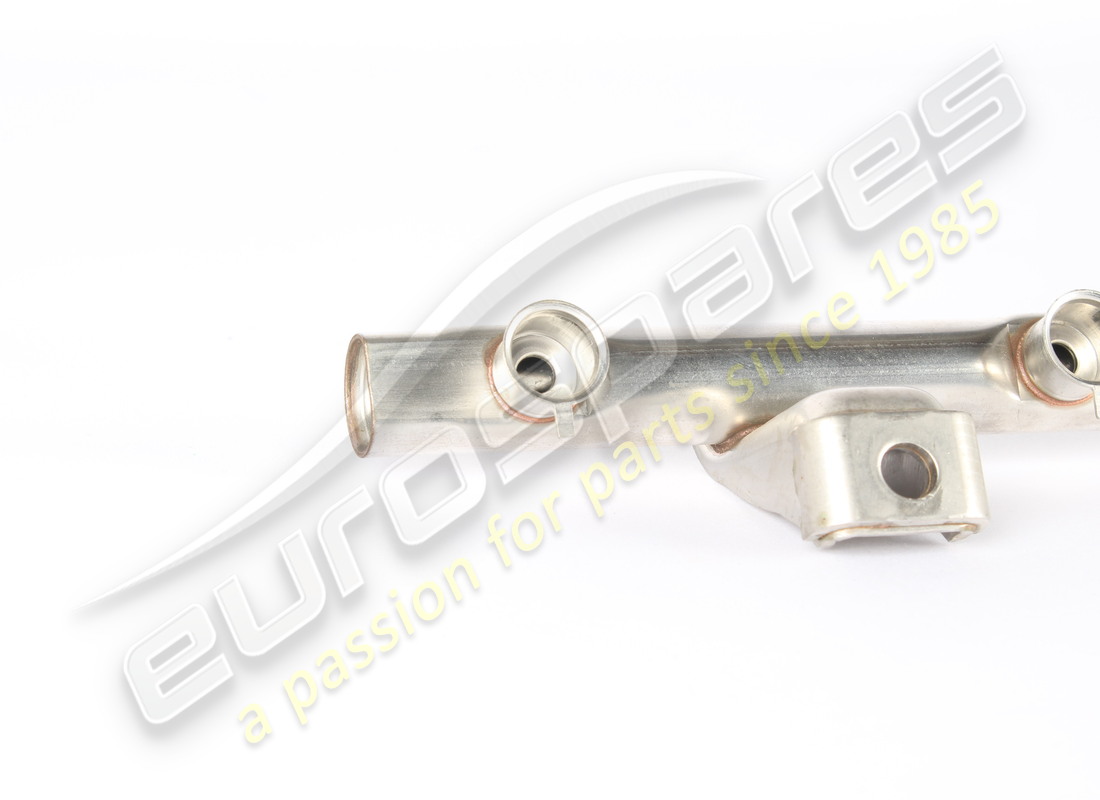

                                                                                    RH TUBE FOR INJECTORS
                                                                                    -Valid from engine Nr.42569
                                                                                    from £259.54
                                                                                    from £259.54
                                                                                    # 001
                                                                                    MPN: 171797
                                                                                    LH TUBE FOR INJECTORS
                                                                                    -Valid from engine Nr.42569
                                                                                    from £1,315.05
                                                                                    from £1,315.05
                                                                                    # 001

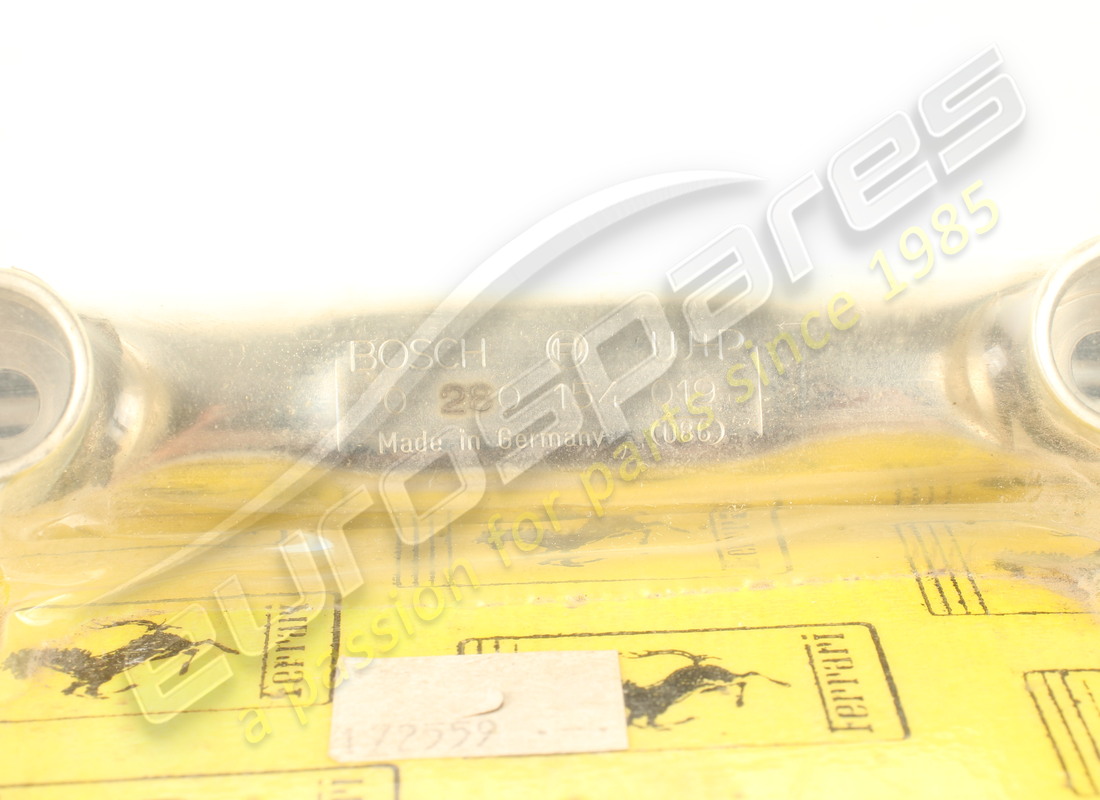

                                                                                    MPN: 172559

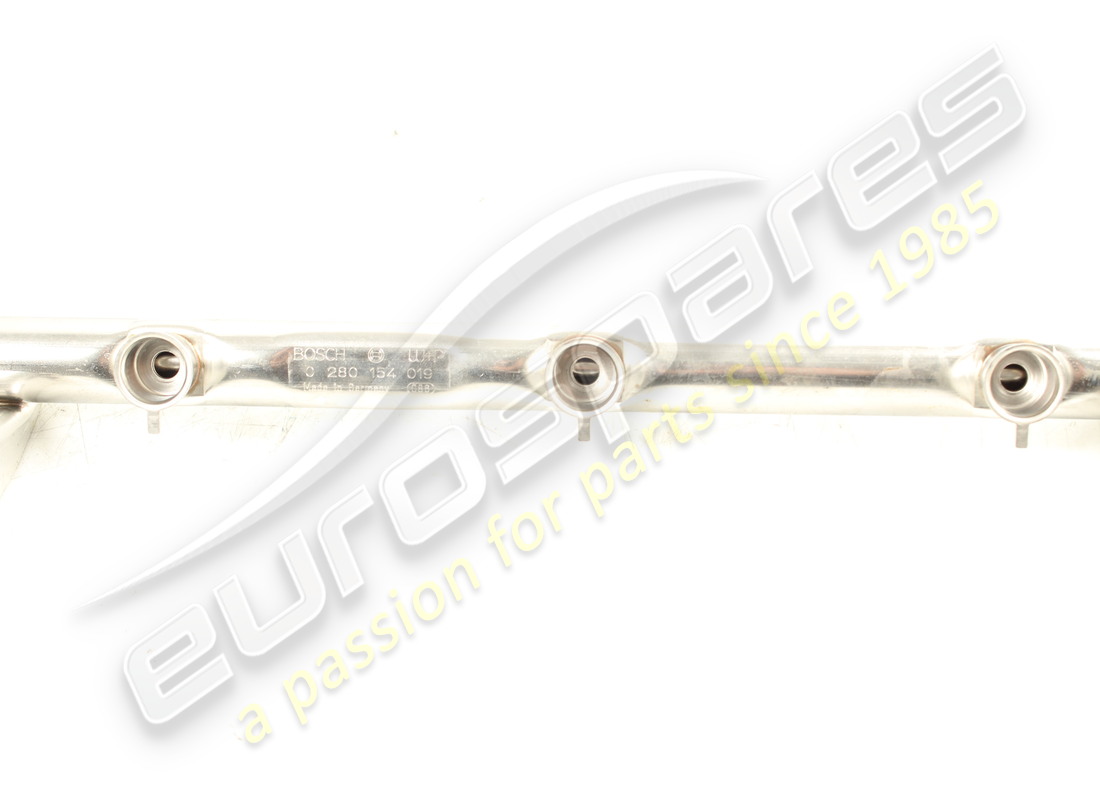

                                                                                    RH INJECTOR RAIL F355
                                                                                    from £776.10
                                                                                    from £776.10
                                                                                    This part replaces part number 150221 which we have in stock
                                                                                    # 001
                                                                                    MPN: 172560

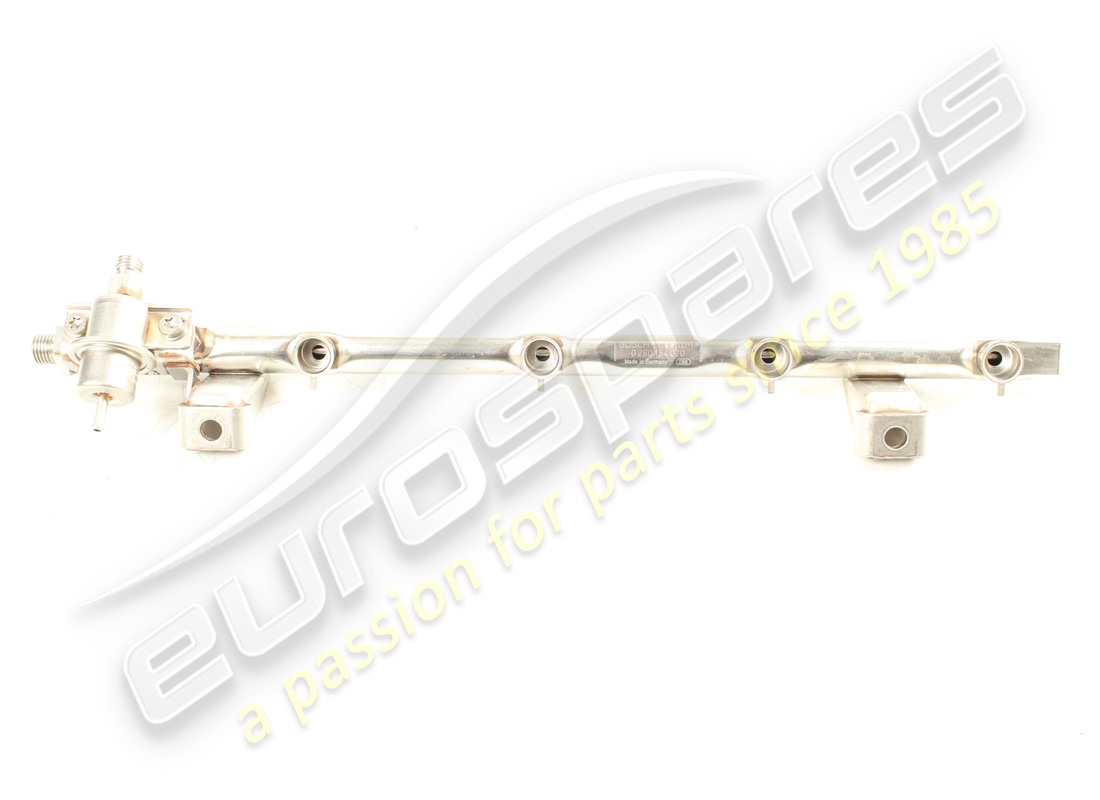

                                                                                    LH TUBE FOR INJECTORS
                                                                                    -For F355 not as spare part - till engine Nr.42568 Replace with 171797
                                                                                    from £776.10
                                                                                    from £776.10
                                                                                    This part replaces part number 150220 which we have in stock
                                                                                    # 002
                                                                                    MPN: 149316

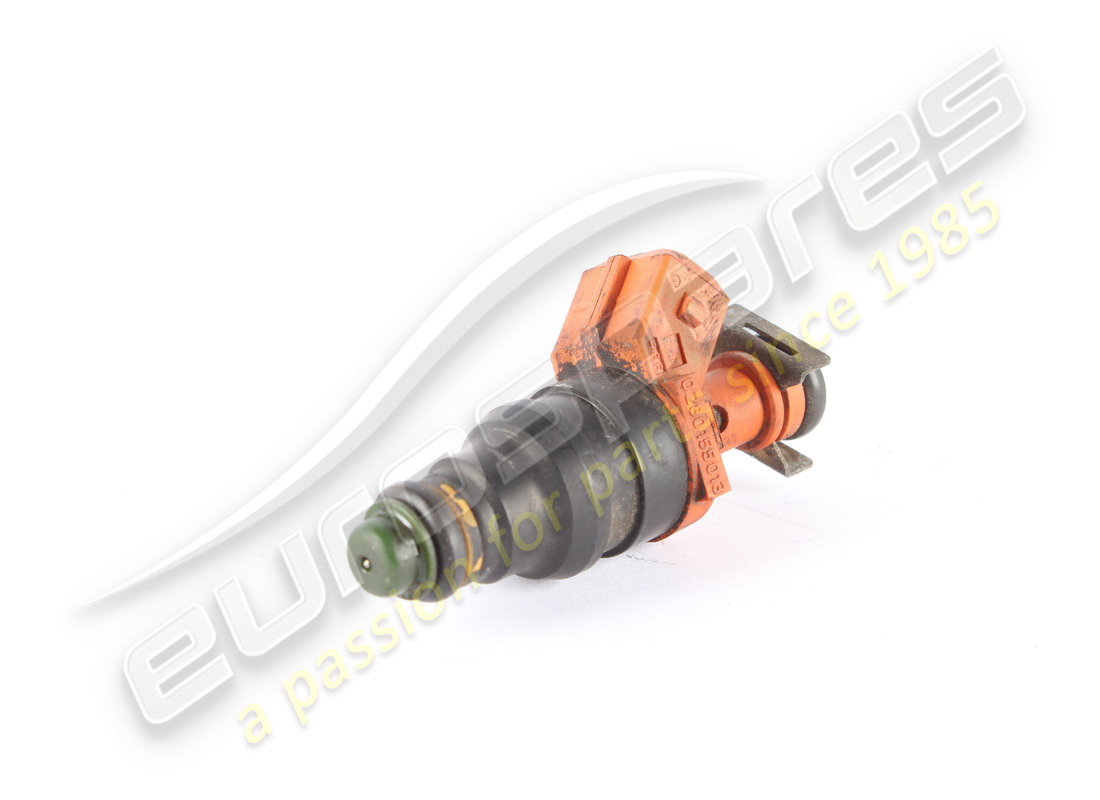

                                                                                    ELECTRO-INJECTOR
                                                                                    from £369.38
                                                                                    from £369.38
                                                                                    # 003
                                                                                    MPN: 133902
                                                                                    O.R. GASKET
                                                                                    from £3.29
                                                                                    from £3.29
                                                                                    # 004

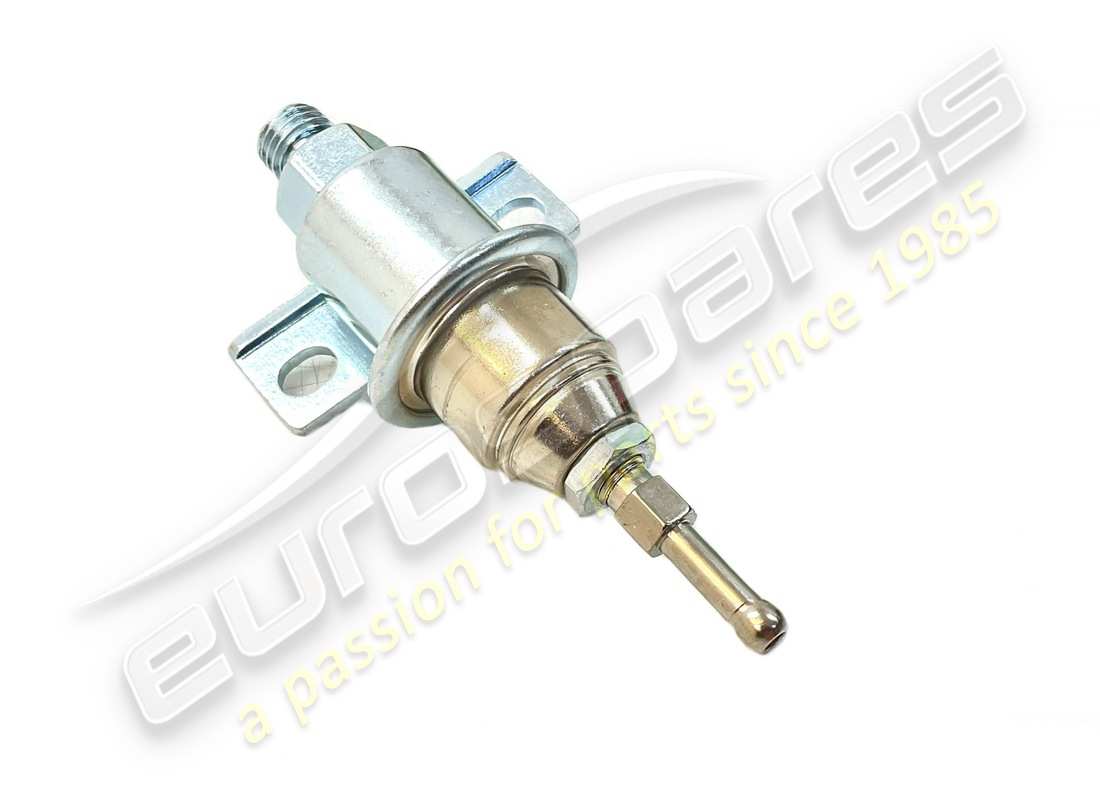

                                                                                    MPN: 148254

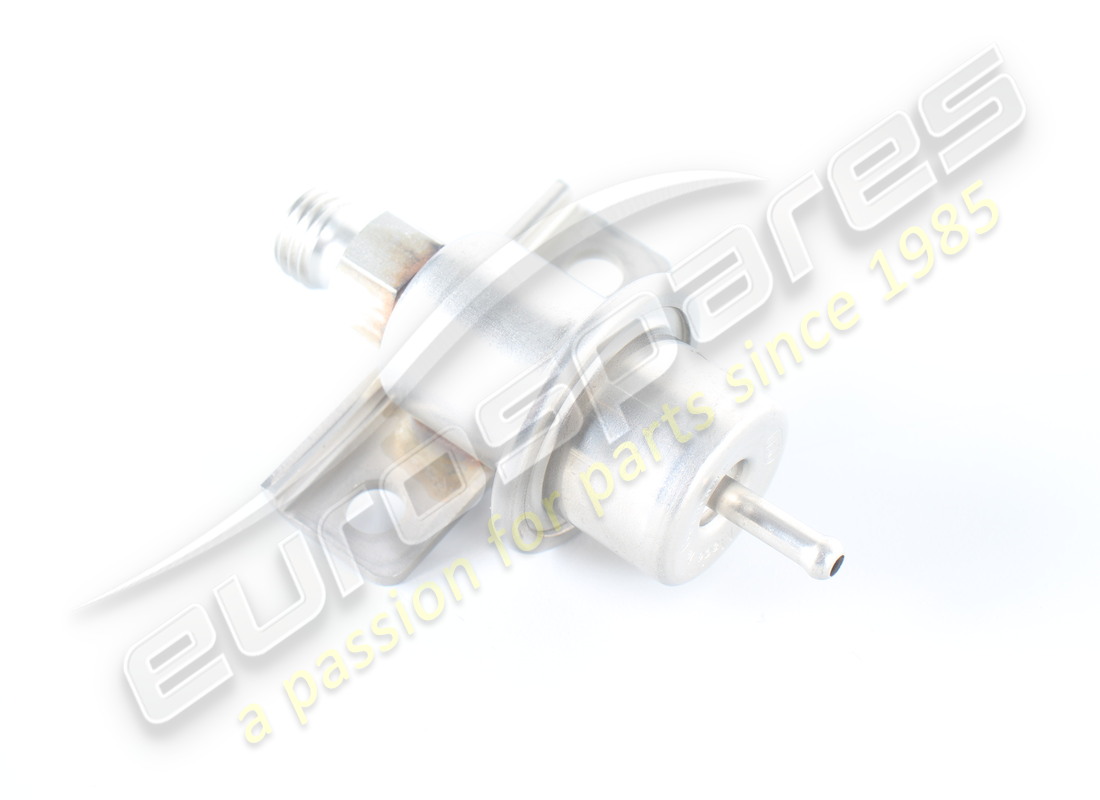

                                                                                    PRESSURE REGULATOR
                                                                                    -Valid till stock exhaustion
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 004
                                                                                    MPN: 167321

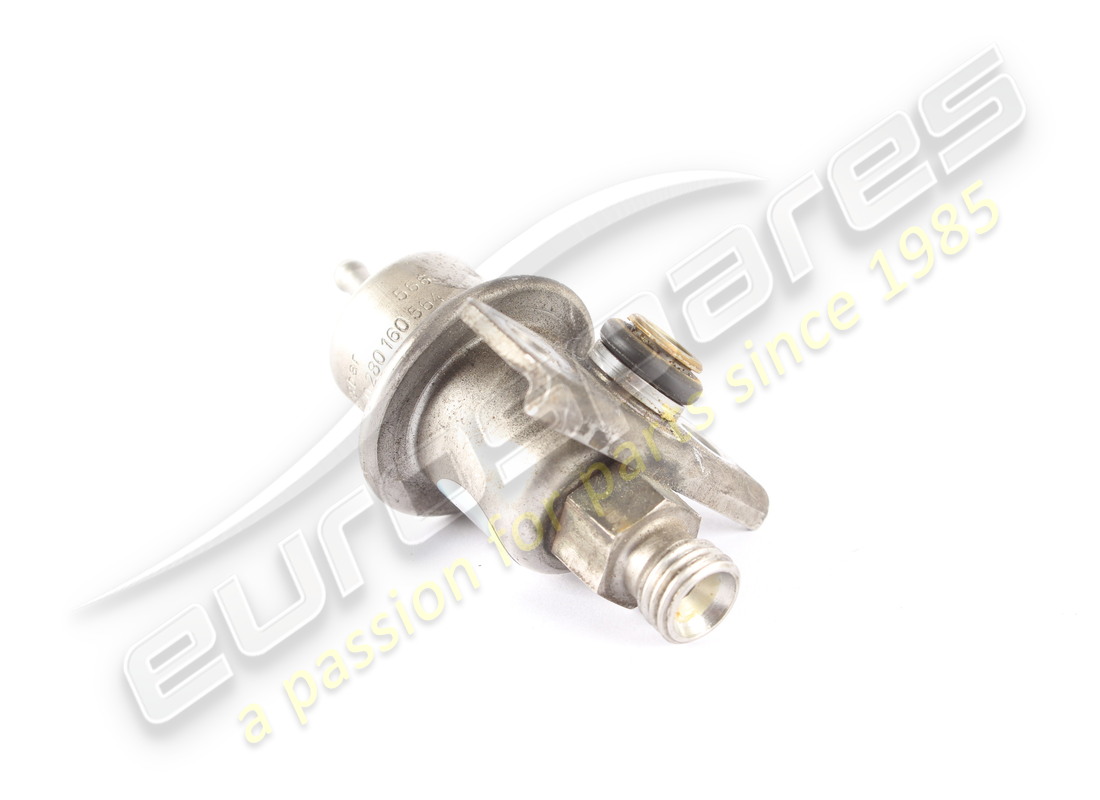

                                                                                    PRESSURE REGULATOR
                                                                                    -Valid after stock exhaustion of 148254
                                                                                    from £776.10
                                                                                    from £776.10
                                                                                    This part replaces part number 148254
                                                                                    # 005
                                                                                    MPN: 152211
                                                                                    SEAL RING
                                                                                    from £2.59
                                                                                    from £2.59
                                                                                    # 006
                                                                                    MPN: 12601374
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                    # 007
                                                                                    MPN: 14306224
                                                                                    SCREW
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 14306221 - and 1 more. Click to view details
                                                                                    # 008
                                                                                    MPN: 160552
                                                                                    RH EXTENSION
                                                                                    -Valid for cars with double fuel pump - Valid till stock exhaustion
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 008
                                                                                    MPN: 163120

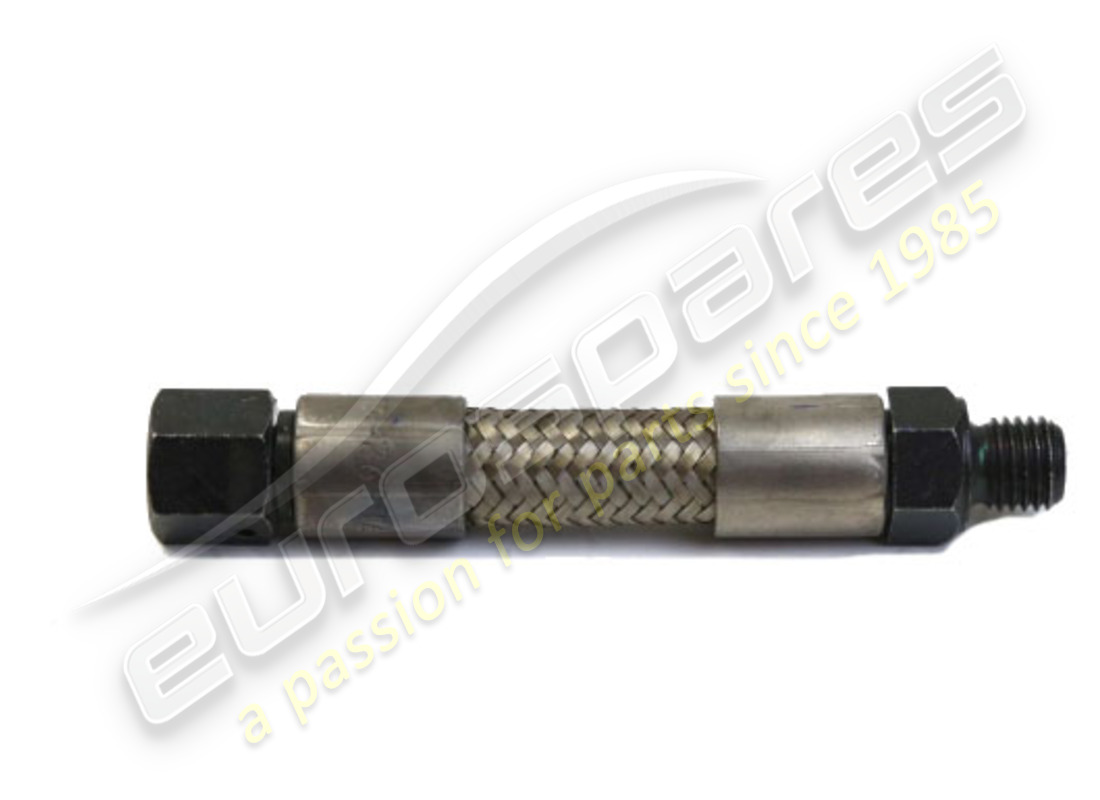

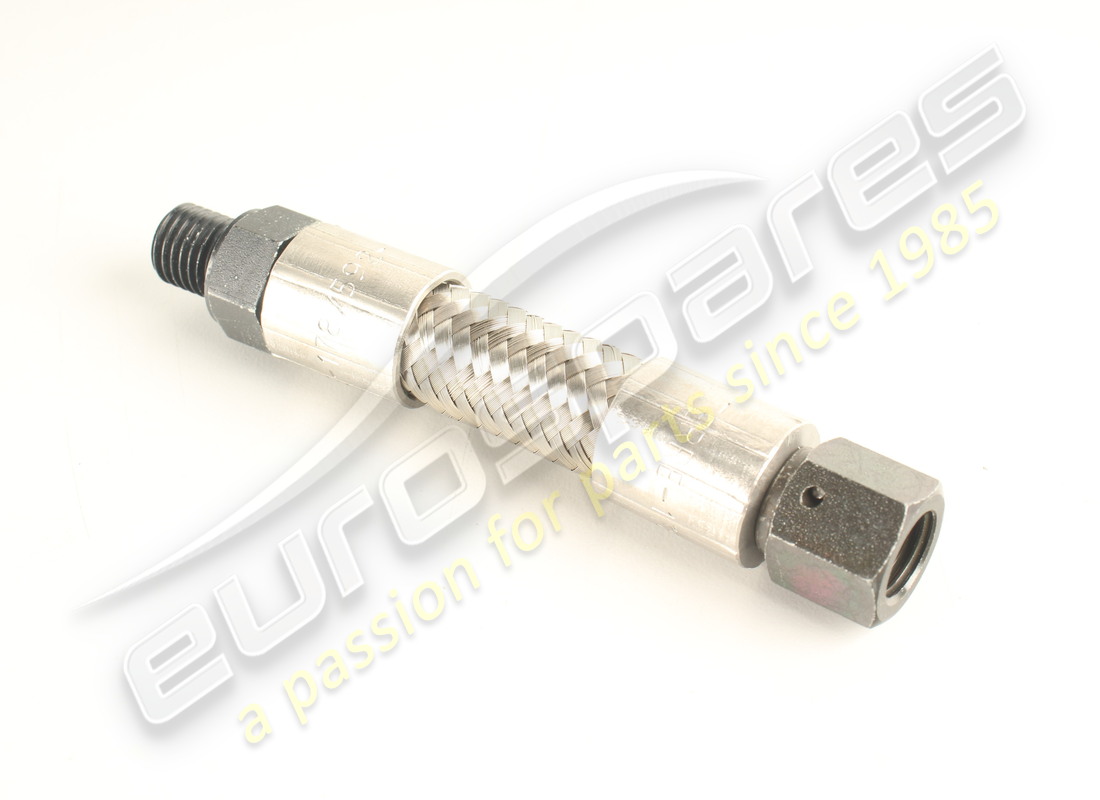

                                                                                    LH FLEXIBLE EXTENSION
                                                                                    -Valid for Cars With Double Fuel Pump
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 008
                                                                                    MPN: 177787
                                                                                    RH EXTENSION
                                                                                    -Valid for cars with double fuel pump - Valid after stock exhaustion of 160522
                                                                                    from £159.71
                                                                                    from £159.71
                                                                                    This part replaces part number 160552
                                                                                    # 008
                                                                                    MPN: 178592
                                                                                    LH FLEXIBLE EXTENSION
                                                                                    from £192.14
                                                                                    from £192.14
                                                                                    This part replaces part number 163120
                                                                                    # 009
                                                                                    MPN: 159539
                                                                                    PIPE TO MANIFOLD
                                                                                    from £2.64
                                                                                    from £2.64
                                                                                    # 010
                                                                                    MPN: 150526
                                                                                    RH FRONT SUCTION MANIFOLD
                                                                                    from £711.67
                                                                                    from £711.67
                                                                                    # 010
                                                                                    MPN: 150527
                                                                                    LH FRONT SUCTION MANIFOLD
                                                                                    from £472.50
                                                                                    from £472.50
                                                                                    # 011
                                                                                    MPN: 152055

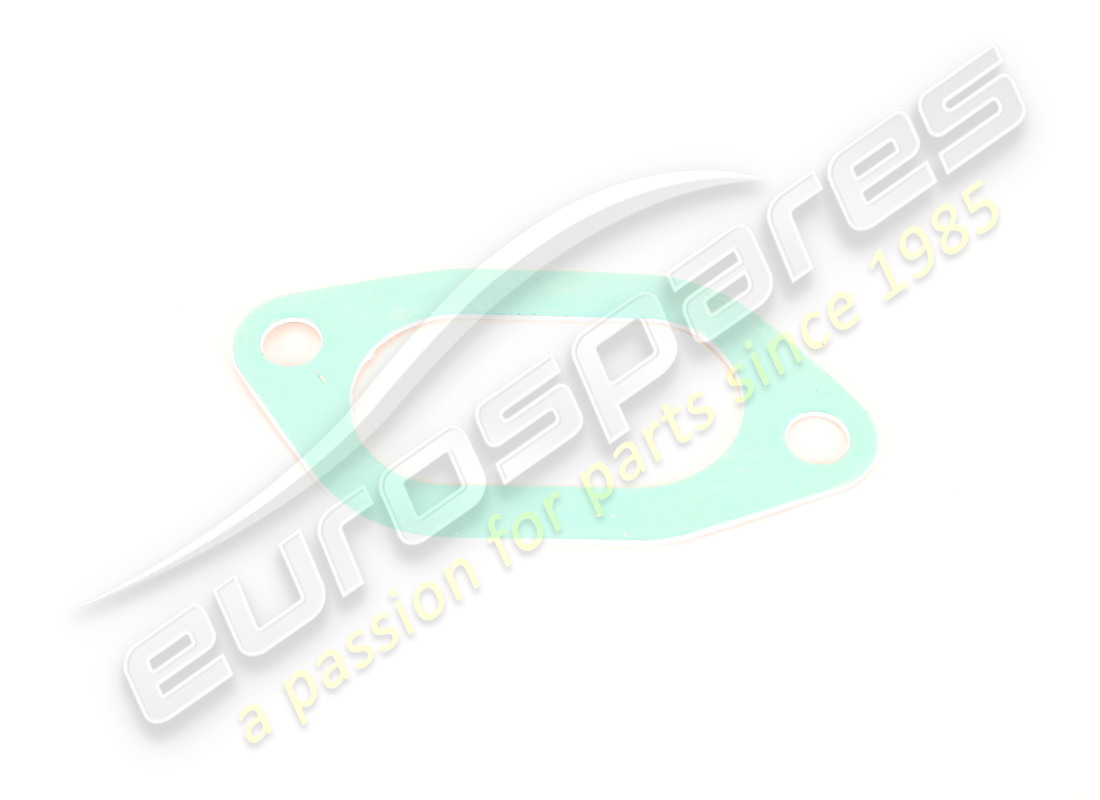

                                                                                    GASKET
                                                                                    from £1.50
                                                                                    from £1.50
                                                                                    # 012
                                                                                    MPN: 12601374
                                                                                    WASHER
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                    # 013
                                                                                    MPN: 150978
                                                                                    NUT
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 014
                                                                                    MPN: 159540
                                                                                    PIPE
                                                                                    from £19.83
                                                                                    from £19.83
                                                                                    # 015
                                                                                    MPN: 150528
                                                                                    COMPLETE RH REAR SUCTION MANIFOLD
                                                                                    from £557.72
                                                                                    from £557.72
                                                                                    # 015
                                                                                    MPN: 150529
                                                                                    COMPLETE LH REAR SUCTION MANIFOLD
                                                                                    from £664.95
                                                                                    from £664.95
                                                                                    # 016
                                                                                    MPN: 13516824
                                                                                    STUD
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 13516821
                                                                                    # 017
                                                                                    MPN: 158170
                                                                                    POTENTIOMETER FOR THROTTLE VALVE
                                                                                    from £129.77
                                                                                    from £129.77
                                                                                    This part replaces part number 142434 which we have in stock - and 1 more. Click to view details
                                                                                    # 018
                                                                                    MPN: 114877
                                                                                    PIPE TO LOWER SUCTION COVER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 106201 - and 2 more. Click to view details
                                                                                    # 018
                                                                                    MPN: 159538
                                                                                    PIPE TO LOWER SUCTION COVER
                                                                                    -Valid till stock exhaustion
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 019
                                                                                    MPN: 159541
                                                                                    PIPE TO NON-RETURN VALVE
                                                                                    from £6.09
                                                                                    from £6.09
                                                                                    This part replaces part number 121831 - and 1 more. Click to view details
                                                                                    # 020
                                                                                    MPN: 62507200
                                                                                    NON-RETURN VALVE
                                                                                    from £15.09
                                                                                    from £15.09
                                                                                    This part replaces part number 61653800
                                                                                    # 021
                                                                                    MPN: 159541
                                                                                    PIPE TO 3-WAY UNION
                                                                                    from £6.09
                                                                                    from £6.09
                                                                                    This part replaces part number 121831 - and 1 more. Click to view details
                                                                                    # 022
                                                                                    MPN: 159542
                                                                                    PIPE TO 3-WAY UNION
                                                                                    from £2.26
                                                                                    from £2.26
                                                                                    This part replaces part number 264424
                                                                                    # 023
                                                                                    MPN: 121793
                                                                                    3-WAY UNION
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 024
                                                                                    MPN: 11087974
                                                                                    FLEXIBLE RING
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 11087976
                                                                                    # 025
                                                                                    MPN: 157171
                                                                                    SUPPORT
                                                                                    from £19.20
                                                                                    from £19.20
                                                                                    SUPPORT Genuine Ferrari Part - Used In stock
                                                                                    Removed from 355 (5.2) engine number 48537
                                                                                    # 026
                                                                                    MPN: 160462
                                                                                    PIN
                                                                                    from £11.94
                                                                                    from £11.94
                                                                                    PIN Genuine Ferrari Part - Used In stock
                                                                                    Removed from 355 (5.2) engine number 48537
                                                                                    # 027
                                                                                    MPN: 160535
                                                                                    SPRING
                                                                                    from £2.33
                                                                                    from £2.33
                                                                                    SPRING Genuine Ferrari Part - Used In stock
                                                                                    Removed from 355 (5.2) engine number 48537
                                                                                    # 028
                                                                                    MPN: 132873
                                                                                    BEARING
                                                                                    from £2.64
                                                                                    from £2.64
                                                                                    # 029
                                                                                    MPN: 161826
                                                                                    ACCELERATOR CONTROL TRANSMISSION LEVER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 030
                                                                                    MPN: 11065676
                                                                                    SEEGER RING
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                    # 031
                                                                                    MPN: 136880
                                                                                    SPACER
                                                                                    from £16.98
                                                                                    from £16.98
                                                                                    # 032
                                                                                    MPN: 12601374
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                    # 033
                                                                                    MPN: 101139
                                                                                    NUT
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 16104425
                                                                                    # 034
                                                                                    MPN: 14497801
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 035
                                                                                    MPN: 113647
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 036
                                                                                    MPN: 10725011
                                                                                    NUT
                                                                                    from £0.91
                                                                                    from £0.91
                                                                                    # 037
                                                                                    MPN: 144763
                                                                                    INJECTORS RETAINING CLIP
                                                                                    from £2.76
                                                                                    from £2.76
                                                                                    # 038
                                                                                    MPN: 166484
                                                                                    BY-PASS SCREW
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 039
                                                                                    MPN: 166485
                                                                                    GASKET
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 162738
                                                                                    # 040
                                                                                    MPN: 166486
                                                                                    SAFETY PLUG
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 115650 which we have in stock - and 1 more. Click to view details
                                                                                    # 041
                                                                                    MPN: 166488
                                                                                    COMPLETE TIE ROD
                                                                                    from £291.66
                                                                                    from £291.66
                                                                                    # 042
                                                                                    MPN: 166506
                                                                                    TIE ROD FIXING NUT
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 043
                                                                                    MPN: 166507
                                                                                    POTENTIOMETER FIXING SCREW
                                                                                    # 044
                                                                                    MPN: 168100
                                                                                    UNION
                                                                                    from £52.58
                                                                                    from £52.58
                                                                                    # 045
                                                                                    MPN: 168105
                                                                                    O.R. GASKET
                                                                                    from £0.76
                                                                                    from £0.76
                                                                                    This part replaces part number 162737
