032 - Outside Gearbox Controls

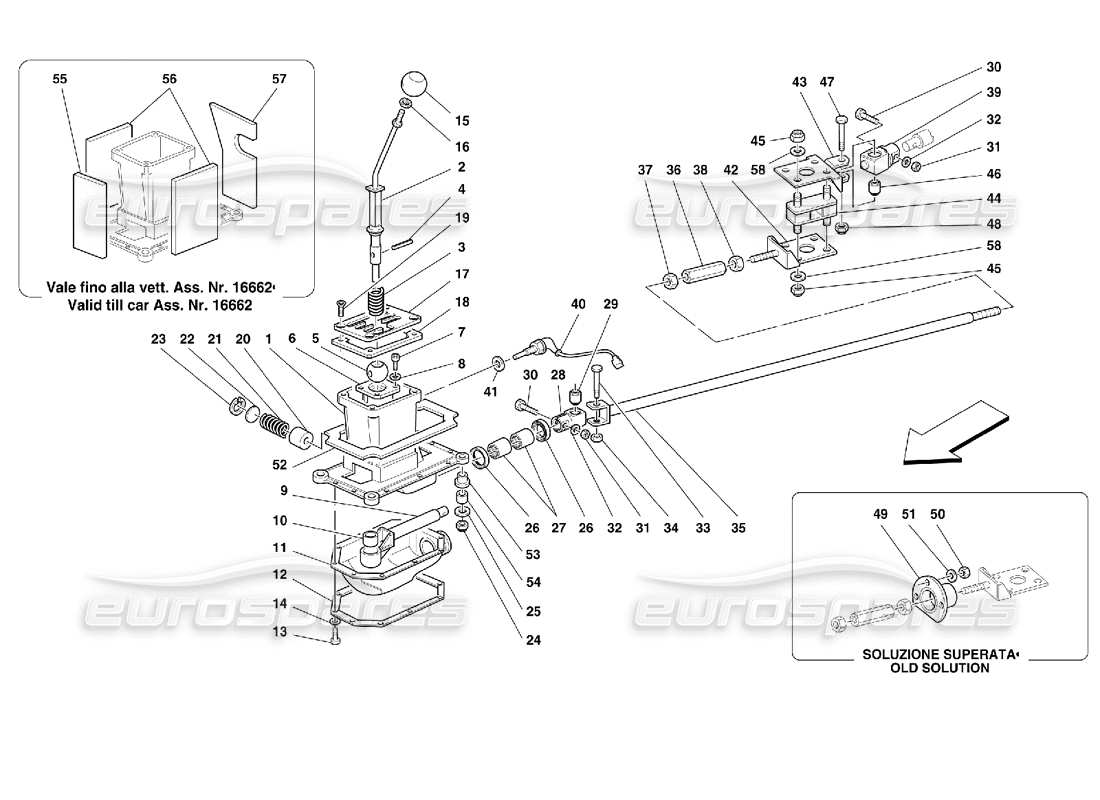

Ferrari 355 (2.7 Motronic) Outside Gearbox Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 154736
GEARBOX CONTROL CASE
-Not for GD - Valid till car Ass. Nr. 16662 - Not as spare part now - Replaced by 154771
# 001
MPN: 154771
GEARBOX CONTROL CASE
-Not for GD - Valid from car Ass. Nr. 16663
from £398.29
from £398.29
# 001
MPN: 163800
GEARBOX CONTROL CASE
-Valid for GD
from £603.84
from £603.84
# 002
MPN: 163169
GEARBOX CONTROL LEVER
-Not for GD
from £855.89
from £855.89
# 002
MPN: 163801
GEARBOX CONTROL LEVER
-Valid for GD
from £240.09
from £240.09
# 003
MPN: 159137

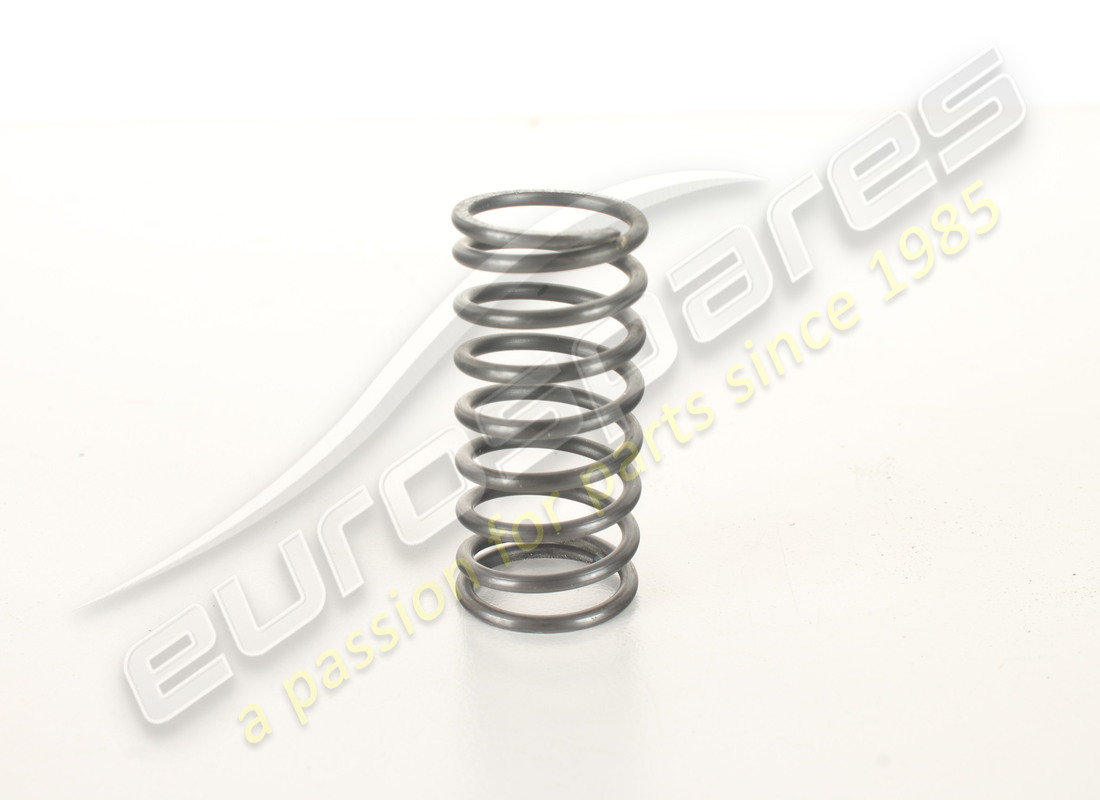

SPRING
from £81.60
from £81.60
This part replaces part number 147561
# 004
MPN: 146994
DOWEL BOLT
from £20.02
from £20.02
# 005
MPN: 154745
BALL
from £169.50
from £169.50
# 006
MPN: 154741
BALL CONTAINING BUSHING
from £23.28
from £23.28
# 007
MPN: 14303024
SCREW
from £0.51
from £0.51
This part replaces part number 14303021 - and 1 more. Click to view details
# 008
MPN: 161011
WASHER
from £0.47
from £0.47
This part replaces part number 12605176
# 009
MPN: 154737
GEARBOX CONTROL TRANSMISSION ROD
from £196.23
from £196.23
# 010
MPN: 127446
BALL JOINT SEAT
from £8.19
from £8.19
This part replaces part number 104316 - and 3 more. Click to view details
# 011
MPN: 154738
RUBBER BOOT
-Valid till stock exhaustion
Supersession
Supersession
# 011
MPN: 165618
RUBBER BOOT
-Valid after stock exhaustion of 154738
from £73.16
from £73.16
This part replaces part number 154738
# 012
MPN: 151331

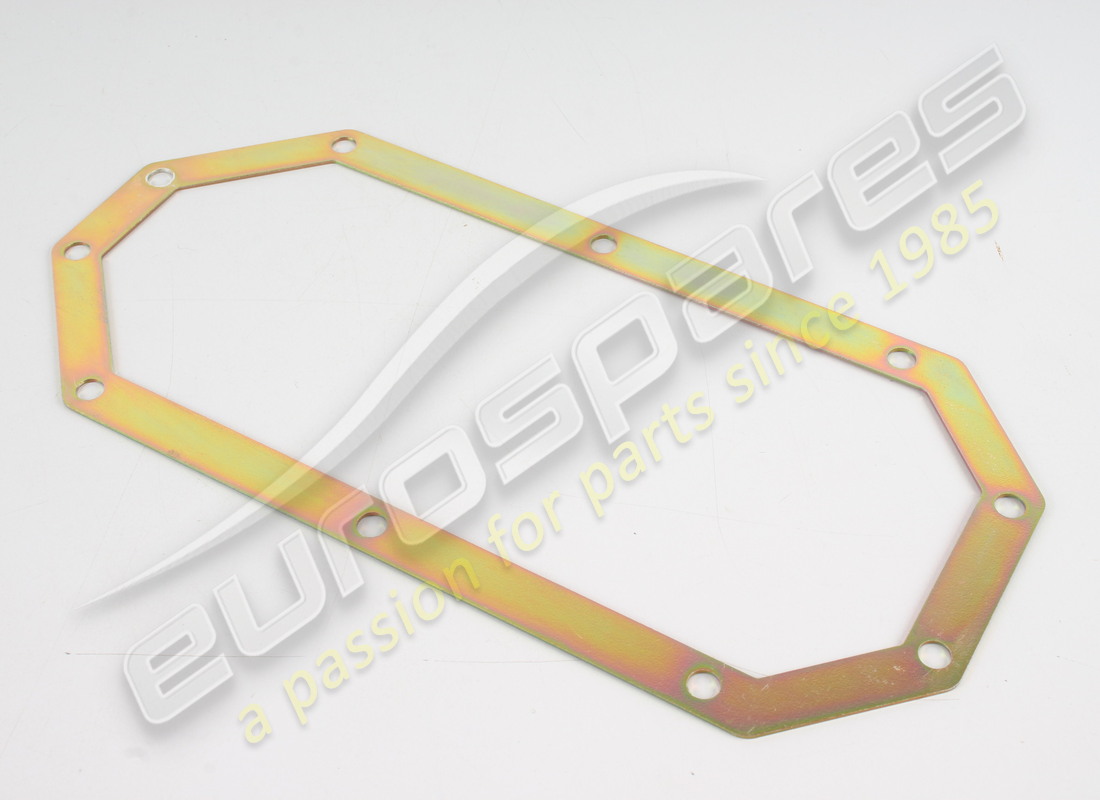

REINFORCEMENT PLATE
-Valid for gearbox CONTROL case 154736 - Not for GD
from £6.91
from £6.91
# 012
MPN: 151331
REINFORCEMENT PLATE
-Valid for GD
from £6.91
from £6.91
# 012
MPN: 163855
REINFORCEMENT PLATE
-Valid for gearbox CONTROL case 154771 - Not for GD
from £14.63
from £14.63
# 013
MPN: 13273911
SCREW
from £0.48
from £0.48
# 014
MPN: 127493
WASHER
from £0.48
from £0.48
This part replaces part number 106849 - and 1 more. Click to view details
# 015
MPN: 160480
GEAR KNOB
from £88.00
from £88.00
# 015
MPN: 160480/B
GEAR KNOB
from £65.00
from £65.00
# 016
MPN: 108010
COUNTER NUT
from £5.46
from £5.46
This part replaces part number 103312 - and 1 more. Click to view details
# 017
MPN: 152072

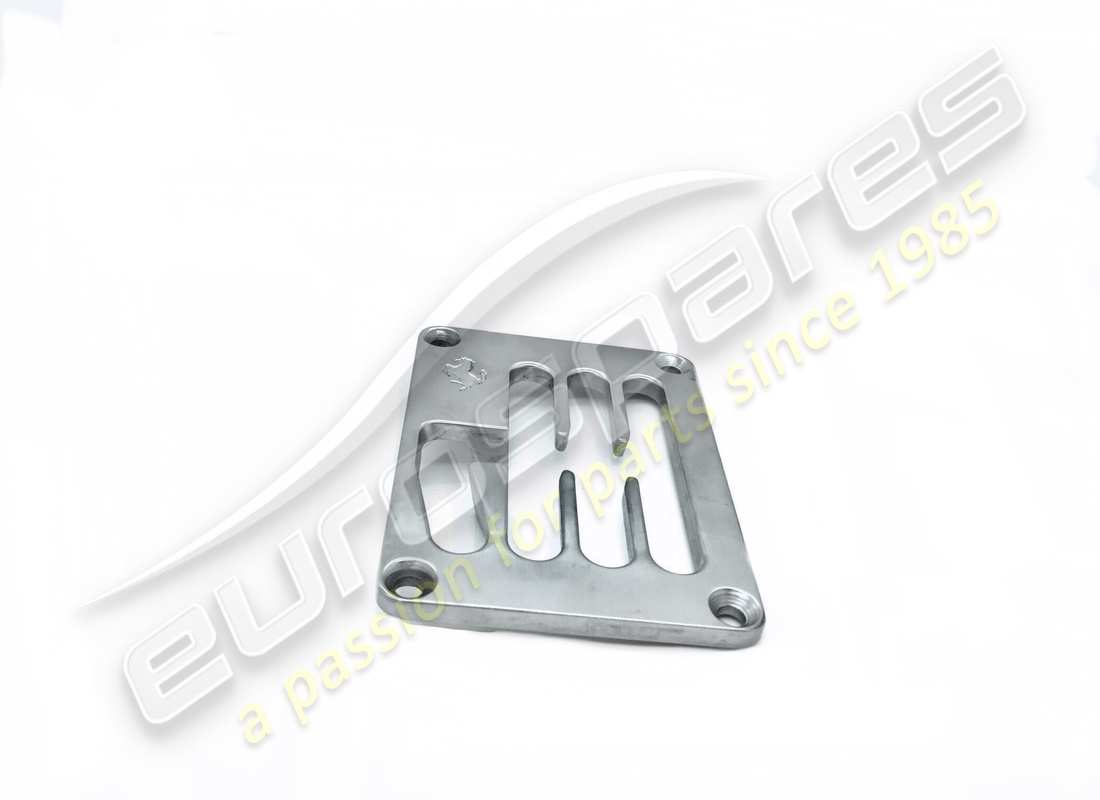

GEAR SELECTOR
from £589.66
from £589.66
# 018
MPN: 159389
GASKET
from £79.64
from £79.64
# 019
MPN: 159357
SCREW
from £2.47
from £2.47
# 020
MPN: 154744
PIN
from £70.96
from £70.96
# 021
MPN: 147790
SPRING
from £10.59
from £10.59
# 022
MPN: 103319
SPRING RETAINING DISC
from £5.51
from £5.51
This part replaces part number 522515 - and 2 more. Click to view details
# 023
MPN: 103326
SEEGER RING
from £0.26
from £0.26
# 024
MPN: 101139
NUT
from £0.47
from £0.47
This part replaces part number 16104425
# 025
MPN: 107409
WASHER
from £1.23
from £1.23
# 026
MPN: 145773
GASKET
from £3.70
from £3.70
# 027
MPN: 149907
BUSHING
from £18.11
from £18.11
This part replaces part number 143775 - and 1 more. Click to view details
# 028
MPN: 159427
BUSH WITH JOINT
from £206.04
from £206.04
# 029
MPN: 139555
SILENTBLOCK
from £42.96
from £42.96
This part replaces part number 106814
# 030
MPN: 125515
SCREW
from £10.64
from £10.64
# 031
MPN: 12574211
NUT
from £0.71
from £0.71
# 032
MPN: 125516
WASHER
from £2.53
from £2.53
# 033
MPN: 107830
SCREW
from £2.41
from £2.41
# 034
MPN: 101309
NUT
from £0.93
from £0.93
# 035
MPN: 163518
FRONT CONTROL BAR FOR GEARBOX
from £242.54
from £242.54
# 036
MPN: 103321
REGISTER
Supersession
Supersession
This part replaces part number 521362
# 037
MPN: 10791221
NUT
from £1.89
from £1.89
# 038
MPN: 10791921
LH THREADED NUT
Supersession
Supersession
# 039
MPN: 159448
BUSH WITH JOINT
from £154.06
from £154.06
# 040
MPN: 115980
PUSH-BUTTON SWITCH
Supersession
Supersession
This part replaces part number 104320
# 041
MPN: 12601579
WASHER
from £14.89
from £14.89
# 042
MPN: 163522
FRONT PART REAR CONTROL BAR FOR GEARBOX
from £59.99
from £59.99
# 043
MPN: 163526
REAR PART REAR CONTROL BAR FOR GEARBOX
from £164.34
from £164.34
# 044
MPN: 163525
BAR BUFFER
from £49.17
from £49.17
# 045
MPN: 14058519
NUT
from £0.51
from £0.51
# 046
MPN: 139555
SILENTBLOCK
from £42.96
from £42.96
This part replaces part number 106814
# 047
MPN: 107830
SCREW
from £2.41
from £2.41
# 048
MPN: 101309
NUT
from £0.93
from £0.93
# 049
MPN: 160872
FLANGED TUBE
-For F355 Not as spare part
# 050
MPN: 12574221
NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 051
MPN: 14496421
WASHER
Supersession
Supersession
# 052
MPN: 163986
GASKET
from £8.65
from £8.65
# 053
MPN: 163128
ANTI-VIBRATIONS BUSHING
from £5.94
from £5.94
# 054
MPN: 107980
SPACER
from £1.56
from £1.56
# 055
MPN: 163213
FRONT SIDE SILENCER
-Valid for gearbox CONTROL case 154736
from £54.36
from £54.36
# 056
MPN: 163215
LATERAL SILENCER
-Valid for gearbox CONTROL case 154736
from £54.36
from £54.36
# 057
MPN: 163214
REAR SIDE SILENCER
-Valid for gearbox CONTROL case 154736
from £54.36
from £54.36
# 058
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
-part-diagram-033.webp "FERRARI 355 (2.7 MOTRONIC) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC SYSTEM FOR ABS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 355 (2.7 MOTRONIC) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 355 (2.7 MOTRONIC) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING BOX PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 355 (2.7 MOTRONIC) MECHANICAL STEERING BOX PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 355 (2.7 MOTRONIC) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING PUMP PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 355 (2.7 MOTRONIC) WHEELS PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 355 (2.7 MOTRONIC) CURRENT GENERATOR - STARTING MOTOR - BATTERY PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING COMPRESSOR PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 355 (2.7 MOTRONIC) TOOLS EQUIPMENT PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 355 (2.7 MOTRONIC) SPARE WHEEL AND EQUIPMENT - OPTIONAL- PARTS DIAGRAM")
-part-diagram-100.webp "FERRARI 355 (2.7 MOTRONIC) BODY - GENERAL UNITS PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 355 (2.7 MOTRONIC) BODY - UNITS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 355 (2.7 MOTRONIC) FRONT PART STRUCTURES PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 355 (2.7 MOTRONIC) CENTRAL PART STRUCTURES PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 355 (2.7 MOTRONIC) FRAME - REAR PART ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 355 (2.7 MOTRONIC) ROOF - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 355 (2.7 MOTRONIC) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 355 (2.7 MOTRONIC) BODY - SHIELDS AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 355 (2.7 MOTRONIC) FRONT COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 355 (2.7 MOTRONIC) TOP PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 355 (2.7 MOTRONIC) TOP HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 355 (2.7 MOTRONIC) FRONT HOOD PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICE FOR FRONT HOOD PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 355 (2.7 MOTRONIC) REAR HOOD PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICES FOR REAR HOOD AND GAS DOOR PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - FRAMEWORK AND REAR MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - GLASS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - INNER TRIMS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 355 (2.7 MOTRONIC) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 355 (2.7 MOTRONIC) REAR BUMPER PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 355 (2.7 MOTRONIC) GLASSES AND GASKETS PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 355 (2.7 MOTRONIC) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-132.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-133.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-134.webp "FERRARI 355 (2.7 MOTRONIC) AIR-BAGS PARTS DIAGRAM")
-part-diagram-135.webp "FERRARI 355 (2.7 MOTRONIC) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-136.webp "FERRARI 355 (2.7 MOTRONIC) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-137.webp "FERRARI 355 (2.7 MOTRONIC) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-138.webp "FERRARI 355 (2.7 MOTRONIC) WINDSHIELD WIPER AND CONTROLS PARTS DIAGRAM")
-part-diagram-139.webp "FERRARI 355 (2.7 MOTRONIC) GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-140.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-141.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS - PASSENGERS COMPARTMENT PARTS DIAGRAM")
-part-diagram-142.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS AND DEVICES - FRONT PART PARTS DIAGRAM")
-part-diagram-143.webp "FERRARI 355 (2.7 MOTRONIC) EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATION PARTS DIAGRAM")
-part-diagram-144.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 355 (2.7 MOTRONIC) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 355 (2.7 MOTRONIC) CRANKSHAFT, CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 355 (2.7 MOTRONIC) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 355 (2.7 MOTRONIC) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - TAPPETS AND SHIELDS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 355 (2.7 MOTRONIC) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 355 (2.7 MOTRONIC) AIR INJECTION DEVICE PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 355 (2.7 MOTRONIC) FUEL TANK PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 355 (2.7 MOTRONIC) ANTIEVAPORATION DEVICE PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 355 (2.7 MOTRONIC) AIR BOXES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 355 (2.7 MOTRONIC) AIR INTAKE PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 355 (2.7 MOTRONIC) THROTTLE HOLDERS AND CONTROLS PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 355 (2.7 MOTRONIC) ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 355 (2.7 MOTRONIC) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 355 (2.7 MOTRONIC) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 355 (2.7 MOTRONIC) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 355 (2.7 MOTRONIC) PUMPS AND OIL SUMP PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM - NOURICE PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 355 (2.7 MOTRONIC) WATER PUMP AND OIL-WATER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX - DIFFERENTIAL HOUSING AND INTERMEDIATE CASING PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX COVERS AND LUBRICATION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 355 (2.7 MOTRONIC) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 355 (2.7 MOTRONIC) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 355 (2.7 MOTRONIC) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
