100 - Body - General Units

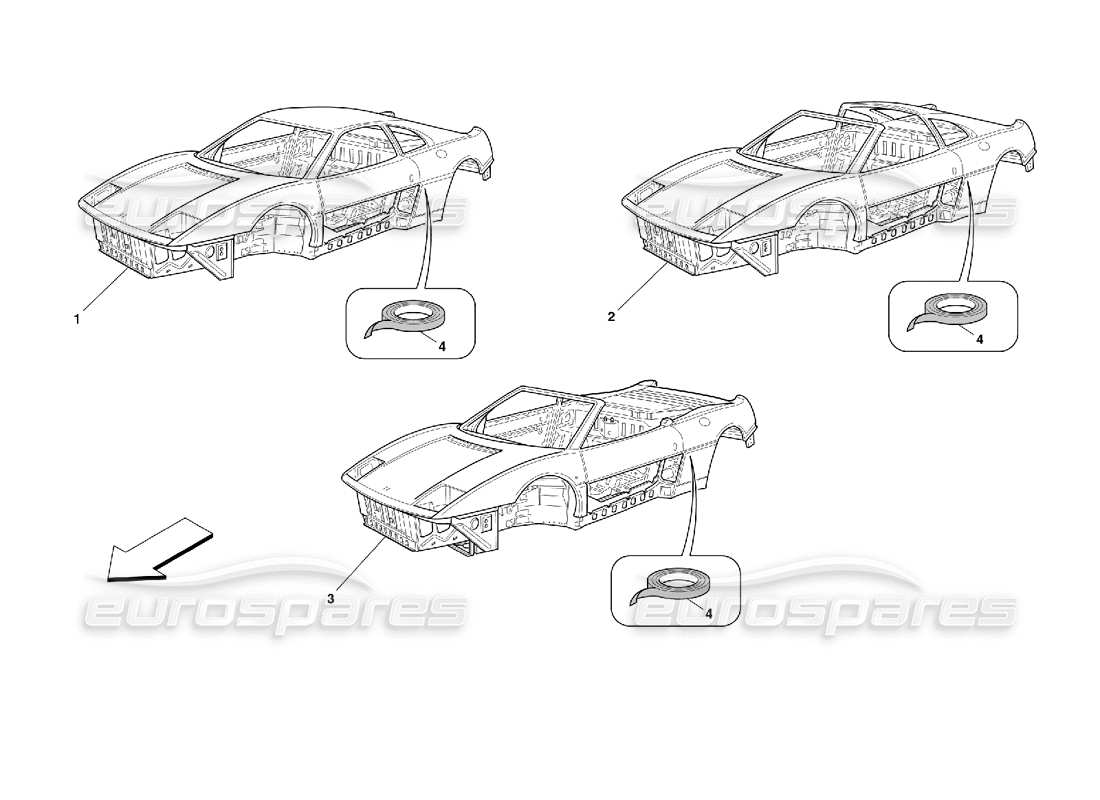

Ferrari 355 (2.7 Motronic) Body - General Units Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 64538300
COMPLETE BODYWORK
-Valid for BERLINETTA without AIR-BAG - Not for USA, CDN, CH, SA, J and GD
# 001
MPN: 64782100
COMPLETE BODYWORK
-Valid for USA BERLINETTA
# 001
MPN: 64782200
COMPLETE BODYWORK
-Valid for CDN BERLINETTA
# 001
MPN: 64782300
COMPLETE BODYWORK
-Valid for CH BERLINETTA without AIR-BAG
# 001
MPN: 64782400
COMPLETE BODYWORK
-Valid for SA BERLINETTA without AIR-BAG
# 001
MPN: 64782500
COMPLETE BODYWORK
-Valid for J BERLINETTA without AIR-BAG
# 001
MPN: 64782600
COMPLETE BODYWORK
-Valid for GD BERLINETTA without AIR-BAG - Not for AUS BERLINETTA
# 001
MPN: 64782700
COMPLETE BODYWORK
-Valid for AUS BERLINETTA without AIR-BAG
# 001
MPN: 64981500
COMPLETE BODYWORK
-Valid for BERLINETTA with AIR-BAG - Not for USA, CDN, CH, SA, J and GD
# 001
MPN: 64981600
COMPLETE BODYWORK
-Valid for CH BERLINETTA with AIR-BAG
# 001
MPN: 64981700
COMPLETE BODYWORK
-Valid for SA BERLINETTA with AIR-BAG
# 001
MPN: 64981800
COMPLETE BODYWORK
-Valid for J BERLINETTA with AIR-BAG
# 001
MPN: 64981900
COMPLETE BODYWORK
-Valid for GD BERLINETTA with AIR-BAG - Not for AUS BERLINETTA
# 001
MPN: 64982000
COMPLETE BODYWORK
-Valid for AUS BERLINETTA with AIR-BAG
# 002
MPN: 64782800
COMPLETE BODYWORK
-Valid for GTS without AIR-BAG - Not for USA, CDN, CH, SA, J and GD
from £10,389.66
from £10,389.66
# 002
MPN: 64782900
COMPLETE BODYWORK
-Valid for USA GTS e CDN GTS
# 002
MPN: 64783000
COMPLETE BODYWORK
-Valid for CH GTS without AIR-BAG
# 002
MPN: 64783100
COMPLETE BODYWORK
-Valid for SA GTS without AIR-BAG
# 002
MPN: 64783200
COMPLETE BODYWORK
-Valid for J GTS without AIR-BAG
# 002
MPN: 64783300
COMPLETE BODYWORK
-Valid for GD GTS without AIR-BAG - Not for AUS GTS
# 002
MPN: 64783400
COMPLETE BODYWORK
-Valid for AUS GTS without AIR-BAG
# 002
MPN: 64982100
COMPLETE BODYWORK
-Valid for GTS with AIR-BAG - Not for USA, CDN, CH, SA, J and GD
# 002
MPN: 64982200
COMPLETE BODYWORK
-Valid for CH GTS with AIR-BAG
# 002
MPN: 64982300
COMPLETE BODYWORK
-Valid for SA GTS with AIR-BAG
# 002
MPN: 64982400
COMPLETE BODYWORK
-Valid for J GTS with AIR-BAG
# 002
MPN: 64982500
COMPLETE BODYWORK
-Valid for GD GTS with AIR-BAG - Not for AUS GTS
# 002
MPN: 64982600
COMPLETE BODYWORK
-Valid for AUS GTS with AIR-BAG
# 003
MPN: 64923800
COMPLETE BODYWORK
-Valid for Spider without AIR-BAG - Not for GD
# 003
MPN: 64925100
COMPLETE BODYWORK
-Valid for USA Spider
# 003
MPN: 64925200
COMPLETE BODYWORK
-Valid for GD Spider without AIR-BAG - Not for AUS Spider
# 003
MPN: 64925300
COMPLETE BODYWORK
-Valid for AUS Spider without AIR-BAG
# 003
MPN: 64982700
COMPLETE BODYWORK
-Valid for Spider with AIR-BAG - Not for USA and GD
# 003
MPN: 64982800
COMPLETE BODYWORK
-Valid for GD Spider with AIR-BAG - Not for AUS Spider
# 003
MPN: 64982900
COMPLETE BODYWORK
-Valid for AUS Spider with AIR-BAG
# 004
MPN: 332100061
SELF-STICKING BLACK STRIPE
from £0.71
from £0.71
This part replaces part number 332100060
