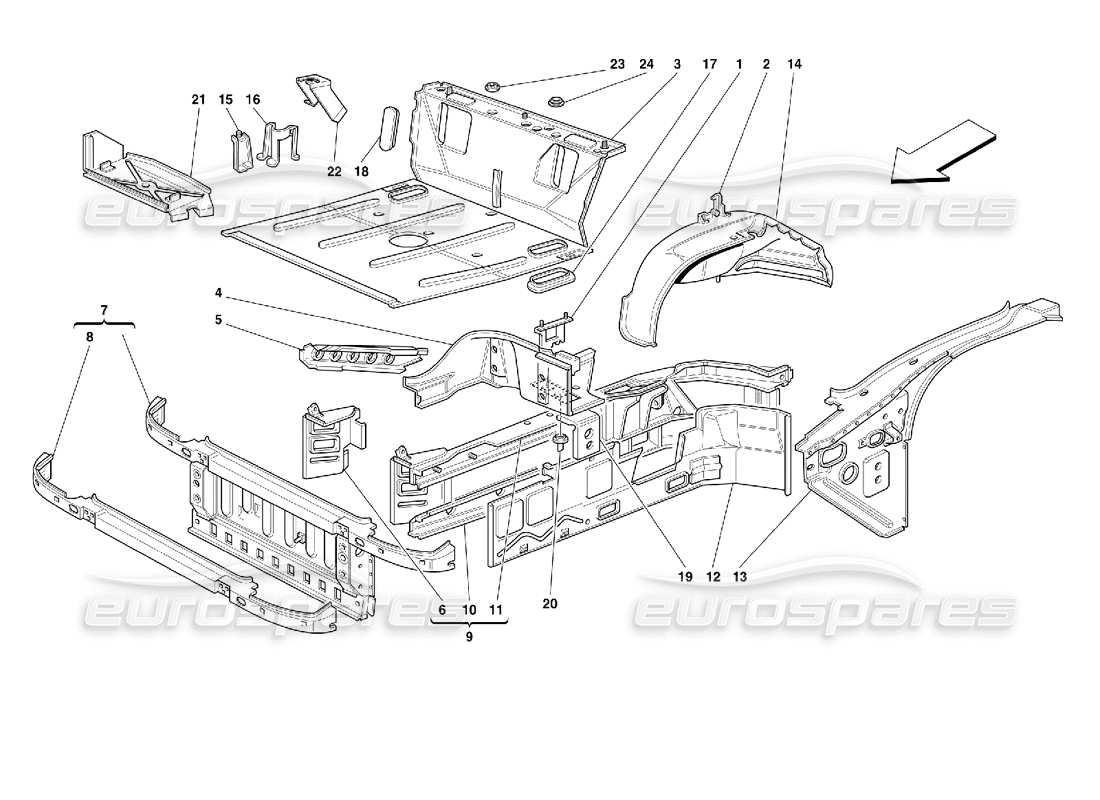

102 - Front Part Structures
Ferrari 355 (2.7 Motronic) Front Part Structures Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

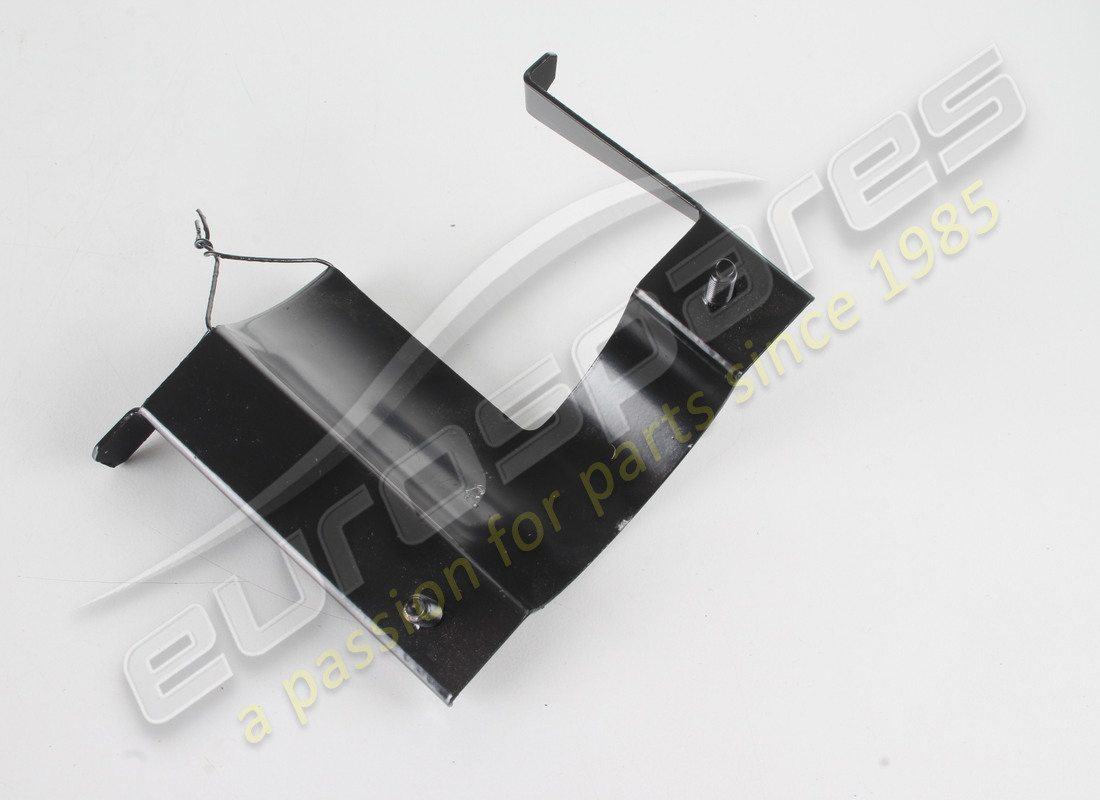

# 001
MPN: 62166000
CONTROL UNIT FIXING BRACKET
from £99.98
from £99.98
# 002
MPN: 62068200
RH BRACKET FOR FRONT HOOD LOCK
from £22.80
from £22.80
# 002
MPN: 62068300
LH BRACKET FOR FRONT HOOD LOCK
from £22.80
from £22.80
# 003
MPN: 64437100
COMPLETE TRUNK BOTTOM
-Not for AIR-BAG cars - Valid for GD
Supersession
Supersession
# 003
MPN: 65262400
COMPLETE TRUNK BOTTOM
Not for GD
from £3,056.48
from £3,056.48
This part replaces part number 64325900 - and 1 more. Click to view details
# 003
MPN: 65360000
COMPLETE TRUNK BOTTOM
-Valid for AIR-BAG cars - Valid for GD
from £644.79
from £644.79
This part replaces part number 64437100 - and 1 more. Click to view details
# 004
MPN: 63537200
LH LIGHT AROUND FRAMEWORK
-Completed with bracket 1
Supersession
Supersession
This part replaces part number 62088000
# 004
MPN: 64299200
RH LIGHT AROUND FRAMEWORK
-Completed with brackets 15 and 16
from £794.52
from £794.52
This part replaces part number 62087900
# 005
MPN: 63597600
REINFORCEMENT FOR FRONT RH SIDE STRUCTURE
from £103.39
from £103.39
This part replaces part number 62208600
# 005
MPN: 63597700
REINFORCEMENT FOR FRONT LH SIDE STRUCTURE
from £110.37
from £110.37
This part replaces part number 62208700
# 006
MPN: 62096300
FRONT REINFORCEMENT FOR LH SIDE STRUCTURE
-Not for CDN
from £69.90
from £69.90
# 006
MPN: 63343700
FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
from £24.82
from £24.82
# 006
MPN: 63343700
FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
-Valid for CDN
from £24.82
from £24.82
# 006
MPN: 63343800
FRONT REINFORCEMENT FOR LH SIDE STRUCTURE
-Valid for CDN
from £24.87
from £24.87
# 007
MPN: 64312800
COMPLETE FRONT MOULDING
-Not for CDN
from £1,377.35
from £1,377.35
This part replaces part number 62086900
# 007
MPN: 64513800
COMPLETE FRONT MOULDING
-Valid for CDN
from £783.33
from £783.33
# 008
MPN: 70000611
UPPER CROSS MEMBER FOR FRONT FRAMEWORK
from £673.83
from £673.83
# 009
MPN: 64043000
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid till car Nr.104322 - Not for CDN and GD
from £764.79
from £764.79
# 009
MPN: 64043100
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid till car Nr.104322 - Not for CDN and GD
from £2,856.08
from £2,856.08
# 009
MPN: 64435900
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for GD till cars Nr.104322
from £802.44
from £802.44
# 009
MPN: 64477400
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for GD till cars Nr.104322
from £735.24
from £735.24
# 009
MPN: 64514200
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for CDN till cars Nr.104322
from £938.71
from £938.71
# 009
MPN: 64514300
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for CDN till cars Nr.104322
from £941.91
from £941.91
# 009
MPN: 65196700
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid from car Nr.104323 - Not for CDN and GD
from £619.24
from £619.24
# 009
MPN: 65196800
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid from car Nr.104323 - Not for CDN and GD
Supersession
Supersession
# 009
MPN: 65196900
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for GD from cars Nr.104323
Supersession
Supersession
# 009
MPN: 65197000
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for GD from cars Nr.104323
Supersession
Supersession
# 009
MPN: 65197100
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for CDN from cars Nr.104323
# 009
MPN: 65197200
LH FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for CDN from cars Nr.104323
Supersession
Supersession
# 010
MPN: 62083000
RH LOWER SPRAG
-Without reinforcements
from £252.72
from £252.72
# 010
MPN: 62083100
LH LOWER SPRAG
-Without reinforcements
from £300.63
from £300.63
# 011
MPN: 63597400
RH UPPER SPRAG
-Not for CDN
from £117.47
from £117.47
# 011
MPN: 63597800
LH UPPER SPRAG
-Not for CDN
from £90.87
from £90.87
# 011
MPN: 64514000
RH UPPER SPRAG
-Valid for CDN
from £137.87
from £137.87
# 011
MPN: 64514100
LH UPPER SPRAG
-Valid for CDN
from £114.65
from £114.65
# 012
MPN: 63953900
SPRAGS LH SIDE WALL
from £263.33
from £263.33
# 012
MPN: 63954000
SPRAGS RH SIDE WALL
from £273.56
from £273.56
# 013
MPN: 64899400
LH FENDER SUPPORT WALL
-Valid after stock exhaustion of 64308300
from £601.02
from £601.02
This part replaces part number 63382000 - and 1 more. Click to view details
# 014
MPN: 63589700
RH FRONT WHEELHOUSE
-Not for GD
from £255.14
from £255.14
This part replaces part number 62088100
# 014
MPN: 63589800
LH FRONT WHEELHOUSE
-Not for GD
Supersession
Supersession
This part replaces part number 62088200
# 014
MPN: 63590100
RH FRONT WHEELHOUSE
-Valid for GD
from £95.58
from £95.58
# 014
MPN: 63590200
LH FRONT WHEELHOUSE
-Valid for GD
from £586.04
from £586.04
# 015
MPN: 62165400
WINDSHIELD WASHER BAG FIXING BRACKET
from £7.36
from £7.36
# 016
MPN: 62165600
DEHYDRATOR FILTER FIXING BRACKET
from £5.99
from £5.99
# 017
MPN: 62678500
PLUG
from £3.12
from £3.12
# 018
MPN: 62921200
PLUG
from £21.46
from £21.46
# 019
MPN: 62121200
BUMPER FIXING BRACKET
from £4.14
from £4.14
# 020
MPN: 14507187
LH PLUG
from £2.07
from £2.07
# 020
MPN: 63013000
RH PLUG
from £1.59
from £1.59
# 021
MPN: 64043800
BATTERY SUPPORT
from £42.42
from £42.42
# 022
MPN: 64292100
BATTERY CUT-OUT SWITCH FIXING BRACKET
from £64.02
from £64.02
# 023
MPN: 63505900
PLUG
from £2.32
from £2.32
# 024
MPN: 14507987
PLUG
from £0.91
from £0.91
-part-diagram-103.webp "FERRARI 355 (2.7 MOTRONIC) CENTRAL PART STRUCTURES PARTS DIAGRAM")

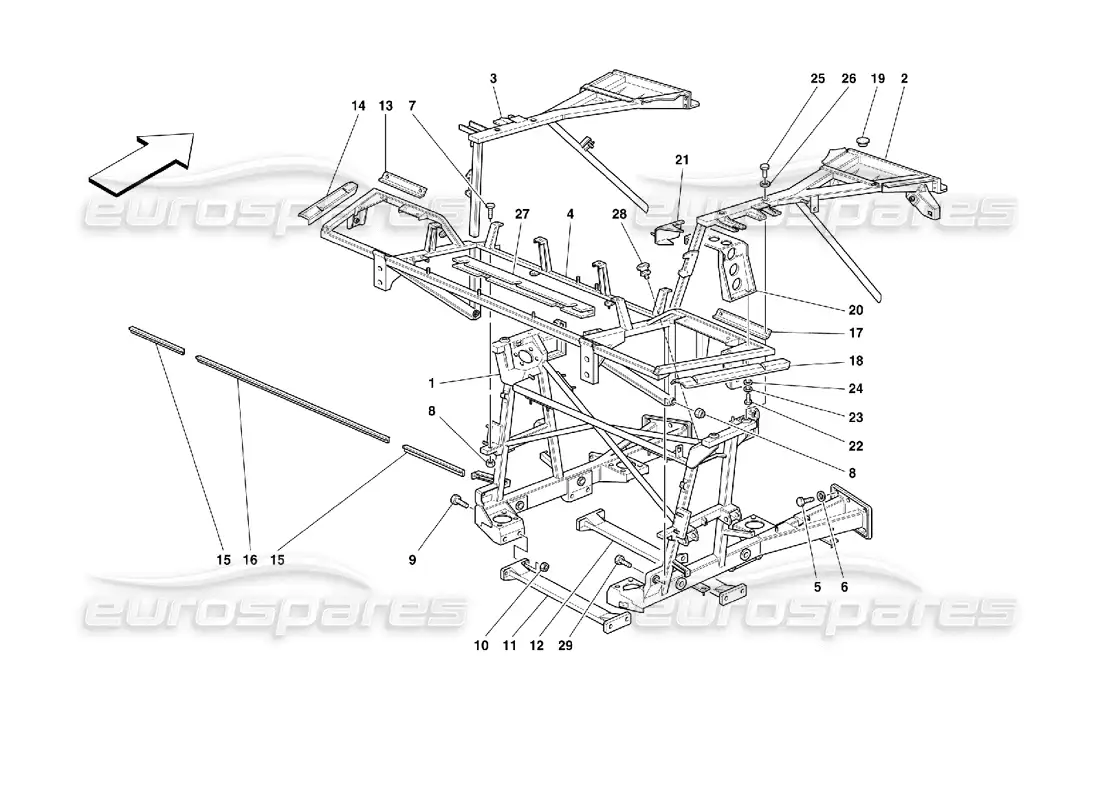

-part-diagram-104.webp "FERRARI 355 (2.7 MOTRONIC) FRAME - REAR PART ELEMENTS PARTS DIAGRAM")

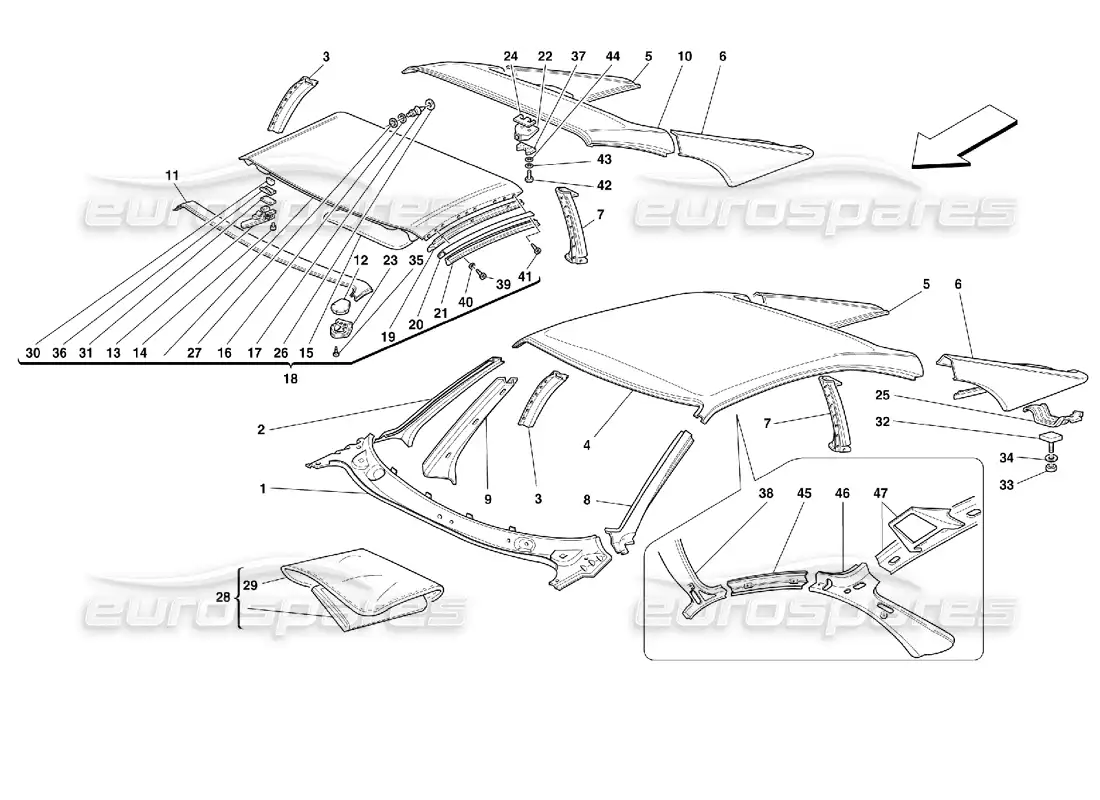

-part-diagram-105.webp "FERRARI 355 (2.7 MOTRONIC) ROOF - OUTER TRIMS PARTS DIAGRAM")

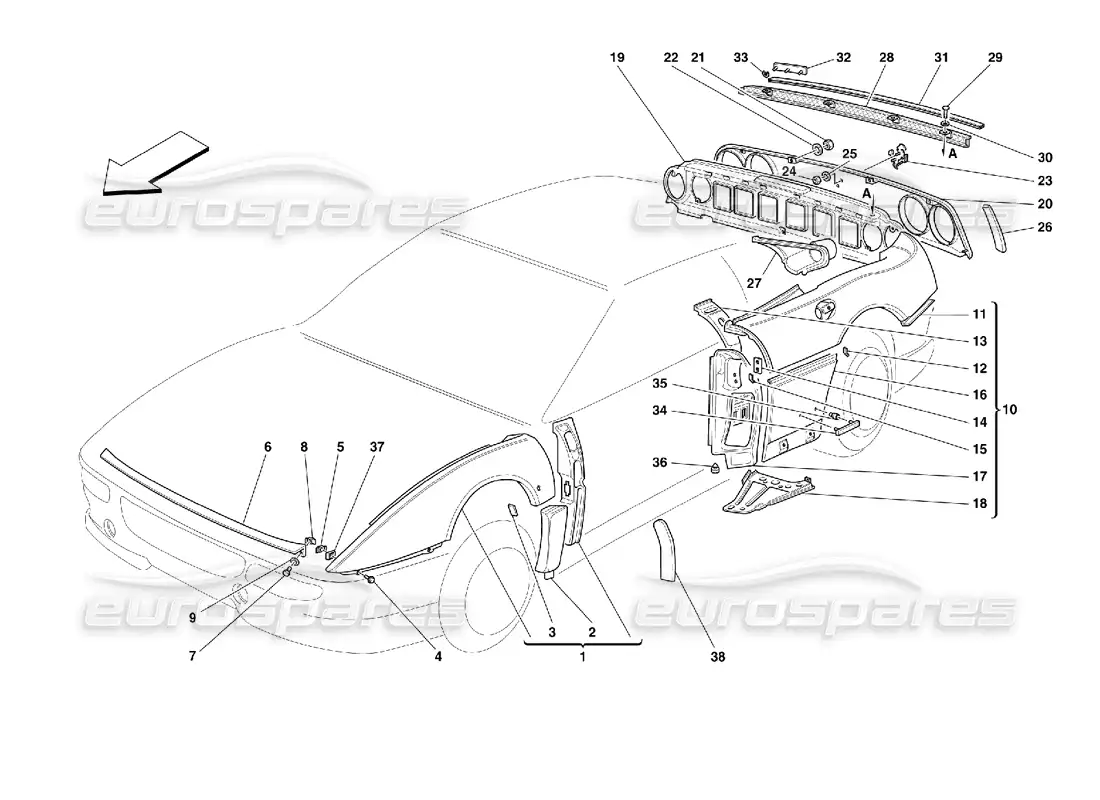

-part-diagram-106.webp "FERRARI 355 (2.7 MOTRONIC) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 355 (2.7 MOTRONIC) BODY - SHIELDS AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 355 (2.7 MOTRONIC) FRONT COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 355 (2.7 MOTRONIC) TOP PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 355 (2.7 MOTRONIC) TOP HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 355 (2.7 MOTRONIC) FRONT HOOD PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICE FOR FRONT HOOD PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 355 (2.7 MOTRONIC) REAR HOOD PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICES FOR REAR HOOD AND GAS DOOR PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - FRAMEWORK AND REAR MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - GLASS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - INNER TRIMS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 355 (2.7 MOTRONIC) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 355 (2.7 MOTRONIC) REAR BUMPER PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 355 (2.7 MOTRONIC) GLASSES AND GASKETS PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 355 (2.7 MOTRONIC) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-132.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-133.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-134.webp "FERRARI 355 (2.7 MOTRONIC) AIR-BAGS PARTS DIAGRAM")
-part-diagram-135.webp "FERRARI 355 (2.7 MOTRONIC) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-136.webp "FERRARI 355 (2.7 MOTRONIC) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-137.webp "FERRARI 355 (2.7 MOTRONIC) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-138.webp "FERRARI 355 (2.7 MOTRONIC) WINDSHIELD WIPER AND CONTROLS PARTS DIAGRAM")
-part-diagram-139.webp "FERRARI 355 (2.7 MOTRONIC) GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-140.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-141.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS - PASSENGERS COMPARTMENT PARTS DIAGRAM")
-part-diagram-142.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS AND DEVICES - FRONT PART PARTS DIAGRAM")
-part-diagram-143.webp "FERRARI 355 (2.7 MOTRONIC) EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATION PARTS DIAGRAM")
-part-diagram-144.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 355 (2.7 MOTRONIC) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 355 (2.7 MOTRONIC) CRANKSHAFT, CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 355 (2.7 MOTRONIC) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 355 (2.7 MOTRONIC) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - TAPPETS AND SHIELDS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 355 (2.7 MOTRONIC) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 355 (2.7 MOTRONIC) AIR INJECTION DEVICE PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 355 (2.7 MOTRONIC) FUEL TANK PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 355 (2.7 MOTRONIC) ANTIEVAPORATION DEVICE PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 355 (2.7 MOTRONIC) AIR BOXES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 355 (2.7 MOTRONIC) AIR INTAKE PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 355 (2.7 MOTRONIC) THROTTLE HOLDERS AND CONTROLS PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 355 (2.7 MOTRONIC) ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 355 (2.7 MOTRONIC) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 355 (2.7 MOTRONIC) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 355 (2.7 MOTRONIC) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 355 (2.7 MOTRONIC) PUMPS AND OIL SUMP PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM - NOURICE PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 355 (2.7 MOTRONIC) WATER PUMP AND OIL-WATER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX - DIFFERENTIAL HOUSING AND INTERMEDIATE CASING PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX COVERS AND LUBRICATION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 355 (2.7 MOTRONIC) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 355 (2.7 MOTRONIC) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 355 (2.7 MOTRONIC) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 355 (2.7 MOTRONIC) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 355 (2.7 MOTRONIC) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC SYSTEM FOR ABS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 355 (2.7 MOTRONIC) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 355 (2.7 MOTRONIC) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING BOX PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 355 (2.7 MOTRONIC) MECHANICAL STEERING BOX PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 355 (2.7 MOTRONIC) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING PUMP PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 355 (2.7 MOTRONIC) WHEELS PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 355 (2.7 MOTRONIC) CURRENT GENERATOR - STARTING MOTOR - BATTERY PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING COMPRESSOR PARTS DIAGRAM")

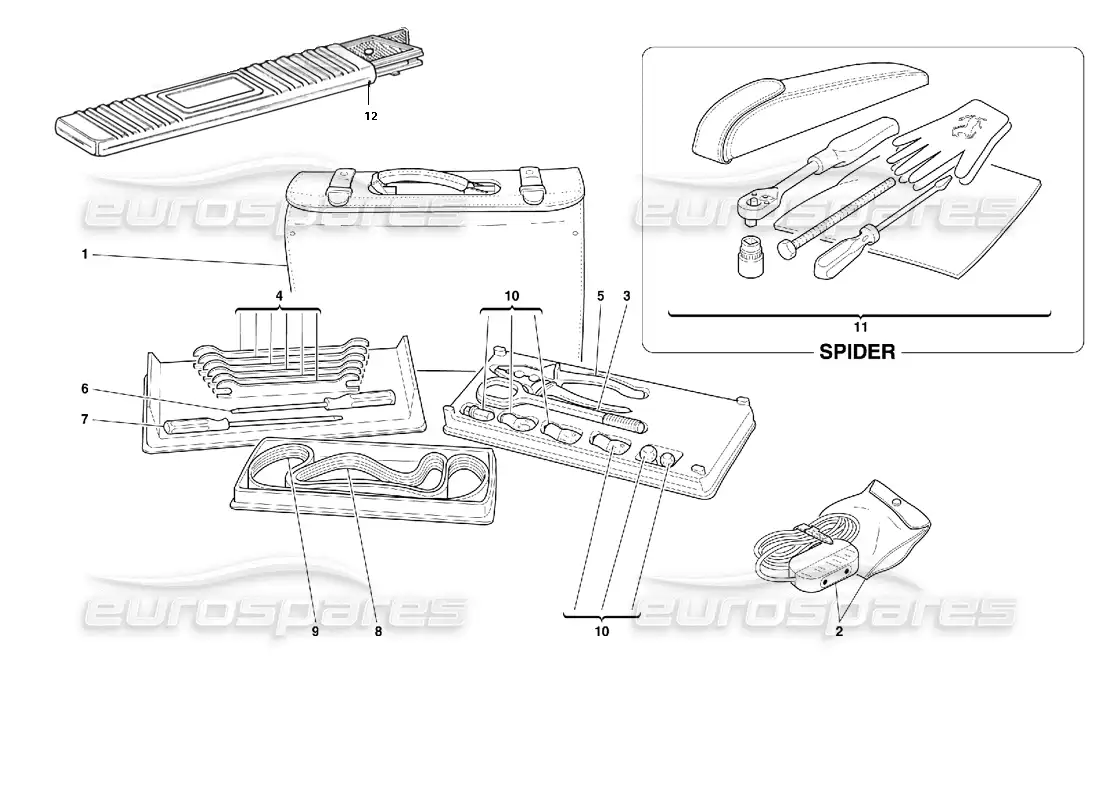

-part-diagram-050.webp "FERRARI 355 (2.7 MOTRONIC) TOOLS EQUIPMENT PARTS DIAGRAM")

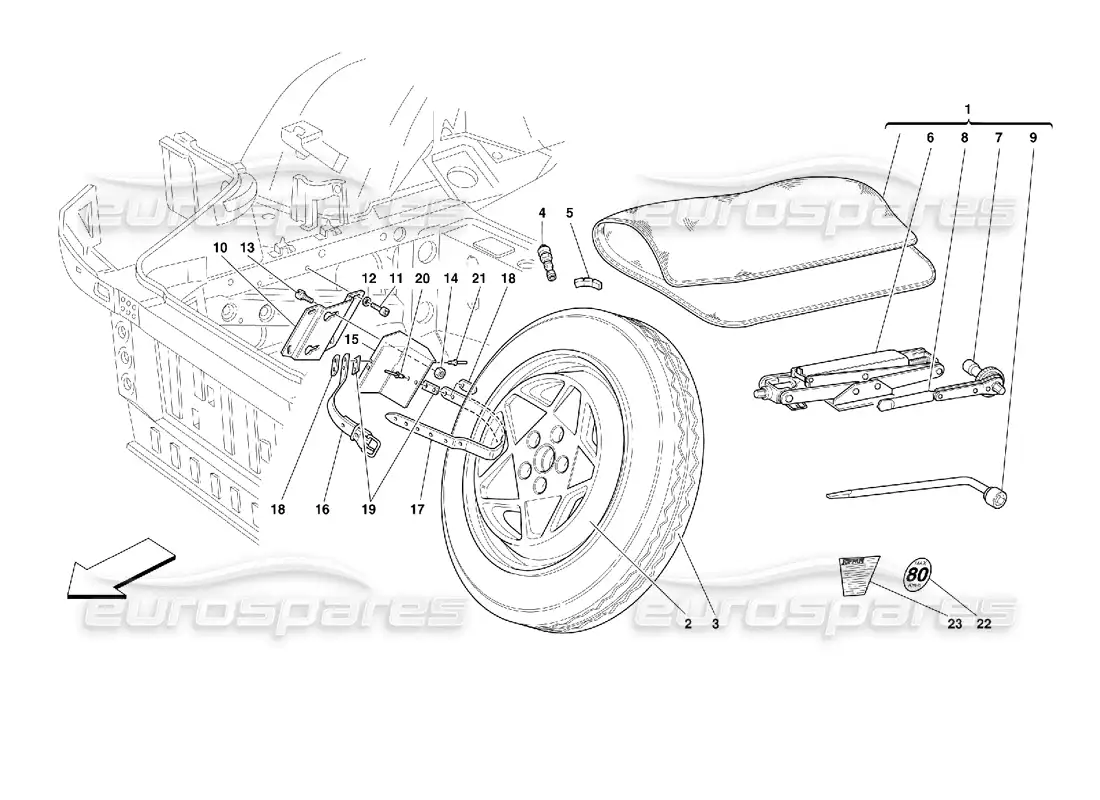

-part-diagram-051.webp "FERRARI 355 (2.7 MOTRONIC) SPARE WHEEL AND EQUIPMENT - OPTIONAL- PARTS DIAGRAM")

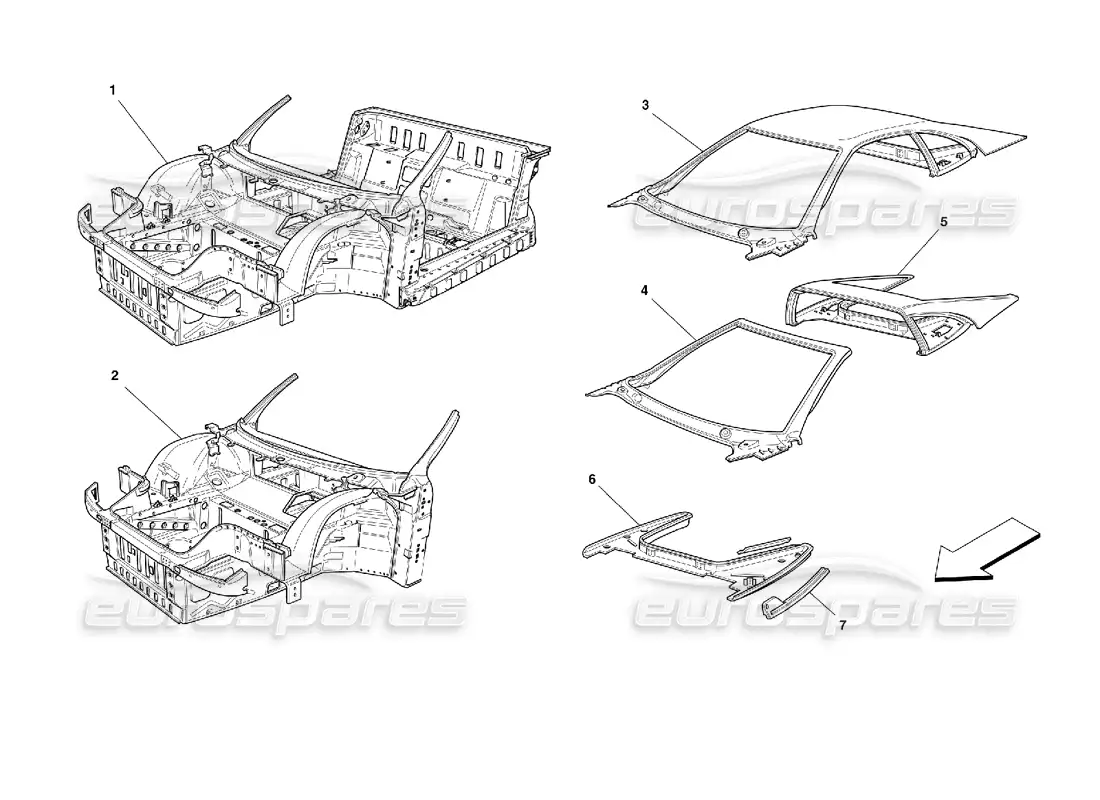

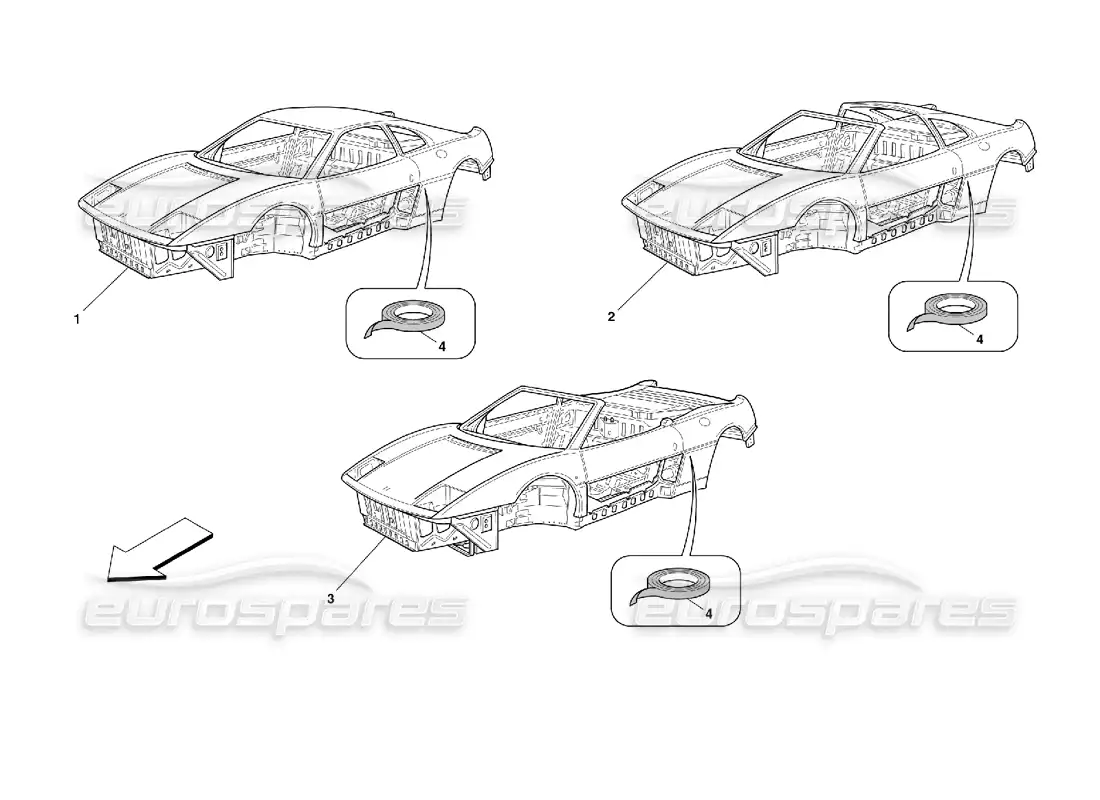

-part-diagram-100.webp "FERRARI 355 (2.7 MOTRONIC) BODY - GENERAL UNITS PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 355 (2.7 MOTRONIC) BODY - UNITS PARTS DIAGRAM")
