103 - Central Part Structures

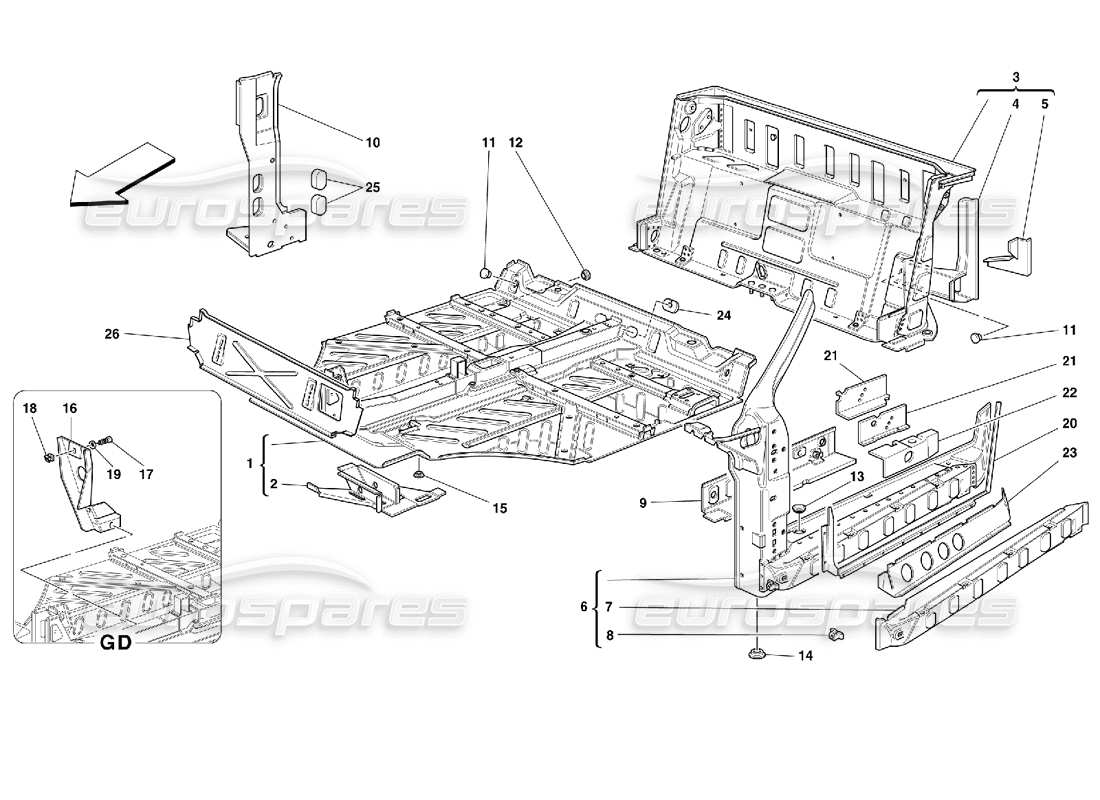

Ferrari 355 (2.7 Motronic) Central Part Structures Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 64538500
COMPLETE CENTRAL FLOOR
-Not for cars with AIR-BAG - Not for Spider-Not for GD
from £1,133.28
from £1,133.28
This part replaces part number 63585000
# 001
MPN: 64732000
COMPLETE CENTRAL FLOOR
-Valid for GD Without Air-Bag - not for Spider
# 001
MPN: 64923500
COMPLETE CENTRAL FLOOR
-Valid for cars Spider Without Air-Bag - not for GD
# 001
MPN: 64969300
COMPLETE CENTRAL FLOOR
-Valid for cars With Air-Bag - not for Spider-not for GD
from £1,300.70
from £1,300.70
# 001
MPN: 64969400
COMPLETE CENTRAL FLOOR
-Valid for GD with AIR-BAG - Not for Spider
# 001
MPN: 64969500
COMPLETE CENTRAL FLOOR
-Valid for cars Spider With Air-Bag - not for GD
# 001
MPN: 64969600
COMPLETE CENTRAL FLOOR
-Valid for GD Spider without AIR-BAG
# 001
MPN: 64969700
COMPLETE CENTRAL FLOOR
-Valid for GD Spider with AIR-BAG
# 002
MPN: 62164000
RH PLATE WITH REINFORCEMENT
from £25.46
from £25.46
# 002
MPN: 62164100
LH PLATE WITH REINFORCEMENT
from £25.46
from £25.46
# 003
MPN: 63585100
COMPLETE REAR FRAMEWORK
-Valid for cars with double fuel pump - Not for Spider - Not for GD
from £5,486.78
from £5,486.78
# 003
MPN: 64436800
COMPLETE REAR FRAMEWORK
-Valid for GD With double fuel pump - not for Spider
from £763.90
from £763.90
# 003
MPN: 64516200
COMPLETE REAR FRAMEWORK
-Valid for Spider with double fuel pump - Not for GD
Supersession
Supersession
# 003
MPN: 64733000
COMPLETE REAR FRAMEWORK
-Valid for cars with single fuel pump - Not for Spider - Not for GD
# 003
MPN: 64733100
COMPLETE REAR FRAMEWORK
-Valid for GD with single fuel pump - Not for Spider
from £774.23
from £774.23
# 003
MPN: 64733200
COMPLETE REAR FRAMEWORK
-Valid for Spider with single fuel pump - Not for GD
This part replaces part number 64516200
# 003
MPN: 64895300
COMPLETE REAR FRAMEWORK
-Valid for GD Spider
from £1,285.76
from £1,285.76
# 004
MPN: 64245800
MOVING FRAME FIXING CROSS MEMBER
-Not for Spider
from £1,573.50
from £1,573.50
# 004
MPN: 64781800
MOVING FRAME FIXING CROSS MEMBER
-Valid for Spider
from £606.29
from £606.29
# 005
MPN: 64302100
REINFORCEMENT RH BRACKET
from £89.98
from £89.98
# 005
MPN: 64302200
REINFORCEMENT LH BRACKET
from £89.98
from £89.98
# 006
MPN: 62088500
RH DOOR COMPARTMENT FRAME
-Not for GTS - Valid for GD GTS - Not for Spider
from £310.99
from £310.99
# 006
MPN: 62088600
LH DOOR COMPARTMENT FRAME
-Not for GTS - Valid for GD GTS - Not for Spider
from £423.75
from £423.75
# 006
MPN: 64384400
RH DOOR COMPARTMENT FRAME
-Valid for GTS - Not for GD GTS - Not for Spider
from £328.27
from £328.27
# 006
MPN: 64384500
LH DOOR COMPARTMENT FRAME
-Valid for GTS - Not for GD GTS - Not for Spider
from £328.18
from £328.18
# 006
MPN: 64522400
RH DOOR COMPARTMENT FRAME
-Valid for Spider
from £447.55
from £447.55
# 006
MPN: 64522500
LH DOOR COMPARTMENT FRAME
-Valid for Spider
from £454.44
from £454.44
# 007
MPN: 62077300
EXTERNAL COVERING FOR RH SIDE MEMBER
from £312.33
from £312.33
# 007
MPN: 62077400
EXTERNAL COVERING FOR LH SIDE MEMBER
from £347.66
from £347.66
# 008
MPN: 62055300
BRACKET
from £17.84
from £17.84
# 009
MPN: 62068900
INTERNAL PLATE FOR RH SIDE MEMBER
-Replaces 62181900
from £15.13
from £15.13
# 009
MPN: 62069000
INTERNAL PLATE FOR LH SIDE MEMBER
-Replaces 62182000
from £15.13
from £15.13
# 009
MPN: 62181900
INTERNAL PLATE FOR RH SIDE MEMBER
-Not as spare part replaced by 62068900
from £19.42
from £19.42
# 009
MPN: 62182000
INTERNAL PLATE FOR LH SIDE MEMBER
-Not as spare part replaced by 62069000
from £19.42
from £19.42
# 010
MPN: 62080100
RH PILLAR BOX-TYPE
from £234.93
from £234.93
# 010
MPN: 62080200
LH PILLAR BOX-TYPE
from £41.95
from £41.95
# 011
MPN: 14506987
PLUG
from £1.95
from £1.95
# 012
MPN: 14506587
PLUG
from £0.54
from £0.54
# 013
MPN: 14507987
PLUG
from £0.91
from £0.91
# 014
MPN: 14506787
PLUG D. 20
from £0.70
from £0.70
This part replaces part number 62773100
# 014
MPN: 62446300
PLUG D. 30
from £20.81
from £20.81
# 015
MPN: 14506587
PLUG
-Valid for GD
from £0.53
from £0.53
# 016
MPN: 64447000
FOOT-REST REINFORCEMENT BRACKET
-Valid for GD
from £38.58
from £38.58
# 017
MPN: 15903978
SCREW
-Valid for GD
Supersession
Supersession
# 018
MPN: 14202782
BLOCK
-Valid for GD
from £0.71
from £0.71
# 019
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 020
MPN: 64374100
RH STRUCTURAL SHAPE ASSEMBLY
-Not for Spider
from £136.96
from £136.96
# 020
MPN: 64374200
LH STRUCTURAL SHAPE ASSEMBLY
-Not for Spider
from £136.96
from £136.96
# 020
MPN: 64645300
RH STRUCTURAL SHAPE ASSEMBLY
-Valid for Spider
from £136.00
from £136.00
# 020
MPN: 64645400
LH STRUCTURAL SHAPE ASSEMBLY
-Valid for Spider
from £136.00
from £136.00
# 021
MPN: 63011200
RH REAR REINFORCEMENT PLATE
-Valid for Berlinetta
from £10.58
from £10.58
# 021
MPN: 63011300
LH REAR REINFORCEMENT PLATE
-Valid for Berlinetta
from £9.99
from £9.99
# 021
MPN: 64384600
RH REAR REINFORCEMENT PLATE
-Valid for GTS and Spider
from £51.84
from £51.84
# 021
MPN: 64384700
LH REAR REINFORCEMENT PLATE
-Valid for GTS and Spider
from £33.14
from £33.14
# 022
MPN: 64384200
RH OUTER REAR REINFORCEMENT
-Valid for GTS and Spider
from £11.74
from £11.74
# 022
MPN: 64384300
LH OUTER REAR REINFORCEMENT
-Valid for GTS and Spider
from £11.66
from £11.66
# 023
MPN: 63011400
RH OUTER REINFORCEMENT
-Valid for GTS and Spider
from £129.21
from £129.21
# 023
MPN: 63011500
LH OUTER REINFORCEMENT
-Valid for GTS and Spider
from £129.21
from £129.21
# 024
MPN: 63566000
SEAL RING
from £1.01
from £1.01
# 025
MPN: 64463600
THICKNESS
from £1.05
from £1.05
# 026
MPN: 64330200
DASH PANEL LOWER SHIELD
-Not for GD
from £117.60
from £117.60
# 026
MPN: 64436600
DASH PANEL LOWER SHIELD
-Valid for GD
from £278.94
from £278.94
