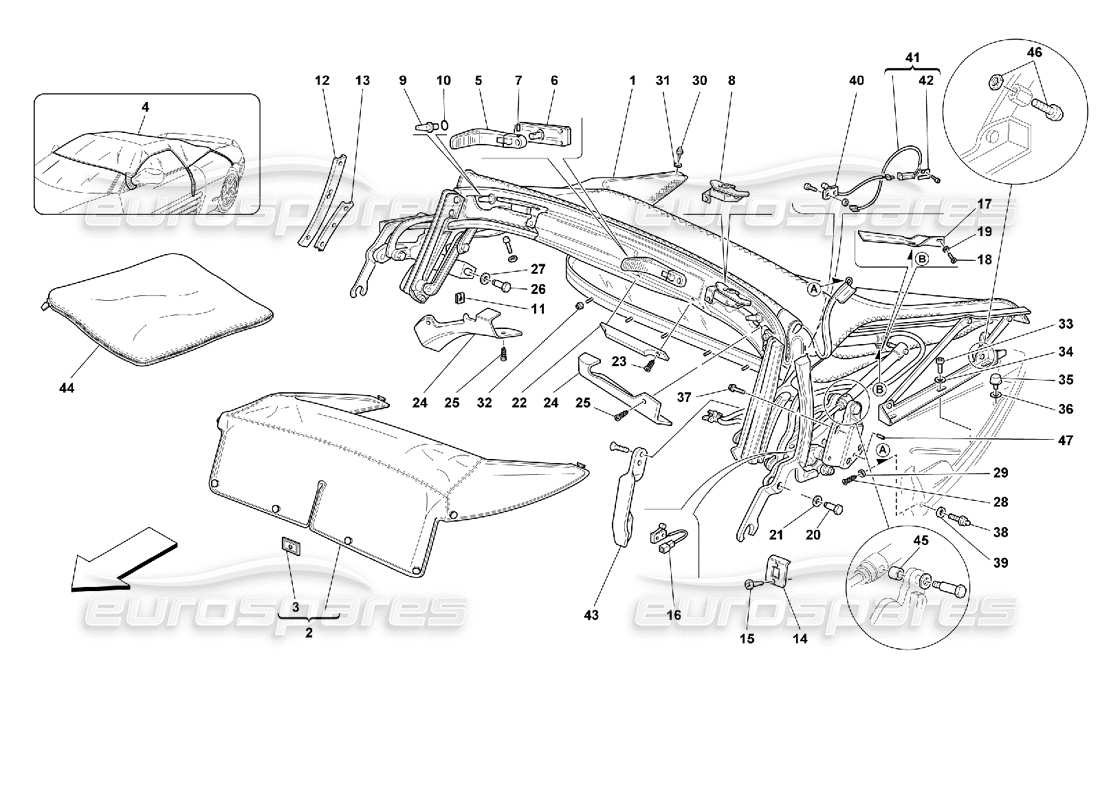

Ferrari 355 (2.7 Motronic) Top Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

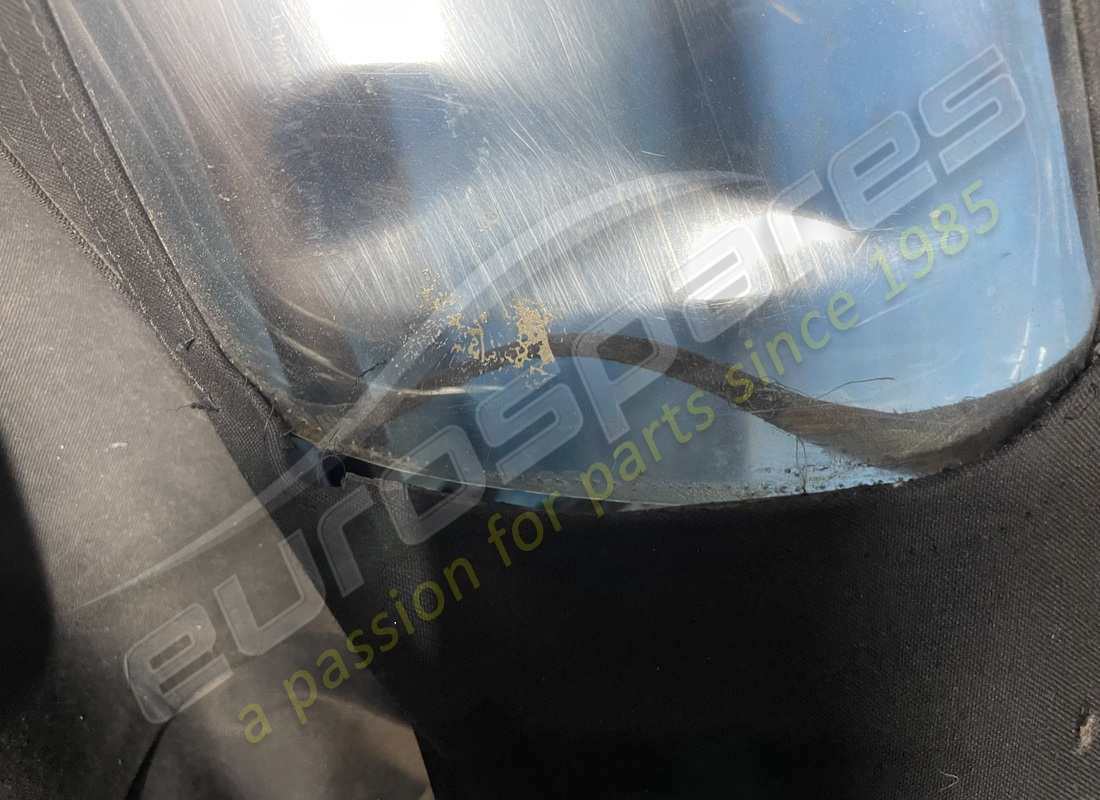

# 000
MPN: 64528200
ROOF COVERING CLOTH
-Black
from £4,210.26
from £4,210.26
# 000
MPN: 64528202
CLOTH FOR TOP
-Blue
from £1,850.82
from £1,850.82
# 000
MPN: 64528205
CLOTH FOR TOP
-Beige
from £2,820.11
from £2,820.11
# 001
MPN: 64528102
COMPLETE CAPOTE
-Blue - Not for GD
from £17,615.01
from £17,615.01
This part replaces part number 64528150
# 001
MPN: 64528105
COMPLETE CAPOTE
-Beige - Not for GD
# 001
MPN: 64897700
COMPLETE CAPOTE
-Black - Valid for GD
from £16,723.67
from £16,723.67
# 001
MPN: 64897702
COMPLETE CAPOTE + FRAME
-Blue - Valid for GD
from £8,394.75
from £8,394.75
This part replaces part number 64897750 - and 1 more. Click to view details
# 001
MPN: 64897705
COMPLETE CAPOTE
-Beige - Valid for GD
from £21,602.34
from £21,602.34
# 002
MPN: 64528100
SOFT TOP COVER
-Black - Not for GD
from £24,002.16
from £24,002.16

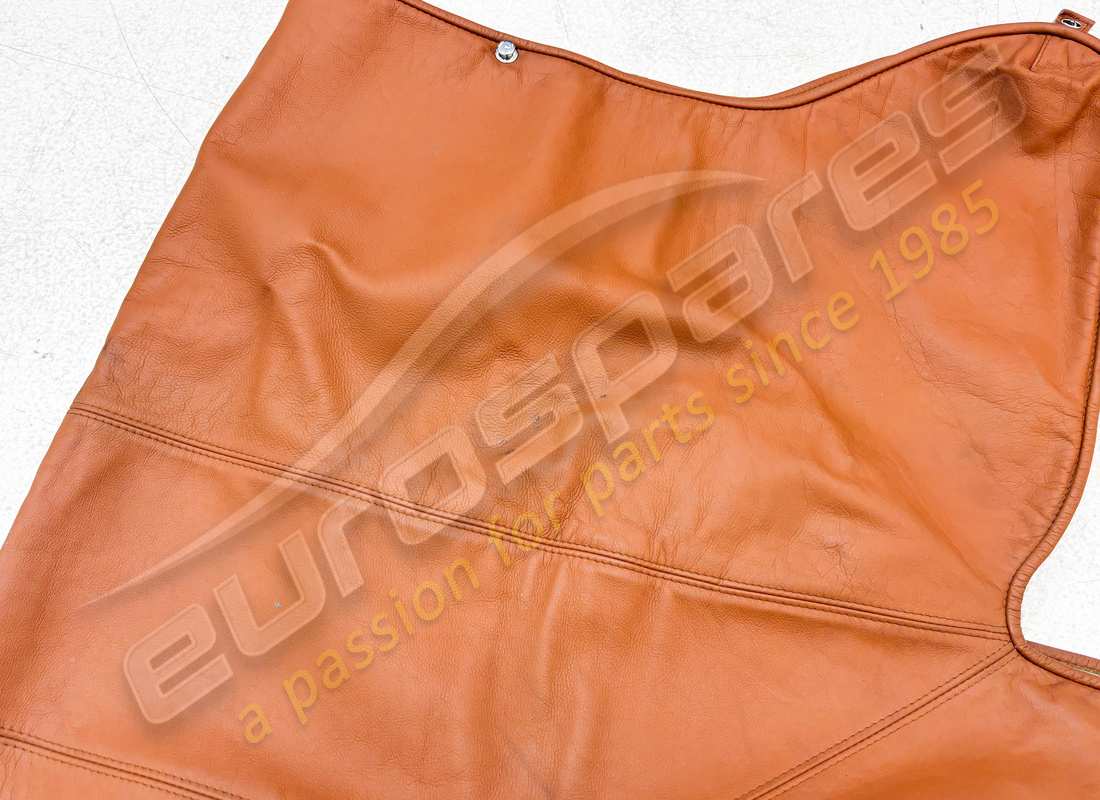

# 002
MPN: 650989..
TOP COVER
-With black button - Replaces 64891800
Supersession
Supersession
# 002
MPN: 65098900
TOP COVER COMPLETE OF TOP COVER BAG
-Not as spare part replaced by 650989.. or 652578..
from £2,201.00
from £2,201.00
This part replaces part number 64891800 - and 1 more. Click to view details
# 002
MPN: 652578..
TOP COVER
-With chromium-plated button - Replaces 64891800
Supersession
Supersession
# 003
MPN: 63239500
button
from £7.15
from £7.15

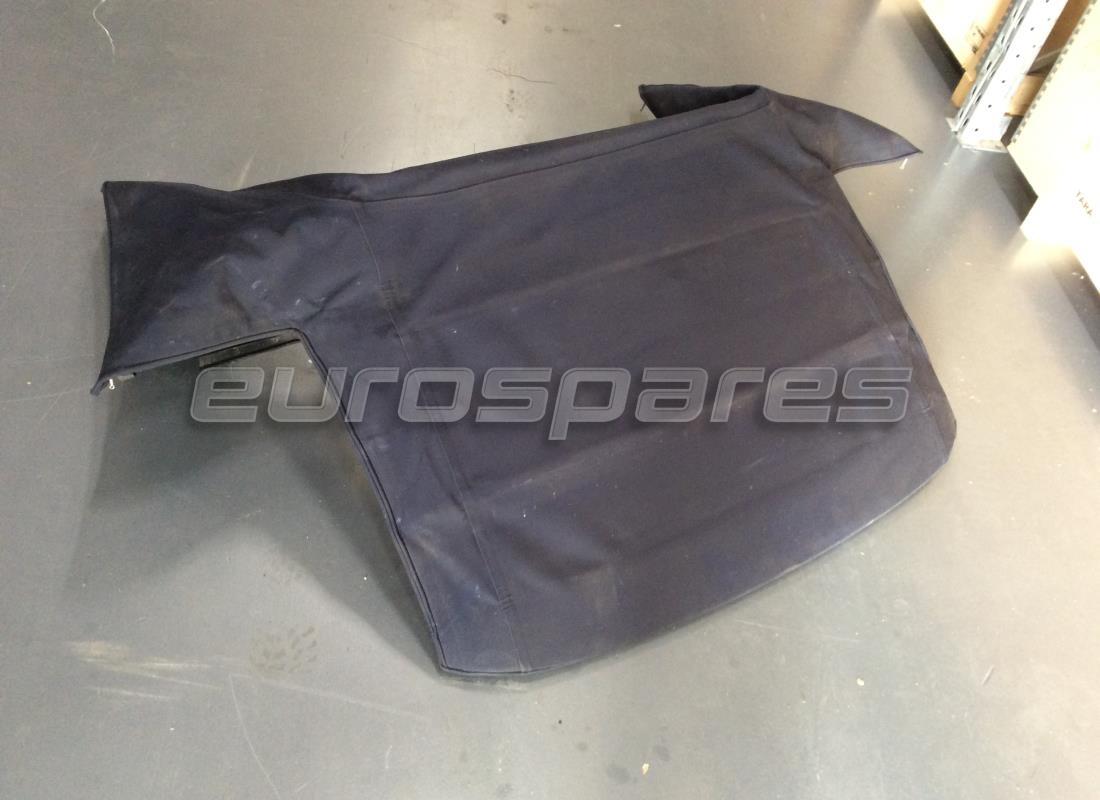

# 004
MPN: 63685100
TONNEAU COVER
from £2,059.13
from £2,059.13
# 005
MPN: 64793800
HANDLE FOR TOP
from £349.57
from £349.57
# 006
MPN: 63966100
COMPLETE CONTROL BLOCK BOX
from £289.99
from £289.99
# 007
MPN: 63990900
PIN
from £28.82
from £28.82
# 008
MPN: 63614100
LH TOP CLOSING HOOK
from £476.35
from £476.35
# 008
MPN: 63614200
RH TOP CLOSING HOOK
from £261.99
from £261.99
# 009
MPN: 64667100
CENTERING CONE
from £8.25
from £8.25
# 010
MPN: 123622
O.R. GASKET
from £0.79
from £0.79
# 011
MPN: 14189574
CLIP FOR SCREW
-Replaces 14189874
from £0.47
from £0.47
# 011
MPN: 14189874
CLIP FOR SCREW
-For F355 not as spare part - Replaced by 14189574
Supersession
Supersession

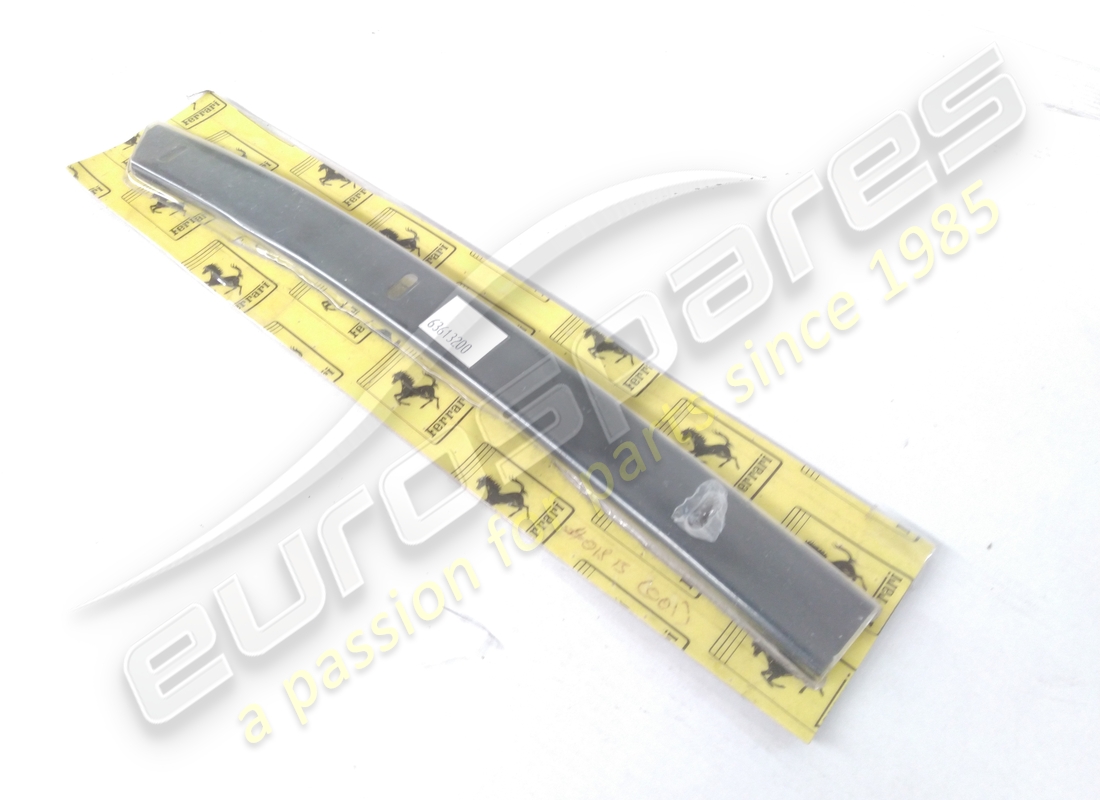

# 012
MPN: 63613200
RH FRONT RUBBER HOLDER PROFILE
from £121.61
from £121.61
# 012
MPN: 63613400
LH FRONT RUBBER HOLDER PROFILE
from £105.75
from £105.75
# 013
MPN: 63612700
RH REAR RUBBER HOLDER PROFILE
from £40.66
from £40.66
# 013
MPN: 63612800
LH REAR RUBBER HOLDER PROFILE
from £20.33
from £20.33

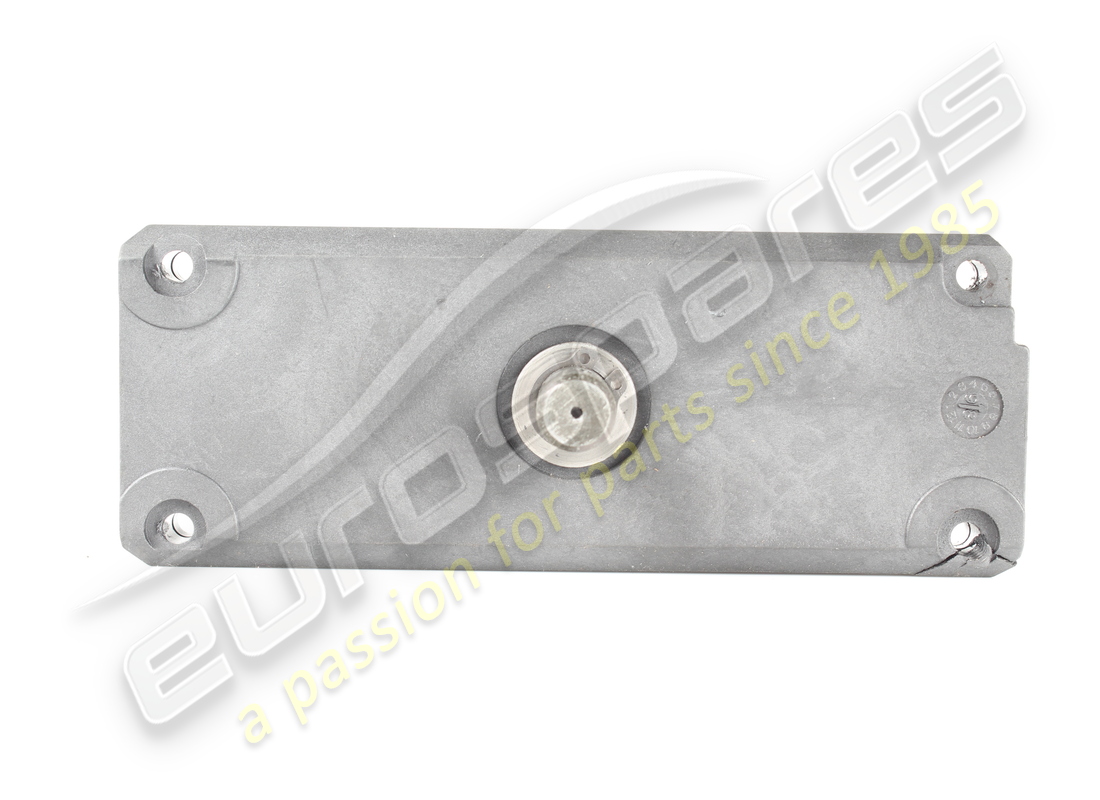

# 014
MPN: 64626000
PLATE
from £417.57
from £417.57
# 015
MPN: 15914770
SCREW
from £0.71
from £0.71
# 016
MPN: 163780
MICROSWITCH
-Replaced by 64416800
Supersession
Supersession
# 016
MPN: 64416800
SENSOR ON PLATE
-Replaces 163780
from £1,373.61
from £1,373.61
This part replaces part number 163780
# 017
MPN: 64662100
RH PISTON COVER
from £1.22
from £1.22
This part replaces part number 64462100 - and 1 more. Click to view details
# 017
MPN: 64662200
LH PISTON COVER
from £3.12
from £3.12
This part replaces part number 64462200
# 018
MPN: 13273872
SCREW
from £0.47
from £0.47
# 019
MPN: 10519278
WASHER
from £0.51
from £0.51
This part replaces part number 10519206 - and 1 more. Click to view details
# 020
MPN: 63639500
PIN MM. 23
from £14.14
from £14.14
# 020
MPN: 63639600
PIN MM. 18
from £7.49
from £7.49
# 020
MPN: 63639700
PIN MM. 27
from £14.76
from £14.76
# 020
MPN: 63639800
PIN MM. 21
from £14.14
from £14.14
# 020
MPN: 63678400
PIN MM. 25
from £75.32
from £75.32
# 020
MPN: 63678500
PIN MM. 33
from £13.87
from £13.87
# 021
MPN: 63639900
WASHER MM.1,3
from £3.14
from £3.14
# 022
MPN: 64243400
TOP LIFTING HANDLE
from £17.09
from £17.09
# 023
MPN: 60702800
SCREW
from £0.53
from £0.53
# 024
MPN: 64781400
RH LATERAL MOLDING
from £69.74
from £69.74
# 024
MPN: 64781500
LH LATERAL MOLDING
from £69.74
from £69.74
# 025
MPN: 15690678
SCREW MM. 13
from £0.47
from £0.47
# 025
MPN: 15909478
SCREW MM. 19
from £0.47
from £0.47
# 026
MPN: 63936600
SCREW
from £0.76
from £0.76
# 027
MPN: 12642078
WASHER
from £0.51
from £0.51
This part replaces part number 12642006 which we have in stock
# 028
MPN: 15902678
SCREW
from £0.47
from £0.47
# 029
MPN: 14496277
WASHER
from £0.47
from £0.47

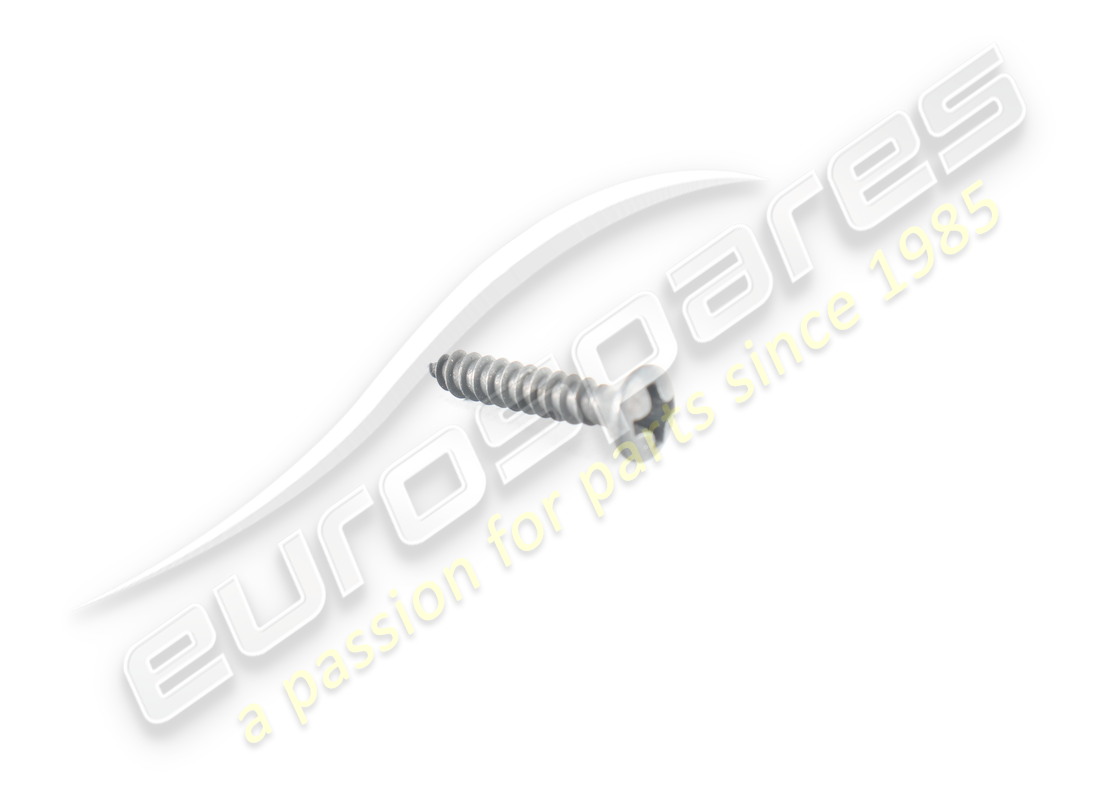

# 030
MPN: 60271806
SCREW TAP
from £10.84
from £10.84
This part replaces part number 61632100
# 031
MPN: 61195300
WASHER
from £0.71
from £0.71
# 032
MPN: 14058311
NUT
from £0.47
from £0.47
# 033
MPN: 63936600
SCREW
from £0.76
from £0.76
# 034
MPN: 12646778
WASHER
from £0.53
from £0.53
This part replaces part number 156093
# 035
MPN: 62167300
STOP BUFFER
Supersession
Supersession
# 036
MPN: 62167200
WASHER
from £0.71
from £0.71
# 037
MPN: 13838817
SCREW
from £0.67
from £0.67
# 038
MPN: 63961100
SCREW TAP
from £1.66
from £1.66
# 039
MPN: 61195300
WASHER
from £0.71
from £0.71
# 040
MPN: 64416900
SENSOR
from £162.45
from £162.45
# 041
MPN: 64667000
EXTENSION FOR SENSOR
from £166.58
from £166.58
# 042
MPN: 155751
CLIP
from £2.29
from £2.29
# 043
MPN: 64762900
LH GUIDE SHOE
-Valid for GD
from £1.40
from £1.40
# 043
MPN: 64763000
RH GUIDE SHOE
-Not for GD
from £1.77
from £1.77
# 043
MPN: 64830900
LH GUIDE SHOE
-Not for GD
from £1.62
from £1.62
# 043
MPN: 64831000
RH GUIDE SHOE
-Valid for GD
from £1.69
from £1.69
# 044
MPN: 63690900
TOP COVER BAG
from £686.00
from £686.00
# 045
MPN: 64661900
BUSHING
from £27.80
from £27.80
# 046
MPN: 64665600
PAD
from £24.08
from £24.08
# 047
MPN: 13798821
SCREW
from £3.51
from £3.51
-part-diagram-116.webp "FERRARI 355 (2.7 MOTRONIC) TOP HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 355 (2.7 MOTRONIC) FRONT HOOD PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICE FOR FRONT HOOD PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 355 (2.7 MOTRONIC) REAR HOOD PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICES FOR REAR HOOD AND GAS DOOR PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - FRAMEWORK AND REAR MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - GLASS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - INNER TRIMS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 355 (2.7 MOTRONIC) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 355 (2.7 MOTRONIC) REAR BUMPER PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 355 (2.7 MOTRONIC) GLASSES AND GASKETS PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 355 (2.7 MOTRONIC) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-132.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-133.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-134.webp "FERRARI 355 (2.7 MOTRONIC) AIR-BAGS PARTS DIAGRAM")
-part-diagram-135.webp "FERRARI 355 (2.7 MOTRONIC) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-136.webp "FERRARI 355 (2.7 MOTRONIC) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-137.webp "FERRARI 355 (2.7 MOTRONIC) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-138.webp "FERRARI 355 (2.7 MOTRONIC) WINDSHIELD WIPER AND CONTROLS PARTS DIAGRAM")
-part-diagram-139.webp "FERRARI 355 (2.7 MOTRONIC) GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-140.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-141.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS - PASSENGERS COMPARTMENT PARTS DIAGRAM")
-part-diagram-142.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS AND DEVICES - FRONT PART PARTS DIAGRAM")
-part-diagram-143.webp "FERRARI 355 (2.7 MOTRONIC) EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATION PARTS DIAGRAM")
-part-diagram-144.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 355 (2.7 MOTRONIC) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 355 (2.7 MOTRONIC) CRANKSHAFT, CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 355 (2.7 MOTRONIC) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 355 (2.7 MOTRONIC) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - TAPPETS AND SHIELDS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 355 (2.7 MOTRONIC) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 355 (2.7 MOTRONIC) AIR INJECTION DEVICE PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 355 (2.7 MOTRONIC) FUEL TANK PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 355 (2.7 MOTRONIC) ANTIEVAPORATION DEVICE PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 355 (2.7 MOTRONIC) AIR BOXES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 355 (2.7 MOTRONIC) AIR INTAKE PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 355 (2.7 MOTRONIC) THROTTLE HOLDERS AND CONTROLS PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 355 (2.7 MOTRONIC) ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 355 (2.7 MOTRONIC) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 355 (2.7 MOTRONIC) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 355 (2.7 MOTRONIC) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 355 (2.7 MOTRONIC) PUMPS AND OIL SUMP PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM - NOURICE PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 355 (2.7 MOTRONIC) WATER PUMP AND OIL-WATER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX - DIFFERENTIAL HOUSING AND INTERMEDIATE CASING PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX COVERS AND LUBRICATION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 355 (2.7 MOTRONIC) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 355 (2.7 MOTRONIC) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 355 (2.7 MOTRONIC) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 355 (2.7 MOTRONIC) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 355 (2.7 MOTRONIC) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC SYSTEM FOR ABS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 355 (2.7 MOTRONIC) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 355 (2.7 MOTRONIC) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING BOX PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 355 (2.7 MOTRONIC) MECHANICAL STEERING BOX PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 355 (2.7 MOTRONIC) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING PUMP PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 355 (2.7 MOTRONIC) WHEELS PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 355 (2.7 MOTRONIC) CURRENT GENERATOR - STARTING MOTOR - BATTERY PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING COMPRESSOR PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 355 (2.7 MOTRONIC) TOOLS EQUIPMENT PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 355 (2.7 MOTRONIC) SPARE WHEEL AND EQUIPMENT - OPTIONAL- PARTS DIAGRAM")
-part-diagram-100.webp "FERRARI 355 (2.7 MOTRONIC) BODY - GENERAL UNITS PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 355 (2.7 MOTRONIC) BODY - UNITS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 355 (2.7 MOTRONIC) FRONT PART STRUCTURES PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 355 (2.7 MOTRONIC) CENTRAL PART STRUCTURES PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 355 (2.7 MOTRONIC) FRAME - REAR PART ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 355 (2.7 MOTRONIC) ROOF - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 355 (2.7 MOTRONIC) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 355 (2.7 MOTRONIC) BODY - SHIELDS AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 355 (2.7 MOTRONIC) FRONT COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
