129 - Seats and Safety Belts

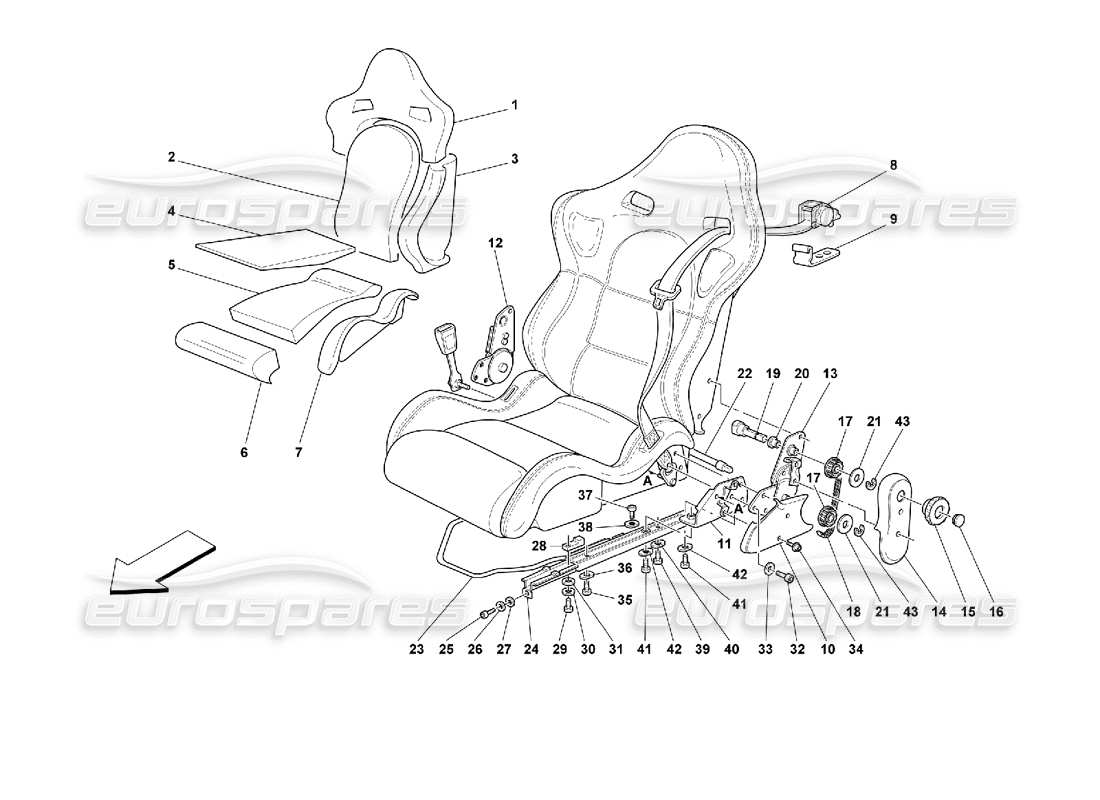

Ferrari 355 (2.7 Motronic) Seats and Safety Belts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 643348..
CUSHION COMPLETE RH LATERAL UPHOLSTERY
-Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 643991..
CUSHION COMPLETE LH LATERAL UPHOLSTERY
-Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 644801..
COMPLETE LARGE RH SEAT
-Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 644804..
COMPLETE LARGE LH SEAT
-Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 645320..
CALF-REST COMPLETE UPHOLSTERY
-Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 646063..
COMPLETE NARROW RH SEAT
-Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 646064..
COMPLETE NARROW LH SEAT
-Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647342..
COMPLETE LARGE RH SEAT
-Red Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647343..
COMPLETE LARGE RH SEAT
-Black Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647344..
COMPLETE LARGE RH SEAT
-Beige Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647345..
COMPLETE LARGE LH SEAT
-Red Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647346..
COMPLETE LARGE LH SEAT
-Black Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647347..
COMPLETE LARGE LH SEAT
-Beige Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647348..
COMPLETE NARROW RH SEAT
-Red Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647349..
COMPLETE NARROW RH SEAT
-Black Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647350..
COMPLETE NARROW RH SEAT
-Alcantara Beige - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647351..
COMPLETE NARROW LH SEAT
-Red Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647352..
COMPLETE NARROW LH SEAT
-Black Alcantara - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 647353..
COMPLETE NARROW LH SEAT
-Alcantara Beige - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 64792900
UPHOLSTERED COMPLETE CUSHION
-Red Alcantara
# 000
MPN: 64793000
UPHOLSTERED COMPLETE CUSHION
-Black Alcantara
# 000
MPN: 64793100
UPHOLSTERED COMPLETE CUSHION
-Alcantara Beige
# 000
MPN: 658372..
COMPLETE LARGE LH SEAT
-Carbon - Red Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658373..
COMPLETE LARGE LH SEAT
-Carbon - Black Tissue/leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658374..
COMPLETE LARGE LH SEAT
-Carbon - Beige Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658375..
COMPLETE LARGE LH SEAT
-Carbon - Yellow Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658376..
COMPLETE LARGE RH SEAT
-Carbon - Red Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658377..
COMPLETE LARGE RH SEAT
-Carbon - Black Tissue/leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658378..
COMPLETE LARGE RH SEAT
-Carbon - Beige Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658379..
COMPLETE LARGE RH SEAT
-Carbon - Yellow Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658380..
COMPLETE LARGO LH SEAT
-Carbon - leather/leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658381..
COMPLETE LARGE RH SEAT
-Carbon - leather/leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658382..
COMPLETE STANDARD LH SEAT
-Carbon - Red Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658385..
COMPLETE STANDARD LH SEAT
-Carbon - Black Tissue/leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658386..
COMPLETE STANDARD LH SEAT
-Carbon - Beige Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658387..
COMPLETE STANDARD LH SEAT
-Carbon - Yellow Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658388..
COMPLETE STANDARD RH SEAT
-Carbon - Red Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658389..
COMPLETE STANDARD RH SEAT
-Carbon - Black Tissue/leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658390..
COMPLETE STANDARD RH SEAT
-Carbon - Beige Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658391..
COMPLETE STANDARD RH SEAT
-Carbon - Yellow Tissue/Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658392..
COMPLETE STANDARD LH SEAT
-Carbon - Leather/Leather - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 000
MPN: 658393..
COMPLETE STANDARD RH SEAT
-Carbon - leather/leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 001
MPN: 64346700
SEAT BACK UPPER AND LATERAL FOAM
from £114.00
from £114.00
# 002
MPN: 64348000
SEAT BACK CENTRAL FOAM
from £62.54
from £62.54
# 003
MPN: 64605400
SEAT BACK RH LATERAL FOAM
-Large Type
# 003
MPN: 64605500
SEAT BACK LH LATERAL FOAM
-Large Type
# 003
MPN: 64605600
SEAT BACK RH LATERAL FOAM
-Narrow Type
# 003
MPN: 64605700
SEAT BACK LH LATERAL FOAM
-Narrow Type
# 004
MPN: 64347800
CUSHION UPPER CENTRAL FOAM
-Large Type
from £37.04
from £37.04
# 004
MPN: 64679100
CUSHION UPPER CENTRAL FOAM
-Narrow Type
from £18.89
from £18.89
# 005
MPN: 64605800
CUSHION LOWER CENTRAL FOAM
from £40.16
from £40.16
# 006
MPN: 64532400
CALF-REST FOAM
from £29.42
from £29.42
# 007
MPN: 64334700
CUSHION RH LATERAL FOAM
-Large Type
# 007
MPN: 64399000
CUSHION LH LATERAL FOAM
-Large Type
from £67.49
from £67.49
# 007
MPN: 64605900
CUSHION RH LATERAL FOAM
-Narrow Type
# 007
MPN: 64606000
CUSHION LH LATERAL FOAM
-Narrow Type
from £67.49
from £67.49
# 008
MPN: 64473400
SAFETY BELTS ASSEMBLY
-Not for USA, CDN, SA and J - Valid till stock exhaustion
Supersession
Supersession
# 008
MPN: 64488300
SAFETY BELTS ASSEMBLY
-Valid for SA and J - Valid for USA and CDN till Ass. Nr.20565
from £183.40
from £183.40
# 008
MPN: 64678600
SAFETY BELTS ASSEMBLY
-Not for USA, CDN, SA and J - Valid after stock exhaustion of 64473400
from £535.49
from £535.49
This part replaces part number 64473400
# 008
MPN: 64927900
SAFETY BELTS ASSEMBLY
-Valid for USA and CDN from Ass. Nr.20566
from £236.79
from £236.79
# 009
MPN: 62859100
BELT TIGHTENING BRACKET
from £15.77
from £15.77
# 009
MPN: 63377800
BELT TIGHTENING BRACKET
from £8.02
from £8.02
This part replaces part number 62859100 which we have in stock - and 3 more. Click to view details
# 010
MPN: 64347200

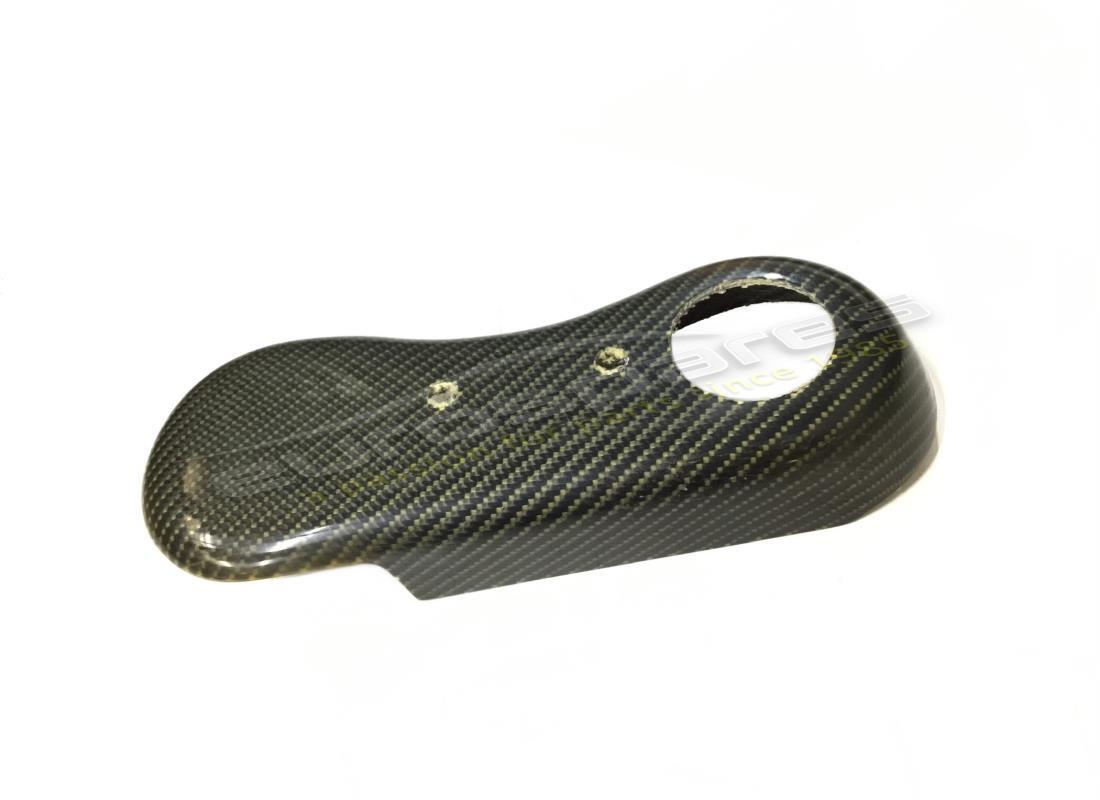

SEAT LH TRANSMISSION COVER
from £171.19
from £171.19
# 010
MPN: 64348600
SEAT RH TRANSMISSION COVER
from £235.89
from £235.89
# 011
MPN: 64321200
LH BRACKET
from £18.96
from £18.96
# 011
MPN: 64321400
RH BRACKET
from £18.96
from £18.96
# 012
MPN: 64346900
LH SEAT BACK INNER ADJUSTER
from £37.52
from £37.52
# 012
MPN: 64348500
RH SEAT BACK INNER ADJUSTER
from £37.52
from £37.52
# 013
MPN: 64328700
LH SEAT BACK OUTER ADJUSTER
from £149.09
from £149.09
# 013
MPN: 64329300
RH SEAT BACK OUTER ADJUSTER
from £61.99
from £61.99
# 014
MPN: 64347400
LH SEAT OUTER ARTICULATED JOINT COVER
from £171.19
from £171.19
# 014
MPN: 64347500
LH SEAT INNER ARTICULATED JOINT COVER
from £171.19
from £171.19
# 014
MPN: 64348800
RH SEAT INNER ARTICULATED JOINT COVER
from £188.30
from £188.30
# 014
MPN: 64348900
RH SEAT OUTER ARTICULATED JOINT COVER
from £214.24
from £214.24
# 015
MPN: 64331300
SEAT BACK ADJUSTING KNOB
from £2.45
from £2.45
# 016
MPN: 64330800
PLUG FOR KNOB
from £1.03
from £1.03
# 017
MPN: 64330700
ARTICULATED JOINT CONTROL PULLEY
from £11.14
from £11.14
# 018
MPN: 64347100
PULLEYS CONNECTING BELT
from £25.64
from £25.64
# 019
MPN: 64328200
PIN
from £17.02
from £17.02
# 020
MPN: 64347000
SELF-LUBRICATING BUSHING
from £2.25
from £2.25
# 021
MPN: 64347700
WASHER
from £2.69
from £2.69
# 022
MPN: 64347600
ARTICULATED JOINT CONNECTION ROD
from £14.73
from £14.73
# 023
MPN: 64339500
GUIDE CONTROL FORK
from £19.97
from £19.97
# 024
MPN: 64339300
RH GUIDE
from £198.28
from £198.28
This part replaces part number 62655200
# 024
MPN: 64339400
LH GUIDE
from £198.28
from £198.28
This part replaces part number 62655300 which we have in stock
# 025
MPN: 40294308
SCREW
from £2.52
from £2.52
This part replaces part number 20293306 which we have in stock
# 026
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 027
MPN: 14496506
WASHER
Supersession
Supersession
# 028
MPN: 64322300
STOP BRACKET
from £4.79
from £4.79
# 029
MPN: 10977524
SCREW
from £0.51
from £0.51
# 030
MPN: 160957
WASHER
from £0.51
from £0.51
This part replaces part number 10615476
# 031
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 032
MPN: 63929800
SCREW
from £7.67
from £7.67
# 033
MPN: 14496506
WASHER
Supersession
Supersession
# 034
MPN: 64460500
SCREW
from £0.61
from £0.61
# 035
MPN: 14306334
SCREW
Supersession
Supersession
# 036
MPN: 63395300
ELASTIC PLATE
from £0.87
from £0.87
# 037
MPN: 40294308
SCREW
from £2.52
from £2.52
This part replaces part number 20293306 which we have in stock
# 038
MPN: 63395300
ELASTIC PLATE
from £0.87
from £0.87
# 039
MPN: 20293306
SCREW
from £2.47
from £2.47
# 040
MPN: 63395300
ELASTIC PLATE
from £0.87
from £0.87
# 041
MPN: 14306334
SCREW
Supersession
Supersession
# 042
MPN: 63395300
ELASTIC PLATE
from £0.87
from £0.87
# 043
MPN: 16160976
FLEXIBLE RING
from £0.47
from £0.47
-part-diagram-130.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 355 (2.7 MOTRONIC) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-132.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-133.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-134.webp "FERRARI 355 (2.7 MOTRONIC) AIR-BAGS PARTS DIAGRAM")
-part-diagram-135.webp "FERRARI 355 (2.7 MOTRONIC) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-136.webp "FERRARI 355 (2.7 MOTRONIC) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-137.webp "FERRARI 355 (2.7 MOTRONIC) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-138.webp "FERRARI 355 (2.7 MOTRONIC) WINDSHIELD WIPER AND CONTROLS PARTS DIAGRAM")
-part-diagram-139.webp "FERRARI 355 (2.7 MOTRONIC) GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-140.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-141.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS - PASSENGERS COMPARTMENT PARTS DIAGRAM")
-part-diagram-142.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS AND DEVICES - FRONT PART PARTS DIAGRAM")
-part-diagram-143.webp "FERRARI 355 (2.7 MOTRONIC) EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATION PARTS DIAGRAM")
-part-diagram-144.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 355 (2.7 MOTRONIC) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 355 (2.7 MOTRONIC) CRANKSHAFT, CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 355 (2.7 MOTRONIC) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 355 (2.7 MOTRONIC) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - TAPPETS AND SHIELDS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 355 (2.7 MOTRONIC) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 355 (2.7 MOTRONIC) AIR INJECTION DEVICE PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 355 (2.7 MOTRONIC) FUEL TANK PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 355 (2.7 MOTRONIC) ANTIEVAPORATION DEVICE PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 355 (2.7 MOTRONIC) AIR BOXES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 355 (2.7 MOTRONIC) AIR INTAKE PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 355 (2.7 MOTRONIC) THROTTLE HOLDERS AND CONTROLS PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 355 (2.7 MOTRONIC) ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 355 (2.7 MOTRONIC) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 355 (2.7 MOTRONIC) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 355 (2.7 MOTRONIC) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 355 (2.7 MOTRONIC) PUMPS AND OIL SUMP PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM - NOURICE PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 355 (2.7 MOTRONIC) WATER PUMP AND OIL-WATER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX - DIFFERENTIAL HOUSING AND INTERMEDIATE CASING PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX COVERS AND LUBRICATION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 355 (2.7 MOTRONIC) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 355 (2.7 MOTRONIC) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 355 (2.7 MOTRONIC) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 355 (2.7 MOTRONIC) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 355 (2.7 MOTRONIC) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC SYSTEM FOR ABS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 355 (2.7 MOTRONIC) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 355 (2.7 MOTRONIC) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING BOX PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 355 (2.7 MOTRONIC) MECHANICAL STEERING BOX PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 355 (2.7 MOTRONIC) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING PUMP PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 355 (2.7 MOTRONIC) WHEELS PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 355 (2.7 MOTRONIC) CURRENT GENERATOR - STARTING MOTOR - BATTERY PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING COMPRESSOR PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 355 (2.7 MOTRONIC) TOOLS EQUIPMENT PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 355 (2.7 MOTRONIC) SPARE WHEEL AND EQUIPMENT - OPTIONAL- PARTS DIAGRAM")
-part-diagram-100.webp "FERRARI 355 (2.7 MOTRONIC) BODY - GENERAL UNITS PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 355 (2.7 MOTRONIC) BODY - UNITS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 355 (2.7 MOTRONIC) FRONT PART STRUCTURES PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 355 (2.7 MOTRONIC) CENTRAL PART STRUCTURES PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 355 (2.7 MOTRONIC) FRAME - REAR PART ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 355 (2.7 MOTRONIC) ROOF - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 355 (2.7 MOTRONIC) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 355 (2.7 MOTRONIC) BODY - SHIELDS AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 355 (2.7 MOTRONIC) FRONT COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 355 (2.7 MOTRONIC) TOP PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 355 (2.7 MOTRONIC) TOP HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 355 (2.7 MOTRONIC) FRONT HOOD PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICE FOR FRONT HOOD PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 355 (2.7 MOTRONIC) REAR HOOD PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICES FOR REAR HOOD AND GAS DOOR PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - FRAMEWORK AND REAR MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - GLASS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - INNER TRIMS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 355 (2.7 MOTRONIC) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 355 (2.7 MOTRONIC) REAR BUMPER PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 355 (2.7 MOTRONIC) GLASSES AND GASKETS PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
