003 - ROLL BAR

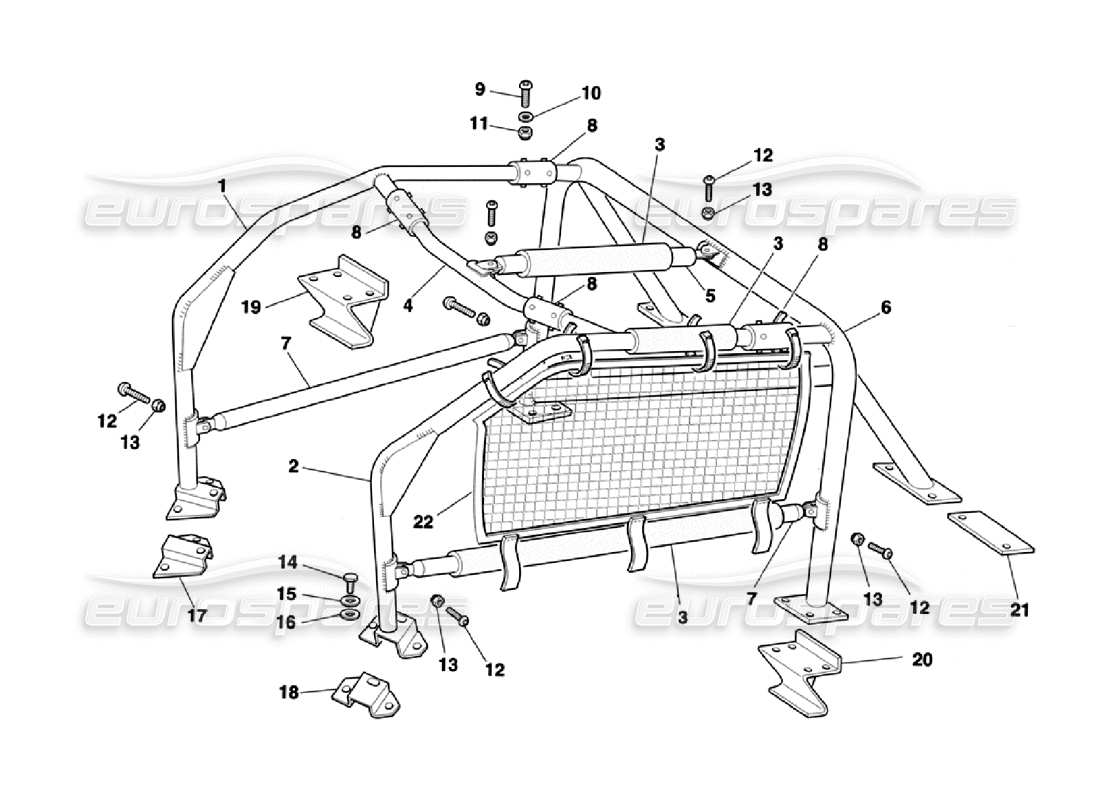

Ferrari 355 Challenge (1996) Roll Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
RH CROSS MEMBER
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 001
MPN: 62968900
LH STEERING ROLL BAR ASSEMBLY
Without brackets
from £1,310.17
from £1,310.17
# 001
MPN: 62975300
RH STEERING ROLL BAR ASSEMBLY
Without brackets
from £1,330.72
from £1,330.72
# 002
-
LH CROSS MEMBER
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 003
MPN: 64762400
RUBBER PROTECTION PIPE
Parts supplied on request only with 62968900 and 62975300 ass. no. - Supplied in meters
from £10.21
from £10.21
# 004
-
FRONT CROSS MEMBER
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 005
-
TOP CROSS MEMBER
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 006
-
MAIN FRAME RIB FOR LH STEERING
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 006
-
MAIN FRAME RIB FOR RH STEERING
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 007
MPN: 62974600
DOOR CROSS MEMBER SET
Parts supplied on request only with 62968900 and 62975300 ass. no.
from £264.92
from £264.92
This part replaces part number 167193
# 008
-
SLEEVE
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 009
-
SCREW
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 010
MPN: 13550301
WASHER
Parts supplied on request only with 62968900 and 62975300 ass. no.
from £0.47
from £0.47
# 011
-
NUT
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 012
-
SCREW
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 013
-
NUT
Parts supplied on request only with 62968900 and 62975300 ass. no.
# 014
MPN: 14306324
SCREW
Parts supplied on request only with 62968900 and 62975300 ass. no.
from £0.47
from £0.47
# 015
MPN: 11198074
WASHER
Parts supplied on request only with 62968900 and 62975300 ass. no.
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 016
MPN: 13550301
WASHER
Parts supplied on request only with 62968900 and 62975300 ass. no.
from £0.47
from £0.47
# 016
MPN: 62965200
ROLL BAR FIXING PLATES ASSEMBLY
from £288.56
from £288.56
# 017
-
(2) RH REINFORCED PLATE
Parts supplied on request only with 62965200 as. no.
# 018
-
(2) LH REINFORCED PLATE
Parts supplied on request only with 62965200 as. no.
# 019
-
(2) RH FRAME REINFORCED HOUSING
Parts supplied on request only with 62965200 as. no.
# 020
-
(2) LH FRAME REINFORCED HOUSING
Parts supplied on request only with 62965200 as. no.
# 021
-
(2) REINFORCED PLATE
Parts supplied on request only with 62965200 as. no.
# 022
MPN: 170908
DRIVER'S PROTECTING WIRE NET
from £318.31
from £318.31
