010 - GEARBOX OIL COOLING SYSTEM

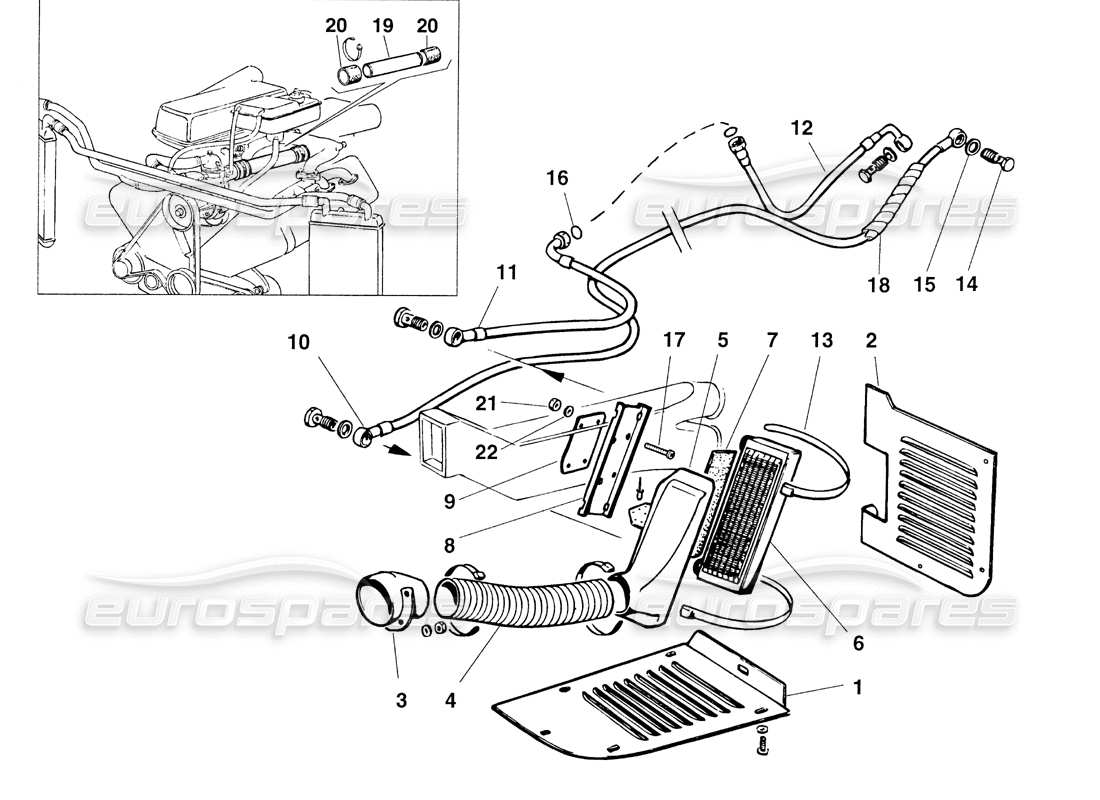

Ferrari 355 Challenge (1999) Gearbox Oil Cooling System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 65751800
                                              LOWER GRAVEL GUARD
                                              from £105.90
                                              from £105.90
                                              # 002
                                              MPN: 65751900

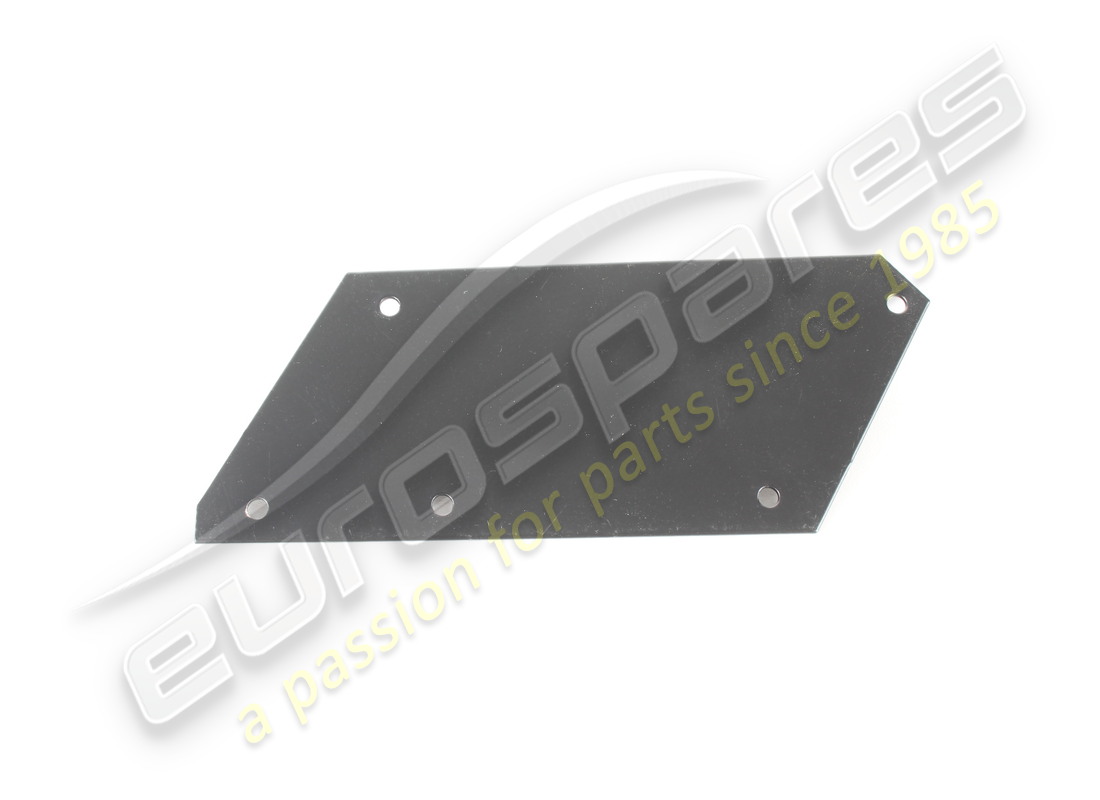

                                              SIDE GREVEL GUARD
                                              from £122.62
                                              from £122.62
                                              # 003
                                              MPN: 65752500
                                              FITTING
                                              from £821.69
                                              from £821.69
                                              # 004
                                              MPN: 65752400
                                              AIR DUCT
                                              from £80.36
                                              from £80.36
                                              # 005
                                              MPN: 65752300

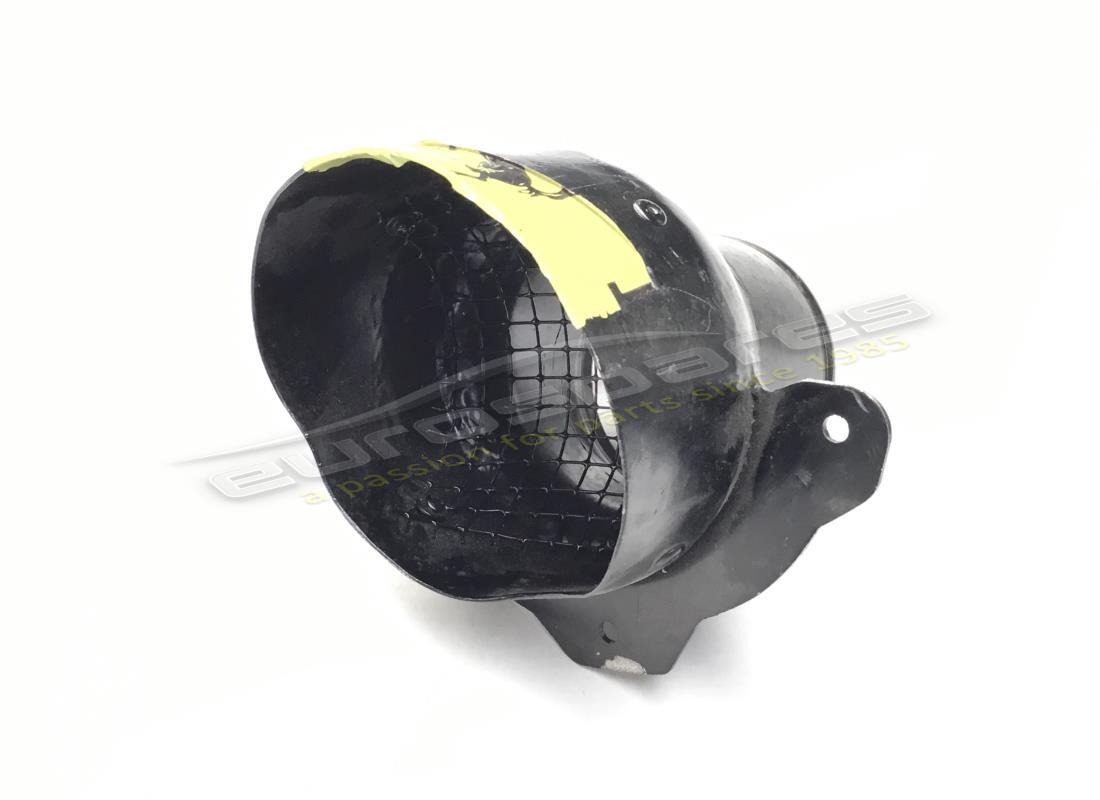

                                              AIR CONVEYOR
                                              from £821.69
                                              from £821.69
                                              # 006
                                              MPN: 178470

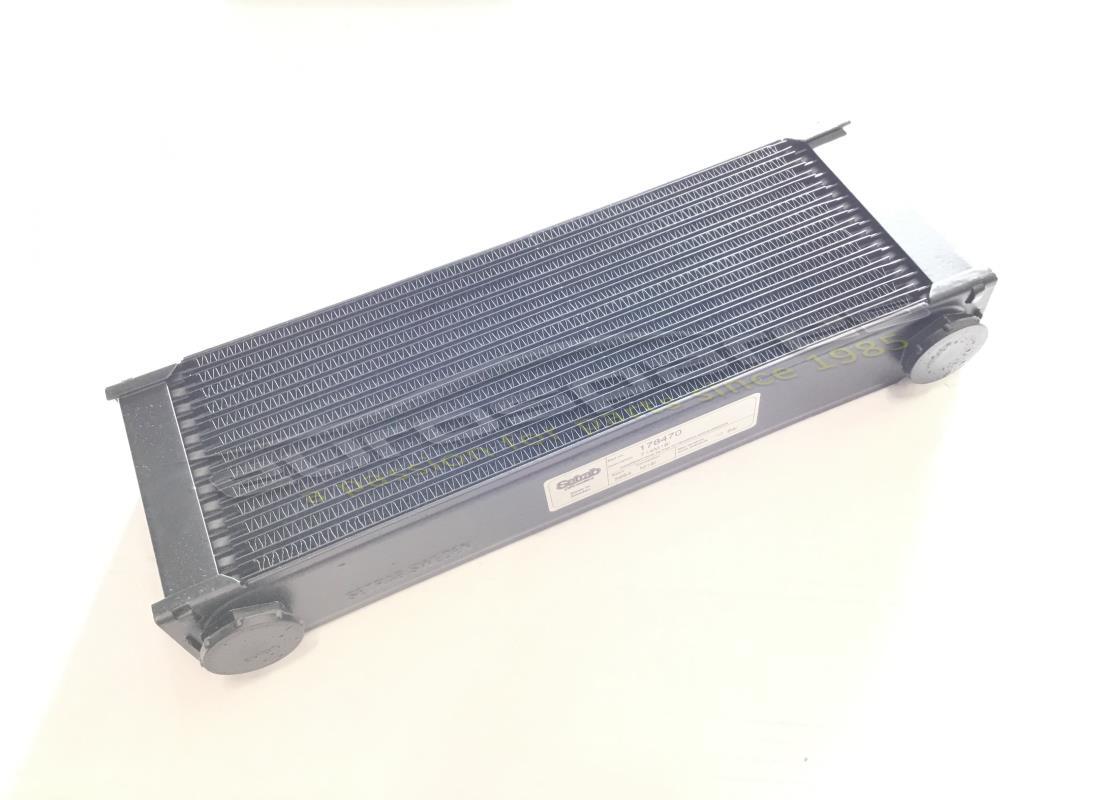

                                              GEARBOX OIL RADIATOR
                                              from £695.00
                                              from £695.00
                                              # 007
                                              MPN: 65752200
                                              SPACER
                                              from £3.38
                                              from £3.38
                                              # 008
                                              MPN: 65752000
                                              OIL RADIATOR SUPPORTING BRACKET
                                              from £7.22
                                              from £7.22
                                              # 009
                                              MPN: 65752100
                                              OIL RADIATOR SUPPORTING BRACKET
                                              from £5.70
                                              from £5.70
                                              # 010
                                              MPN: 178055
                                              OIL DELIVERY PIPE TO RADIATOR
                                              from £398.67
                                              from £398.67
                                              # 011
                                              MPN: 178057
                                              FRONT RETURN PIPE
                                              from £232.85
                                              from £232.85
                                              # 012
                                              MPN: 178056
                                              REAR RETURN PIPE
                                              from £274.41
                                              from £274.41
                                              # 013
                                              MPN: 65752700
                                              CLAMP
                                              from £0.71
                                              from £0.71
                                              # 014
                                              MPN: 153419
                                              FITTING
                                              from £15.94
                                              from £15.94
                                              BANJO BOLT Genuine Ferrari Part - Used In stock
                                              removed from 355 5.2 Engine Number 48537
                                              # 015
                                              MPN: 145192
                                              GASKET
                                              Supersession
                                              Supersession
                                              This part replaces part number 143311
                                              # 016
                                              MPN: 145192
                                              0-RING
                                              Supersession
                                              Supersession
                                              This part replaces part number 143311
                                              # 017
                                              MPN: 178483
                                              SCREW
                                              from £0.71
                                              from £0.71
                                              # 018
                                              MPN: 65759900
                                              PROTECTION SHEATH
                                              from £8.25
                                              from £8.25
                                              # 019
                                              MPN: 178058
                                              EXCHANGER REPLACE PIPE
                                              from £31.69
                                              from £31.69
                                              # 020
                                              MPN: 138981
                                              SLEEVE
                                              from £21.90
                                              from £21.90
                                              This part replaces part number 135136
                                              # 021
                                              MPN: 178484
                                              NUT
                                              from £0.79
                                              from £0.79
                                              # 022
                                              MPN: 12643778
                                              WASHER
                                              (minimum order quantity = 20)
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 12643777 - and 1 more. Click to view details
