ferrari 355 challenge (1999) front suspension and brake pipes parts diagram

014 - Front Suspension and Brake Pipes

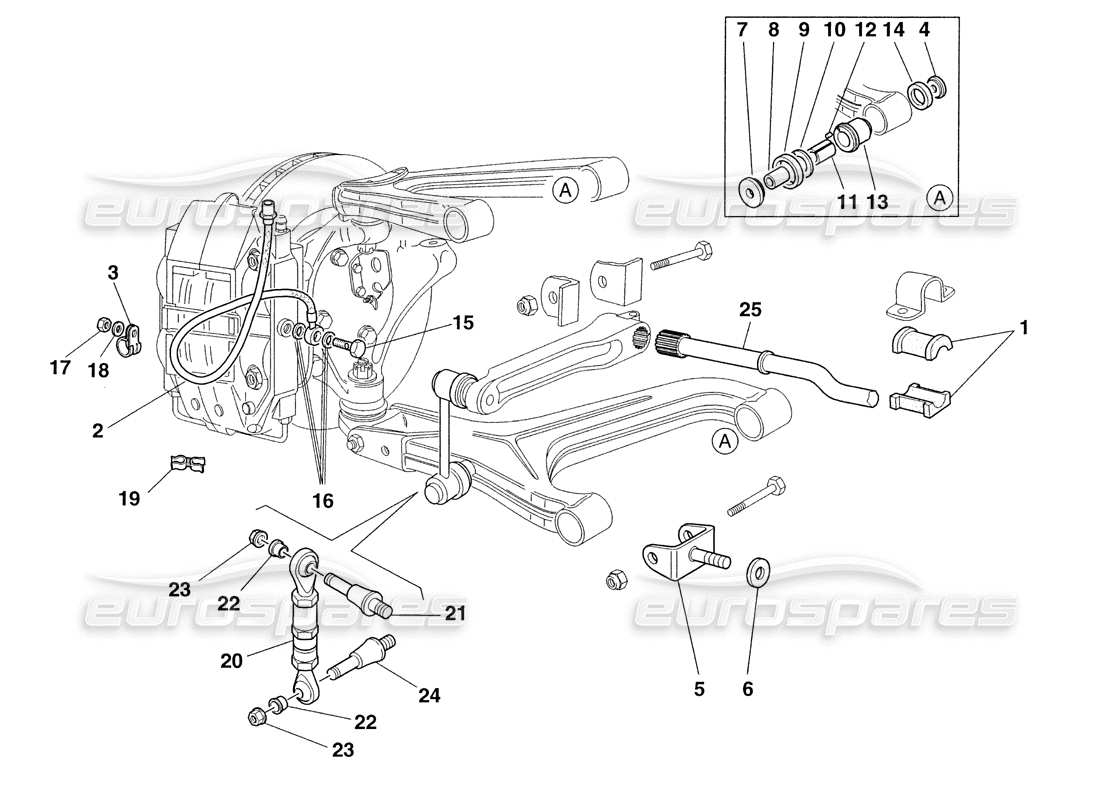

Ferrari 355 Challenge (1999) Front Suspension and Brake Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 153179
                                          PAD (FOR STANDARD BAR)
                                          from £118.13
                                          from £118.13
                                          # 001
                                          MPN: 178510
                                          PAD (FOR BAR 176031)
                                          from £178.03
                                          from £178.03
                                          # 002
                                          MPN: 166014
                                          BRAKE PIPE
                                          from £141.49
                                          from £141.49
                                          # 003
                                          MPN: 10440990
                                          CLAMP
                                          from £0.77
                                          from £0.77
                                          # 004
                                          MPN: 149564
                                          SMALL THRUST WASHER
                                          from £16.79
                                          from £16.79
                                          # 005
                                          MPN: 164755
                                          FORK
                                          from £43.21
                                          from £43.21
                                          # 006
                                          MPN: 163325
                                          SPACER
                                          from £10.49
                                          from £10.49
                                          # 007
                                          MPN: 149746
                                          LARGE THRUST WASHER
                                          from £28.94
                                          from £28.94
                                          # 008
                                          MPN: 150379
                                          INNER SPACER
                                          from £62.59
                                          from £62.59
                                          # 009
                                          MPN: 148729
                                          LARGE DUST SEAL
                                          from £5.94
                                          from £5.94
                                          # 010
                                          MPN: 101009
                                          THRUST WASHER
                                          from £6.79
                                          from £6.79
                                          This part replaces part number 600771
                                          # 011
                                          MPN: 101010
                                          INNER BUSHING
                                          from £4.86
                                          from £4.86
                                          This part replaces part number 600786
                                          # 012
                                          MPN: 100796
                                          CENTERING DOWEL
                                          from £2.26
                                          from £2.26
                                          This part replaces part number 94943
                                          # 013
                                          MPN: 149563
                                          UPPER OUTSIDE BUSHING
                                          from £65.51
                                          from £65.51
                                          # 014
                                          MPN: 148599
                                          SMALL DUST SEAL
                                          from £1.80
                                          from £1.80
                                          # 015
                                          MPN: 169829
                                          DRILLED SCREW
                                          from £4.09
                                          from £4.09
                                          # 016
                                          MPN: 10260160
                                          COPPER WASHER
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 10260170
                                          # 017
                                          MPN: 12574211
                                          NUT
                                          from £0.71
                                          from £0.71
                                          # 018
                                          MPN: 14496424
                                          SPRING WASHER
                                          Supersession
                                          Supersession
                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                          # 019
                                          MPN: 124551
                                          PIPE CLAMP
                                          from £0.71
                                          from £0.71
                                          # 019
                                          MPN: 169086

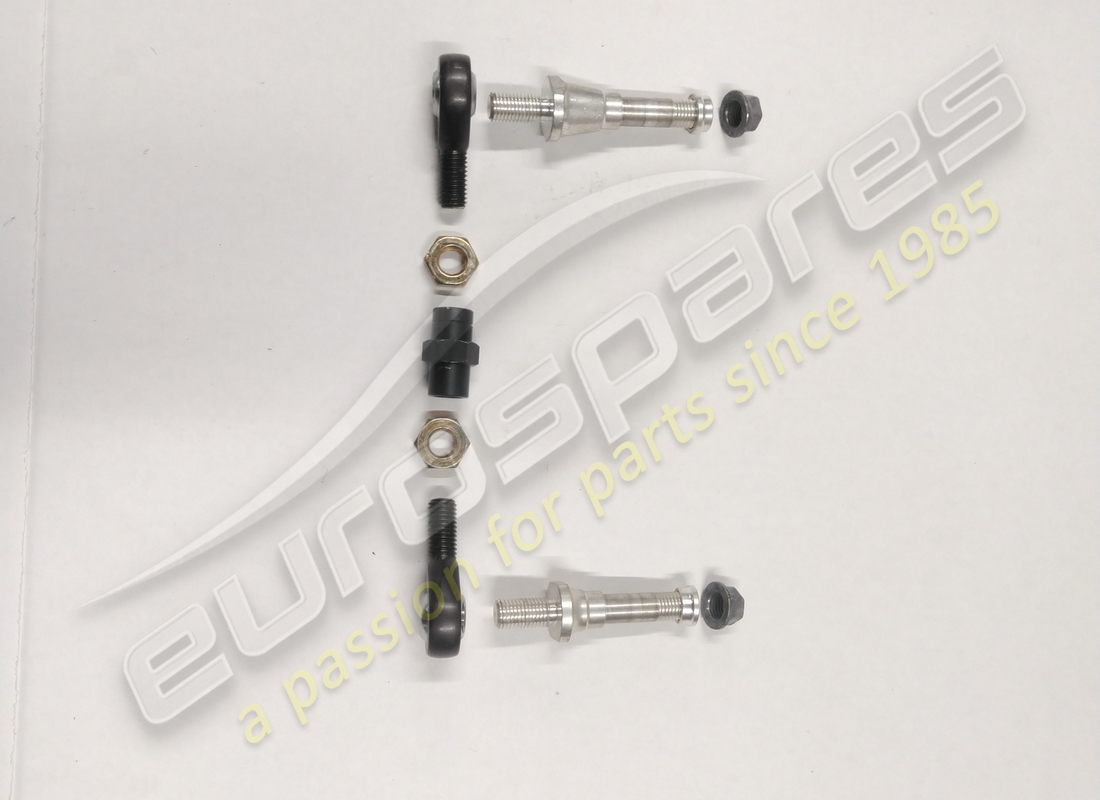

                                          FRONT CONNECTING ROD ASSY. KIT
                                          from £339.98
                                          from £339.98
                                          # 020
                                          MPN: 169088
                                          COMPLETE BAR CONNECTING ROD
                                          Part of front connecting rod assy. kit
                                          from £124.52
                                          from £124.52
                                          # 021
                                          MPN: 169083
                                          UPPER PIN
                                          Part of front connecting rod assy. kit
                                          # 022
                                          MPN: 169092
                                          SPACER
                                          Part of front connecting rod assy. kit
                                          from £0.85
                                          from £0.85
                                          # 023
                                          MPN: 133216
                                          NUT
                                          Part of front connecting rod assy. kit
                                          from £4.87
                                          from £4.87
                                          # 024
                                          MPN: 169042
                                          LOWER PIN
                                          Part of front connecting rod assy. kit
                                          from £101.85
                                          from £101.85
                                          # 025
                                          MPN: 159353
                                          STABILIZER BAR (STANDARD)
                                          from £198.36
                                          from £198.36
                                          # 025
                                          MPN: 176031
                                          STABILIZER BAR (UPON DEMAND)
                                          from £669.92
                                          from £669.92
