ferrari 355 challenge (1999) rear suspension and brake pipes parts diagram

015 - Rear Suspension and Brake Pipes

Ferrari 355 Challenge (1999) Rear Suspension and Brake Pipes Parts Diagram

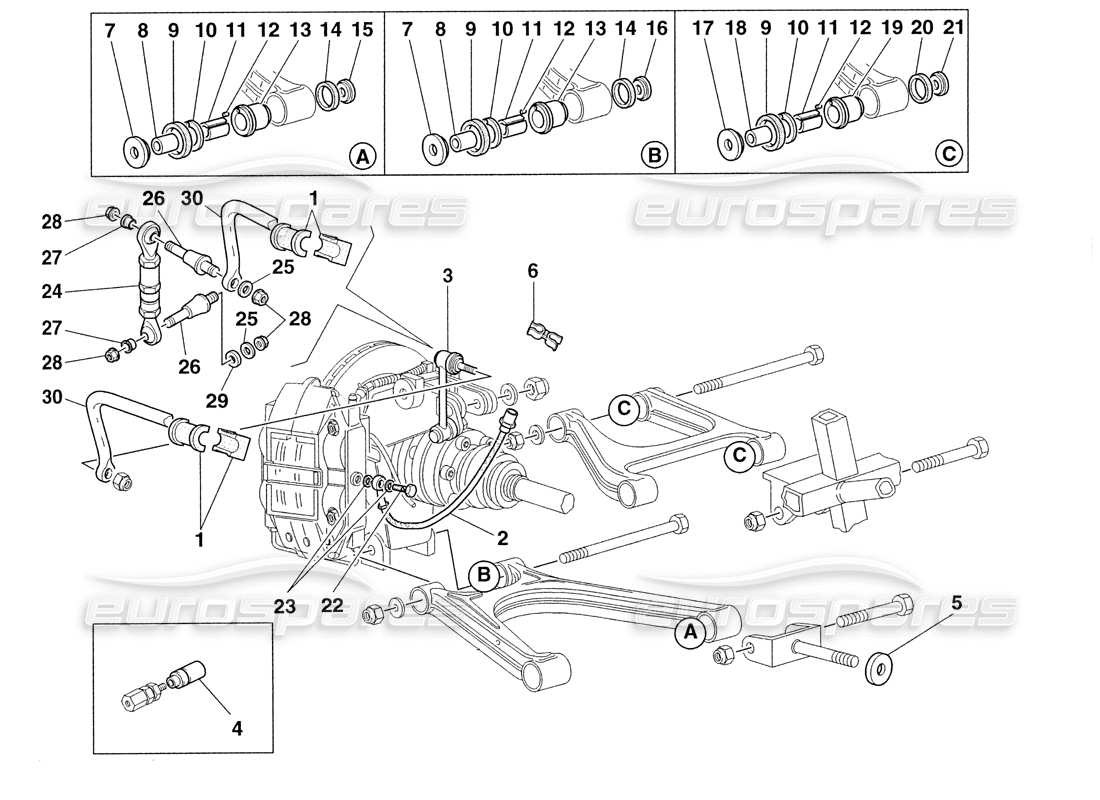

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 164762

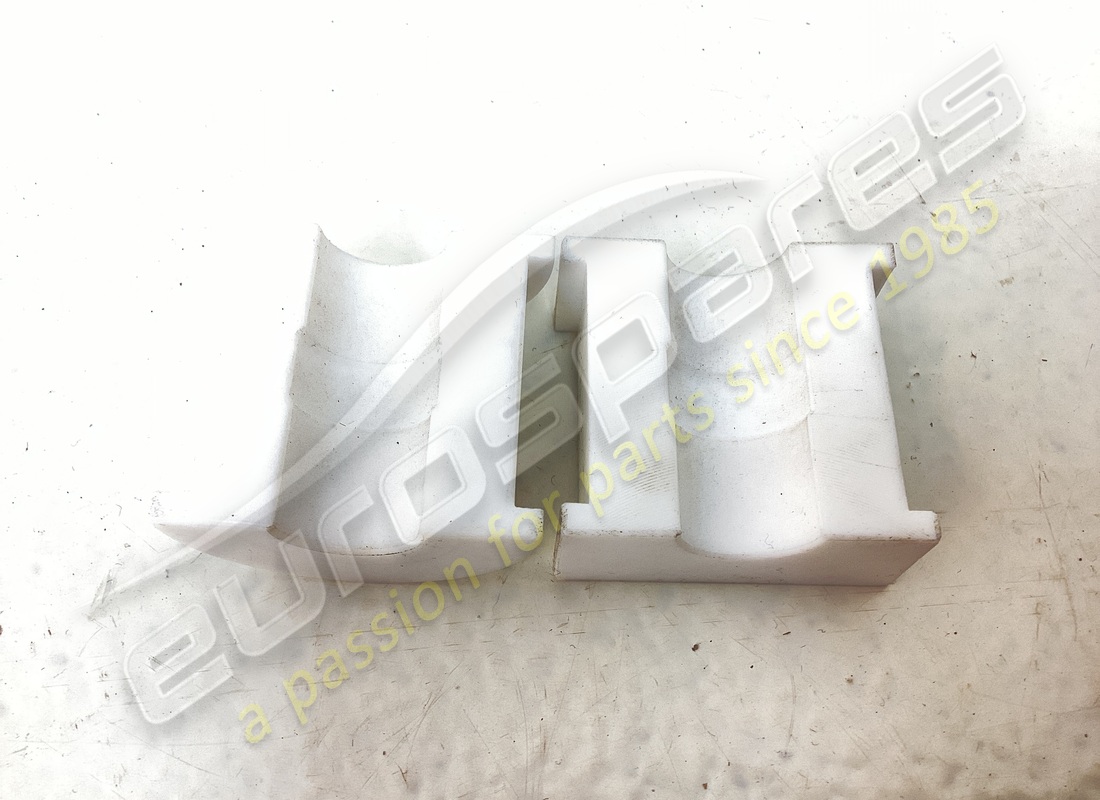

                                                  PAD (FOR STANDARD BAR)
                                                  from £118.13
                                                  from £118.13
                                                  # 001
                                                  MPN: 178509
                                                  PAD (FOR BAR 176032)
                                                  from £178.03
                                                  from £178.03
                                                  # 002
                                                  MPN: 166015
                                                  BRAKE PIPE
                                                  from £119.85
                                                  from £119.85
                                                  # 003
                                                  MPN: 161109

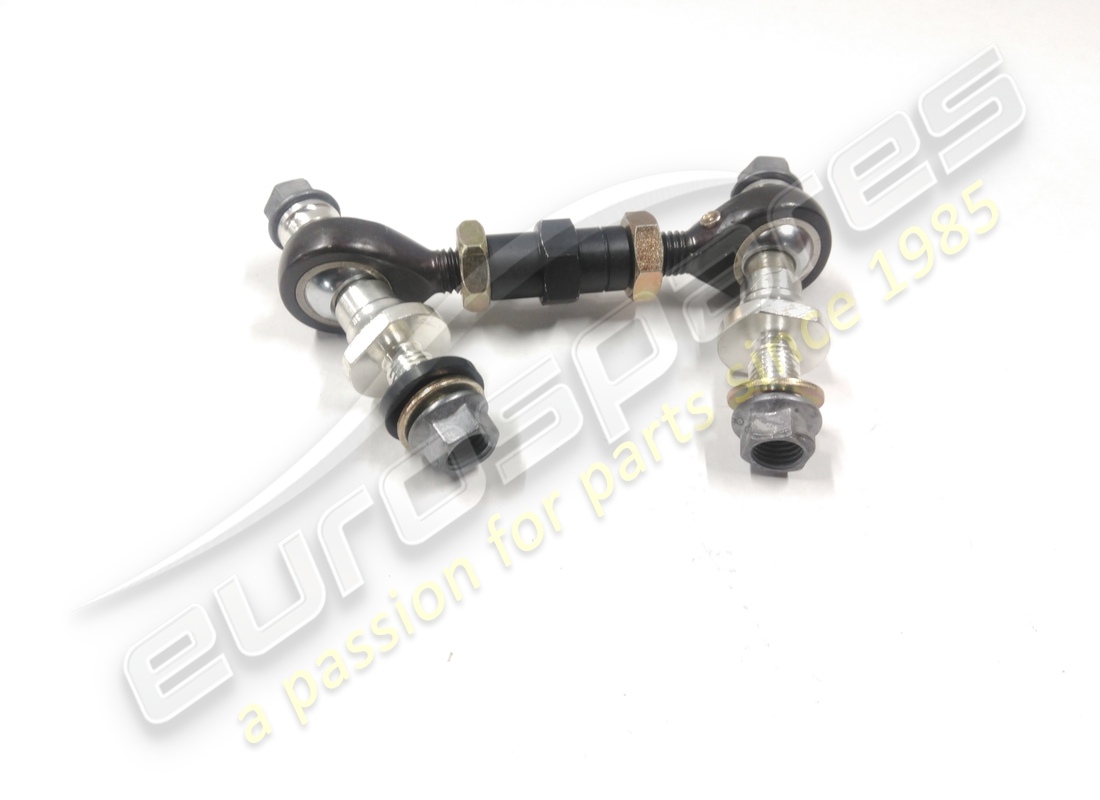

                                                  RH BALL TIE ROD
                                                  from £35.68
                                                  from £35.68
                                                  # 003
                                                  MPN: 161110
                                                  LH BALL TIE ROD
                                                  from £35.68
                                                  from £35.68
                                                  # 004
                                                  MPN: 155808
                                                  BRAKING ADJUSTER (AS AN ALTERNATIVE FOR P.NO. 157908)
                                                  from £57.17
                                                  from £57.17
                                                  # 005
                                                  MPN: 163325

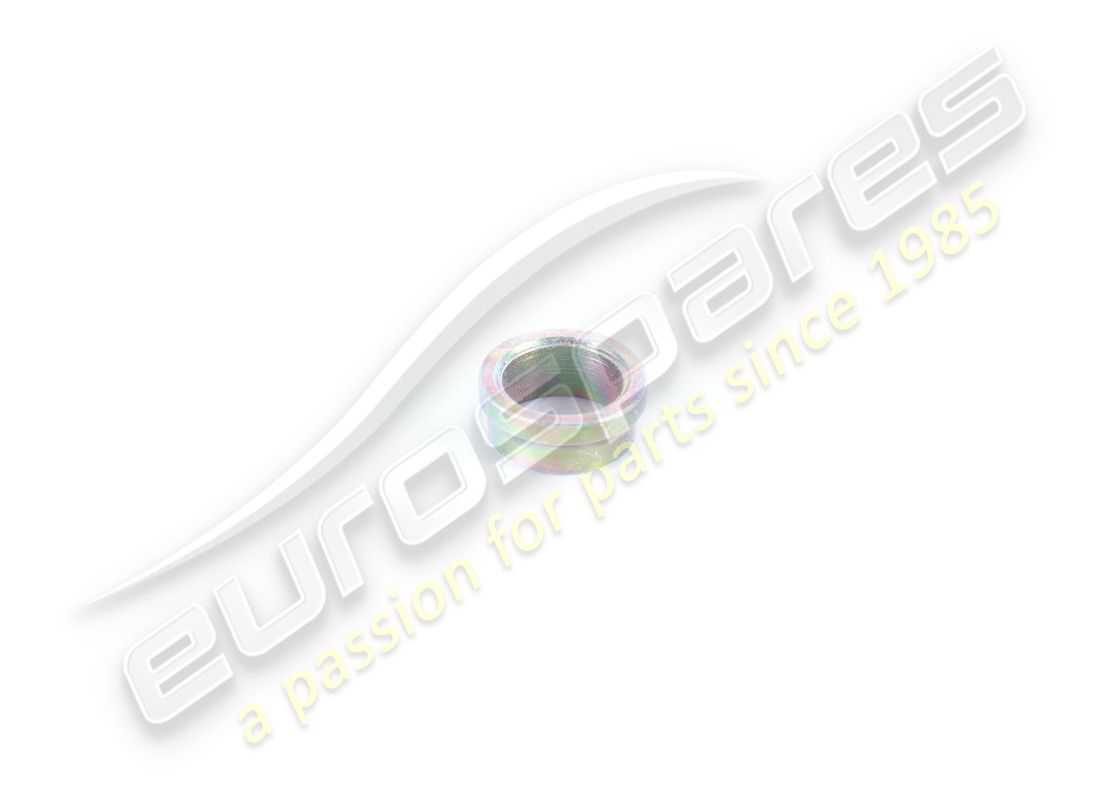

                                                  SPACER
                                                  from £10.49
                                                  from £10.49
                                                  # 006
                                                  MPN: 124551
                                                  PIPE CLAMP
                                                  from £0.71
                                                  from £0.71
                                                  # 007
                                                  MPN: 148651
                                                  LARGE THRUST WASHER
                                                  from £12.21
                                                  from £12.21
                                                  # 008
                                                  MPN: 148730
                                                  INNER SPACER
                                                  from £16.77
                                                  from £16.77
                                                  # 009
                                                  MPN: 148729
                                                  LARGE DUST SEAL
                                                  from £5.94
                                                  from £5.94
                                                  # 010
                                                  MPN: 101009
                                                  THRUST WASHER
                                                  from £6.79
                                                  from £6.79
                                                  This part replaces part number 600771
                                                  # 011
                                                  MPN: 101010
                                                  INNER BUSHING
                                                  from £4.86
                                                  from £4.86
                                                  This part replaces part number 600786
                                                  # 012
                                                  MPN: 100796
                                                  CENTERING DOWEL
                                                  from £2.26
                                                  from £2.26
                                                  This part replaces part number 94943
                                                  # 013
                                                  MPN: 148600
                                                  OUTSIDE BUSHING
                                                  from £35.08
                                                  from £35.08
                                                  # 014
                                                  MPN: 148650
                                                  SMALL DUST SEAL
                                                  from £1.26
                                                  from £1.26
                                                  # 015
                                                  MPN: 148678
                                                  SMALL THRUST WASHER
                                                  from £9.56
                                                  from £9.56
                                                  # 016
                                                  MPN: 148607
                                                  SMALL THRUST WASHER
                                                  from £8.91
                                                  from £8.91
                                                  # 017
                                                  MPN: 149746
                                                  LARGE THRUST WASHER
                                                  from £28.94
                                                  from £28.94
                                                  # 018
                                                  MPN: 150379
                                                  INNER SPACER
                                                  from £62.59
                                                  from £62.59
                                                  # 019
                                                  MPN: 149563
                                                  OUTSIDE UPPER BUSH
                                                  from £65.51
                                                  from £65.51
                                                  # 020
                                                  MPN: 148599
                                                  SMALL DUST SEAL
                                                  from £1.80
                                                  from £1.80
                                                  # 021
                                                  MPN: 149564
                                                  SMALL THRUST WASHER
                                                  from £16.79
                                                  from £16.79
                                                  # 022
                                                  MPN: 169829
                                                  DRILLED SCREW
                                                  from £4.09
                                                  from £4.09
                                                  # 023
                                                  MPN: 10260160
                                                  COPPER WASHER
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 10260170
                                                  # 023
                                                  MPN: 169087
                                                  REAR CONNECTING ROD ASSY. KIT
                                                  from £325.42
                                                  from £325.42
                                                  # 024
                                                  MPN: 169088
                                                  COMPLETE BAR CONNECTING ROD
                                                  Part of rear connecting rod assy. Kit
                                                  from £124.52
                                                  from £124.52
                                                  # 025
                                                  MPN: 14499524
                                                  WASHER
                                                  Part of rear connecting rod assy. Kit
                                                  from £1.17
                                                  from £1.17
                                                  # 026
                                                  MPN: 169042
                                                  PIN
                                                  Part of rear connecting rod assy. Kit
                                                  from £101.85
                                                  from £101.85
                                                  # 027
                                                  MPN: 169092
                                                  SPACER
                                                  Part of rear connecting rod assy. Kit
                                                  from £0.85
                                                  from £0.85
                                                  # 028
                                                  MPN: 133216
                                                  NUT
                                                  Part of rear connecting rod assy. Kit
                                                  from £4.87
                                                  from £4.87
                                                  # 029
                                                  MPN: 169085
                                                  SPACER
                                                  Part of rear connecting rod assy. Kit
                                                  from £11.39
                                                  from £11.39
                                                  # 030
                                                  MPN: 159303
                                                  STABILIZER BAR (STANDARD)
                                                  from £157.62
                                                  from £157.62
                                                  # 030
                                                  MPN: 176032
                                                  STABILIZER BAR (UPON DEMAND)
                                                  from £275.52
                                                  from £275.52
