ferrari 355 challenge (1999) battery and battery disconn. switch parts diagram

017 - Battery and Battery Disconn. Switch

Ferrari 355 Challenge (1999) Battery and Battery Disconn. Switch Parts Diagram

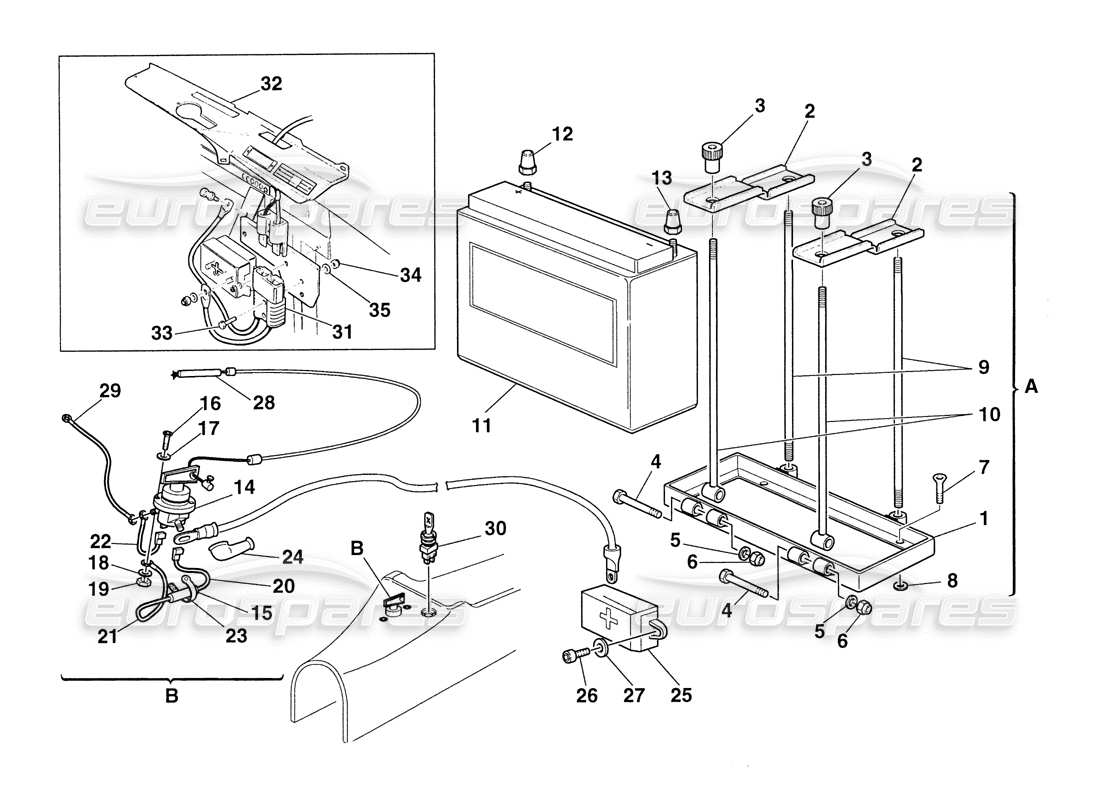

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 000
                                                                        MPN: 164784
                                                                        BATTERY DISCONNECTING SWITCH COMPLETE KIT
                                                                        B on Picture
                                                                        from £189.38
                                                                        from £189.38
                                                                        # 000
                                                                        MPN: 169072
                                                                        BATTERY SUPPORT KIT
                                                                        A on Picture
                                                                        from £602.50
                                                                        from £602.50
                                                                        This part replaces part number 144607 - and 1 more. Click to view details
                                                                        # 001
                                                                        MPN: 169054
                                                                        BATTERY FRAME
                                                                        # 002
                                                                        MPN: 169053
                                                                        UPPER BRACKET FOR BATTERY FASTENING
                                                                        # 003
                                                                        MPN: 146357
                                                                        RING NUT
                                                                        # 004
                                                                        MPN: 10903821
                                                                        SCREW
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 005
                                                                        MPN: 14496401
                                                                        SPRING WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 006
                                                                        MPN: 12575411
                                                                        SELF LOCKING NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 007
                                                                        MPN: 14440721
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 14440727
                                                                        # 008
                                                                        MPN: 12637801
                                                                        SPRING WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 009
                                                                        MPN: 169056
                                                                        STUD BOLT
                                                                        # 010
                                                                        MPN: 164754
                                                                        BATTERY CONN. CABLE
                                                                        # 010
                                                                        MPN: 169055
                                                                        STUD BOLT
                                                                        # 011
                                                                        MPN: 164713
                                                                        Battery
                                                                        from £393.75
                                                                        from £393.75
                                                                        This part replaces part number 145248 - and 1 more. Click to view details
                                                                        # 012
                                                                        MPN: 164751
                                                                        POSITIVE PIN
                                                                        from £15.72
                                                                        from £15.72
                                                                        # 013
                                                                        MPN: 164752
                                                                        NEGATIVE PIN
                                                                        from £19.95
                                                                        from £19.95
                                                                        # 014
                                                                        MPN: 145221
                                                                        BATTERY DISCONNECTING SWITCH
                                                                        from £168.56
                                                                        from £168.56
                                                                        # 015
                                                                        MPN: 145221
                                                                        3.3 KOHM RESISTANCE
                                                                        from £168.56
                                                                        from £168.56
                                                                        # 016
                                                                        MPN: 145221
                                                                        SCREW
                                                                        from £168.56
                                                                        from £168.56
                                                                        # 017
                                                                        MPN: 11197774
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                                        # 018
                                                                        MPN: 14496401
                                                                        PLANE SPRING WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 019
                                                                        MPN: 12575411
                                                                        SELF LOCKING NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 020
                                                                        MPN: 12575411
                                                                        CABLE FROM RESISTANCE TO PIN 1
                                                                        Supersession
                                                                        Supersession
                                                                        # 021
                                                                        MPN: 12575411
                                                                        CABLE FROM RESISTANCE TO GROUND
                                                                        Supersession
                                                                        Supersession
                                                                        # 022
                                                                        MPN: 12575411
                                                                        CABLE FROM POSITIVE PIN TO PIN 1
                                                                        Supersession
                                                                        Supersession
                                                                        # 023
                                                                        MPN: 10441390
                                                                        CLAMP
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 024
                                                                        MPN: 124683
                                                                        RUBBER GUARD
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 139937
                                                                        # 025
                                                                        MPN: 170114
                                                                        Terminal Board
                                                                        from £6.99
                                                                        from £6.99
                                                                        This part replaces part number 153357
                                                                        # 026
                                                                        MPN: 15783501
                                                                        SELF-TREADING SCREW
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 027
                                                                        MPN: 14496324
                                                                        PLANE SPRING WASHER
                                                                        from £1.39
                                                                        from £1.39
                                                                        This part replaces part number 14496301 which we have in stock
                                                                        # 028
                                                                        MPN: 14496324
                                                                        OUTER BATTERY DISCONNECTING SWITCH CABLE
                                                                        from £1.39
                                                                        from £1.39
                                                                        This part replaces part number 14496301 which we have in stock
                                                                        # 029
                                                                        MPN: 14496324
                                                                        CABLE FROM BATTERY SWITCH TO GROUND
                                                                        from £1.39
                                                                        from £1.39
                                                                        This part replaces part number 14496301 which we have in stock
                                                                        # 030
                                                                        MPN: 173902
                                                                        RADIATOR FAN SWITCH
                                                                        from £24.26
                                                                        from £24.26

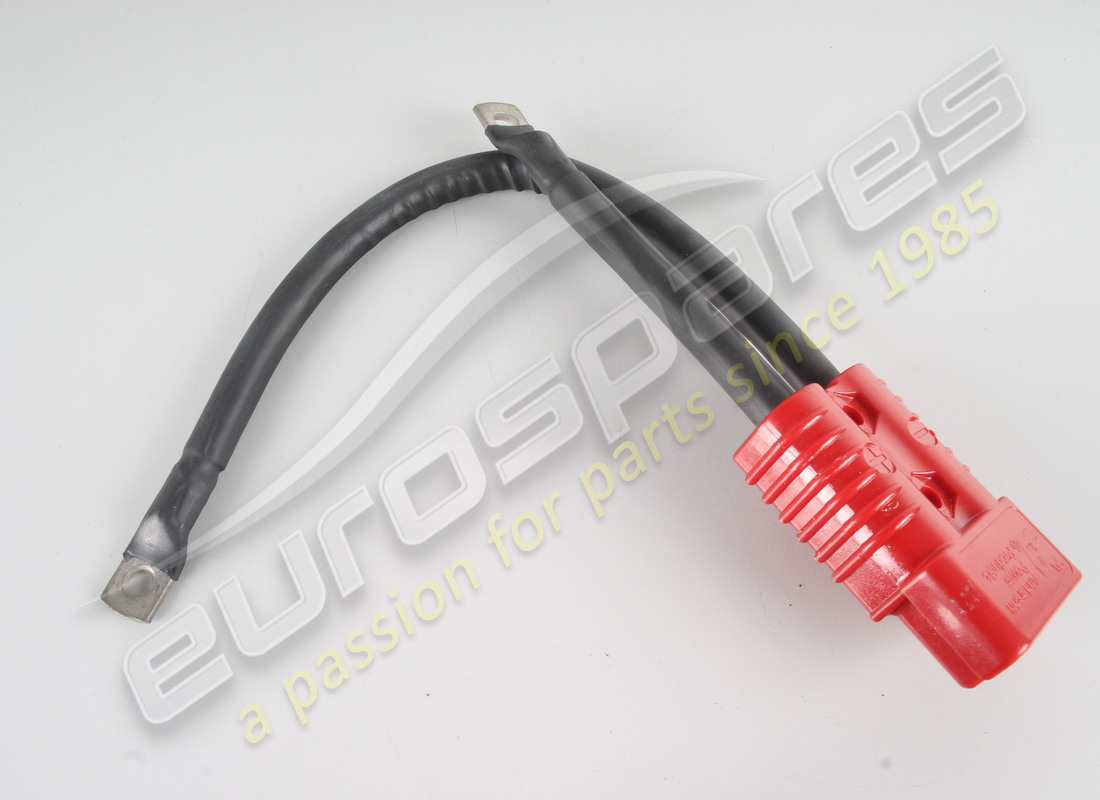

                                                                        # 031
                                                                        MPN: 174863
                                                                        AUXILIARY CONNECTOR KIT
                                                                        from £256.74
                                                                        from £256.74
                                                                        This part replaces part number 169067
                                                                        # 032
                                                                        MPN: 174863
                                                                        SHIELD (POSSIBLE TO OBTAIN FROM P.NO. 64501500)
                                                                        from £256.74
                                                                        from £256.74
                                                                        This part replaces part number 169067
                                                                        # 033
                                                                        MPN: 10903221
                                                                        SCREW
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 035
                                                                        MPN: 14496429
                                                                        WASHER
                                                                        from £0.71
                                                                        from £0.71
