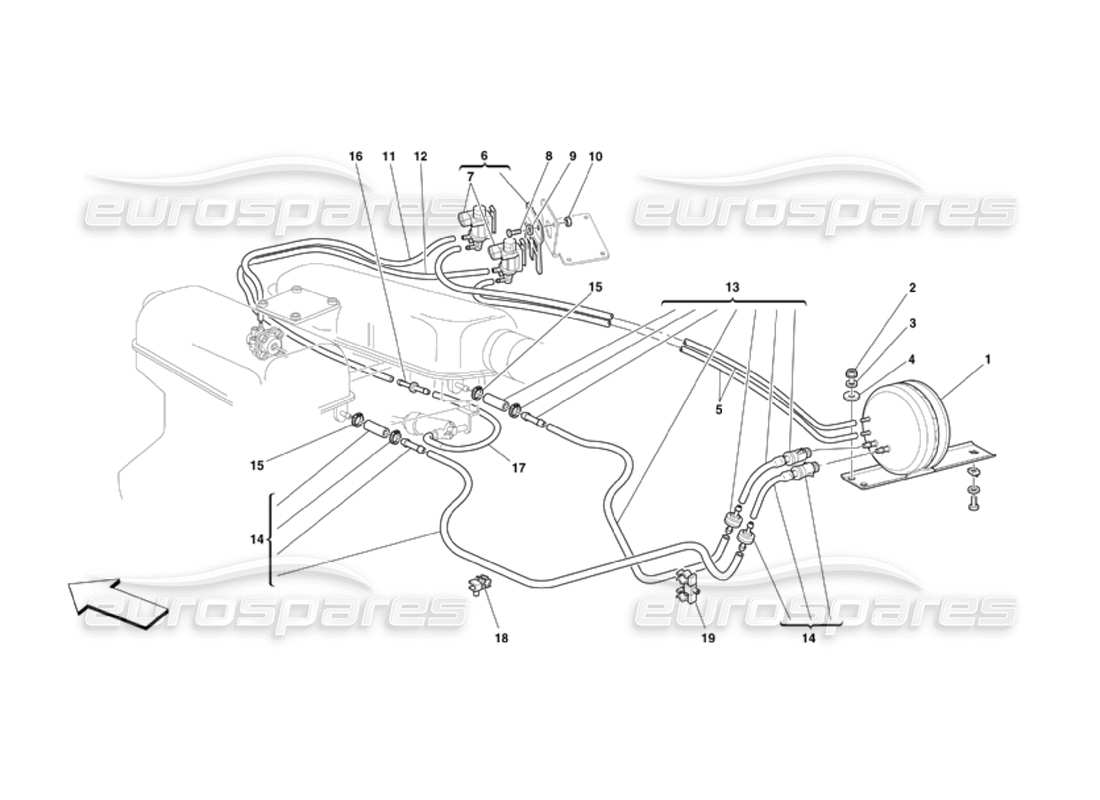

008 - pneumatics actuator system
Ferrari 360 Challenge (2000) Pneumatics Actuator System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 182824
DEPRESSION ACCUMULATION TANK
from £147.62
from £147.62
# 002
MPN: 14059211
NUT
from £0.47
from £0.47
# 003
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 004
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 005
MPN: 122760
PIPE FROM TANK TO SOLENOID VALVE
from £2.09
from £2.09
# 006
MPN: 159176
SMALL PLATE WITH SOLENOID VALVE
from £40.51
from £40.51
# 007
MPN: 159177
SOLENOID VALVE
from £103.88
from £103.88
This part replaces part number 154384 which we have in stock
# 008
MPN: 10977624
SCREW
from £0.47
from £0.47
This part replaces part number 10977611 - and 1 more. Click to view details
# 009
MPN: 12604174
WASHER
from £0.47
from £0.47
This part replaces part number 12604179 - and 1 more. Click to view details
# 010
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.78
from £0.78
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 011
MPN: 169692
PIPE FROM SOLENOID VALVE TO PNEUMATIC CAPSULE
from £10.93
from £10.93
# 012
MPN: 115665
PIPE FROM SOLENOID VALVE TO UNION
from £19.62
from £19.62
# 013
MPN: 178421
COMPLETE RH DEPRESSION PIPE
from £728.40
from £728.40
# 014
MPN: 178420
COMPLETE LH DEPRESSION PIPE
from £728.40
from £728.40
# 015
MPN: 13434670
SCREW COLLAR
from £0.47
from £0.47
# 016
MPN: 178491
UNION
from £13.25
from £13.25

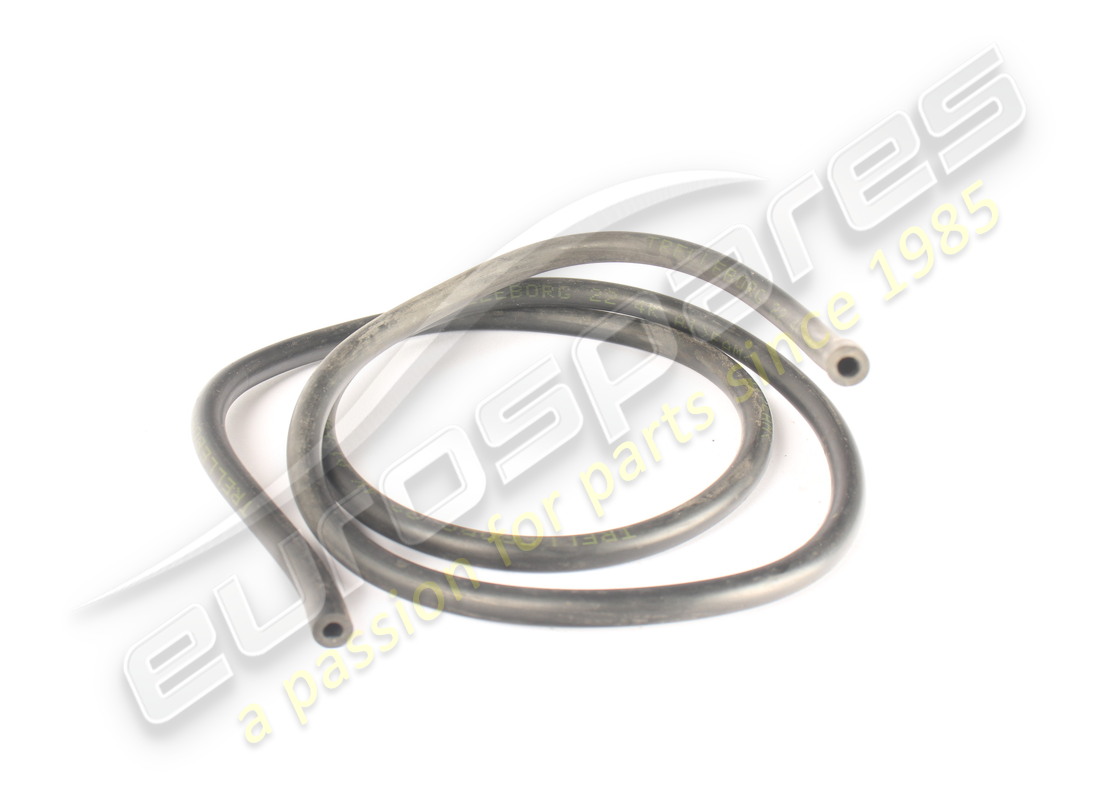

# 017
MPN: 168248
RUBBER HOSE
from £10.62
from £10.62
# 018
MPN: 180160
LH CLIP

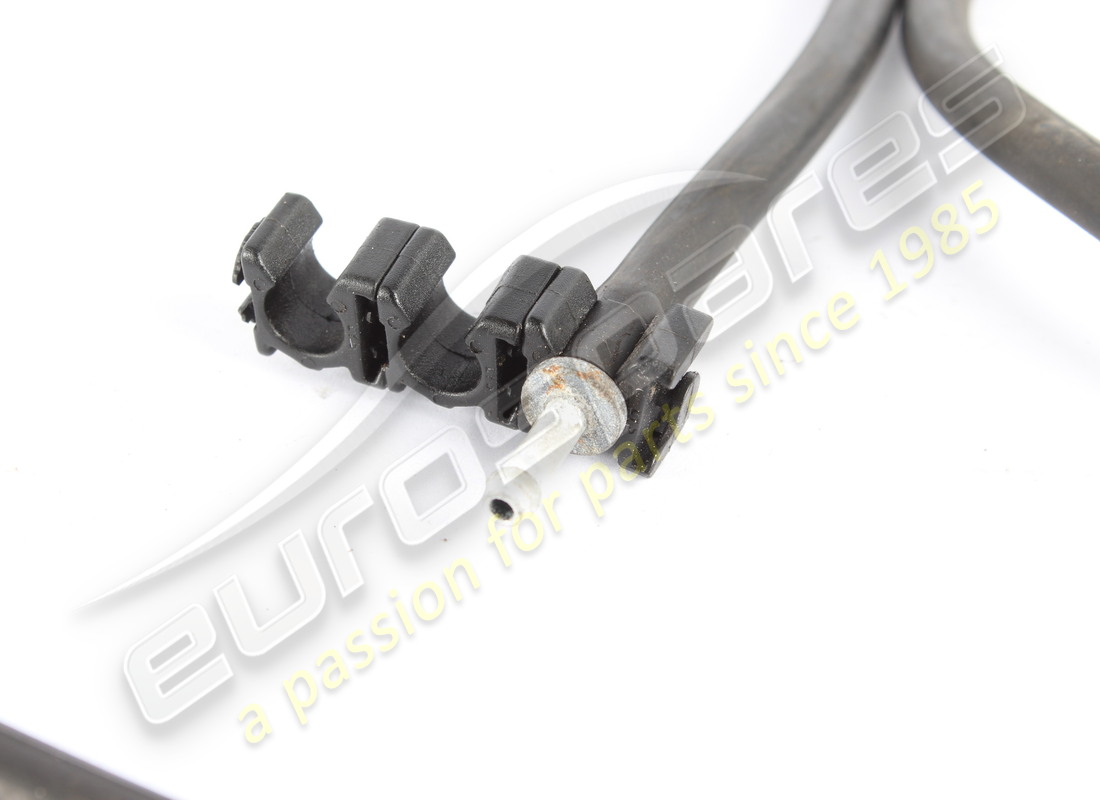

from £0.47
from £0.47
# 019
MPN: 180161
RH CLIP
from £1.09
from £1.09

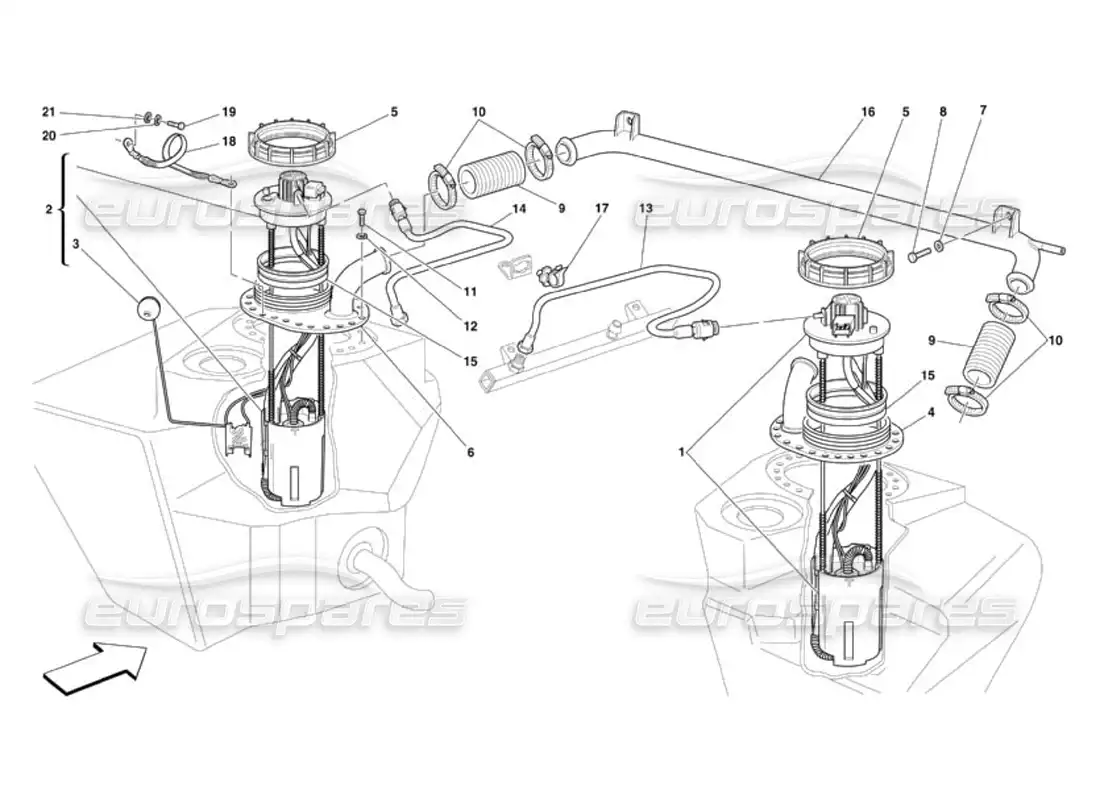

-part-diagram-009.webp "FERRARI 360 CHALLENGE (2000) FUEL PUMPS AND PIPES PARTS DIAGRAM")

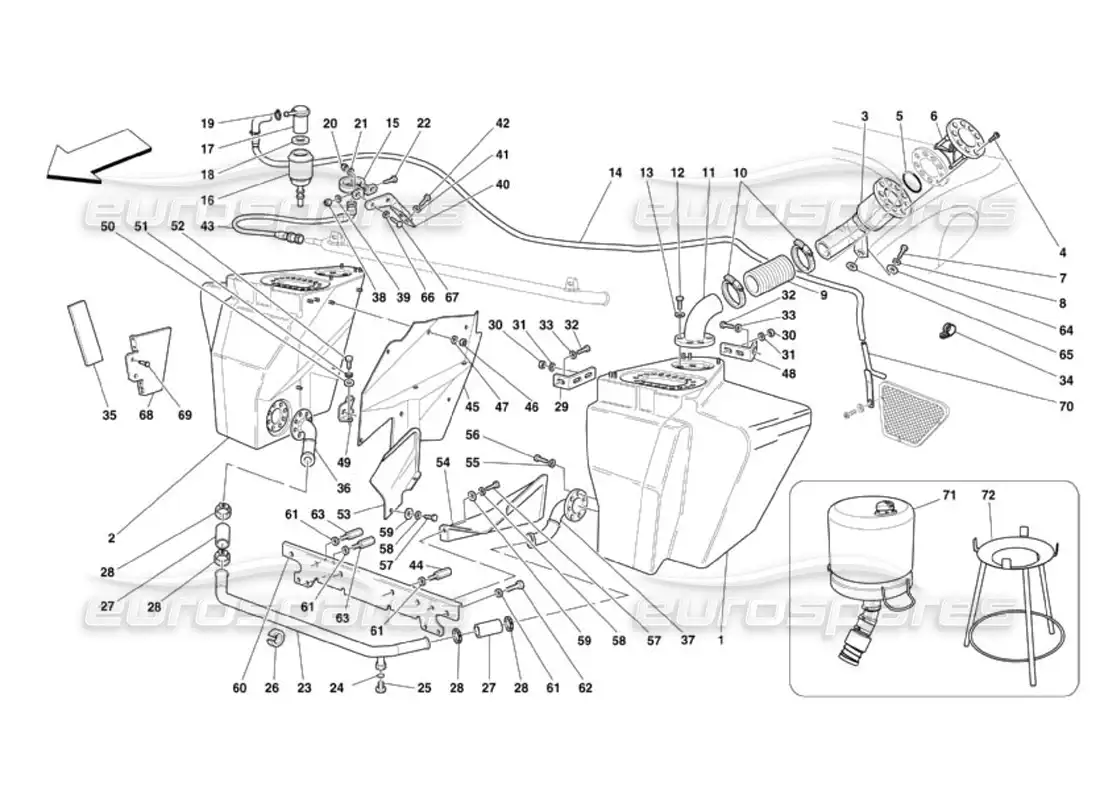

-part-diagram-010.webp "FERRARI 360 CHALLENGE (2000) FUEL TANKS PARTS DIAGRAM")

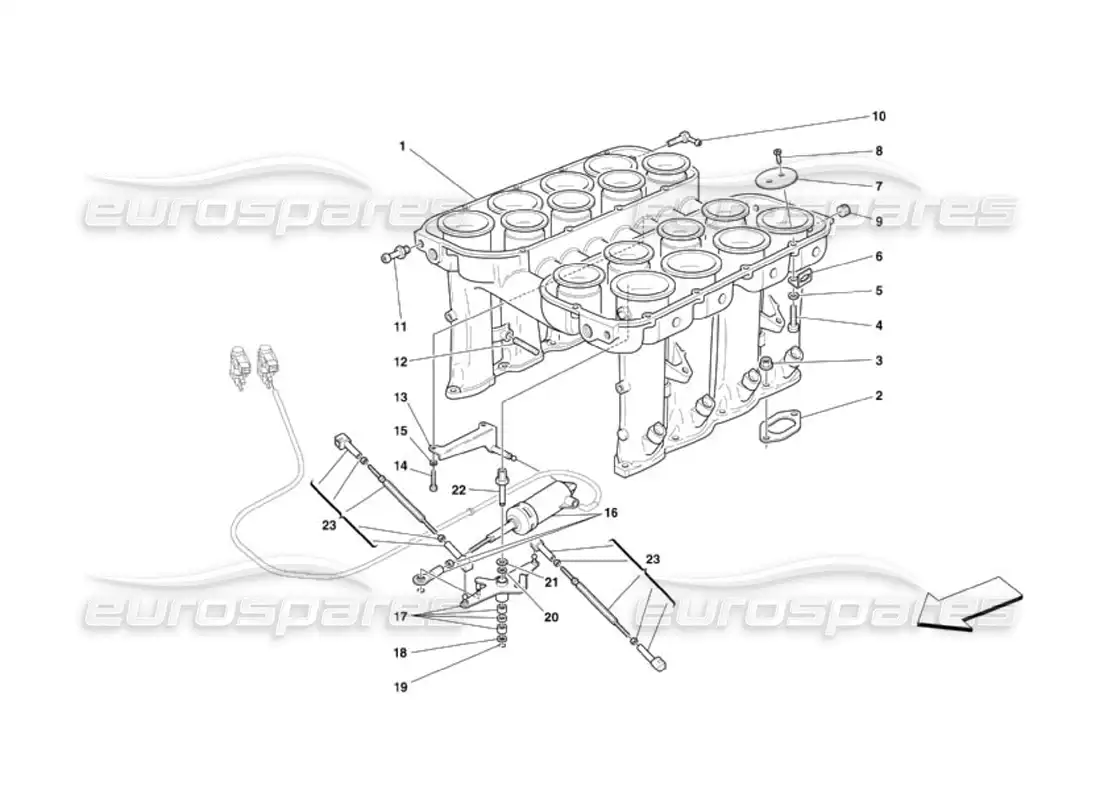

-part-diagram-011.webp "FERRARI 360 CHALLENGE (2000) AIR INTAKE MANIFOLD PARTS DIAGRAM")

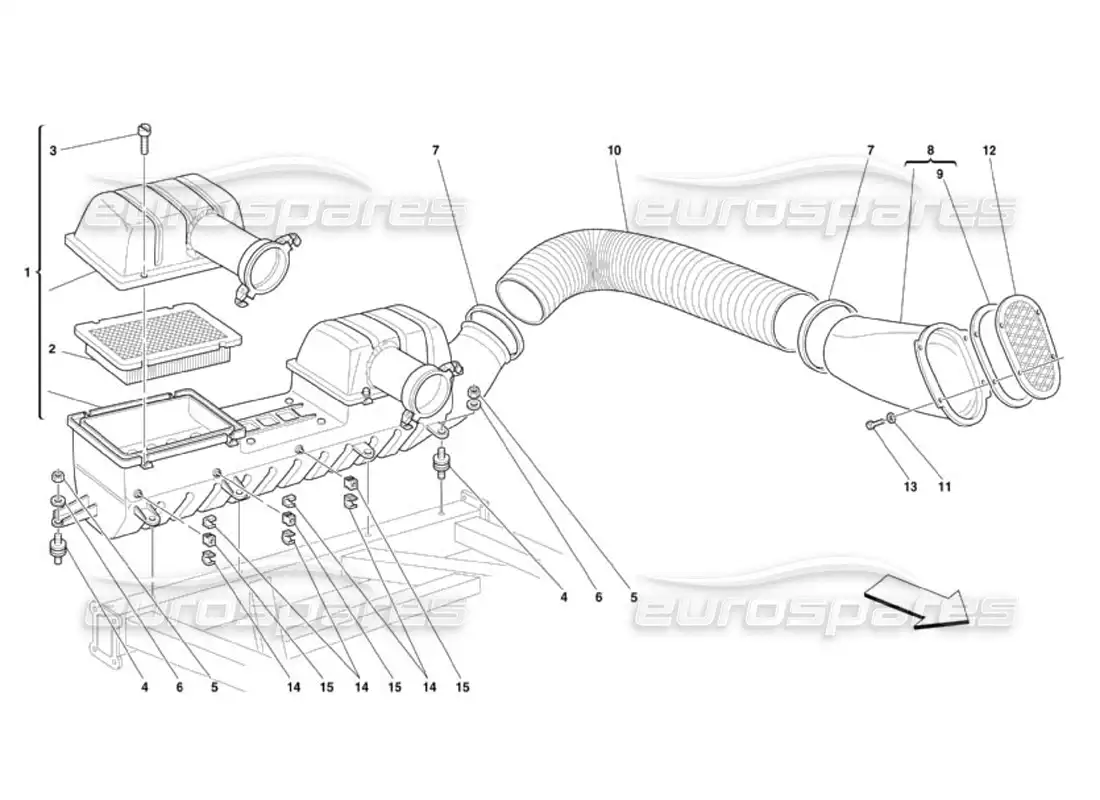

-part-diagram-012.webp "FERRARI 360 CHALLENGE (2000) AIR INTAKE PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 360 CHALLENGE (2000) AIR INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 360 CHALLENGE (2000) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 360 CHALLENGE (2000) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 360 CHALLENGE (2000) LUBRICATION SYSTEM AND BLOW-BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 360 CHALLENGE (2000) PUMPS AND OIL SUMP PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 360 CHALLENGE (2000) NOURICE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 360 CHALLENGE (2000) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 360 CHALLENGE (2000) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 360 CHALLENGE (2000) WATER PUMP PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 360 CHALLENGE (2000) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 360 CHALLENGE (2000) PEDALS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 360 CHALLENGE (2000) F1 CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 360 CHALLENGE (2000) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 360 CHALLENGE (2000) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 360 CHALLENGE (2000) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 360 CHALLENGE (2000) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 360 CHALLENGE (2000) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 360 CHALLENGE (2000) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 360 CHALLENGE (2000) BRAKES HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 360 CHALLENGE (2000) BRAKE BOOSTER SYSTEM PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 360 CHALLENGE (2000) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 360 CHALLENGE (2000) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 360 CHALLENGE (2000) HYDRAULIC STEERING BOX AND SERPENTINE PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 360 CHALLENGE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 360 CHALLENGE (2000) HYDRAULIC STEERING PUMP AND TANK PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 360 CHALLENGE (2000) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 360 CHALLENGE (2000) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 360 CHALLENGE (2000) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 360 CHALLENGE (2000) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 360 CHALLENGE (2000) WHEELS PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 360 CHALLENGE (2000) BATTERY PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 360 CHALLENGE (2000) BATTERY CUT-OUT PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 360 CHALLENGE (2000) CURRENT GENERATOR - STARTING MOTOR PARTS DIAGRAM")
-part-diagram-100.webp "FERRARI 360 CHALLENGE (2000) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 360 CHALLENGE (2000) FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 360 CHALLENGE (2000) FRAME - FRONT ELEMENTS STRUCTURES AND PLATES PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 360 CHALLENGE (2000) CENTRAL SIDE ELEMENTS AND PLATES PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 360 CHALLENGE (2000) FRAME - REAR ELEMENTS STRUCTURES AND PLATES PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 360 CHALLENGE (2000) FRAME - REAR ELEMENTS SUB-GROUPS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 360 CHALLENGE (2000) ROOF - STRUCTURE PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 360 CHALLENGE (2000) ROLL-BAR PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 360 CHALLENGE (2000) FLAT FLOOR PAN AND WHEELHOUSE PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 360 CHALLENGE (2000) FRONT HOOD AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 360 CHALLENGE (2000) ENGINE BONNET PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 360 CHALLENGE (2000) DOORS - FRAMEWORK AND COVERINGS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 360 CHALLENGE (2000) DOORS - WINDOW AND REARVIEW MIRROR PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 360 CHALLENGE (2000) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 360 CHALLENGE (2000) REAR BUMPER PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 360 CHALLENGE (2000) GLASSES AND GASKETS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 360 CHALLENGE (2000) SEAT AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 360 CHALLENGE (2000) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 360 CHALLENGE (2000) DASHBOARD PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 360 CHALLENGE (2000) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 360 CHALLENGE (2000) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 360 CHALLENGE (2000) SHIELDS - OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 360 CHALLENGE (2000) WINDSHIELD AND GLASS WASHER PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 360 CHALLENGE (2000) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 360 CHALLENGE (2000) FRONT PASSENGERS COMPARTMENT CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 360 CHALLENGE (2000) REAR PASSENGERS COMPARTMENT CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 360 CHALLENGE (2000) VENTILATION UNIT PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 360 CHALLENGE (2000) FIRE-PROOF SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 360 CHALLENGE (2000) CRANKCASE PARTS DIAGRAM")

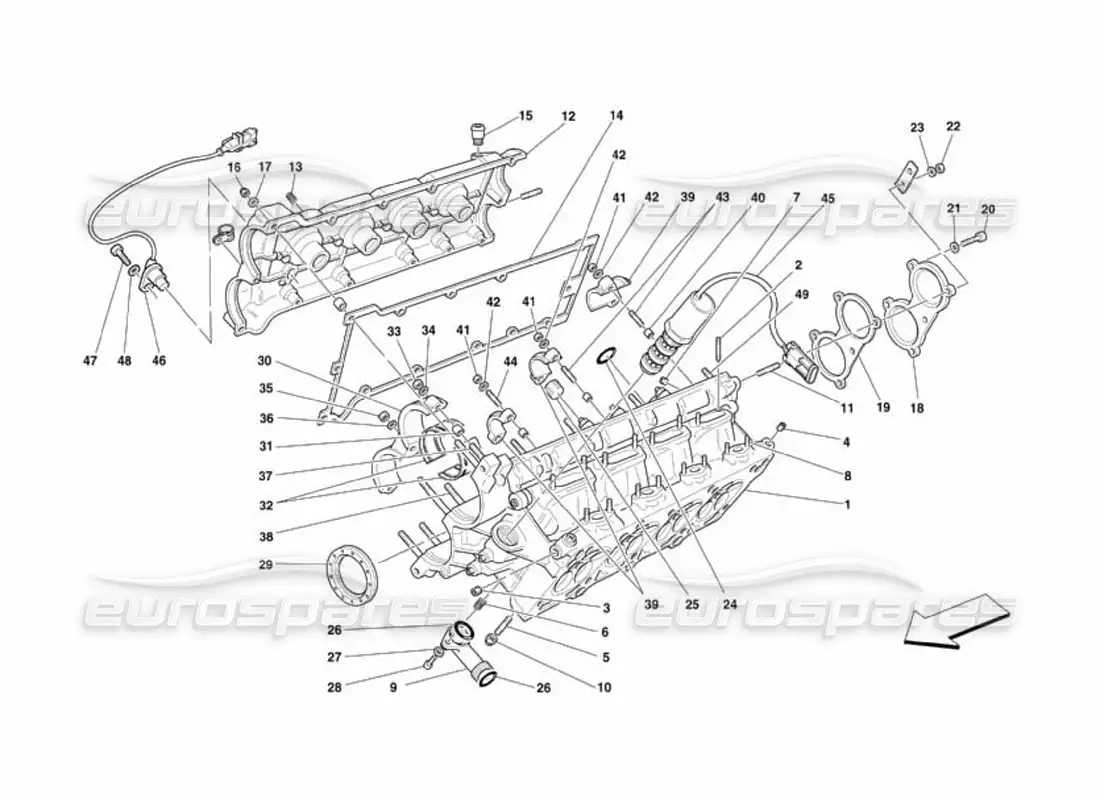

-part-diagram-002.webp "FERRARI 360 CHALLENGE (2000) DRIVING SHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")

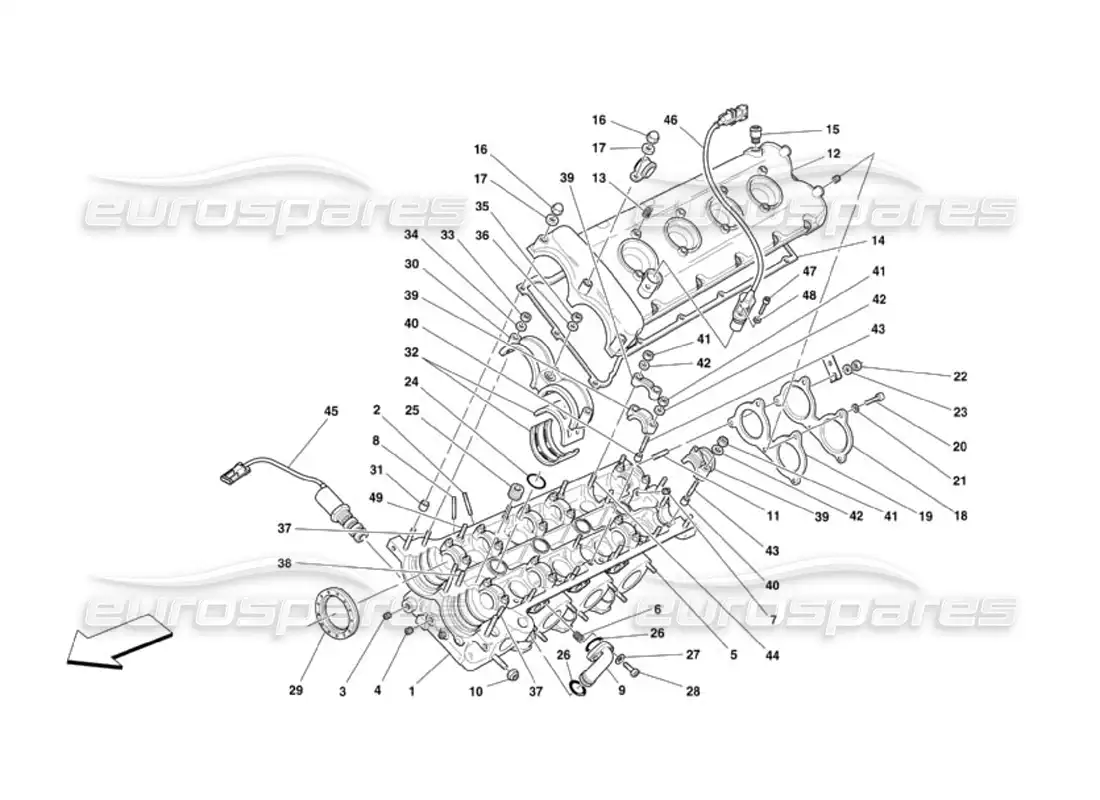

-part-diagram-003.webp "FERRARI 360 CHALLENGE (2000) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 360 CHALLENGE (2000) LH CYLINDER HEAD PARTS DIAGRAM")

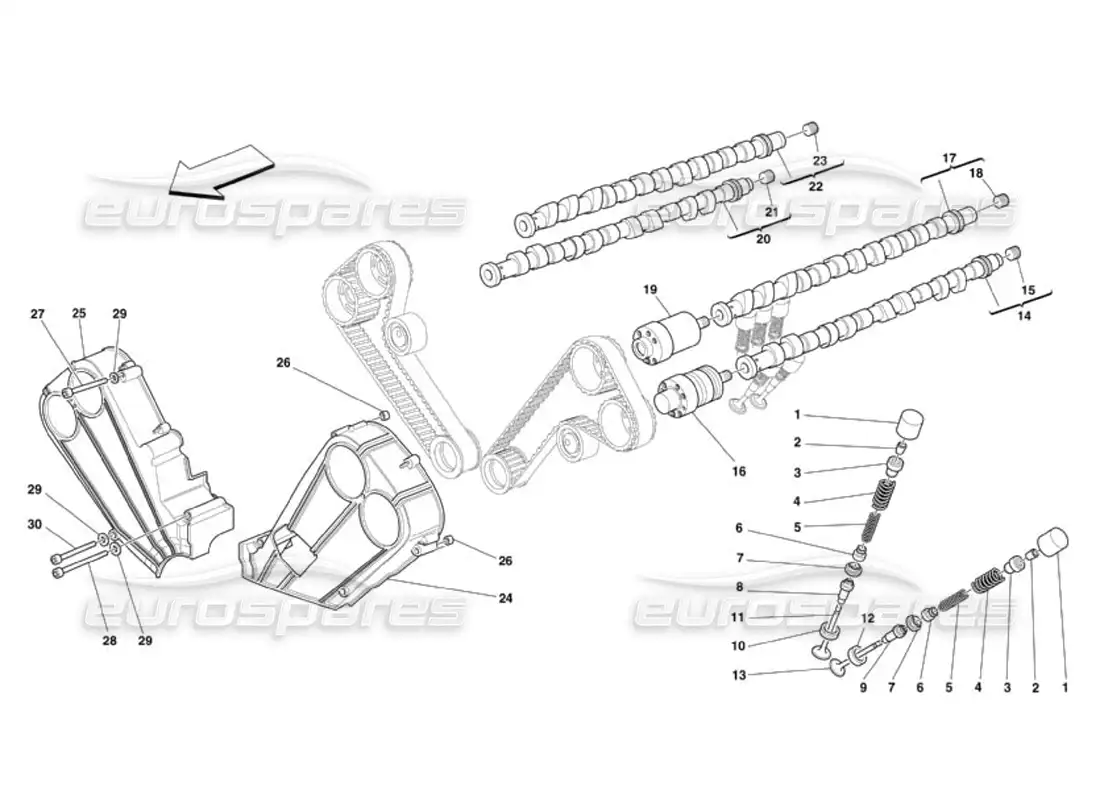

-part-diagram-005.webp "FERRARI 360 CHALLENGE (2000) TIMING - TAPPETS AND SHIELDS PARTS DIAGRAM")

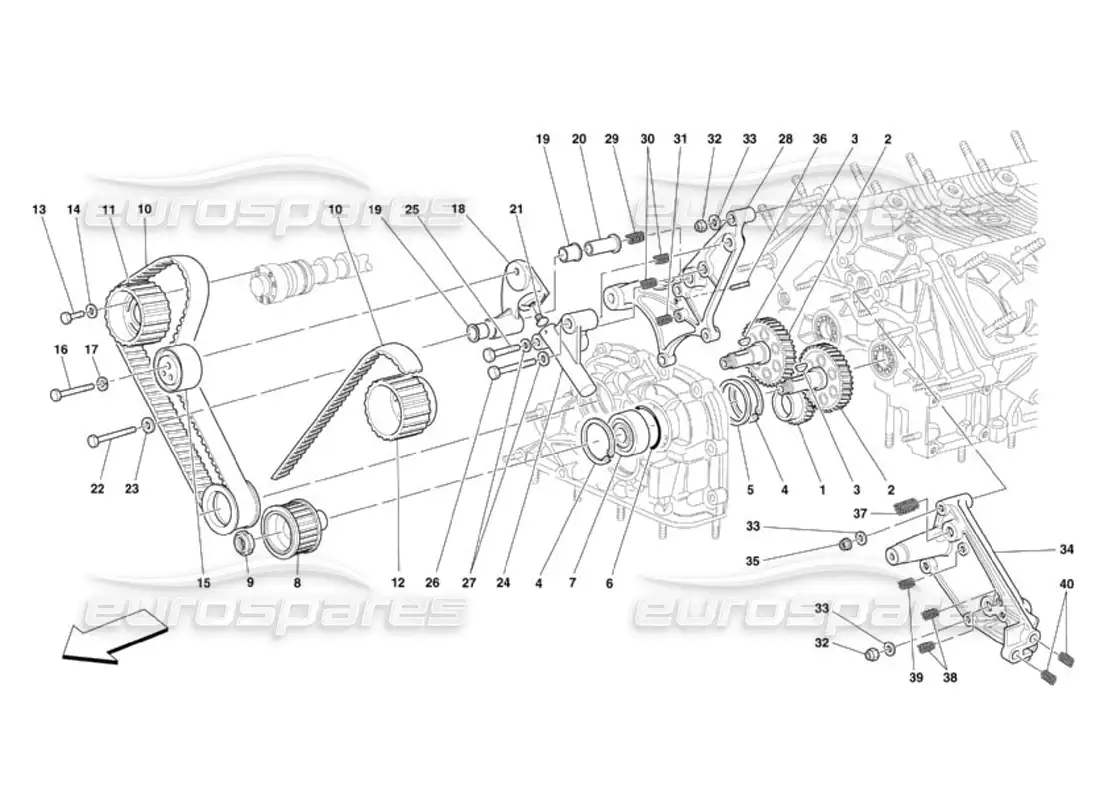

-part-diagram-006.webp "FERRARI 360 CHALLENGE (2000) TIMING - CONTROLS PARTS DIAGRAM")

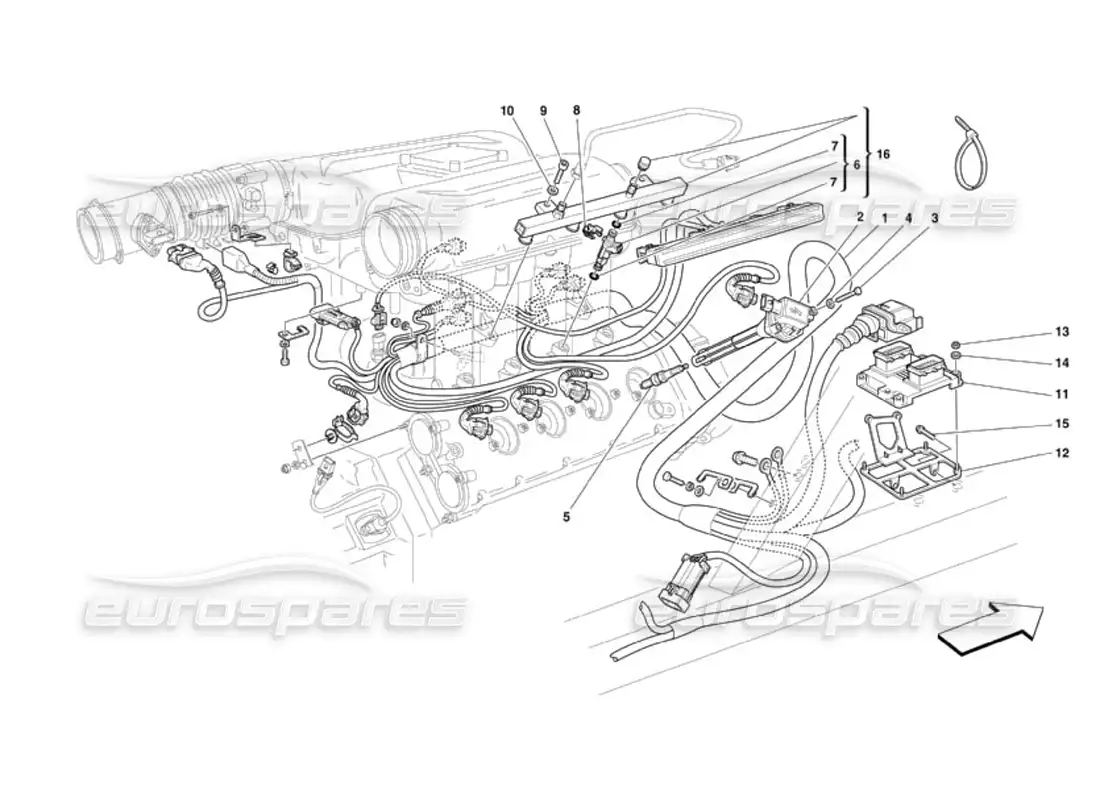

-part-diagram-007.webp "FERRARI 360 CHALLENGE (2000) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
