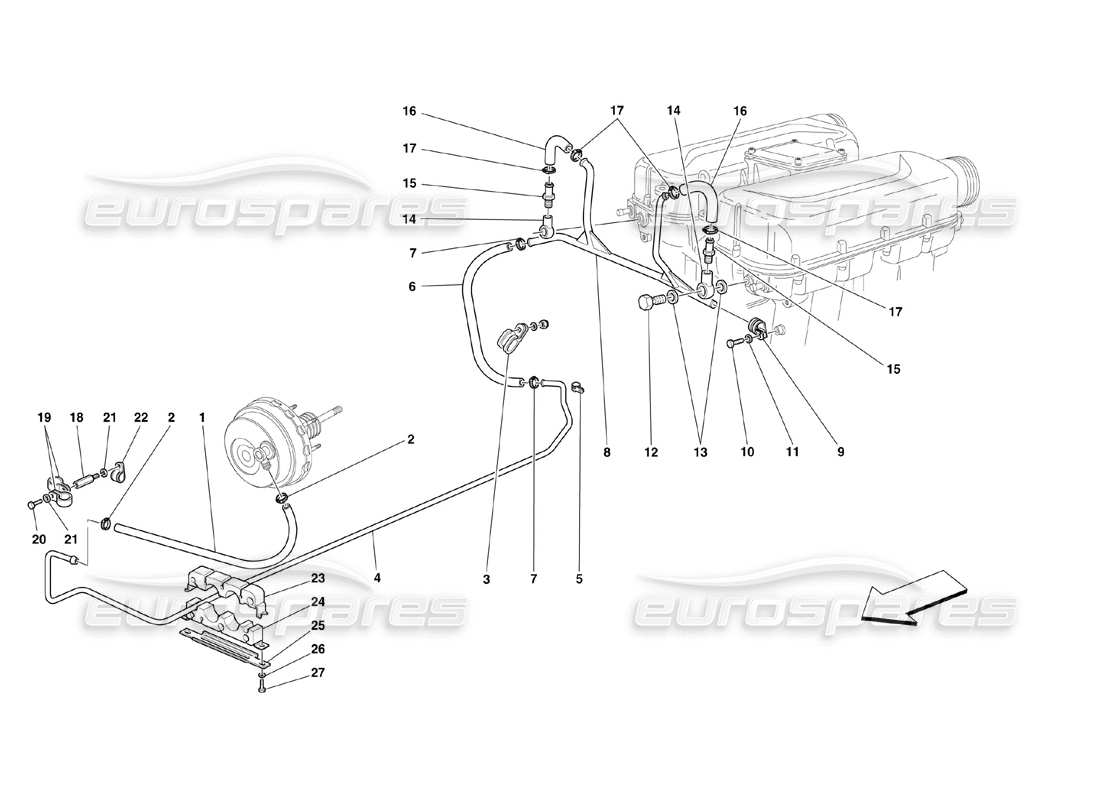

032 - Brake Booster System
Ferrari 360 Challenge (2000) Brake Booster System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 177947
RUBBER HOSE TO BRAKE BOOSTER
from £30.38
from £30.38
# 002
MPN: 13000390
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 003
MPN: 61712500
BRACKET
from £0.88
from £0.88
# 004
MPN: 181727
BRAKE BOOSTER UNDERFLOOR TUBE
Supersession
Supersession
# 005
MPN: 10450190
BRACKET WITH SHEATH
from £0.47
from £0.47
This part replaces part number 148751
# 006
MPN: 168386
RUBBER HOSE
from £25.16
from £25.16
# 007
MPN: 13000390
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 008
MPN: 182776
PIPE FOR BRAKE BOOSTER FROM MANIFOLDS
from £45.03
from £45.03
This part replaces part number 179414 - and 3 more. Click to view details
# 009
MPN: 10441390
BRACKET WITH SHEATH
from £0.47
from £0.47
# 010
MPN: 10977524
SCREW
from £0.53
from £0.53
# 011
MPN: 12601279
WASHER
from £0.47
from £0.47
This part replaces part number 12601271 - and 2 more. Click to view details
# 012
MPN: 152417
UNION
from £15.28
from £15.28
# 013
MPN: 10259960
GASKET
from £0.47
from £0.47
This part replaces part number 95017
# 014
MPN: 179419
SWINGING UNION
from £10.18
from £10.18
# 015
MPN: 147978
NONRETURN VALVE
from £7.07
from £7.07
# 016
MPN: 179394
RUBBER HOSE
from £8.47
from £8.47
# 017
MPN: 178052
CLAMP
from £0.85
from £0.85
This part replaces part number 296778
# 018
MPN: 178772
STUD
from £5.72
from £5.72
# 019
MPN: 10441390
BRACKET WITH SHEATH
from £0.47
from £0.47
# 020
MPN: 10902224
SCREW
from £0.53
from £0.53
# 021
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 022
MPN: 10441690
BRACKET
from £1.09
from £1.09
This part replaces part number 1044690
# 023
MPN: 183048
UPPER SUPPORT
from £9.77
from £9.77
# 024
MPN: 183049
LOWER SUPPORT
from £8.24
from £8.24
# 025
MPN: 178585
SMALL PLATE
from £0.64
from £0.64
# 026
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 027
MPN: 10902424
SCREW
from £0.50
from £0.50
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
