033 - Brake System

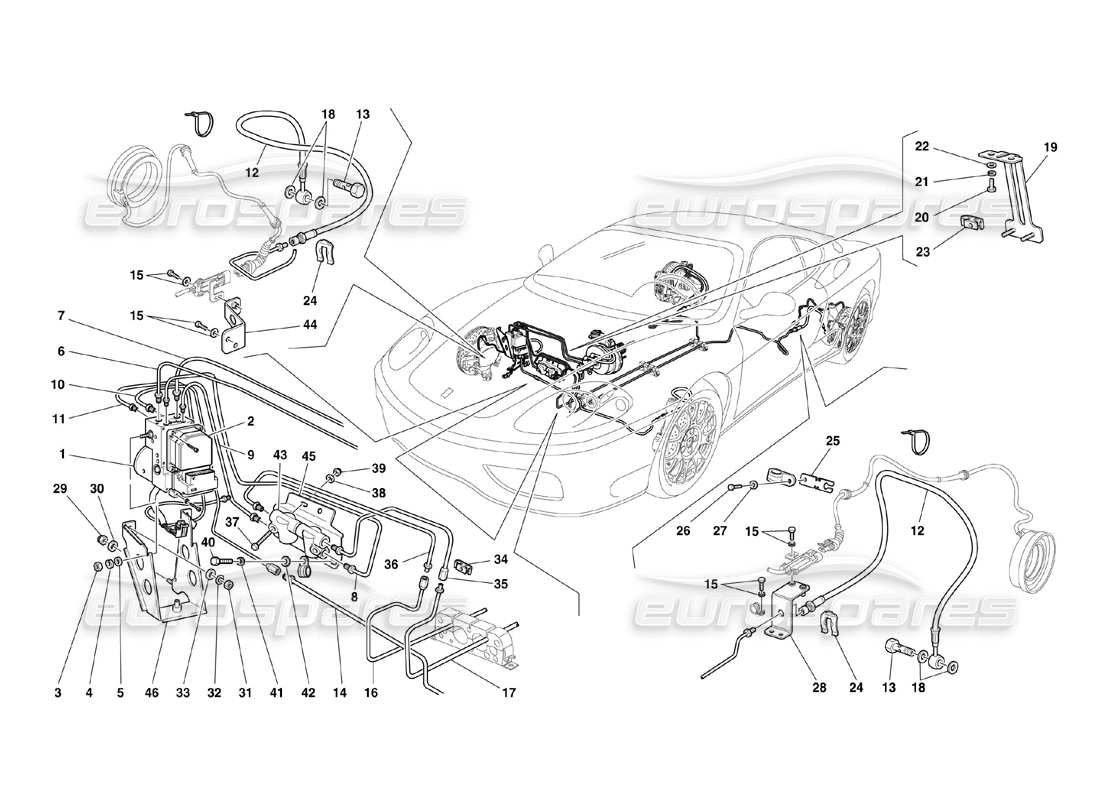

Ferrari 360 Challenge (2000) Brake System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 185148
ABS/ASR HYDRAULIC CONTROL STATION
USE PART No: 182535
# 002
MPN: 185147
ABS/ASR/EBD ELECTRONIC CONTROL STATION
from £1,140.60
from £1,140.60
This part replaces part number 184541
# 003
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 004
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 006
MPN: 213650
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
from £6.62
from £6.62
This part replaces part number 178427
# 007
MPN: 213649
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
from £7.90
from £7.90
This part replaces part number 178426
# 008
MPN: 182919
PIPE FROM CONTROL STATION TO LH BRAKING REGULATOR
from £5.83
from £5.83
# 009
MPN: 182917
PIPE FROM CONTROL STATION TO RH BRAKING REGULATOR
from £4.65
from £4.65
# 010
MPN: 178463
PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE
Supersession
Supersession
# 011
MPN: 164308
PIPE FROM CONTROL STATION TO RH FRONT BRAKE PIPE
Supersession
Supersession
# 012
MPN: 183100
BRAKES HOSE
from £183.36
from £183.36
# 013
MPN: 113670
UNION
from £17.58
from £17.58
This part replaces part number 113664 which we have in stock - and 7 more. Click to view details
# 014
MPN: 164309
INTERMEDIATE PIPE
from £7.18
from £7.18
# 015
MPN: 11625724
SCREW WITH WASHER
from £0.47
from £0.47
# 016
MPN: 180361
PIPE TO RH REAR HOSE
from £126.89
from £126.89
# 017
MPN: 180362
PIPE TO LH REAR HOSE
from £17.30
from £17.30
# 018
MPN: 10260160
GASKET
from £0.47
from £0.47
This part replaces part number 10260170
# 019
MPN: 177945
BRAKES PIPES FIXING BRACKET
from £2.44
from £2.44
# 020
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 021
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 022
MPN: 14488624
WASHER
from £0.47
from £0.47
# 023
MPN: 169476
CLIP
from £1.51
from £1.51
# 024
MPN: 116374
CLIP
from £1.17
from £1.17
# 025
MPN: 179236
SUPPORT FOR CABLE
Supersession
Supersession
# 026
MPN: 10977524
SCREW
from £0.53
from £0.53
# 027
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 028
MPN: 178939
SUPPORT
Supersession
Supersession
# 029
MPN: 101139
NUT
from £0.47
from £0.47
This part replaces part number 16104425
# 030
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 031
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 032
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 033
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 034
MPN: 169476
CLIP
from £1.51
from £1.51
# 035
MPN: 182920
PIPE FROM BRAKING REGULATOR TO LH REAR JOINT
from £4.44
from £4.44
# 036
MPN: 182918
PIPE FROM BRAKING REGULATOR TO RH REAR JOINT
from £4.38
from £4.38
# 037
MPN: 16044224
SCREW
from £0.47
from £0.47
This part replaces part number 16044221 which we have in stock
# 038
MPN: 14496524
WASHER
from £0.47
from £0.47
This part replaces part number 14496525 - and 1 more. Click to view details
# 039
MPN: 101139
NUT
from £0.47
from £0.47
This part replaces part number 16104425
# 040
MPN: 10902424
SCREW
from £0.52
from £0.52
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 041
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 042
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 043
MPN: 172979
BRAKING REGULATOR
from £47.28
from £47.28
# 044
MPN: 179096
LH SUPPORT
from £2.30
from £2.30
# 044
MPN: 179237
RH SUPPORT
from £2.30
from £2.30
# 045
MPN: 182549
BRACKET FOR BRAKING REGULATOR SUPPORTING
from £12.25
from £12.25
# 046
MPN: 179412
CONTROL STATION SUPPORTING BRACKET
from £5.03
from £5.03
This part replaces part number 174700 - and 1 more. Click to view details
