101 - Frame - Complete Front Part Structures and Plates

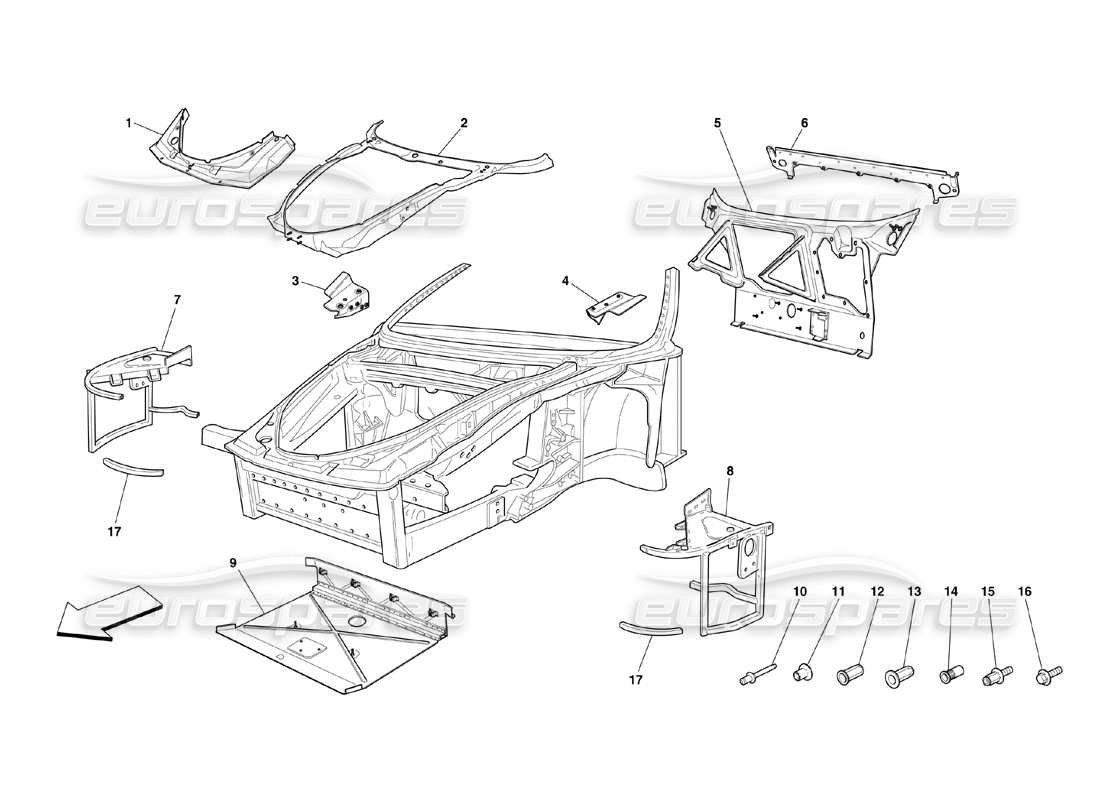

Ferrari 360 Challenge (2000) Frame - Complete Front Part Structures and Plates Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65393611
COMPLETE FRONT CROSS MEMBER
from £311.44
from £311.44
This part replaces part number 65316700 - and 2 more. Click to view details
# 002
MPN: 65393111
COMPLETE FRONT MOULDING
from £2,144.34
from £2,144.34
This part replaces part number 65393100
# 003
MPN: 65317200
RH PLATE FOR FRONT HOOD BONNET HINGE
Supersession
Supersession
# 004
MPN: 65317300
LH PLATE FOR FRONT HOOD BONNET HINGE
Supersession
Supersession
# 005
MPN: 185082
COMPLETE FRONT SHIELD
Supersession
Supersession
# 006
MPN: 65152311
TRUNK COMPARTMENT UPPER REAR PANEL
Supersession
Supersession
This part replaces part number 64855911
# 007
MPN: 66202311
COMPLETE RH FRONT SIDE FRAME
from £434.14
from £434.14
This part replaces part number 66202300 which we have in stock
# 008
MPN: 66202411
COMPLETE LH FRONT SIDE FRAME
from £499.26
from £499.26
This part replaces part number 66202400
# 009
MPN: 65152500
COMPLETE COMPARTPMENT BOTTOM PLATE
from £312.69
from £312.69
This part replaces part number 65152511
# 009
MPN: 65152500
COMPLETE COMPARTPMENT BOTTOM PLATE
from £312.69
from £312.69
This part replaces part number 65152511
# 010
MPN: 66292200
STANDARD HEAD RIVET
from £1.44
from £1.44
# 010
MPN: 66292300
HALF REPOTTED HEAD RIVET
from £1.16
from £1.16
# 011
MPN: 65133800
RIVET L. 6,4 MM
from £0.54
from £0.54
# 012
MPN: 15180411
BLIND ESAGONAL RIVET
from £0.95
from £0.95
# 012
MPN: 15624211
ESAGONAL RIVET M4
from £0.81
from £0.81
# 012
MPN: 15624311
ESAGONAL RIVET M5
from £1.91
from £1.91
# 012
MPN: 15624411
ESAGONAL RIVET M6
from £0.87
from £0.87
# 012
MPN: 15624511
ESAGONAL RIVET M8
from £0.71
from £0.71
# 013
MPN: 65151200
RIVET M6
from £2.92
from £2.92
# 014
MPN: 166101
RIVET M4
from £0.87
from £0.87
# 014
MPN: 65135000
RIVET M8
from £0.73
from £0.73
# 014
MPN: 65319800
RIVET M8 BLIND
from £0.54
from £0.54
# 014
MPN: 65930400
RIVET M6
from £0.58
from £0.58
# 015
MPN: 65065400
STUD ESAGONAL HEAD M6
from £1.98
from £1.98
# 016
MPN: 13836971
SCREW
from £0.53
from £0.53
This part replaces part number 18770124
# 017
MPN: 64874400
RH AND LH LOWER CARPET SHIELD
use part number: 64874411
Supersession
Supersession
# 017
MPN: 64874411
RH AND LH LOWER CARPET SHIELD
from £49.07
from £49.07
This part replaces part number 64874400
