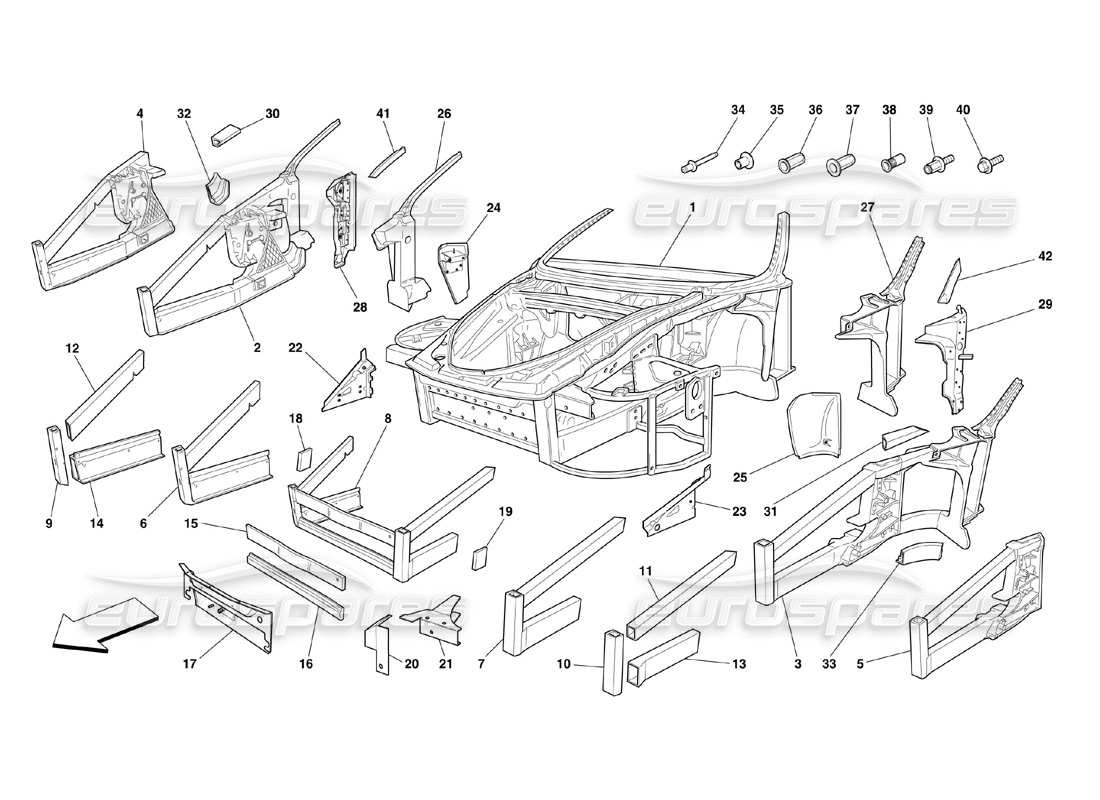

102 - Frame - Front Elements Structures and Plates
Ferrari 360 Challenge (2000) Frame - Front Elements Structures and Plates Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66278500
COMPLETE FRONT FRAME
from £5,342.35
from £5,342.35
# 001
MPN: 66753500
COMPLETE FRONT FRAME
- Not for GD -
from £13,440.00
from £13,440.00
# 002
MPN: 65940700
COMPLETE RH FRONT SIDE FRAME
from £3,792.93
from £3,792.93
# 003
MPN: 65940800
COMPLETE LH FRONT SIDE FRAME
from £3,792.93
from £3,792.93
# 004
MPN: 65940500
RH FRONT LATERAL SPRAG
from £2,729.72
from £2,729.72
# 005
MPN: 65940600
LH FRONT LATERAL SPRAG
from £2,729.72
from £2,729.72
# 006
MPN: 65940300
COMPLETE RH FRONT LATERAL FRAME
from £1,537.17
from £1,537.17
# 007
MPN: 65940400
COMPLETE LH FRONT LATERAL FRAME
from £2,794.85
from £2,794.85
# 008
MPN: 65940200
COMPLETE FRONT FRAME
from £1,961.54
from £1,961.54
# 009
MPN: 166202
RH FRONT BUMPER PILLAR
from £603.02
from £603.02
# 010
MPN: 166102
LH FRONT BUMPER PILLAR
from £603.02
from £603.02
# 011
MPN: 166105
LH FRONT UPPER FRAME
from £209.42
from £209.42
# 012
MPN: 166205
RH FRONT UPPER FRAME
from £140.94
from £140.94
# 013
MPN: 177482
LH FRONT LOWER FRAME
from £530.11
from £530.11
This part replaces part number 166203
# 014
MPN: 177481
RH FRONT LOWER FRAME
from £530.11
from £530.11
This part replaces part number 166103
# 015
MPN: 166301
Front Upper Cross Member
from £268.48
from £268.48
This part replaces part number 985166301 - and 1 more. Click to view details
# 016
MPN: 183816
FRONT LOWER CROSS MEMBER
from £858.50
from £858.50
This part replaces part number 166357
# 017
MPN: 65393511
TRUNK COMPARTMENT FRONT WALL
from £223.18
from £223.18
This part replaces part number 65393500
# 018
MPN: 166291
RH FRONT REINFORCEMENT
from £7.53
from £7.53
# 019
MPN: 166191
LH FRONT REINFORCEMENT
Supersession
Supersession
This part replaces part number 66395811
# 020
MPN: 66395411
LH BRACKET
Supersession
Supersession
# 020
MPN: 66395500
RH BRACKET
from £230.51
from £230.51
This part replaces part number 177467 - and 1 more. Click to view details
# 021
MPN: 66394911
LH BRAKET FOR FRONT BUMPER FIXING
Supersession
Supersession
# 021
MPN: 66395011
RH BRAKET FOR FRONT BUMPER FIXING
from £160.03
from £160.03
# 022
MPN: 65152700
RH FRONT SIDE WALL
from £204.44
from £204.44
This part replaces part number 65152711
# 023
MPN: 65152800
LH FRONT SIDE WALL
Supersession
Supersession
This part replaces part number 65152811
# 024
MPN: 175738
RH PLATE
from £121.33
from £121.33
This part replaces part number 66395311
# 025
MPN: 175737
LH PLATE
from £121.33
from £121.33
This part replaces part number 66395211

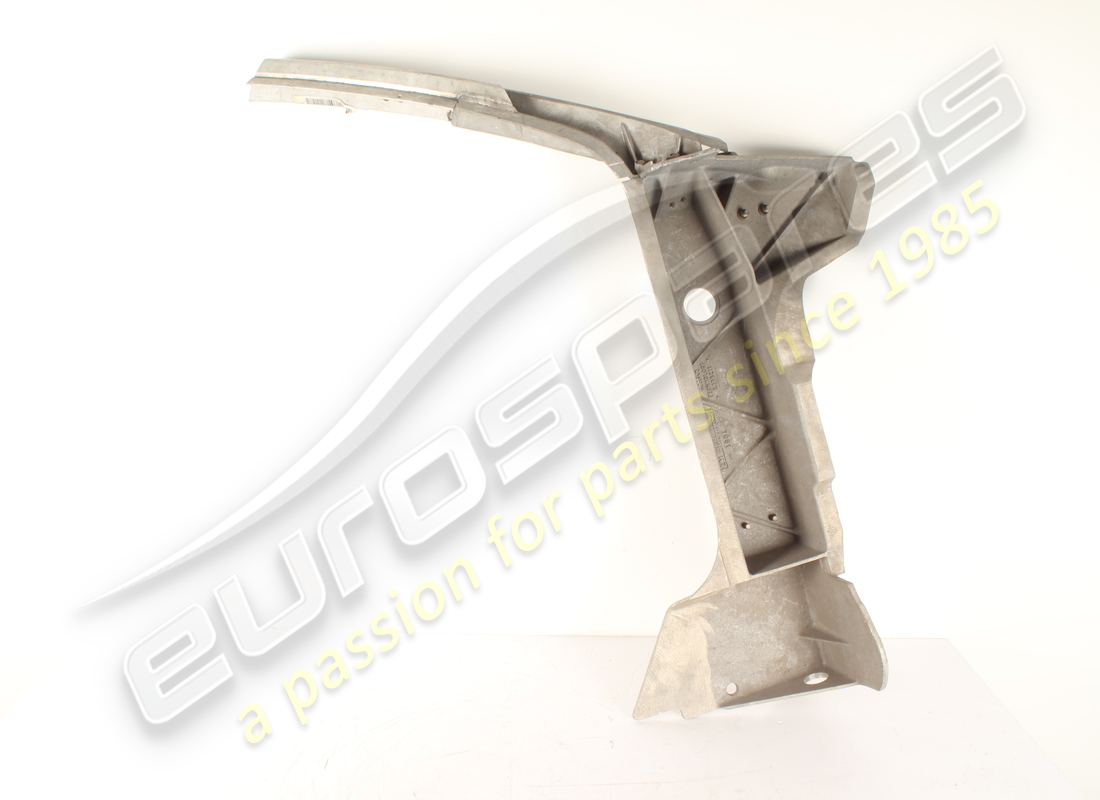

# 026
MPN: 65941600
COMPLETE RH DOOR PILLAR
from £629.06
from £629.06

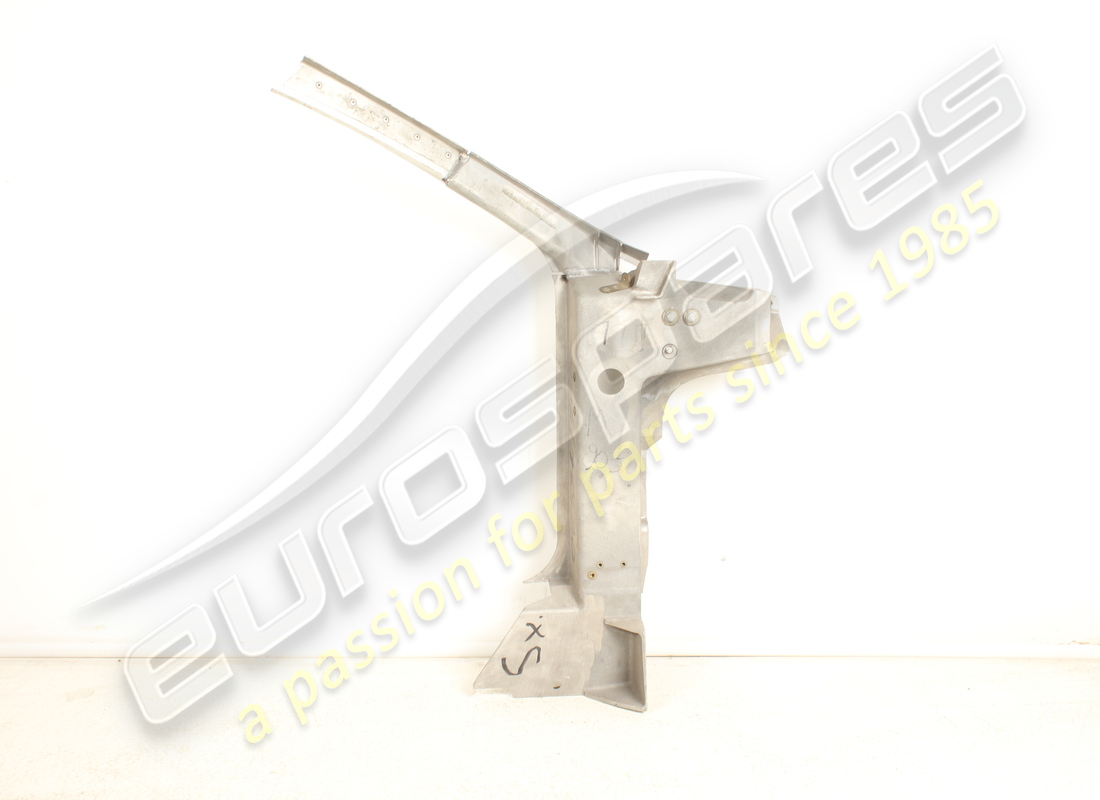

# 027
MPN: 65941700
COMPLETE LH DOOR PILLAR
from £1,312.20
from £1,312.20

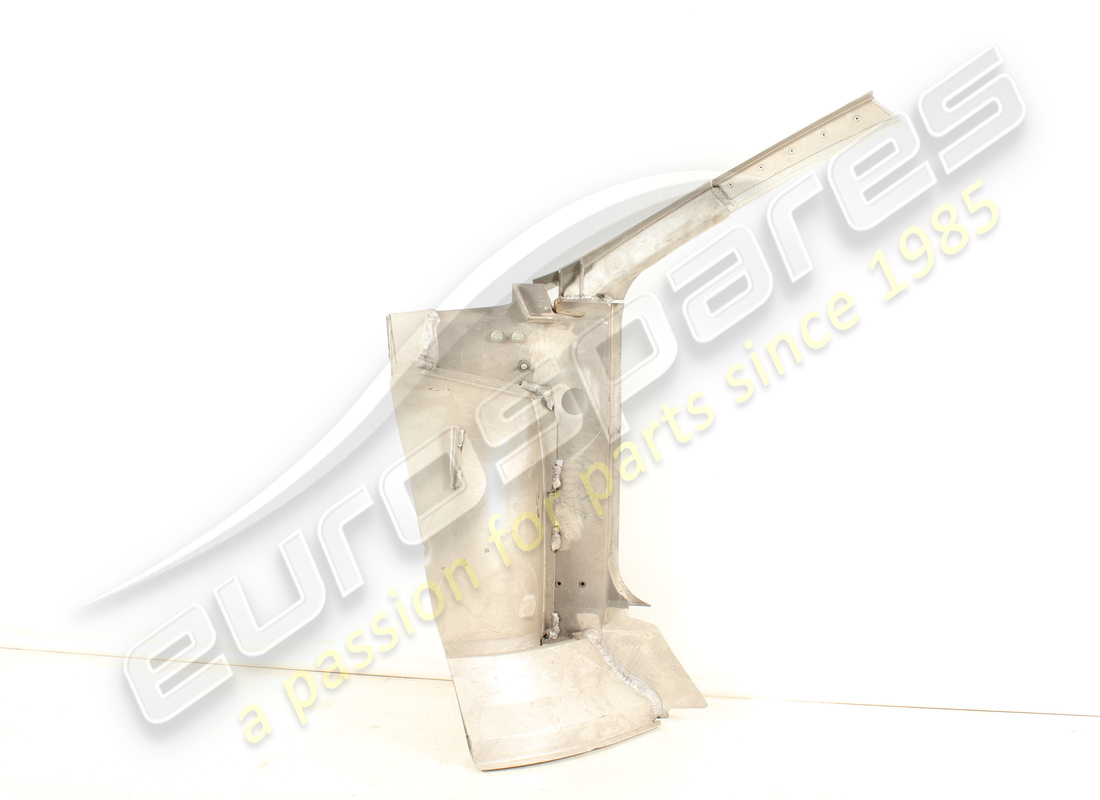

# 028
MPN: 64768211
COMPLETE FRONT RH PILLAR
from £800.94
from £800.94
This part replaces part number 64768200
# 029
MPN: 64768311
CPL FRONT LH PILLAR
from £776.59
from £776.59
This part replaces part number 64768300
# 029
MPN: 64768311
COMPLETE FRONT LH PILLAR
from £776.59
from £776.59
This part replaces part number 64768300
# 030
MPN: 166207
RH UPPER FRAME
from £45.88
from £45.88
# 031
MPN: 166107
LH UPPER FRAME
from £46.60
from £46.60
# 032
MPN: 166215
RH LOWER FRAME
from £189.75
from £189.75
This part replaces part number 985166215
# 033
MPN: 166115
LH LOWER FRAME
from £53.14
from £53.14
This part replaces part number 985166115
# 034
MPN: 66292200
STANDARD HEAD RIVET
from £1.44
from £1.44
# 034
MPN: 66292300
HALF REPOTTED HEAD RIVET
from £0.96
from £0.96
# 035
MPN: 65133800
RIVET L. 6,4 MM
from £0.47
from £0.47
# 036
MPN: 15180411
BLIND ESAGONAL RIVET
from £0.81
from £0.81
# 036
MPN: 15624211
ESAGONAL RIVET M4
from £0.81
from £0.81
# 036
MPN: 15624311
ESAGONAL RIVET M5
from £1.85
from £1.85
# 036
MPN: 15624411
ESAGONAL RIVET M6
from £0.84
from £0.84
# 036
MPN: 15624511
ESAGONAL RIVET M8
from £0.71
from £0.71
# 037
MPN: 65151200
RIVET M6
from £0.47
from £0.47
# 038
MPN: 166101
RIVET M4
from £0.73
from £0.73
# 038
MPN: 65135000
RIVET M8
from £0.62
from £0.62
# 038
MPN: 65319800
RIVET M8 BLIND
from £0.47
from £0.47
# 038
MPN: 65930400
RIVET M6
from £0.50
from £0.50
# 039
MPN: 65065400
STUD ESAGONAL HEAD M6
from £1.66
from £1.66
# 040
MPN: 13836971
SCREW
from £0.47
from £0.47
This part replaces part number 18770124
# 041
MPN: 65160200
RH INSERT
from £94.43
from £94.43
# 042
MPN: 65160300
LH INSERT
from £61.26
from £61.26
