118 - DASHBOARD

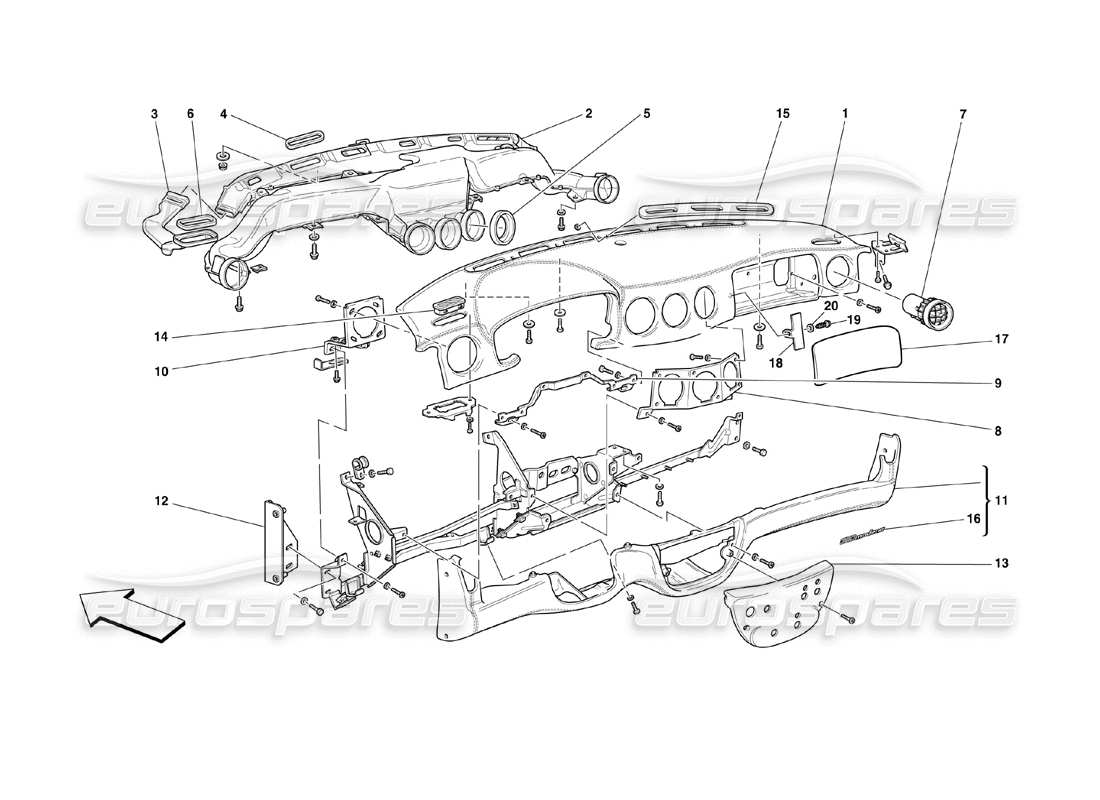

Ferrari 360 Challenge (2000) Dashboard Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66124000
UPPER SIDE UPHOLSTERED
from £2,012.65
from £2,012.65
# 002
MPN: 63352900
LHD AIR DUCT
from £90.86
from £90.86
# 003
MPN: 65132300
RH SIDE DUCT
from £7.43
from £7.43
# 003
MPN: 65132400
LH SIDE DUCT
from £11.61
from £11.61
# 004
MPN: 66050600
GASKET
from £3.80
from £3.80
This part replaces part number 63352700
# 005
MPN: 63353300
GASKET
from £0.51
from £0.51
This part replaces part number 68603400 - and 1 more. Click to view details
# 006
MPN: 65132500
GASKET
from £0.71
from £0.71
# 007
MPN: 65159900
AIR VENT
from £102.57
from £102.57
# 008
MPN: 63331600
DIFFUSER PLATE
from £19.81
from £19.81
# 009
MPN: 65018600
BRACKET
from £7.83
from £7.83
# 010
MPN: 65132600
RH PLATE
from £19.81
from £19.81
# 010
MPN: 65132700
LH PLATE
from £19.81
from £19.81
# 011
MPN: 66124900
LOWER DASH COVER
from £2,761.14
from £2,761.14
# 012
MPN: 64505700
RH SUPPORT
from £22.09
from £22.09
# 012
MPN: 64505800
LH SUPPORT
from £22.09
from £22.09
# 013
MPN: 65980700
DASH PANEL PLATE
from £3,225.08
from £3,225.08
# 014
MPN: 65018200
RH AIR VENT PLATE
from £49.24
from £49.24
# 014
MPN: 65018300
LH AIR VENT PLATE
from £49.24
from £49.24
# 015
MPN: 65132800
RH OUTLET PLATE
from £46.65
from £46.65
# 015
MPN: 65132900
LH OUTLET PLATE
from £44.03
from £44.03
# 016
MPN: 65898600
360 MODENA BADGE
from £65.73
from £65.73
# 017
MPN: 66181200
COVER
from £662.58
from £662.58
# 018
MPN: 66216300
SUPPORT BRACKET
from £16.60
from £16.60
# 019
MPN: 15901501
SCREW
from £0.54
from £0.54
# 020
MPN: 14497701
WINDSCREEN WASHER TANK
from £0.47
from £0.47
# 021
MPN: 65130400
DASHBOARD FRAME ASSY
from £129.44
from £129.44
