008 - pneumatics actuator system

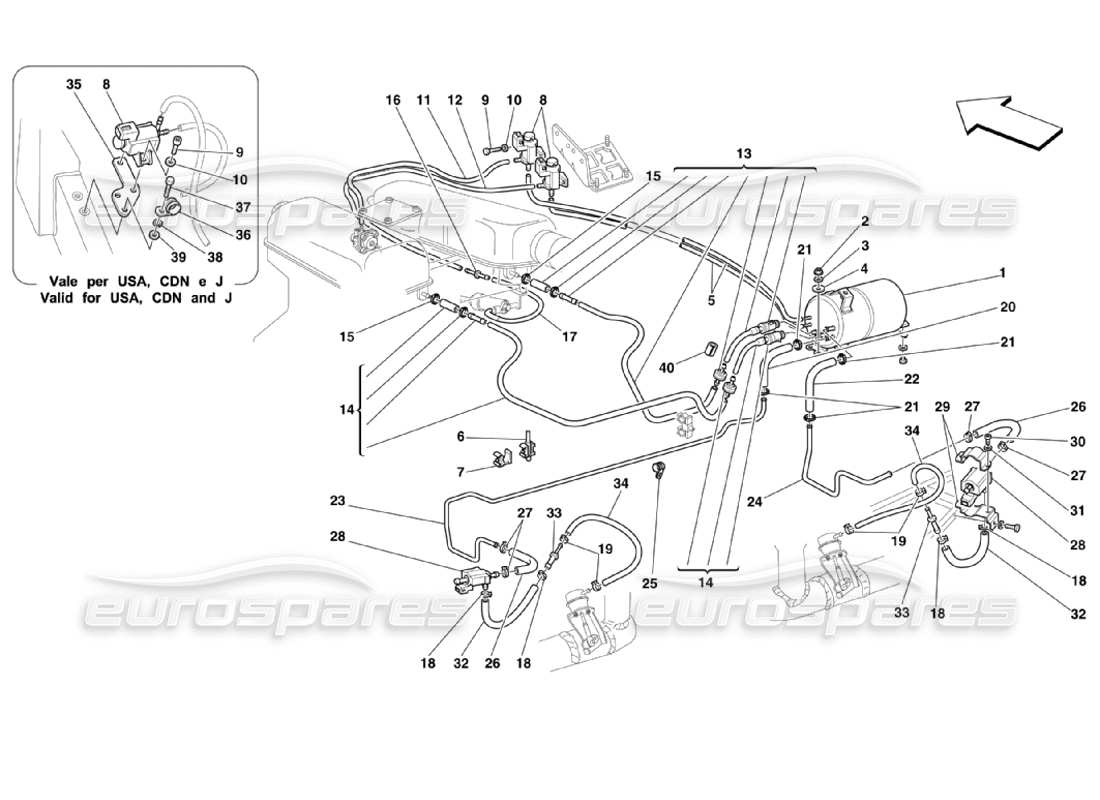

Ferrari 360 Challenge Stradale Pneumatics Actuator System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 195645
VACUUM TANK
from £58.59
from £58.59
This part replaces part number 177060 which we have in stock - and 3 more. Click to view details
# 002
MPN: 14059211
NUT
from £0.53
from £0.53
# 003
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 004
MPN: 12639724
WASHER
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 005
MPN: 122760
PIPE FROM TANK TO SOLENOID VALVE
from £2.05
from £2.05
# 006
MPN: 140162
ANCHORAGE FOR CLIP
from £0.47
from £0.47
# 007
MPN: 140130
FLEXIBLE CLIP
from £0.54
from £0.54
# 008
MPN: 315769
SOLENOID VALVE ON/OFF
from £15.84
from £15.84
This part replaces part number 184363 - and 1 more. Click to view details
# 009
MPN: 14304124
SCREW
-Qty 6 for USA, CDN and J
from £0.51
from £0.51
# 010
MPN: 12601174
WASHER
-Qty 6 for USA, CDN and J
from £0.53
from £0.53
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 011
MPN: 169692
PIPE FROM SOLENOID VALVE TO PNEUMATIC CAPSULE
from £6.81
from £6.81
# 012
MPN: 127893
PIPE FROM SOLENOID VALVE TO UNION
from £10.14
from £10.14
# 013
MPN: 178420
COMPLETE RH DEPRESSION PIPE
from £710.19
from £710.19
# 014
MPN: 178421
COMPLETE LH DEPRESSION PIPE
from £710.19
from £710.19
# 015
MPN: 13434670
SCREW COLLAR
from £0.53
from £0.53

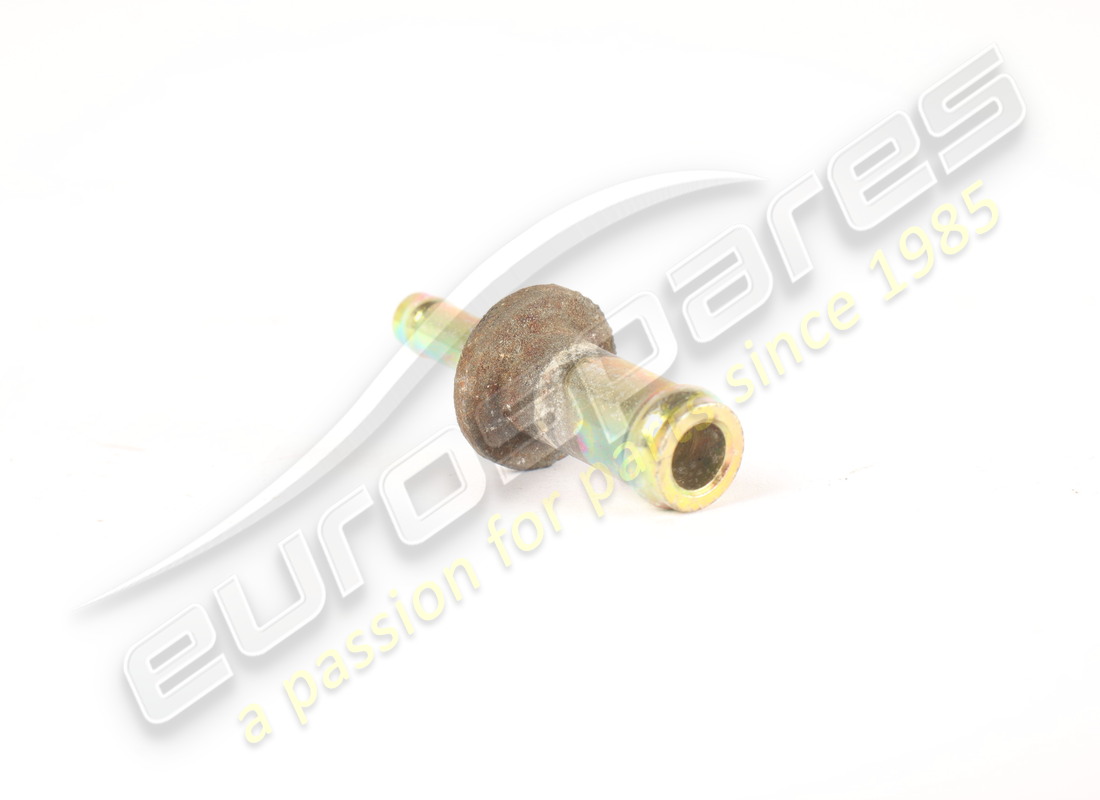

# 016
MPN: 178491
UNION
from £13.00
from £13.00
# 017
MPN: 168248
RUBBER HOSE
from £10.39
from £10.39
# 018
MPN: 13432270
ELASTIC COLLAR
from £0.58
from £0.58
# 019
MPN: 171406
ELASTIC COLLAR
from £0.51
from £0.51
# 020
MPN: 178554
RUBBER HOSE
from £9.01
from £9.01
# 021
MPN: 13432270
ELASTIC COLLAR
from £0.58
from £0.58
# 022
MPN: 178552
RUBBER HOSE
from £6.99
from £6.99
# 023
MPN: 178503
LH PIPE
from £116.84
from £116.84
# 024
MPN: 178497
RH PIPE
from £8.24
from £8.24
# 025
MPN: 10441190
BRACKET WITH SHEATH
from £0.53
from £0.53
# 026
MPN: 178552
RUBBER HOSE
from £6.99
from £6.99
# 027
MPN: 13432270
ELASTIC COLLAR
from £0.58
from £0.58
# 028
MPN: 178309
SOLENOID VALVE
from £30.45
from £30.45
# 029
MPN: 178515
SOLENOID VALVE SUPPORT
from £2.30
from £2.30
# 030
MPN: 14302924
SCREW
from £0.51
from £0.51
# 031
MPN: 127492
WASHER
from £0.88
from £0.88
This part replaces part number 106848
# 032
MPN: 178552
RUBBER HOSE
from £6.99
from £6.99
# 033
MPN: 178369
UNION
from £1.33
from £1.33
# 034
MPN: 147120
RUBBER HOSE
from £21.76
from £21.76
This part replaces part number 147127
# 035
MPN: 189982
SMALL PLATE FOR SOLENOID VALVE
-Valid for USA, CDN and J
from £2.17
from £2.17
# 036
MPN: 10441390
BRACKET WITH SHEATH
from £0.51
from £0.51
# 037
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 038
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 039
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 040
MPN: 152913
RUBBER HOSE
from £23.81
from £23.81
