040 - Brake System

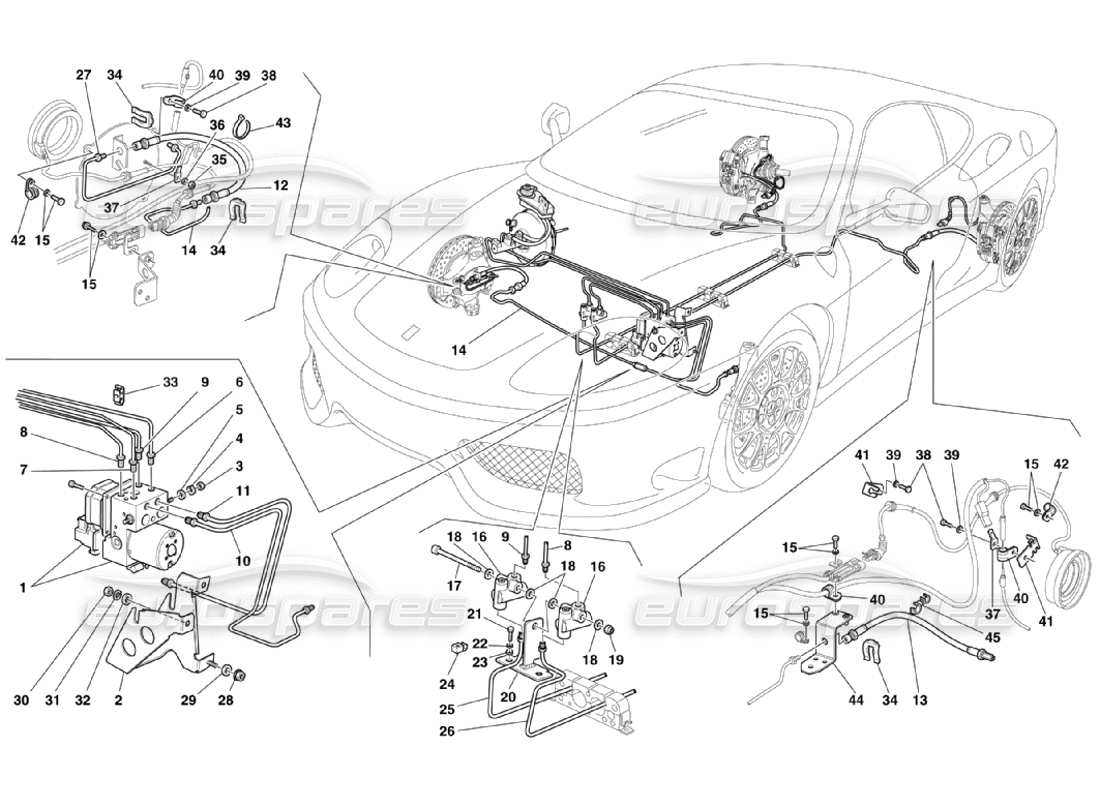

Ferrari 360 Challenge Stradale Brake System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 182535
ABS/ASR HYDRAULIC CONTROL STATION
Supersession
Supersession
# 002
MPN: 177512
CONTROL STATION SUPPORTING BRACKET
from £233.59
from £233.59
# 003
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 004
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 12638524
WASHER
from £0.54
from £0.54
This part replaces part number 12638501 - and 2 more. Click to view details
# 006
MPN: 201585
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
-Valid till Ass. Nr. 57483
from £17.92
from £17.92
# 006
MPN: 213701
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
-Valid from Ass. Nr. 57484
# 007
MPN: 201584
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
-Valid till Ass. Nr. 57483
from £17.92
from £17.92
# 007
MPN: 213700
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
-Valid from Ass. Nr. 57484
# 008
MPN: 201587
PIPE FROM CONTROL STATION TO LH BRAKING REGULATOR
-Valid till Ass. Nr. 57483
from £9.34
from £9.34
# 008
MPN: 213703
PIPE FROM CONTROL STATION TO LH BRAKING REGULATOR
-Valid from Ass. Nr. 57484
# 009
MPN: 201586
PIPE FROM CONTROL STATION TO RH BRAKING REGULATOR
-Valid till Ass. Nr. 57483
from £16.03
from £16.03
# 009
MPN: 213702
PIPE FROM CONTROL STATION TO RH BRAKING REGULATOR
-Valid from Ass. Nr. 57484
# 010
MPN: 177158
PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE
-Valid till Ass. Nr. 57483
from £9.29
from £9.29
# 010
MPN: 213659
PIPE FROM CONTROL STATION O LH FRONT BRAKE PIPE
-Valid from Ass. Nr. 57484
from £8.39
from £8.39
# 011
MPN: 177157
PIPE FROM CONTROL STATION TO UNION PIPE
-Valid till Ass. Nr. 57483
from £8.72
from £8.72
# 011
MPN: 213658
PIPE FROM CONTROL STATION TO UNION PIPE
-Valid from Ass. Nr. 57484
# 012
MPN: 137313
FRONT HOSE
from £44.52
from £44.52
# 013
MPN: 271712
REAR BRAKE HOSE
from £14.52
from £14.52
This part replaces part number 118100 which we have in stock
# 014
MPN: 177161
UNION PIPE TO RH FRONT BRAKE PIPE
from £125.82
from £125.82
# 015
MPN: 11625724
SCREW WITH WASHER
from £0.50
from £0.50
# 016
MPN: 172979
BRAKING REGULATOR
from £47.28
from £47.28
# 017
MPN: 14307124
SCREW
from £0.53
from £0.53
# 018
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 019
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 020
MPN: 198063
BRACKET FOR BRAKING REGULATOR SUPPORTING
from £20.75
from £20.75
# 021
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 022
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 023
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 4 more. Click to view details
# 024
MPN: 169477
CLIP
from £1.16
from £1.16
# 025
MPN: 196424
PIPE FROM BRAKING REGULATOR TO RH REAR JOINT
-Valid till Ass. Nr. 57483
from £32.90
from £32.90
# 025
MPN: 213697
PIPE FROM BRAKING REGULATOR TO RH REAR JOINT
-Valid from Ass. Nr. 57484
# 026
MPN: 196427
PIPE FROM BRAKING REGULATOR TO LH REAR JOINT
-Valid till Ass. Nr. 57483
from £29.60
from £29.60
# 026
MPN: 213698
PIPE FROM BRAKING REGULATOR TO LH REAR JOINT
-Valid from Ass. Nr. 57484
# 027
MPN: 200324
PIPE TO RH FRONT BRAKE
-Valid till Ass. Nr. 57483
from £21.70
from £21.70
# 027
MPN: 200325
PIPE TO LH FRONT BRAKE
-Valid till Ass. Nr. 57483
from £21.70
from £21.70
# 027
MPN: 213694
PIPE TO RH FRONT BRAKE
-Valid from Ass. Nr. 57484
from £27.29
from £27.29
# 027
MPN: 213696
PIPE TO LH FRONT BRAKE
-Valid from Ass. Nr. 57484
from £17.92
from £17.92
# 028
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 029
MPN: 12638524
WASHER
from £0.54
from £0.54
This part replaces part number 12638501 - and 2 more. Click to view details
# 030
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 031
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 032
MPN: 12638524
WASHER
from £0.54
from £0.54
This part replaces part number 12638501 - and 2 more. Click to view details
# 033
MPN: 169476
CLIP
from £1.65
from £1.65
# 034
MPN: 116374
CLIP
from £1.20
from £1.20
# 035
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.79
from £0.79
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 036
MPN: 149951
WASHER
from £0.53
from £0.53
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 037
MPN: 143405
Key
from £0.51
from £0.51
# 038
MPN: 10902124
SCREW
from £0.51
from £0.51
This part replaces part number 10902111 - and 1 more. Click to view details
# 039
MPN: 14496324
WASHER
from £1.43
from £1.43
This part replaces part number 14496301 which we have in stock
# 040
MPN: 10441190
BRACKET WITH SHEATH
from £0.53
from £0.53
# 041
MPN: 178938
SUPPORT FOR CABLE
from £16.02
from £16.02
This part replaces part number 179236
# 042
MPN: 10440890
BRACKET WITH SHEATH
from £0.48
from £0.48
# 043
MPN: 145854
TEAR TYPE CLAMP
from £0.52
from £0.52
# 044
MPN: 185283
REAR SUPPORT
from £120.95
from £120.95
This part replaces part number 178939
# 045
MPN: 150738
FLEXIBLE CLIP
from £0.52
from £0.52
