130 - electrical system

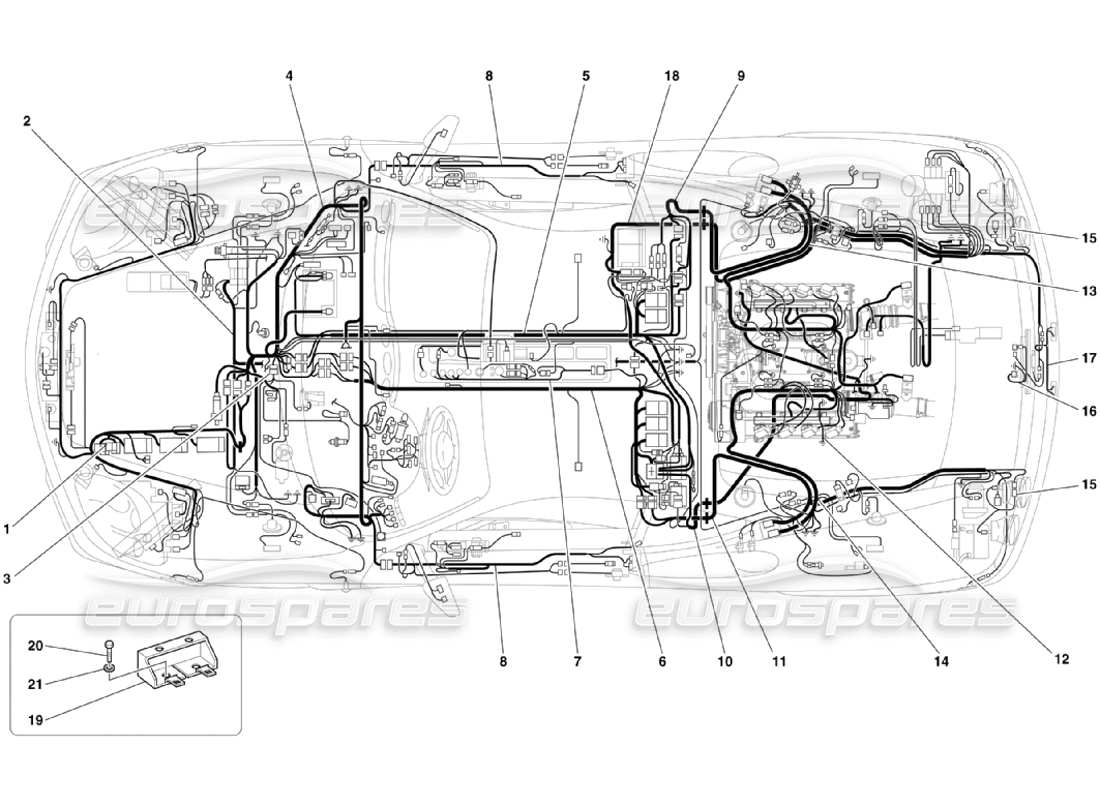

Ferrari 360 Challenge Stradale Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 198395
FRONT PART CONNECTING CABLES
from £3,246.78
from £3,246.78
# 002
MPN: 197215
ABS/ASR INSTALLATION CONNECTING CABLES
-Valid for GD
from £271.60
from £271.60
# 002
MPN: 197216
ABS/ASR INSTALLATION CONNECTING CABLES
-Not for GD
from £166.67
from £166.67
# 003
MPN: 198676
PEDAL DEVICE CONNECTING CABLES
-Not for GD
from £30.48
from £30.48
# 004
MPN: 196861
DASHBOARD CONNECTION CABLES
-Not for GD
from £1,443.48
from £1,443.48
# 004
MPN: 196862
DASHBOARD CONNECTION CABLES
-Valid for GD
from £1,202.87
from £1,202.87
# 005
MPN: 198554
CABLES FOR RH REAR TUNNEL CONNECTION
-Not for USA, CDN and J
from £2,055.76
from £2,055.76
This part replaces part number 177913 which we have in stock - and 3 more. Click to view details
# 005
MPN: 198555
CABLES FOR RH REAR TUNNEL CONNECTION
-Valid for USA, CDN and J
from £224.18
from £224.18
This part replaces part number 182200
# 006
MPN: 196703
CABLES FOR LH REAR TUNNEL CONNECTION
from £742.37
from £742.37
# 007
MPN: 196882
CABLES FOR TUNNEL-CONSOLE CONNECTION
from £1,330.83
from £1,330.83
# 008
MPN: 198209
DOOR CONNECTION CABLES
-Valid from Ass. Nr.52140
from £63.12
from £63.12
# 008
MPN: 201104
DOOR CONNECTION CABLES
-Valid till Ass. Nr.52139
from £408.17
from £408.17
This part replaces part number 183327 which we have in stock - and 1 more. Click to view details
# 009
MPN: 200839
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
-Not for USA and CDN - Valid till stock exhaustion
from £636.70
from £636.70
This part replaces part number 180797 which we have in stock - and 1 more. Click to view details
# 009
MPN: 200844
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
-Valid for USA and CDN
from £451.66
from £451.66
This part replaces part number 181112 which we have in stock
# 009
MPN: 205659
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
-Valid after stock exhaustion of 200839 - Not for USA and CDN
from £1,516.38
from £1,516.38
This part replaces part number 200839 which we have in stock
# 010
MPN: 213155
COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
from £988.18
from £988.18
This part replaces part number 188108
# 011
MPN: 200840
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
-Not for USA, CDN and J
from £559.91
from £559.91
This part replaces part number 178296 which we have in stock - and 1 more. Click to view details
# 011
MPN: 200843
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
-Valid for USA, CDN and J
from £451.66
from £451.66
This part replaces part number 182199 which we have in stock
# 012
MPN: 155073
CABLE FOR ENGINE-FRAME EARTH
from £7.43
from £7.43
This part replaces part number 115668
# 013
MPN: 199873
RH SIDE ENGINE INJECTION CABLES
-Not for USA and CDN
from £555.24
from £555.24
This part replaces part number 192449
# 013
MPN: 199875
RH SIDE ENGINE INJECTION CABLES
-Valid for USA and CDN
from £514.96
from £514.96
This part replaces part number 192451
# 014
MPN: 199874
LH SIDE ENGINE INJECTION CABLES
-Not for USA and CDN
from £367.50
from £367.50
This part replaces part number 192450 - and 1 more. Click to view details
# 014
MPN: 199876
LH SIDE ENGINE INJECTION CABLES
-Valid for USA and CDN
from £514.96
from £514.96
This part replaces part number 192452
# 015
MPN: 200836
REAR LIGHTS CONNECTING CABLES
-Not for USA and CDN
from £344.16
from £344.16
This part replaces part number 173429 - and 2 more. Click to view details
# 015
MPN: 200837
REAR LIGHTS CONNECTING CABLES
-Valid for USA and CDN
from £499.99
from £499.99
This part replaces part number 182208 which we have in stock
# 016
MPN: 200825
STOP-LAMP CONNECTION CABLES
Supersession
Supersession
This part replaces part number 168843
# 017
MPN: 182985
CABLES FOR NUMBER PLATE LIGHTS
from £72.10
from £72.10
# 018
MPN: 196860
COMPLETE CABLES F1 TRANSMISSION CONNECTION
-Valid for F1 - Valid till stock exhaustion
from £3,613.04
from £3,613.04
# 018
MPN: 207331
COMPLETE CABLES F1 TRANSMISSION CONNECTION
-Valid for F1 - Included relay 194909 Tab. 133 Ref. 16
from £900.44
from £900.44
# 019
MPN: 189876
CONNECTORS FIXING BRACKET
from £9.90
from £9.90
# 020
MPN: 10902224
SCREW
from £0.53
from £0.53
# 021
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
