011 - Fuel Tanks and Union

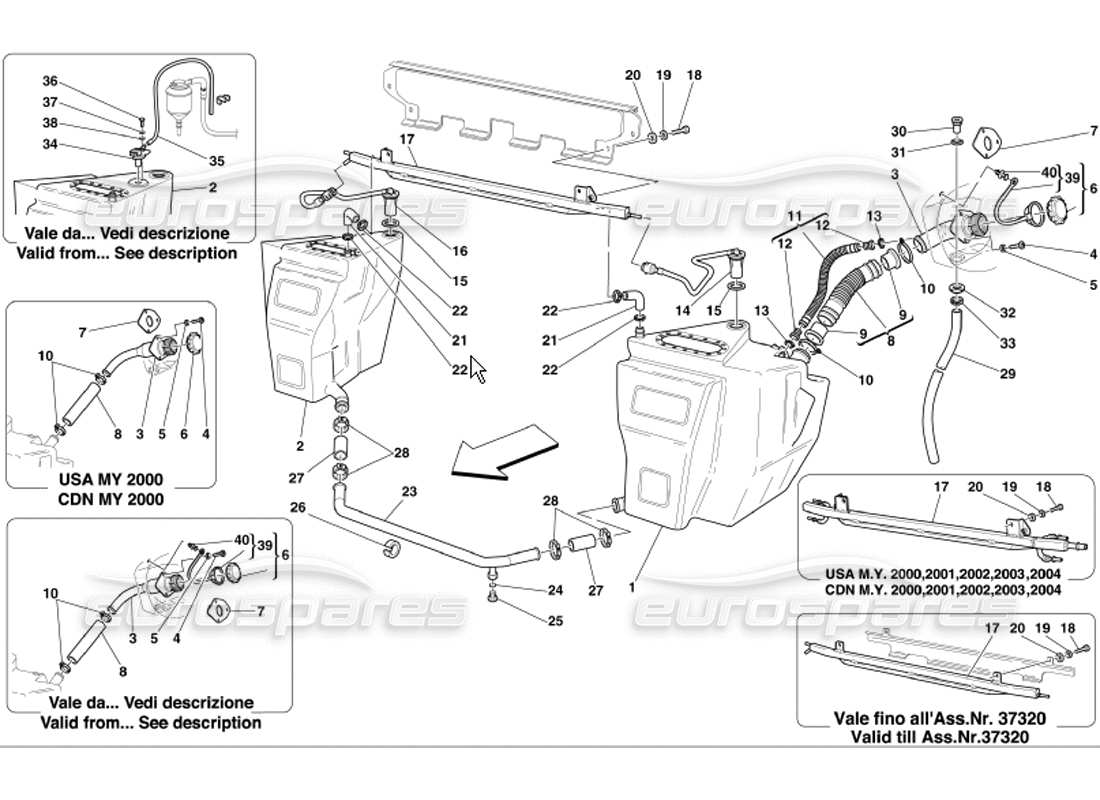

Ferrari 360 Modena Fuel Tanks and Union Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 175418
LH FUEL TANK
Not as spare part replaced by 181270
Supersession
Supersession
# 001
MPN: 179624
LH FUEL TANK
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £2,085.23
from £2,085.23

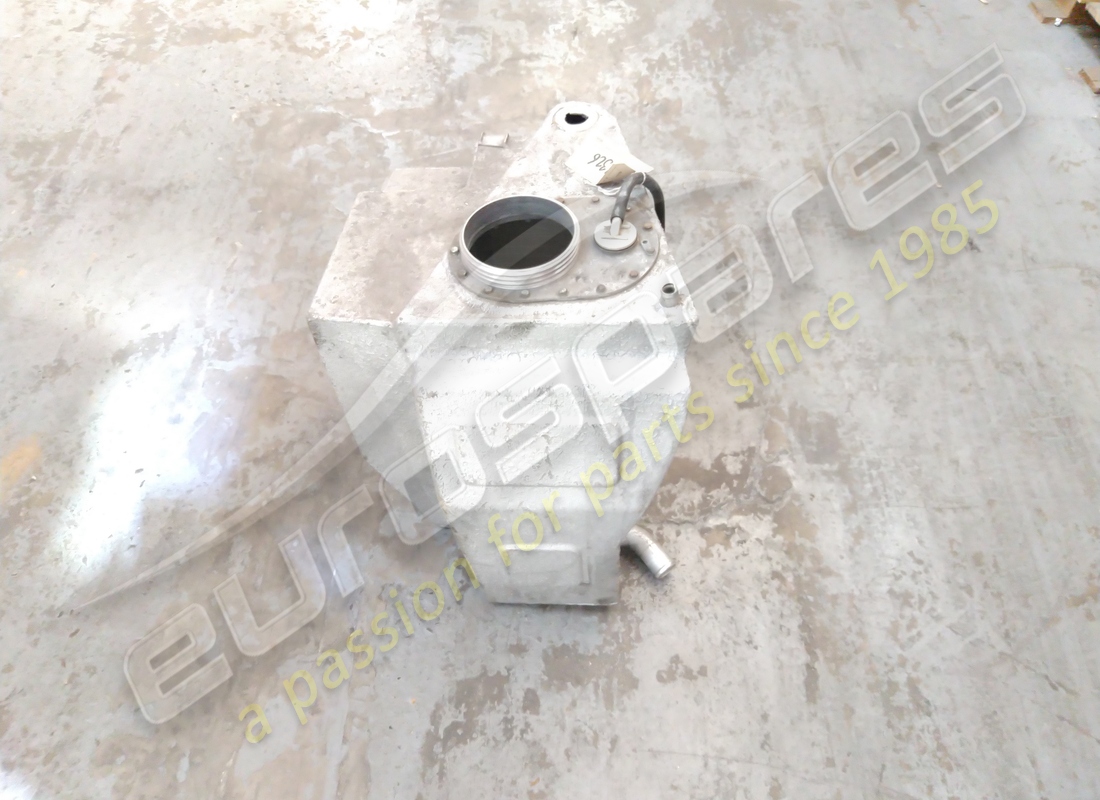

# 001
MPN: 181270

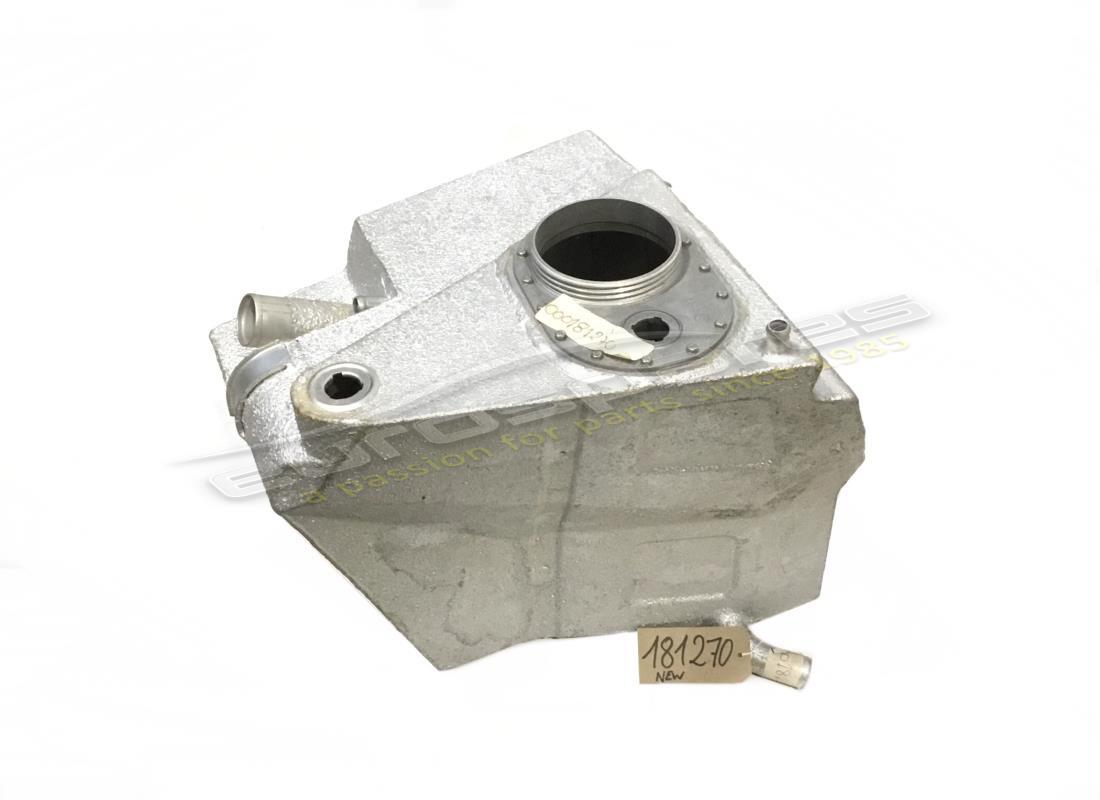

LH FUEL TANK
Replaces 175418 - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £2,240.62
from £2,240.62
This part replaces part number 175418 - and 1 more. Click to view details
# 002
MPN: 175419
RH FUEL TANK
Not for USA, CDN and AUS - Not as spare part replaced by 181326
Supersession
Supersession
# 002
MPN: 181326
RH FUEL TANK
Valid for EU GS not F1 and J not F1 till car Ass.Nr. 39158 - Valid for GB not F1 till car Ass.Nr. 39144 - Valid for EU GS F1 and J F1 till car Ass.Nr. 39159 - Valid for GB F1 till car Ass.Nr. 39148 - Not for USA, CDN and AUS
from £2,240.62
from £2,240.62
This part replaces part number 175419 - and 1 more. Click to view details

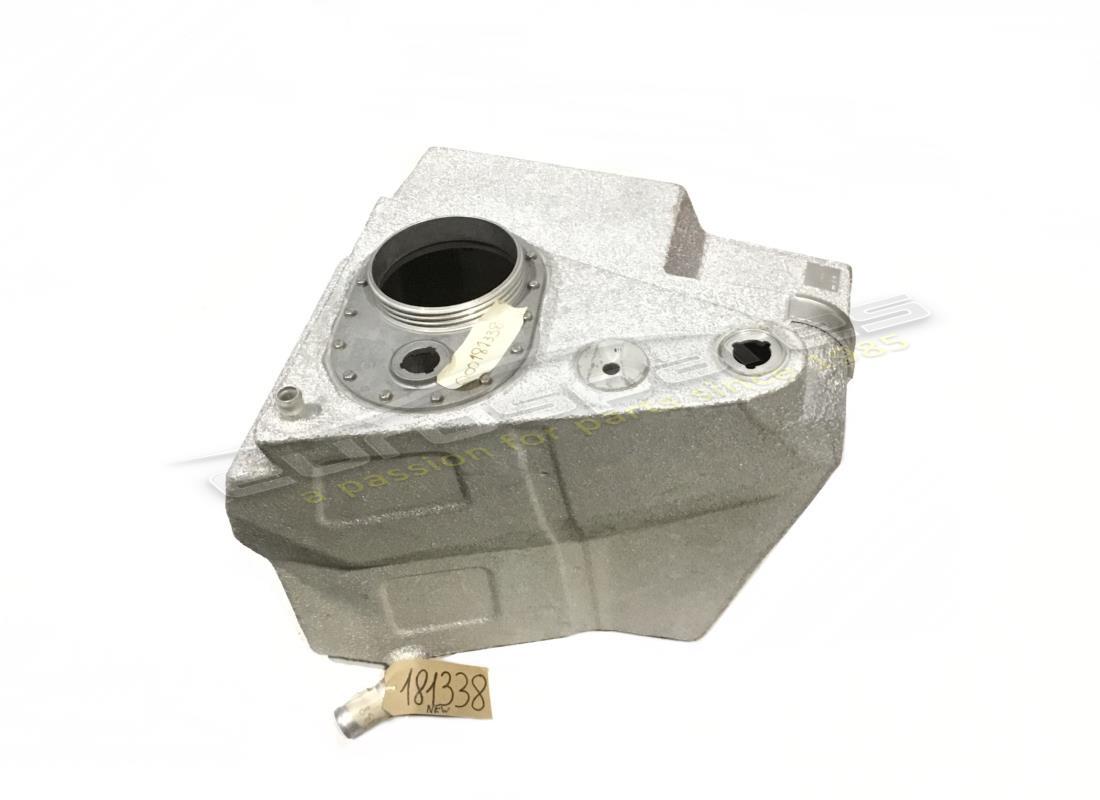

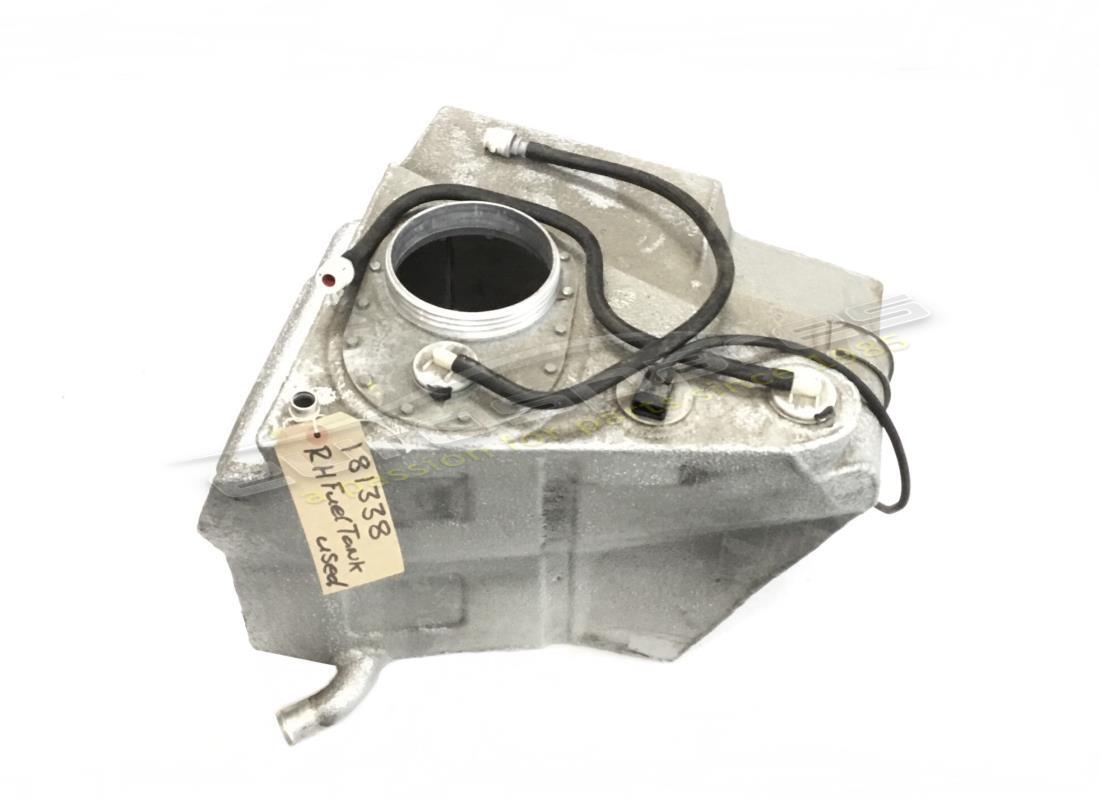

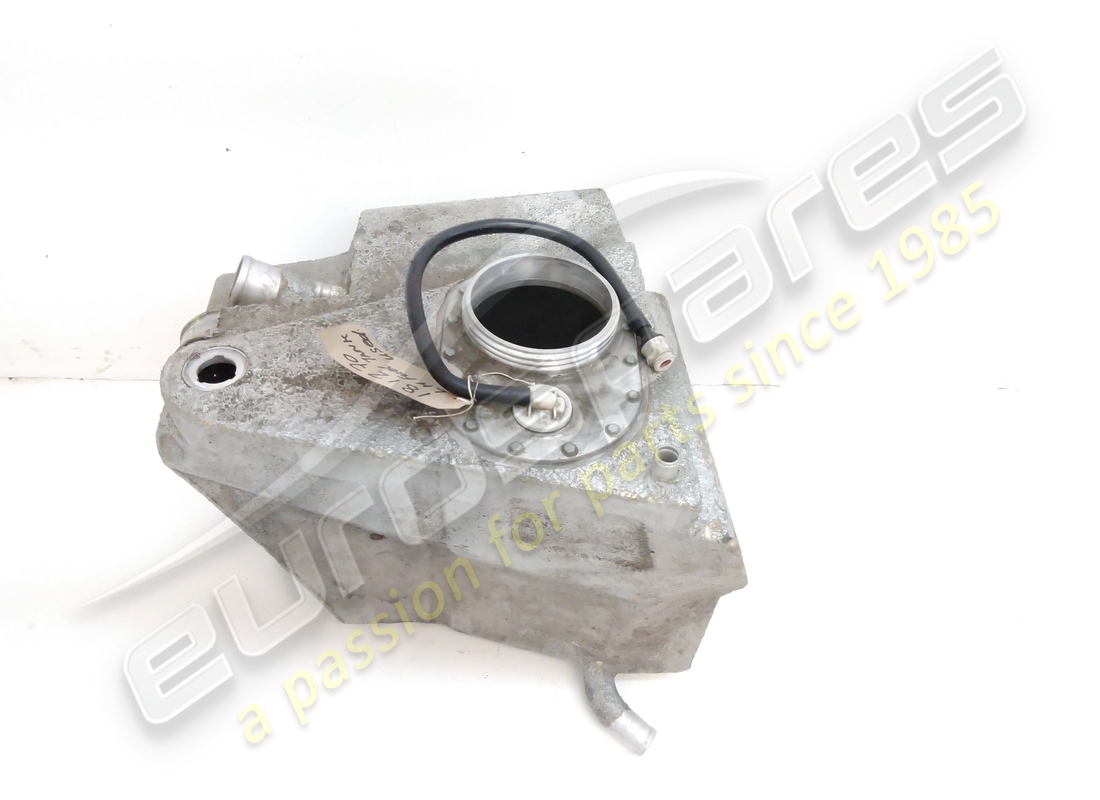

# 002
MPN: 181338
RH FUEL TANK
Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 - Valid for GB F1 from car Ass.Nr. 39149 - Valid for USA, CDN and AUS
from £1,149.75
from £1,149.75
# 003
MPN: 177638
UNION
Valid for catalyzed cars - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £326.15
from £326.15
# 003
MPN: 180059
UNION
Valid for not catalyzed cars - Not for USA, CDN and AUS
from £50.80
from £50.80
# 003
MPN: 185264
UNION
Valid for USA MY 2000 and CDN MY 2000 - Not for USA MY 2001,2002,2003,2004 and CDN MY 2001,2002,2003,2004 - Not as spare part - Replaced by 187008
Supersession
Supersession
# 003
MPN: 187008
UNION
Valid for USA MY 2001,2002,2003,2004 and CDN MY 2001,2002,2003,2004
from £134.62
from £134.62
This part replaces part number 185264
# 004
MPN: 64686900
SCREW
from £0.53
from £0.53
This part replaces part number 14778818
# 005
MPN: 10615774
WASHER
from £0.53
from £0.53
This part replaces part number 10615770
# 005
MPN: 12601274
WASHER
Not as spare part - Replaced by 10615774
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 006
MPN: 223706

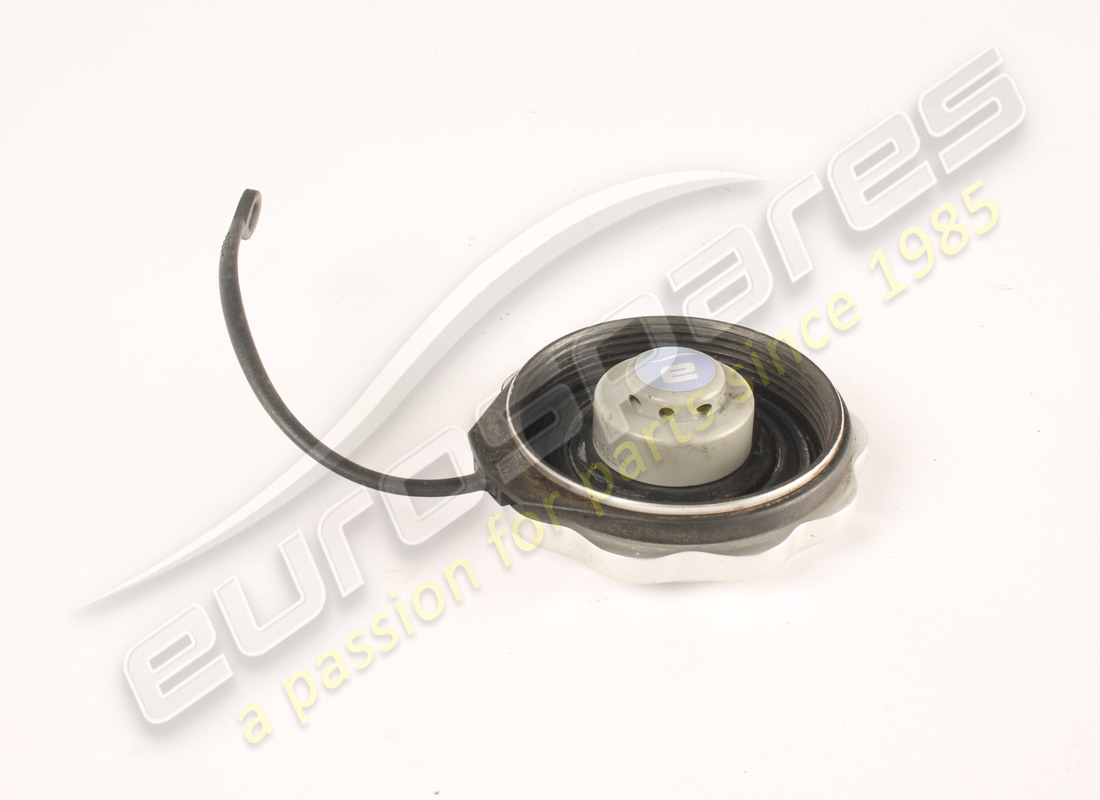

FUEL CAP
(Rubber not included)
from £83.48
from £83.48
This part replaces part number 180118 - and 1 more. Click to view details
# 006
MPN: 226449
COMPLETE FUEL CAP
from £210.54
from £210.54
This part replaces part number 185777
# 007
MPN: 172899
GASKET
from £4.65
from £4.65
# 008
MPN: 177640
UNION PIPE - TANK CONNECTING
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £28.11
from £28.11
# 008
MPN: 178665
UNION PIPE
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £102.28
from £102.28
# 009
MPN: 141033
GASKET
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £11.92
from £11.92
# 010
MPN: 13000890
SCREW COLLAR
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £0.62
from £0.62
This part replaces part number 12173290 - and 2 more. Click to view details
# 010
MPN: 165398
SCREW COLLAR
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 13000890
from £0.67
from £0.67
# 010
MPN: 180957
SCREW COLLAR
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £0.72
from £0.72
# 011
MPN: 174101
VENT PIPE FROM TANK TO UNION
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £25.40
from £25.40
# 012
MPN: 142106
GASKET
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £4.48
from £4.48
# 013
MPN: 164015
SCREW COLLAR
Not for USA MY 2000,2001,2002,2003 and CDN MY 2000,2001,2002,2003
Supersession
Supersession
This part replaces part number 12181290
# 014
MPN: 180384
LH VALVE WITH PIPE
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £153.83
from £153.83
This part replaces part number 171132
# 014
MPN: 180606
LH VALVE WITH PIPE
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid till stock exhaustion
Supersession
Supersession
# 014
MPN: 196481
LH VALVE WITH PIPE
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £150.00
from £150.00
This part replaces part number 180606
# 015
MPN: 195049
GASKET
Valid till stock exhaustion
from £2.56
from £2.56
This part replaces part number 169938
# 015
MPN: 195049
GASKET
from £2.56
from £2.56
This part replaces part number 169938
# 016
MPN: 180382
RH VALVE WITH PIPE
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £153.83
from £153.83
This part replaces part number 171099
# 016
MPN: 180608
RH VALVE WITH PIPE
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 -Valid till stock exhaustion
Supersession
Supersession
# 016
MPN: 196482
RH VALVE WITH PIPE
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £150.00
from £150.00
This part replaces part number 180608
# 017
MPN: 179511
DISAREATOR
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid till Ass. Nr. 37320
Supersession
Supersession
# 017
MPN: 181989
DISAREATOR
Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 -Valid from Ass. Nr. 37321
from £138.07
from £138.07
# 017
MPN: 182964
DISAREATOR
Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £259.11
from £259.11
# 018
MPN: 10902411
SCREW
from £1.13
from £1.13
# 019
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 020
MPN: 10523424
WASHER
from £0.53
from £0.53

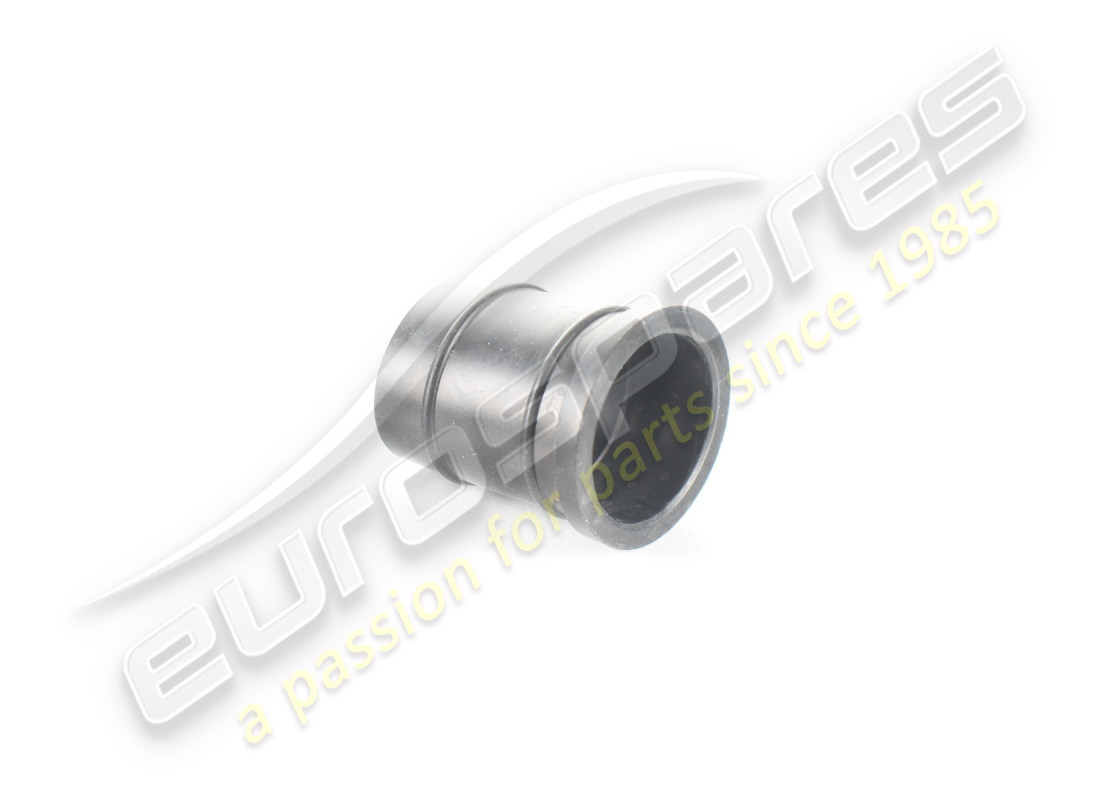

# 021
MPN: 166602
SLEEVE
from £6.50
from £6.50
# 022
MPN: 13000390
SCREW COLLAR
Not as spare part replaced by 181695
from £0.51
from £0.51
This part replaces part number 12179590 - and 1 more. Click to view details

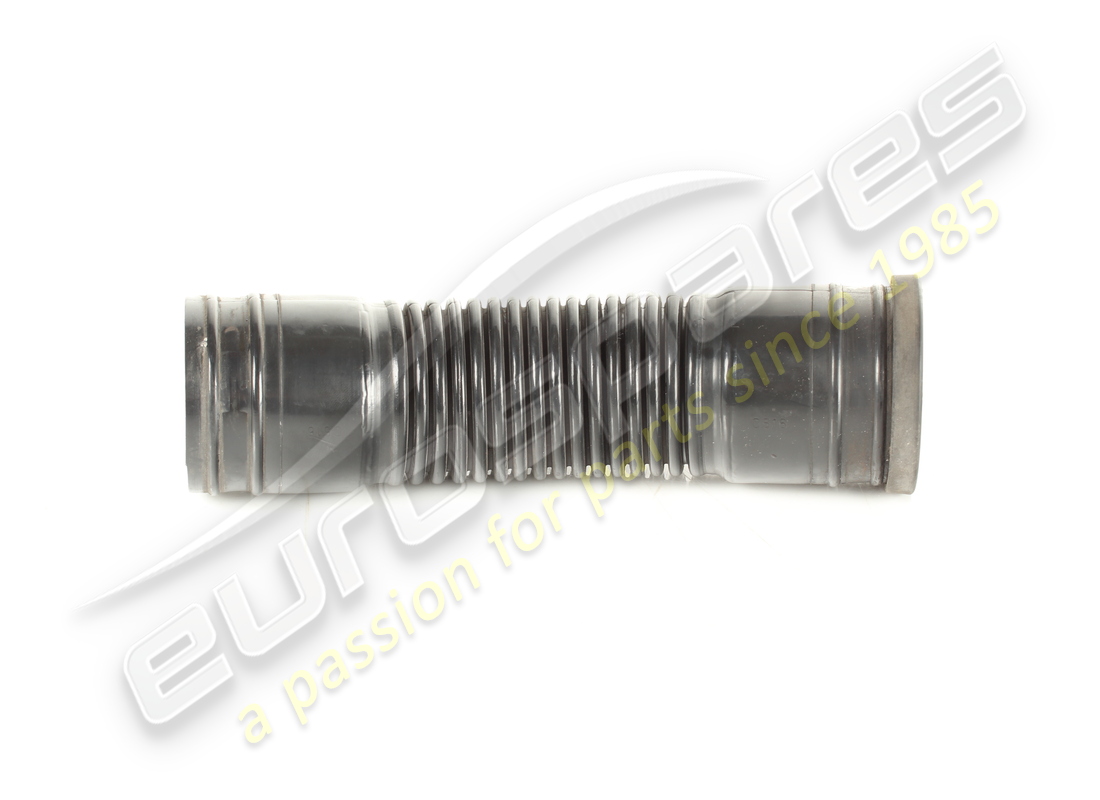

# 023
MPN: 178347
TANKS CONNECTION PIPE
Supersession
Supersession
# 023
MPN: 181695
TANKS CONNECTION PIPE
Replaces 178347
from £50.28
from £50.28
This part replaces part number 178347 - and 1 more. Click to view details
# 024
MPN: 123622
GASKET
from £0.86
from £0.86
# 025
MPN: 148045
THREADED PLUG
from £9.01
from £9.01
# 026
MPN: 177437
RUBBER THICKNESS
from £21.66
from £21.66

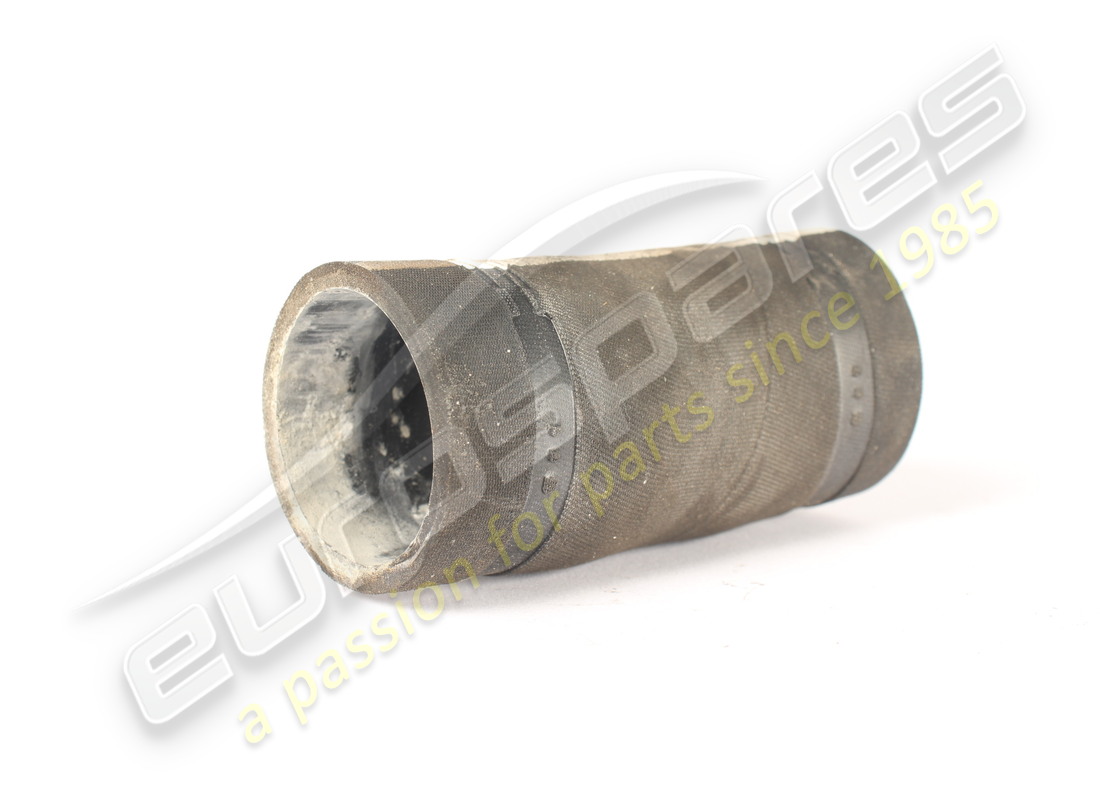

# 027
MPN: 114277
RUBBER HOSE
from £52.53
from £52.53
This part replaces part number 101468 - and 1 more. Click to view details
# 028
MPN: 168220
SCREW COLLAR
from £0.83
from £0.83
# 029
MPN: 180067
WATER EXHAUST TUBE
Valid till stock exhaustion
from £19.38
from £19.38
# 029
MPN: 193286
WATER EXHAUST TUBE
Valid after stock exhaustion of 180067
from £19.50
from £19.50
This part replaces part number 180067 which we have in stock
# 030
MPN: 64872000
SLEEVE
from £4.34
from £4.34
# 031
MPN: 65064500
GASKET
from £1.07
from £1.07
# 032
MPN: 104919
RING NUT
from £3.11
from £3.11
# 033
MPN: 177553
CLAMP
from £0.54
from £0.54
# 034
MPN: 179137

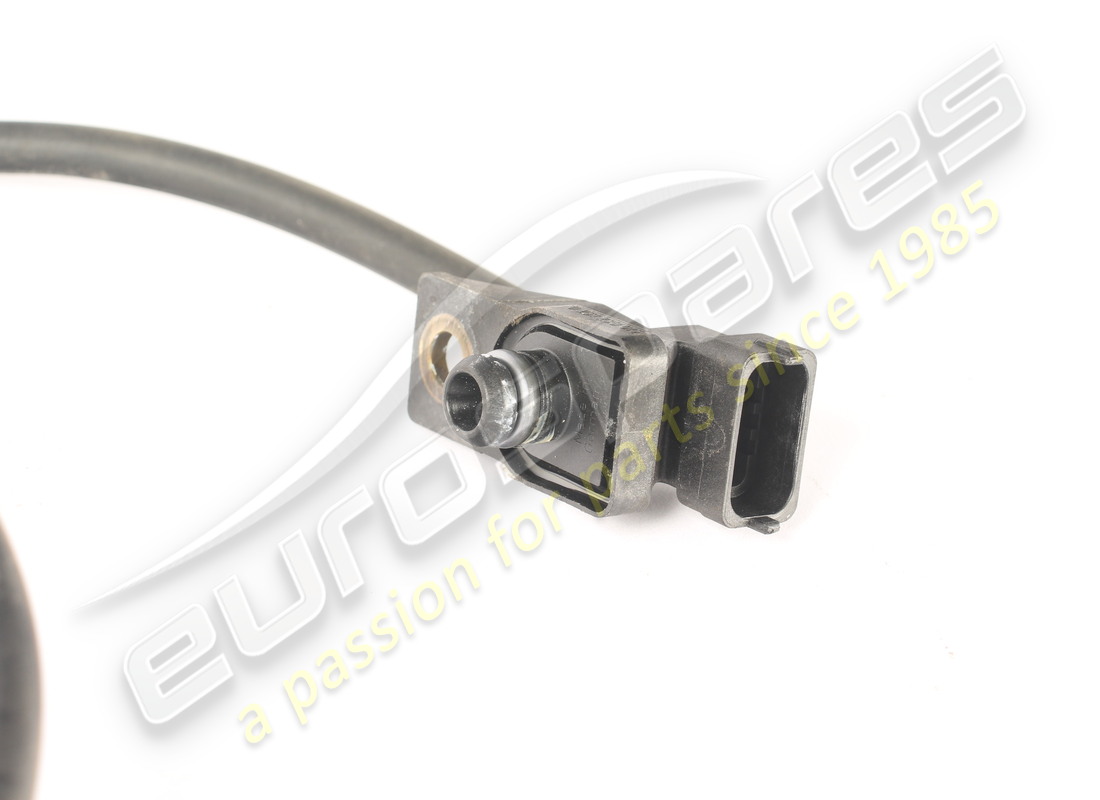

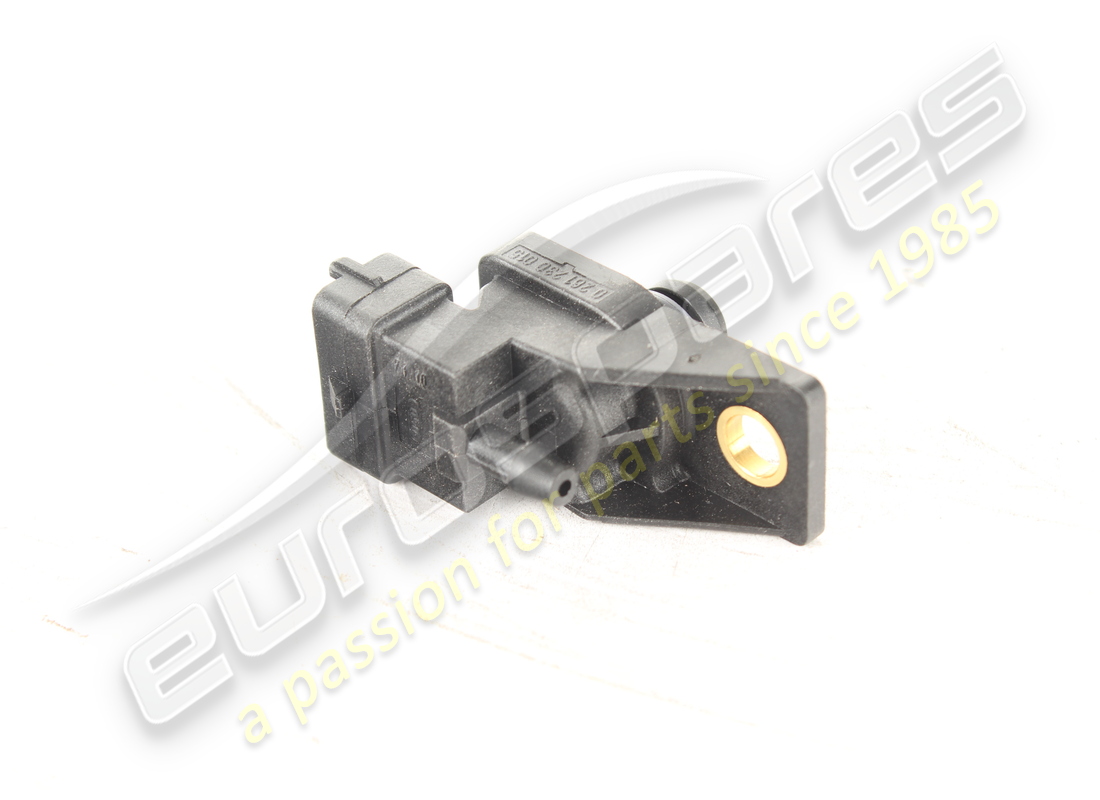

FUEL PRESSURE SENSOR
Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 - Valid for GB F1 from car Ass.Nr. 39149 - Valid for USA, CDN and AUS
from £229.86
from £229.86
# 035
MPN: 118502
RUBBER HOSE
Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 - Valid for GB F1 from car Ass.Nr. 39149 - Valid for USA, CDN and AUS
from £17.99
from £17.99
This part replaces part number 115148 - and 3 more. Click to view details
# 036
MPN: 10977714
SCREW
Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 - Valid for GB F1 from car Ass.Nr. 39149 - Valid for USA, CDN and AUS
from £0.54
from £0.54
# 037
MPN: 12601174
WASHER
Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 - Valid for GB F1 from car Ass.Nr. 39149 - Valid for USA, CDN and AUS
from £0.54
from £0.54
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 038
MPN: 12637824
WASHER
Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 - Valid for GB F1 from car Ass.Nr. 39149 - Valid for USA, CDN and AUS - Valid for EU GS not F1 and
from £0.54
from £0.54
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details

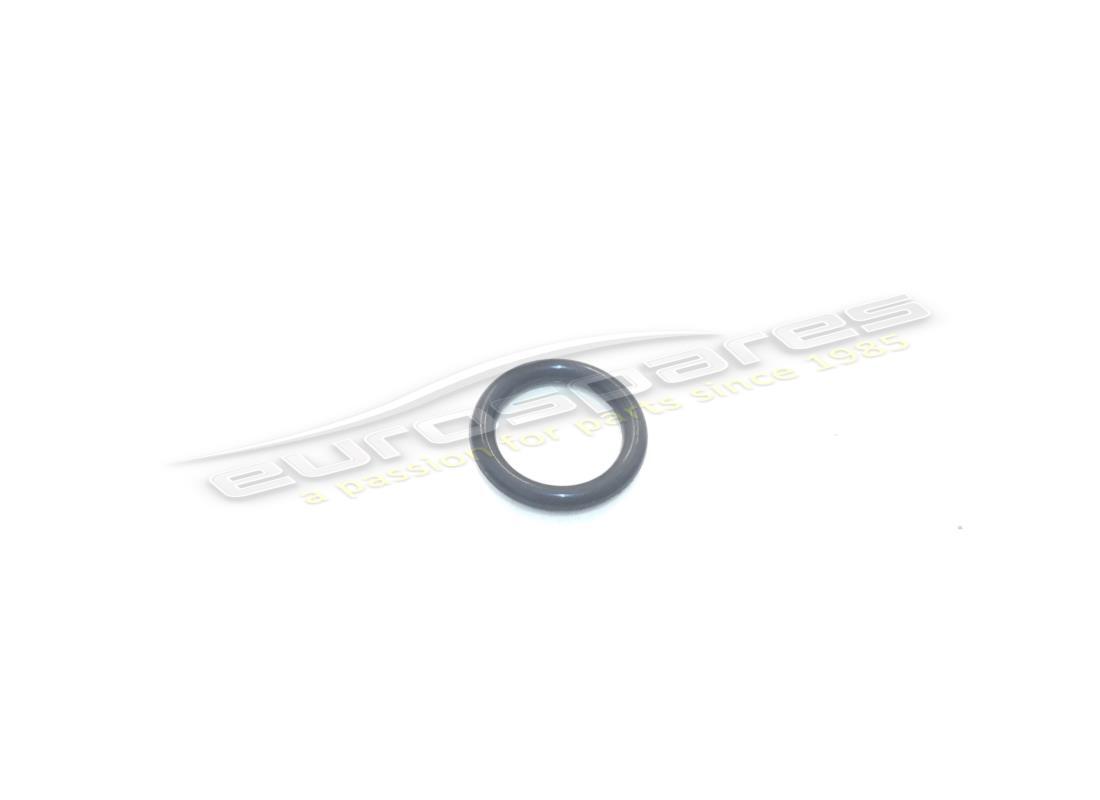

# 039
MPN: 186866
COMPLETE RUBBER RING
from £10.01
from £10.01

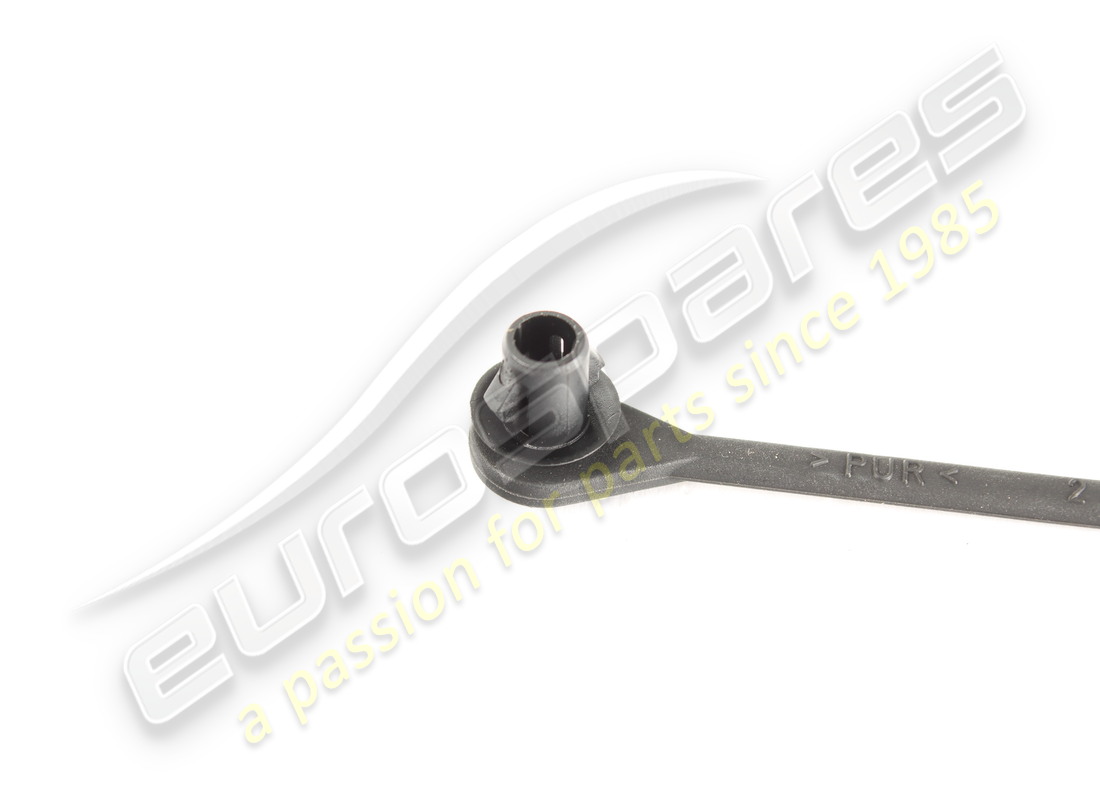

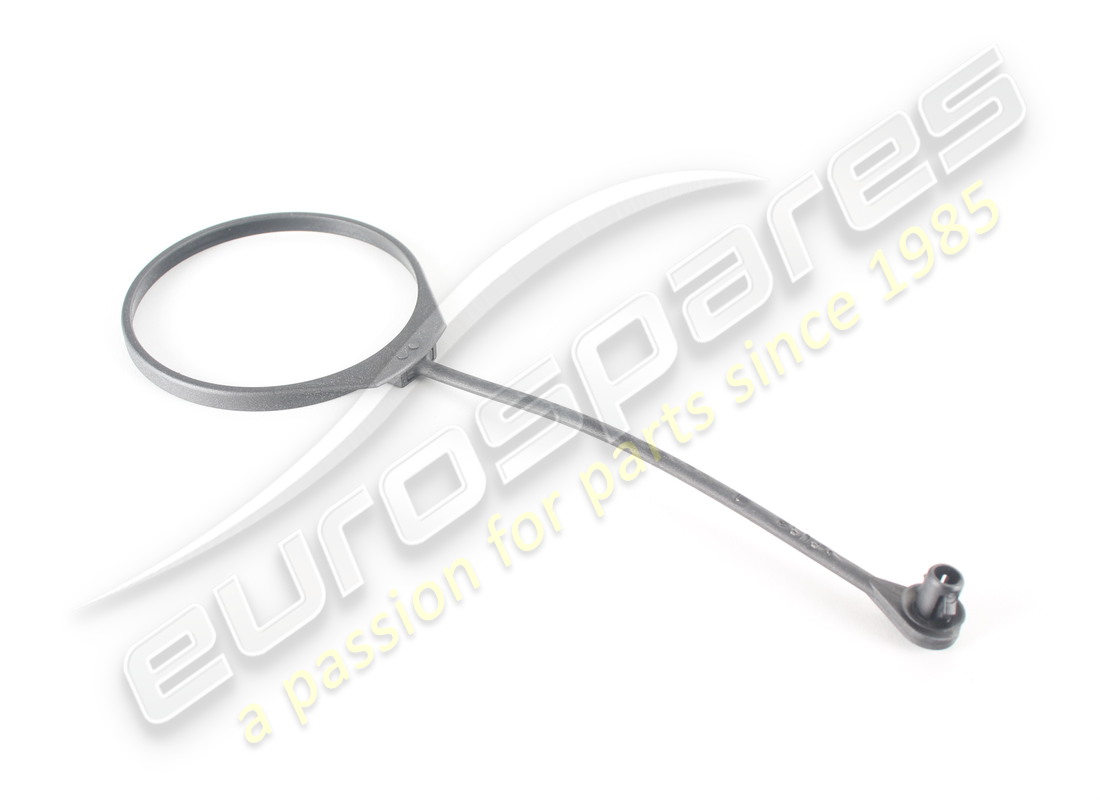

# 040
MPN: 186172
RETAINER FOR STRING
Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 - Valid for GB F1 from car Ass.Nr. 39149 - Valid for AUS from Ass. Nr. 41560 - Valid for USA MY 2001,2002,2003 and CDN MY 2001,2002,2003
from £0.54
from £0.54
