019 - Exhaust System

Ferrari 360 Modena Exhaust System Parts Diagram

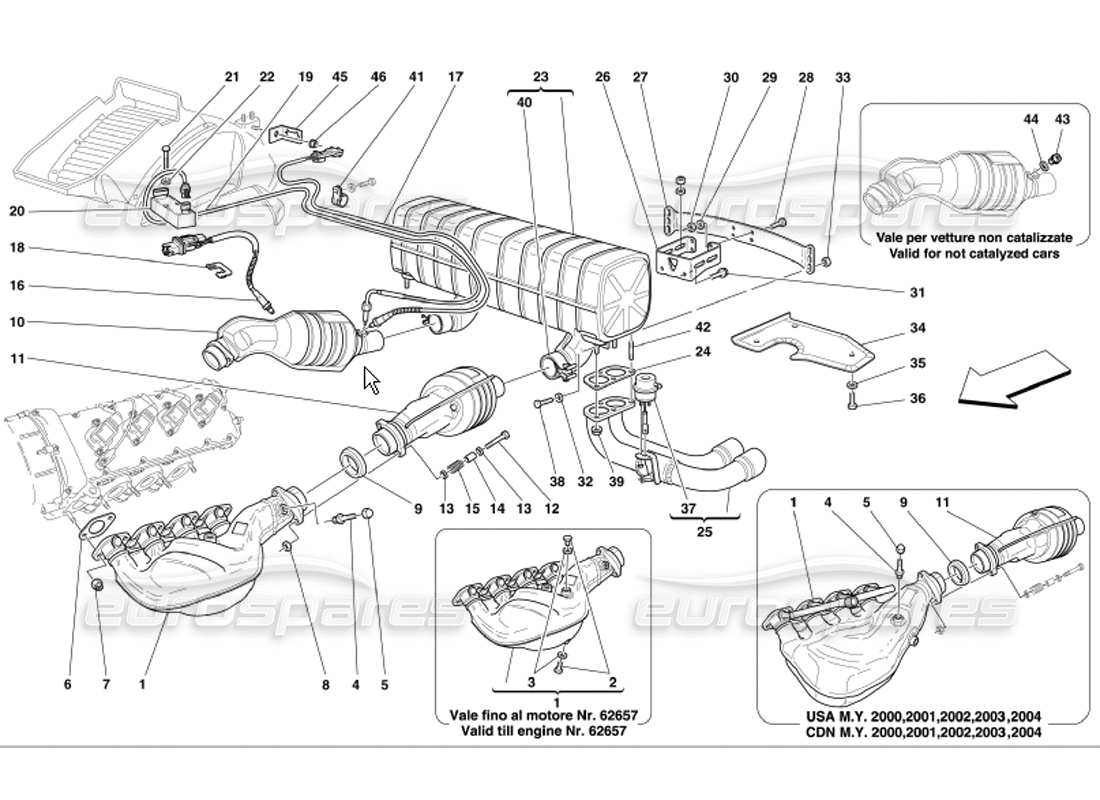

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 178437
                                                                      LH EXHAUST MANIFOLD
                                                                      Not for USA, CDN and AUS - Valid till engine Nr. 62657
                                                                      from £2,138.58
                                                                      from £2,138.58
                                                                      # 001
                                                                      MPN: 178438
                                                                      RH EXHAUST MANIFOLD
                                                                      Not for USA, CDN and AUS - Valid till engine Nr. 62657
                                                                      from £1,176.22
                                                                      from £1,176.22
                                                                      # 001
                                                                      MPN: 182148
                                                                      LH EXHAUST MANIFOLD
                                                                      Valid for USA, CDN and AUS - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                                                      from £1,749.37
                                                                      from £1,749.37
                                                                      # 001
                                                                      MPN: 182151
                                                                      RH EXHAUST MANIFOLD
                                                                      Valid for USA, CDN and AUS - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                                                      from £2,403.35
                                                                      from £2,403.35
                                                                      # 001
                                                                      MPN: 184393
                                                                      RH EXHAUST MANIFOLD
                                                                      Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                                                      from £3,083.05
                                                                      from £3,083.05
                                                                      # 001
                                                                      MPN: 184394
                                                                      LH EXHAUST MANIFOLD
                                                                      Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                                                      from £3,083.05
                                                                      from £3,083.05
                                                                      # 001
                                                                      MPN: 189665
                                                                      RH EXHAUST MANIFOLD
                                                                      Not for USA, CDN and AUS - Valid from engine Nr.62658
                                                                      from £962.15
                                                                      from £962.15
                                                                      # 001
                                                                      MPN: 189666
                                                                      LH EXHAUST MANIFOLD
                                                                      Not for USA, CDN and AUS - Valid from engine Nr. 62658
                                                                      from £962.15
                                                                      from £962.15
                                                                      # 002
                                                                      MPN: 110860
                                                                      THREADED PLUG
                                                                      Valid till engine Nr. 62657
                                                                      from £9.60
                                                                      from £9.60
                                                                      This part replaces part number 11903240
                                                                      # 003
                                                                      MPN: 10298460
                                                                      GASKET
                                                                      Valid till engine Nr. 62657
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 93353
                                                                      # 004
                                                                      MPN: 144240
                                                                      THREADED UNION
                                                                      from £17.01
                                                                      from £17.01
                                                                      # 005
                                                                      MPN: 150595
                                                                      CAP NUT
                                                                      from £0.58
                                                                      from £0.58
                                                                      This part replaces part number 16109642
                                                                      # 006
                                                                      MPN: 151064
                                                                      GASKET
                                                                      from £3.18
                                                                      from £3.18
                                                                      # 007
                                                                      MPN: 138392
                                                                      NUT
                                                                      (minimum order quantity = 25)
                                                                      from £0.73
                                                                      from £0.73
                                                                      # 008
                                                                      MPN: 114748
                                                                      NUT
                                                                      from £8.85
                                                                      from £8.85
                                                                      # 009
                                                                      MPN: 159914
                                                                      GASKET
                                                                      from £10.42
                                                                      from £10.42
                                                                      # 010
                                                                      MPN: 174211
                                                                      RH CATALYST
                                                                      Valid for catalyzed cars - Not for USA, CDN and AUS - Valid for EU GS not F1 and J not F1 till car Ass.Nr. 39158 - Valid for GB not F1 till car Ass.Nr. 39144 - Valid for EU GS F1 and J F1 till car Ass.Nr. 39159 - Valid for GB F1 till car Ass.Nr. 39148
                                                                      from £798.00
                                                                      from £798.00
                                                                      # 010
                                                                      MPN: 180019
                                                                      RH CATALYST
                                                                      Valid for USA, CDN and AUS 2001,2002,2003,2004 - Not for USA MY 2000, 2001, 2002, 2003, 2004 - Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car Ass.Nr. 39160
                                                                      from £997.50
                                                                      from £997.50
                                                                      # 011
                                                                      MPN: 180020
                                                                      LH CATALYST
                                                                      Valid for USA, CDN and AUS - Not for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2000,2001,2002, 2003, 2004 - Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39159 - Valid for GB not F1 from car Ass.Nr. 39145 - Valid for EU GS F1 and J F1 from car A
                                                                      from £997.50
                                                                      from £997.50
                                                                      # 012
                                                                      MPN: 16044834
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 013
                                                                      MPN: 12646778
                                                                      WASHER
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 156093
                                                                      # 013
                                                                      MPN: 12646778
                                                                      WASHER
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 156093
                                                                      # 014
                                                                      MPN: 114749
                                                                      SPACER
                                                                      from £1.23
                                                                      from £1.23
                                                                      # 015
                                                                      MPN: 111743
                                                                      SPRING
                                                                      from £6.85
                                                                      from £6.85
                                                                      # 016
                                                                      MPN: 182837
                                                                      FRONT LAMBDA FEELER
                                                                      from £137.60
                                                                      from £137.60
                                                                      This part replaces part number 178290 - and 1 more. Click to view details
                                                                      # 016
                                                                      MPN: 182837
                                                                      FRONT LAMBDA FEELER
                                                                      from £137.60
                                                                      from £137.60
                                                                      This part replaces part number 178290 - and 1 more. Click to view details
                                                                      # 017
                                                                      MPN: 180915
                                                                      REAR LAMBDA FEELER
                                                                      from £26.25
                                                                      from £26.25
                                                                      This part replaces part number 177674 - and 3 more. Click to view details
                                                                      # 017
                                                                      MPN: 180915
                                                                      REAR LAMBDA FEELER
                                                                      Valid for catalyzed cars
                                                                      from £26.25
                                                                      from £26.25
                                                                      This part replaces part number 177674 - and 3 more. Click to view details
                                                                      # 018
                                                                      MPN: 175856
                                                                      CONNECTOR FIXING BRACKET
                                                                      from £1.17
                                                                      from £1.17
                                                                      # 019
                                                                      MPN: 193467
                                                                      THERMOCOUPLE
                                                                      from £138.83
                                                                      from £138.83
                                                                      This part replaces part number 168824
                                                                      # 019
                                                                      MPN: 193467
                                                                      THERMOCOUPLE
                                                                      from £138.83
                                                                      from £138.83
                                                                      This part replaces part number 168824
                                                                      # 020
                                                                      MPN: 179278
                                                                      CATALYST TEMPERATURE CONTROL STATION
                                                                      from £172.60
                                                                      from £172.60
                                                                      This part replaces part number 160454 which we have in stock - and 3 more. Click to view details
                                                                      # 021
                                                                      MPN: 15210824
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 022
                                                                      MPN: 10519224
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10519201 which we have in stock

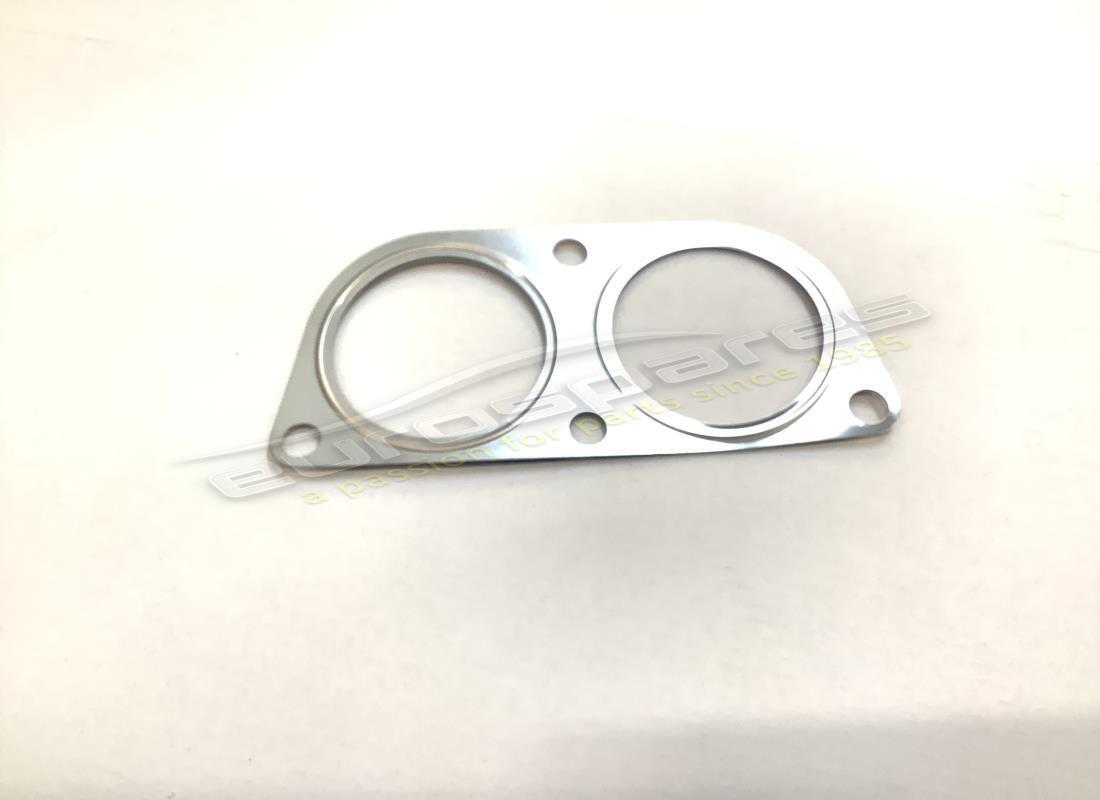

                                                                      # 024
                                                                      MPN: 177612
                                                                      GASKET
                                                                      from £31.77
                                                                      from £31.77

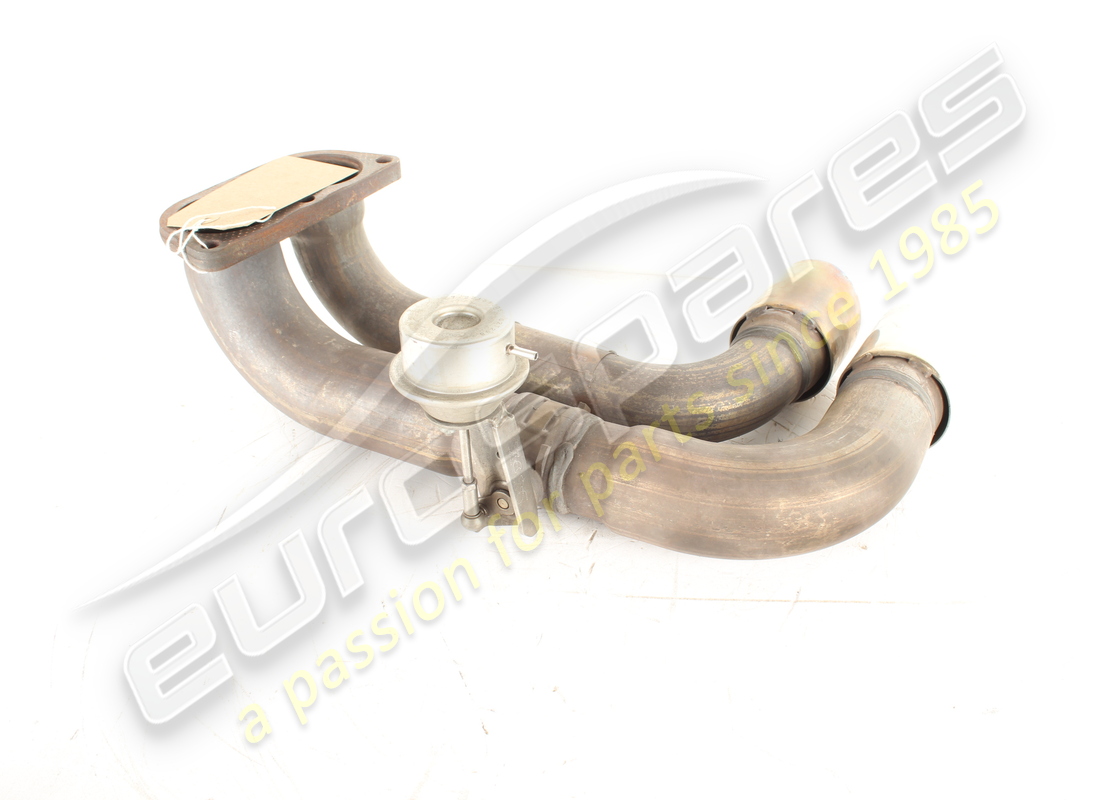

                                                                      # 025
                                                                      MPN: 178769
                                                                      COMPLETE LH OUTLET PIPE
                                                                      Valid till Ass. Nr.53910 for AUS
                                                                      from £1,285.01
                                                                      from £1,285.01
                                                                      # 025
                                                                      MPN: 178770
                                                                      COMPLETE RH OUTLET PIPE
                                                                      Valid till Ass. Nr.53910 for AUS
                                                                      from £1,285.01
                                                                      from £1,285.01

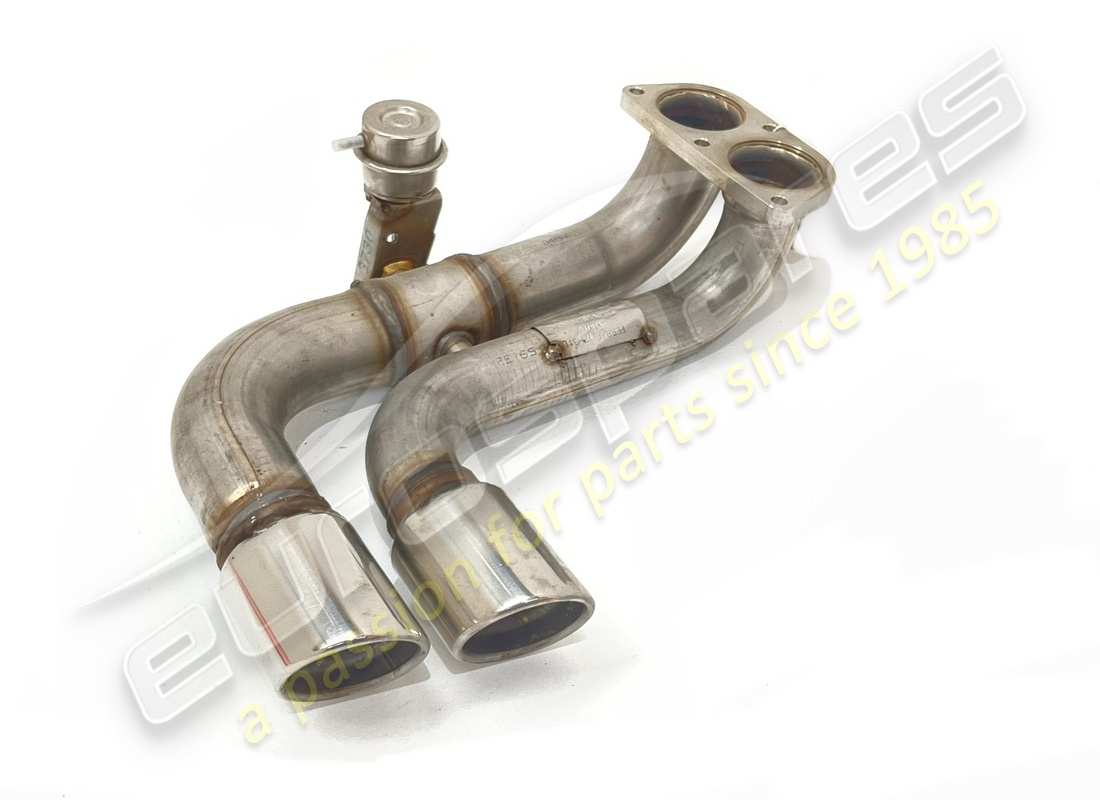

                                                                      # 025
                                                                      MPN: 210101
                                                                      COMPLETE LH OUTLET PIPE
                                                                      Valid from Nr.53911 for AUS
                                                                      from £3,942.62
                                                                      from £3,942.62
                                                                      # 025
                                                                      MPN: 210102
                                                                      COMPLETE RH OUTLET PIPE
                                                                      Valid from Nr.53911 for AUS
                                                                      from £2,553.32
                                                                      from £2,553.32
                                                                      # 026
                                                                      MPN: 212691
                                                                      SILENCER SUPPORT GEAR SIDE
                                                                      from £84.64
                                                                      from £84.64
                                                                      This part replaces part number 181383 - and 1 more. Click to view details
                                                                      # 026
                                                                      MPN: 212691
                                                                      SILENCER SUPPORT GEAR SIDE
                                                                      from £84.64
                                                                      from £84.64
                                                                      This part replaces part number 181383 - and 1 more. Click to view details
                                                                      # 027
                                                                      MPN: 177127
                                                                      SILENCER SUPPORT EXHAUST SIDE
                                                                      Not as spare part - Replaced by 185468
                                                                      Supersession
                                                                      Supersession
                                                                      # 027
                                                                      MPN: 185468
                                                                      SILENCER SUPPORT EXHAUST SIDE
                                                                      from £104.88
                                                                      from £104.88
                                                                      This part replaces part number 177127
                                                                      # 028
                                                                      MPN: 16043324
                                                                      SCREW
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 16043321
                                                                      # 029
                                                                      MPN: 127496
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                      # 030
                                                                      MPN: 16100824
                                                                      NUT
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                      # 031
                                                                      MPN: 16043434
                                                                      SCREW
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 13825824 - and 1 more. Click to view details
                                                                      # 032
                                                                      MPN: 12646778
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 156093
                                                                      # 032
                                                                      MPN: 12646778
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 156093
                                                                      # 033
                                                                      MPN: 114748
                                                                      NUT
                                                                      from £8.85
                                                                      from £8.85
                                                                      # 034
                                                                      MPN: 176286
                                                                      RH SHIELD
                                                                      Valid till stock exhaustion
                                                                      Supersession
                                                                      Supersession
                                                                      # 034
                                                                      MPN: 176374
                                                                      LH SHIELD
                                                                      Valid till stock exhaustion
                                                                      from £74.11
                                                                      from £74.11
                                                                      # 034
                                                                      MPN: 196339
                                                                      RH SHIELD
                                                                      from £203.98
                                                                      from £203.98
                                                                      This part replaces part number 176286
                                                                      # 034
                                                                      MPN: 196340
                                                                      LH SHIELD
                                                                      from £200.18
                                                                      from £200.18
                                                                      This part replaces part number 176374 which we have in stock
                                                                      # 035
                                                                      MPN: 12643724
                                                                      WASHER
                                                                      from £0.50
                                                                      from £0.50
                                                                      This part replaces part number 109684 - and 3 more. Click to view details
                                                                      # 036
                                                                      MPN: 10902324
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                      # 037
                                                                      MPN: 183876
                                                                      LH BY - PASS VALVE
                                                                      from £244.46
                                                                      from £244.46
                                                                      # 037
                                                                      MPN: 183877
                                                                      RH BY - PASS VALVE
                                                                      from £281.38
                                                                      from £281.38
                                                                      # 038
                                                                      MPN: 16043434
                                                                      SCREW
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 13825824 - and 1 more. Click to view details
                                                                      # 039
                                                                      MPN: 179808
                                                                      NUT
                                                                      from £0.48
                                                                      from £0.48
                                                                      This part replaces part number 124525
                                                                      # 040
                                                                      MPN: 185307
                                                                      CLAMP
                                                                      from £14.90
                                                                      from £14.90
                                                                      This part replaces part number 173896
                                                                      # 041
                                                                      MPN: 10441390
                                                                      BRACKET WITH SHEATH
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 042
                                                                      MPN: 188986
                                                                      STUD
                                                                      from £8.13
                                                                      from £8.13
                                                                      # 043
                                                                      MPN: 182998
                                                                      THREADED PLUG
                                                                      Valid for not catalyzed cars
                                                                      from £63.77
                                                                      from £63.77
                                                                      # 044
                                                                      MPN: 183003
                                                                      WASHER
                                                                      Valid for not catalyzed cars
                                                                      from £0.92
                                                                      from £0.92
                                                                      # 045
                                                                      MPN: 178366
                                                                      CONNECTORS FIXING BRACKET
                                                                      from £2.30
                                                                      from £2.30
                                                                      # 046
                                                                      MPN: 14059211
                                                                      NUT
                                                                      from £0.54
                                                                      from £0.54
