055 - Current Generator Starting Motor

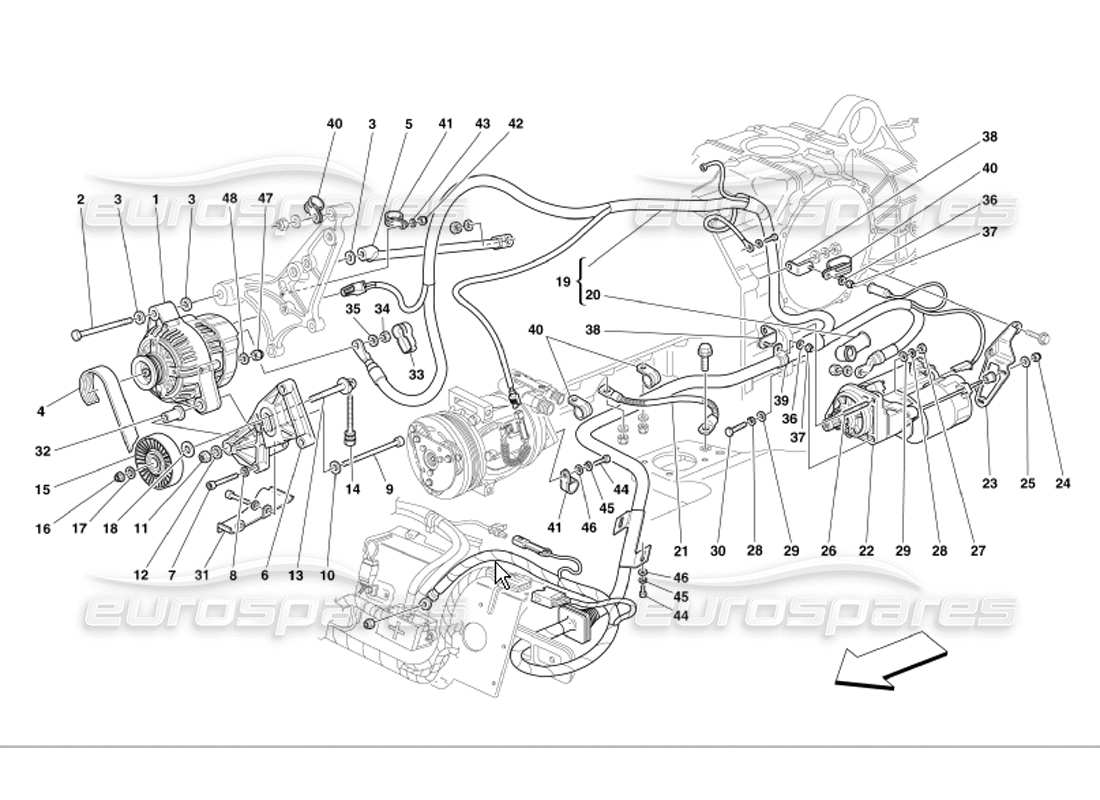

Ferrari 360 Modena Current Generator Starting Motor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 179852
150 A. ALTERNATOR
from £562.89
from £562.89
# 002
MPN: 15971324
SCREW
from £0.92
from £0.92
This part replaces part number 123198 - and 1 more. Click to view details
# 003
MPN: 13550421
WASHER
from £0.47
from £0.47
# 004
MPN: 201446
WATER PUMP AND GENERATOR BELT
from £13.42
from £13.42
This part replaces part number 194229
# 005
MPN: 180493
REAR BRACKET
from £30.97
from £30.97
# 006
MPN: 179704
LOWER SUPPORT
from £742.21
from £742.21
# 007
MPN: 14306524
SCREW L=30MM
from £0.53
from £0.53
This part replaces part number 14306521
# 007
MPN: 14306724
SCREW L=40MM
from £0.55
from £0.55
# 008
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 009
MPN: 179664
SCREW
from £12.21
from £12.21
# 010
MPN: 164469
WASHER
from £0.54
from £0.54
# 011
MPN: 177764
NUT
from £0.54
from £0.54
This part replaces part number 149719
# 012
MPN: 126648
WASHER
from £0.61
from £0.61
# 013
MPN: 172527
PIN
from £48.20
from £48.20
# 014
MPN: 157289
SCREW
from £4.11
from £4.11
# 015
MPN: 172537
BELT TIGHTENING PULLEY
from £72.42
from £72.42
# 016
MPN: 133216
NUT
from £4.80
from £4.80
# 017
MPN: 102695
WASHER
from £1.84
from £1.84
# 018
MPN: 174508
WASHER
from £2.88
from £2.88
# 019
MPN: 179833
COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
Not as spare part - Replaced by 188108
Supersession
Supersession
# 019
MPN: 213155
COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
from £971.42
from £971.42
This part replaces part number 188108
# 020
MPN: 176903
PROTECTION BOOT
from £10.35
from £10.35
# 021
MPN: 155073
CABLE FOR ENGINE FRAME EARTH
from £7.67
from £7.67
This part replaces part number 115668
# 022
MPN: 183392
STARTER MOTOR
Valid till stock exhaustion
from £649.66
from £649.66
This part replaces part number 179824
# 022
MPN: 183392
STARTER MOTOR
Valid after stock exhaustion of 179824
from £649.66
from £649.66
This part replaces part number 179824
# 023
MPN: 179719
STARTER MOTOR SUPPORTING BRACKET
from £13.26
from £13.26
# 024
MPN: 160472
NUT
from £1.27
from £1.27
# 025
MPN: 61148700
WASHER
from £0.54
from £0.54
# 026
MPN: 13517024
STUD
from £0.53
from £0.53
# 027
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 028
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 029
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 030
MPN: 176212
SCREW
from £0.64
from £0.64
# 031
MPN: 178067
PLATE
Valid for cars with meccanical gearbox
from £4.33
from £4.33
# 032
MPN: 164467
BUSHING
from £15.91
from £15.91
# 033
MPN: 154803
PROTECTION BOOT
from £2.68
from £2.68
# 034
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 034
MPN: 16102314
NUT
Not as spare part - Replaced by 16100814
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 035
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 036
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 037
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 038
MPN: 149694
FIXING BRACKET
from £3.84
from £3.84
This part replaces part number 223375
# 039
MPN: 10442090
BRACKET WITH SHEATH
from £0.47
from £0.47
# 040
MPN: 10450690
BRACKET WITH SHEATH
from £0.47
from £0.47
# 041
MPN: 10441790
BRACKET WITH SHEATH
from £0.53
from £0.53
# 042
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 043
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 044
MPN: 10902324
SCREW
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 045
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 046
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 047
MPN: 64449900
CAP NUT
from £4.48
from £4.48
# 048
MPN: 127493
WASHER
from £0.53
from £0.53
This part replaces part number 106849 - and 1 more. Click to view details
