105 - Frame Rear Elements Sub-Groups

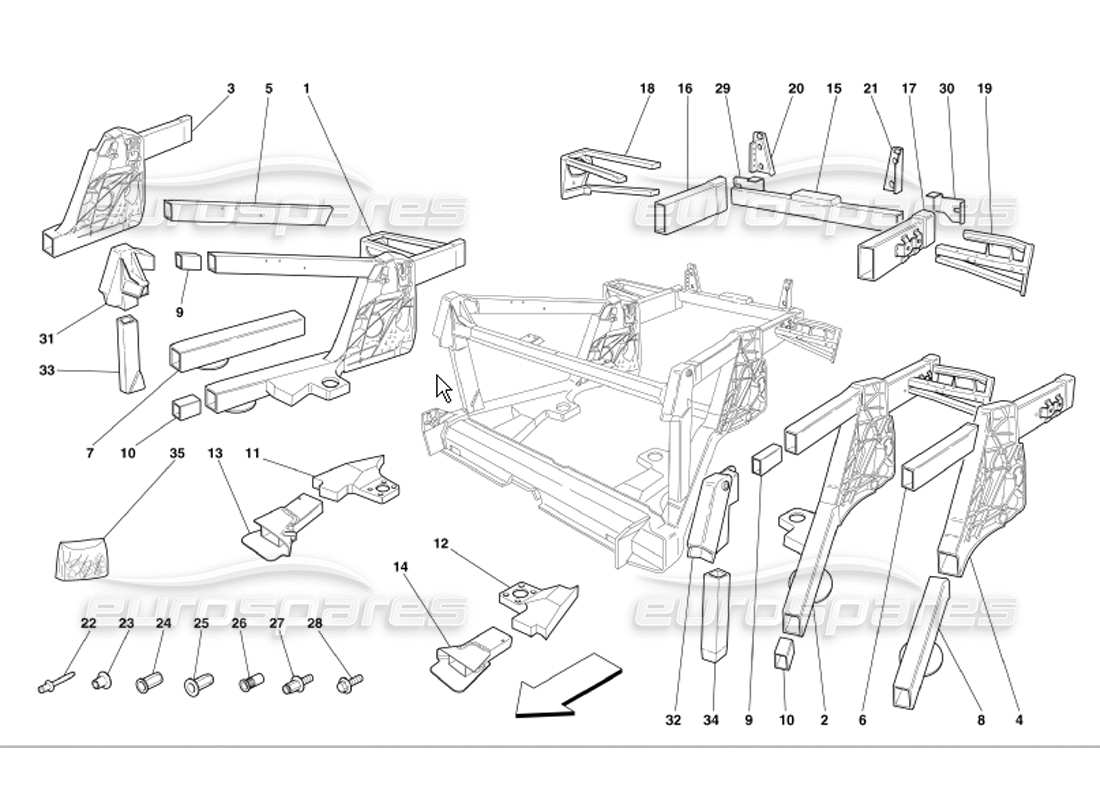

Ferrari 360 Modena Frame Rear Elements Sub-Groups Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66214900
COMPLETE RH SIDE FRAME
Valid till car Nr. 120068 for GS and 120193 for GD
from £2,160.50
from £2,160.50
This part replaces part number 65941400
# 001
MPN: 66453300
COMPLETE RH SIDE FRAME
Valid from car Nr. 120069 for GS and 120194 for GD
from £2,160.50
from £2,160.50
This part replaces part number 66453100
# 002
MPN: 66290100
COMPLETE LH SIDE FRAME
Valid till car Nr. 120068 for GS and 120193 for GD
from £2,160.50
from £2,160.50
This part replaces part number 65941200 which we have in stock - and 1 more. Click to view details
# 002
MPN: 66453400
COMPLETE LH SIDE FRAME
Valid from car Nr. 120069 for GS and 120194 for GD
from £2,160.50
from £2,160.50
This part replaces part number 66453200
# 003
MPN: 65941800
RH REAR LATERAL CASTING
Valid till car Nr. 120068 for GS and 120193 for GD
from £1,768.27
from £1,768.27
# 003
MPN: 66453500
RH REAR LATERAL CASTING
Valid from car Nr. 120069 for GS and 120194 for GD
from £1,863.62
from £1,863.62
# 004
MPN: 65941900
LH REAR LATERAL CASTING
Valid till car Nr. 120068 for GS and 120193 for GD
from £1,768.27
from £1,768.27
# 004
MPN: 66453600
LH REAR LATERAL CASTING
Valid from car Nr. 120069 for GS and 120194 for GD
from £1,863.62
from £1,863.62
# 005
MPN: 166227
RH UPPER FRAME
from £143.75
from £143.75
# 006
MPN: 166127
LH UPPER FRAME
from £159.53
from £159.53
# 007
MPN: 166235
RH LOWER FRAME
Not as spare part - Replaced by 66465000
Supersession
Supersession
# 007
MPN: 66465000
RH LOWER FRAME
from £281.16
from £281.16
This part replaces part number 166235
# 008
MPN: 166135
LH LOWER FRAME
Not as spare part - Replaced by 66465100
Supersession
Supersession
# 008
MPN: 66465100
LH LOWER FRAME
from £281.16
from £281.16
This part replaces part number 166135
# 009
MPN: 181980
CORE FOR REPAIR
from £170.36
from £170.36
This part replaces part number 985181980
# 010
MPN: 181979
CORE FOR REPAIR
from £6.37
from £6.37
This part replaces part number 985181979
# 011
MPN: 166237
RH BRACKET ENGINE SUPPORT
Not as spare part - Valid till car 120068 for GS and 120193for GD - For cars with old solution replace with 6187237 + 6187137 to mount together
Supersession
Supersession
# 011
MPN: 195208
RH BRACKET ENGINE SUPPORT
Valid from car Nr. 120069 for GS and 120194 for GD - Valid from car Nr. 138028
Supersession
Supersession
# 011
MPN: 6187237
RH BRACKET ENGINE SUPPORT
Valid from car Nr. 120069 for GS and 120194 for GD - Valid till car Nr. 138027
from £917.54
from £917.54
This part replaces part number 166237 - and 2 more. Click to view details
# 012
MPN: 166137
LH BRACKET ENGINE SUPPORT
Not as spare part - Valid till car Nr. 120068 for GS and 120193for GD - For cars with old solution replace with 6187237 + 6187137 to mount together
Supersession
Supersession
# 012
MPN: 195207
LH BRACKET ENGINE SUPPORT
Valid from car Nr. 138028
Supersession
Supersession
# 012
MPN: 6187137
LH BRACKET ENGINE SUPPORT
Valid from car Nr. 120069 for GS and 120194 for GD - Valid till car Nr. 138027
from £630.60
from £630.60
This part replaces part number 166137 - and 2 more. Click to view details
# 013
MPN: 65942200
RH SUPPORT FOR BRACKET
from £734.55
from £734.55
This part replaces part number 65942211
# 014
MPN: 65942311
LH SUPPORT BRACKET
from £402.11
from £402.11
This part replaces part number 65942300
# 015
MPN: 183978
REAR BUMPER CROSS MEMBER
from £259.97
from £259.97
This part replaces part number 166321
# 016
MPN: 183834
RH REAR FRAME
from £300.42
from £300.42
This part replaces part number 166223
# 017
MPN: 183833
LH REAR FRAME
from £243.29
from £243.29
This part replaces part number 166123 - and 1 more. Click to view details
# 018
MPN: 64810000
RH REAR FENDER FRAME
from £136.15
from £136.15
# 019
MPN: 65995500
LH REAR FENDER FRAME
from £325.50
from £325.50
This part replaces part number 64810100
# 019
MPN: 65995500
LH REAR FENDER FRAME
from £325.50
from £325.50
This part replaces part number 64810100
# 020
MPN: 65151600
RH SIDE BRACKET
Not as spare part - Replaced by 65151611
Supersession
Supersession
# 020
MPN: 65151611
RH SIDE BRACKET
from £68.81
from £68.81
This part replaces part number 65151600 - and 1 more. Click to view details
# 021
MPN: 65151700
LH SIDE BRACKET
Not as spare part - Replaced by 65151711
Supersession
Supersession
# 021
MPN: 65151711
LH SIDE BRACKET
from £125.11
from £125.11
This part replaces part number 65151700
# 022
MPN: 66292200
STANDARD HEAD RIVET
from £1.44
from £1.44
# 022
MPN: 66292300
HALF REPOTTED HEAD RIVET
from £1.07
from £1.07
# 023
MPN: 65133800
RIVET L. 6,4 MM
from £0.54
from £0.54
# 024
MPN: 15180411
BLIND ESAGONAL RIVET
from £0.91
from £0.91
# 024
MPN: 15624211
ESAGONAL RIVET M4
from £0.81
from £0.81
# 024
MPN: 15624311
ESAGONAL RIVET M5
from £1.94
from £1.94
# 024
MPN: 15624411
ESAGONAL RIVET M6
from £0.87
from £0.87
# 024
MPN: 15624511
ESAGONAL RIVET M8
from £0.71
from £0.71
# 025
MPN: 65151200
RIVET M6
from £2.79
from £2.79
# 026
MPN: 166101
RIVET M4
from £0.81
from £0.81
# 026
MPN: 179299
RIVET M10 BLIND
from £4.37
from £4.37
# 026
MPN: 65135000
RIVET M8
from £0.69
from £0.69
# 026
MPN: 65319800
RIVET M8 BLIND
from £0.54
from £0.54
# 026
MPN: 65930400
RIVET M6
from £0.55
from £0.55
# 027
MPN: 65065400
STUD ESAGONAL HEAD M6
from £1.86
from £1.86
# 028
MPN: 13836971
SCREW
from £0.53
from £0.53
This part replaces part number 18770124
# 029
MPN: 166288
RH BRACKET
from £12.00
from £12.00
# 030
MPN: 166188
LH BRACKET
from £12.00
from £12.00
# 031
MPN: 6166261
RH UPPER FUSION REAR PILLAR
from £230.71
from £230.71
This part replaces part number 166261 - and 1 more. Click to view details
# 032
MPN: 6166161
LH UPPER FUSION REAR PILLAR
from £230.71
from £230.71
This part replaces part number 166161 - and 1 more. Click to view details
# 033
MPN: 66051200
COMPLETE RH REAR PANEL
Supersession
Supersession
# 034
MPN: 66051100
COMPLETE LH REAR PANEL
from £302.96
from £302.96
# 035
MPN: 70000950
INSERTS KIT FOR REPAIR
from £933.95
from £933.95
