108 - Insulations

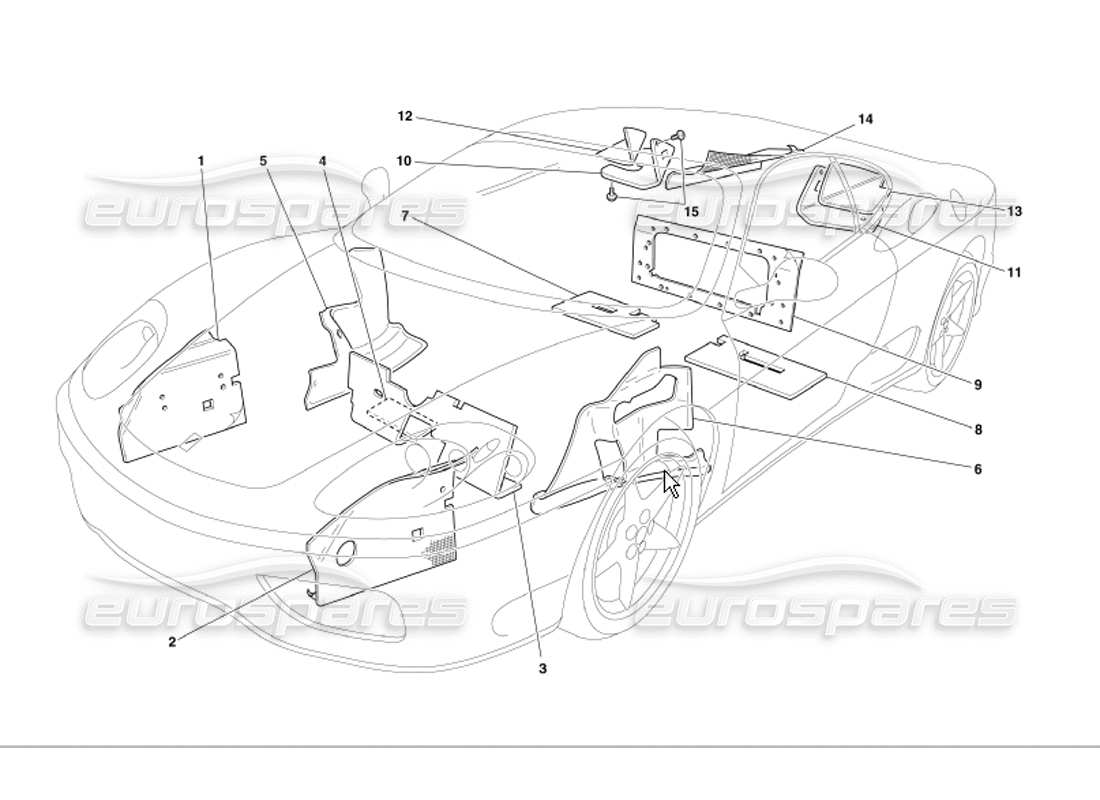

Ferrari 360 Modena Insulations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65774500
OUTER FRONT RH INSULATION
from £163.65
from £163.65
# 002
MPN: 65774400
OUTER FRONT LH INSULATION
from £172.32
from £172.32
# 003
MPN: 65524200
DASH PANEL SIDE INSULATION
Not for GD
from £57.15
from £57.15
# 003
MPN: 65856600
DASH PANEL SIDE INSULATION
Valid for GD
from £76.97
from £76.97
# 004
MPN: 65390800
FRONT RH INSULATION UNDER BATTERY
from £31.62
from £31.62
# 005
MPN: 65302900
FRONT RH WHEELHOUSE INSULATION
Not for GD
from £49.63
from £49.63
# 005
MPN: 67293100
FRONT RH WHEELHOUSE INSULATION
Valid for GD
from £115.42
from £115.42
# 006
MPN: 65303000
FRONT LH WHEELHOUSE INSULATION
Not for GD
from £72.50
from £72.50
# 006
MPN: 67293200
FRONT LH WHEELHOUSE INSULATION
Valid for GD
from £115.42
from £115.42
# 007
MPN: 65303100
UPPER REAR RH INSULATION FOR PLATFORM
from £114.85
from £114.85
# 008
MPN: 65303200
UPPER REAR LH INSULATION FOR PLATFORM
from £115.43
from £115.43
# 009
MPN: 65524300
MOTOR COMPARTMENT REAR SIDE INSULATIONSIDE INSULATION
from £263.22
from £263.22
# 010
MPN: 65840800
MOTOR COMPARTMENT/FUEL TANK RH INSULATION
from £145.47
from £145.47
# 011
MPN: 65840700
MOTOR COMPARTMENT/FUEL TANK LH INSULATION
from £145.47
from £145.47
# 012
MPN: 65303300
RH SMALL PLANE INSULATION
from £397.42
from £397.42
# 013
MPN: 65303400
LH SMALL PLANE INSULATION
from £454.84
from £454.84
# 014
MPN: 65774600
RH REAR MUDGUARD INSULATION
from £252.01
from £252.01
# 015
MPN: 66252500
button
from £0.52
from £0.52
