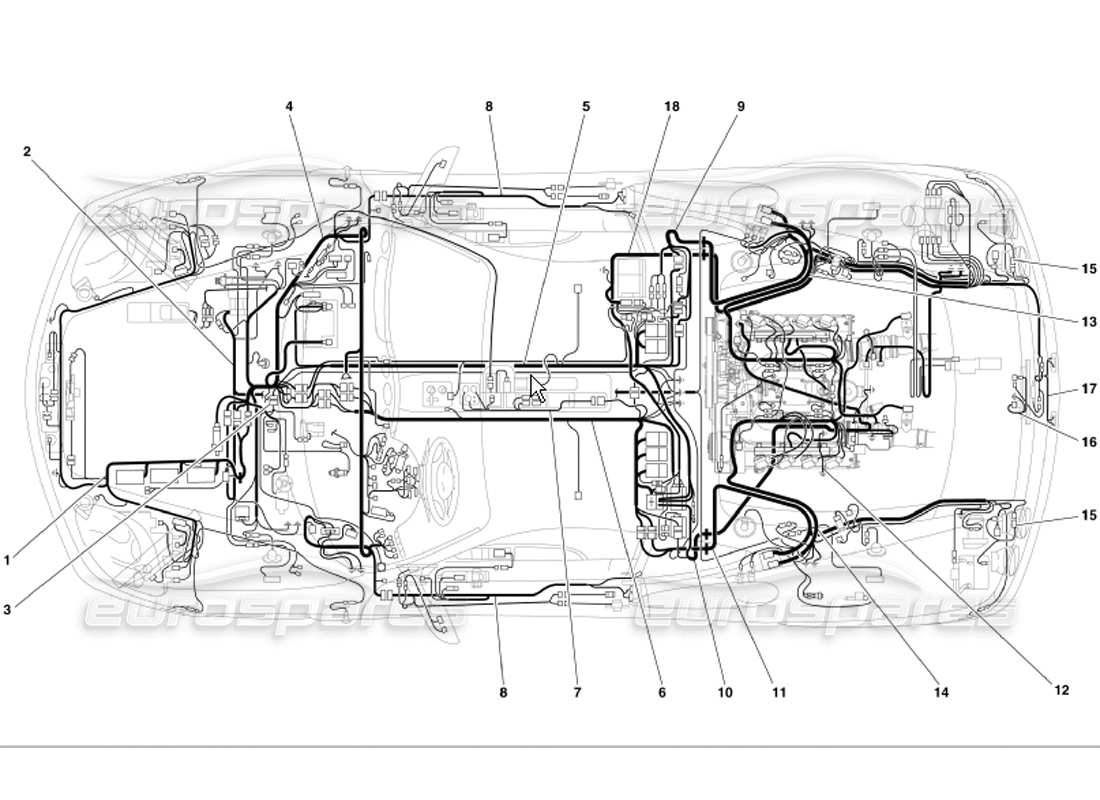

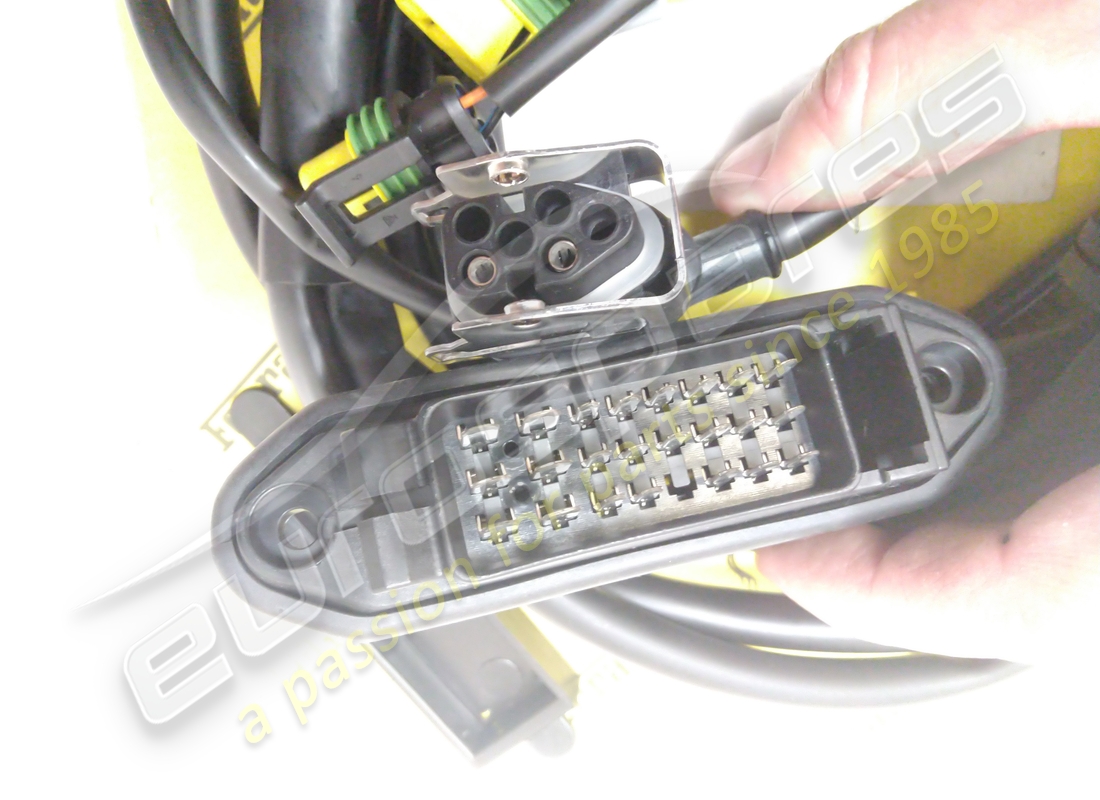

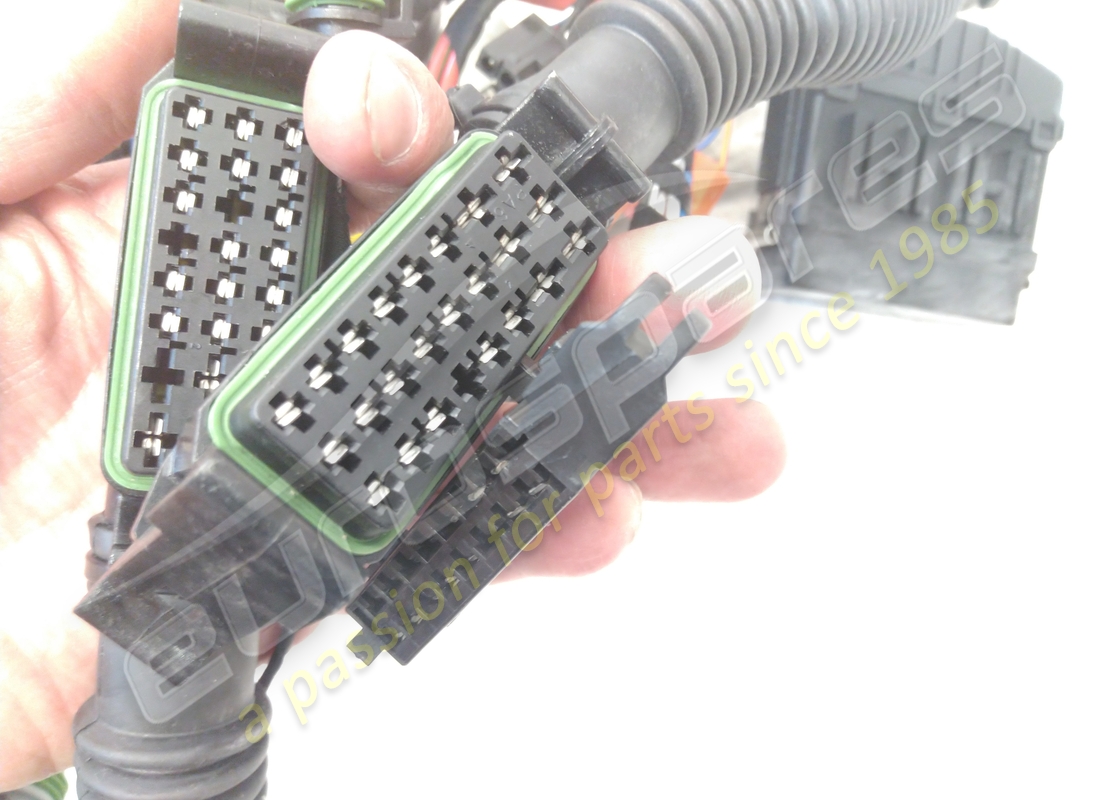

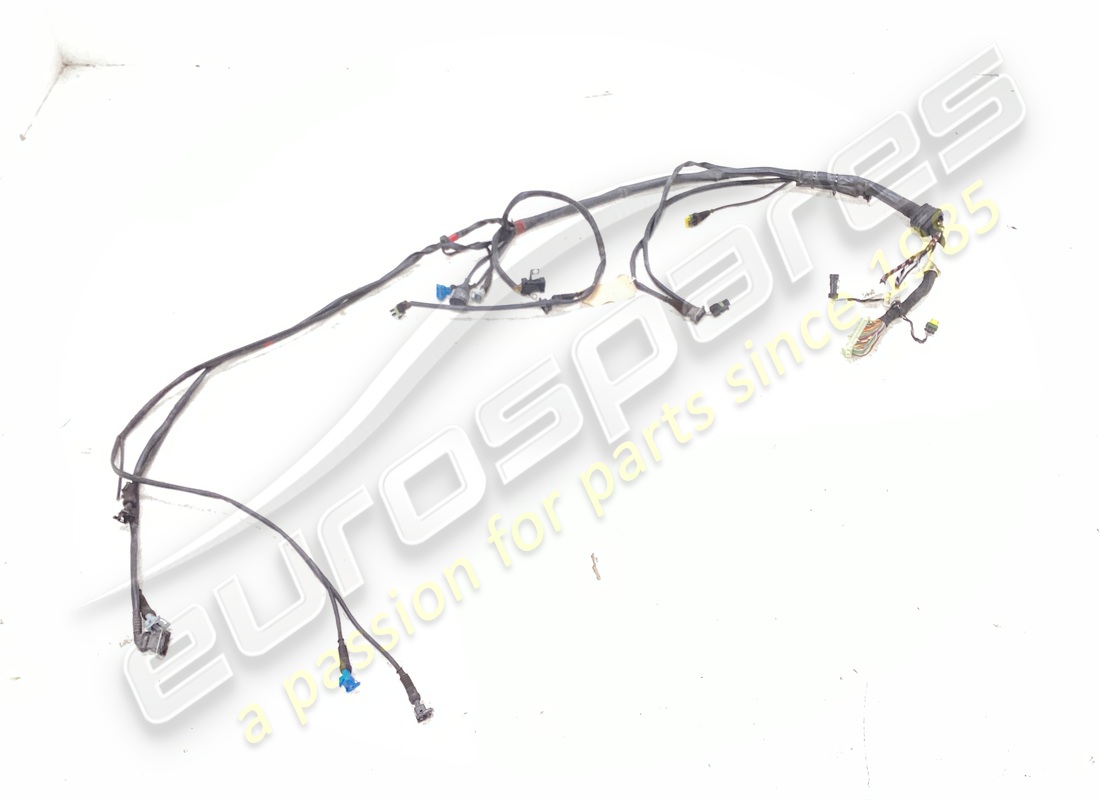

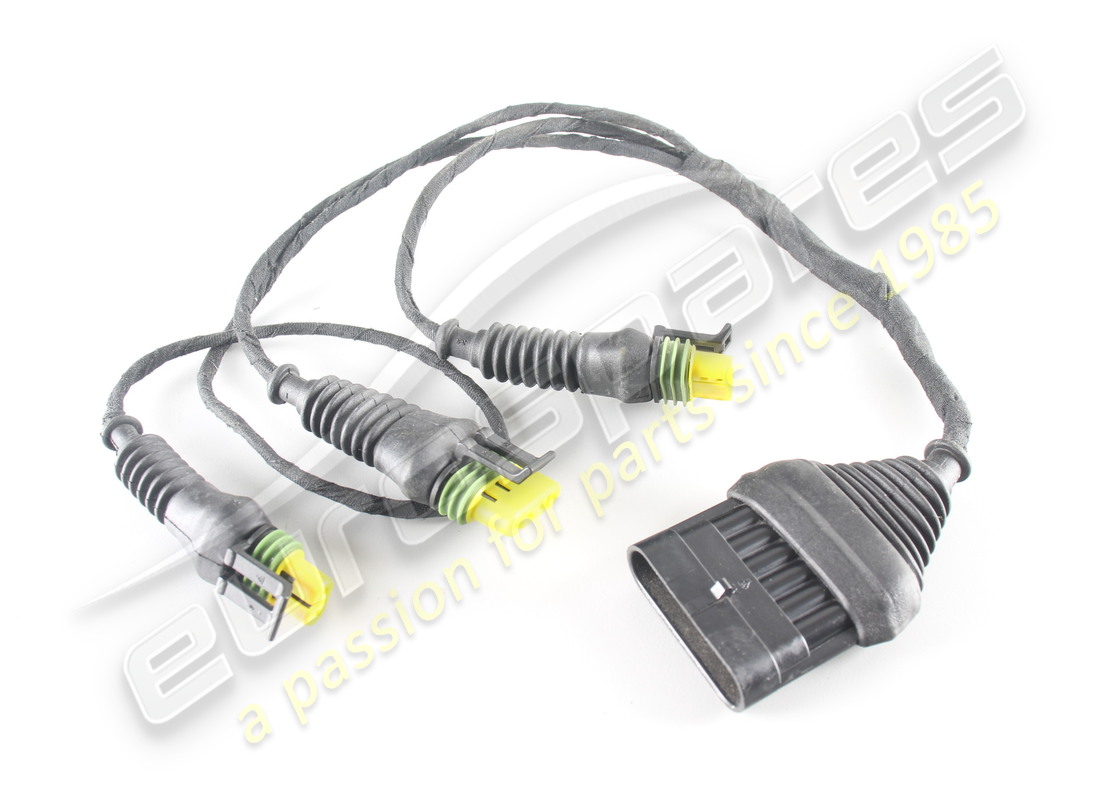

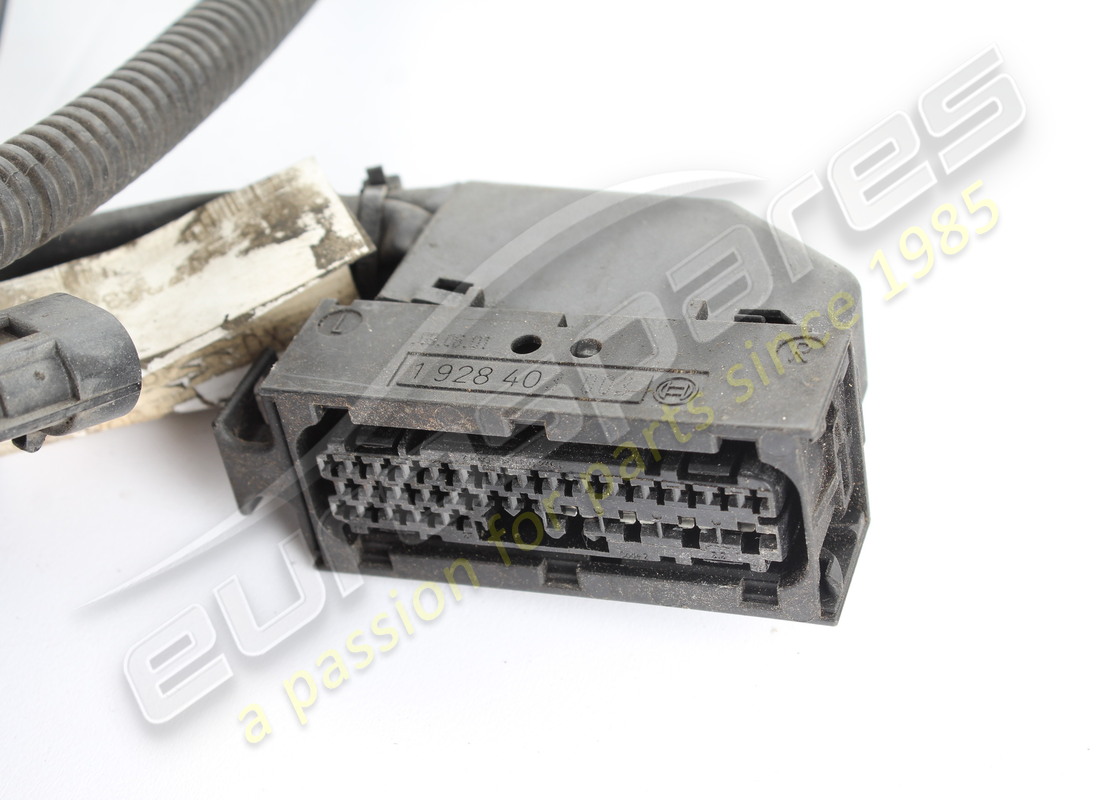

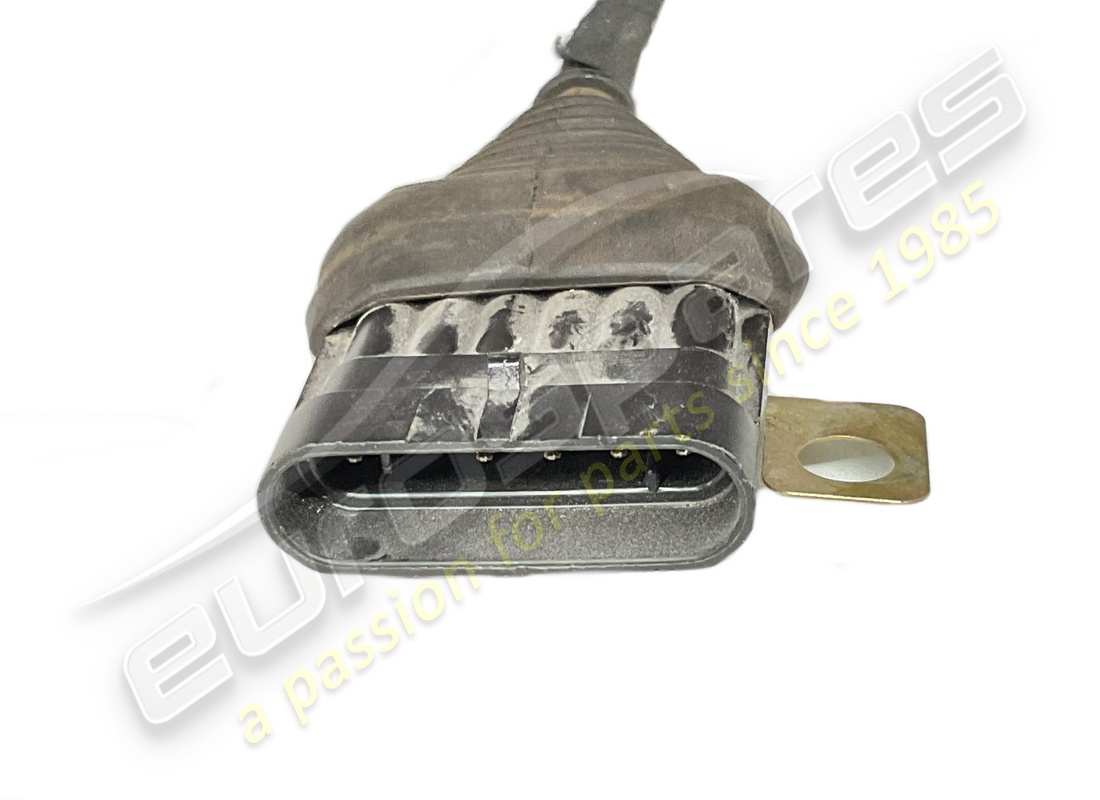

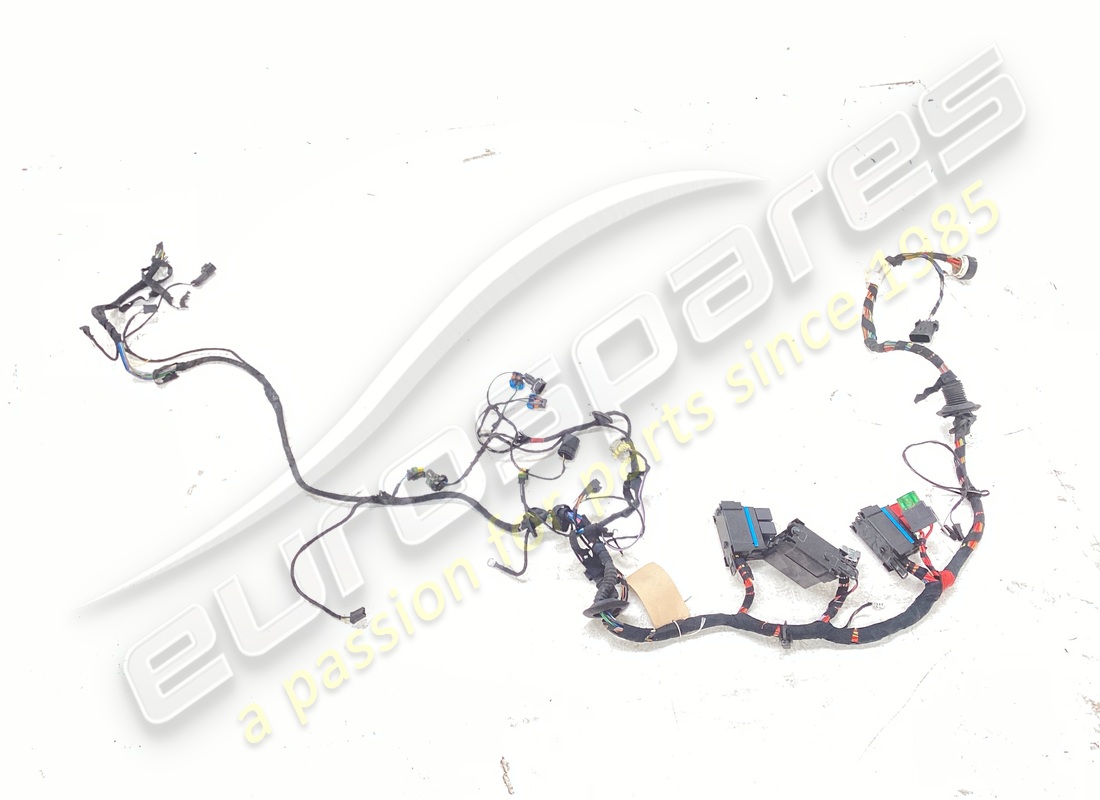

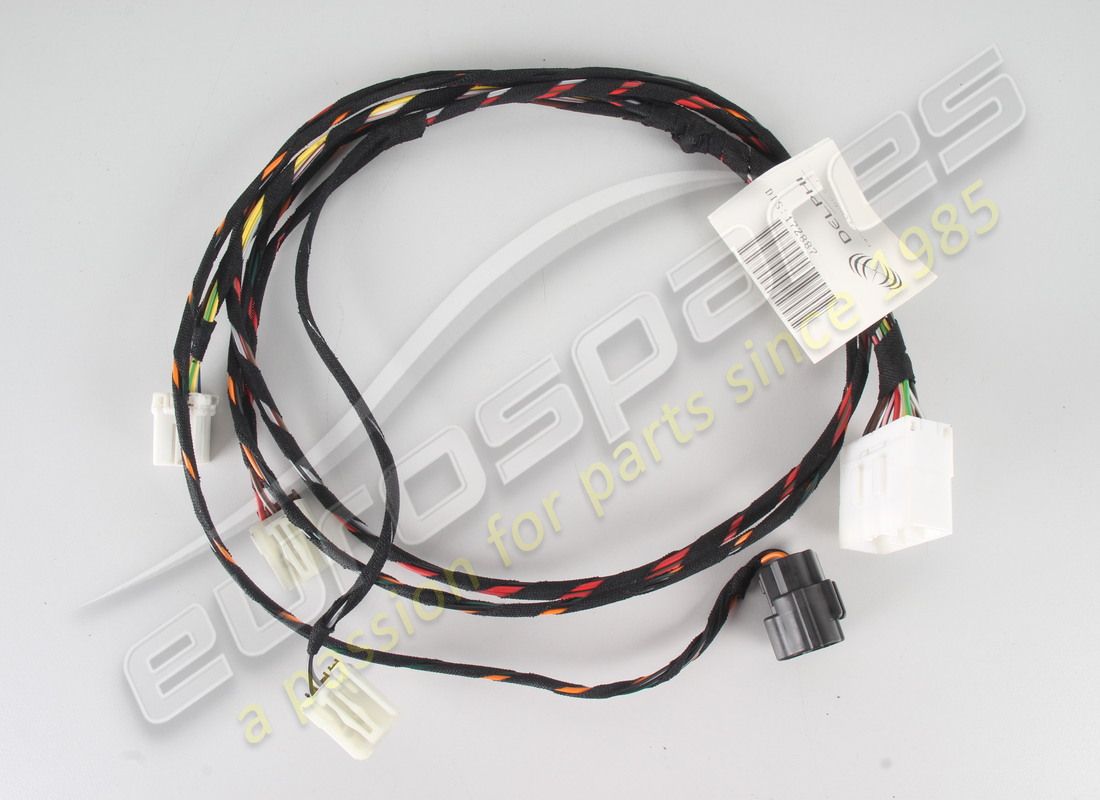

Ferrari 360 Modena Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 66650200
PLATE FOR EARTH CABLES
from £6.69
from £6.69

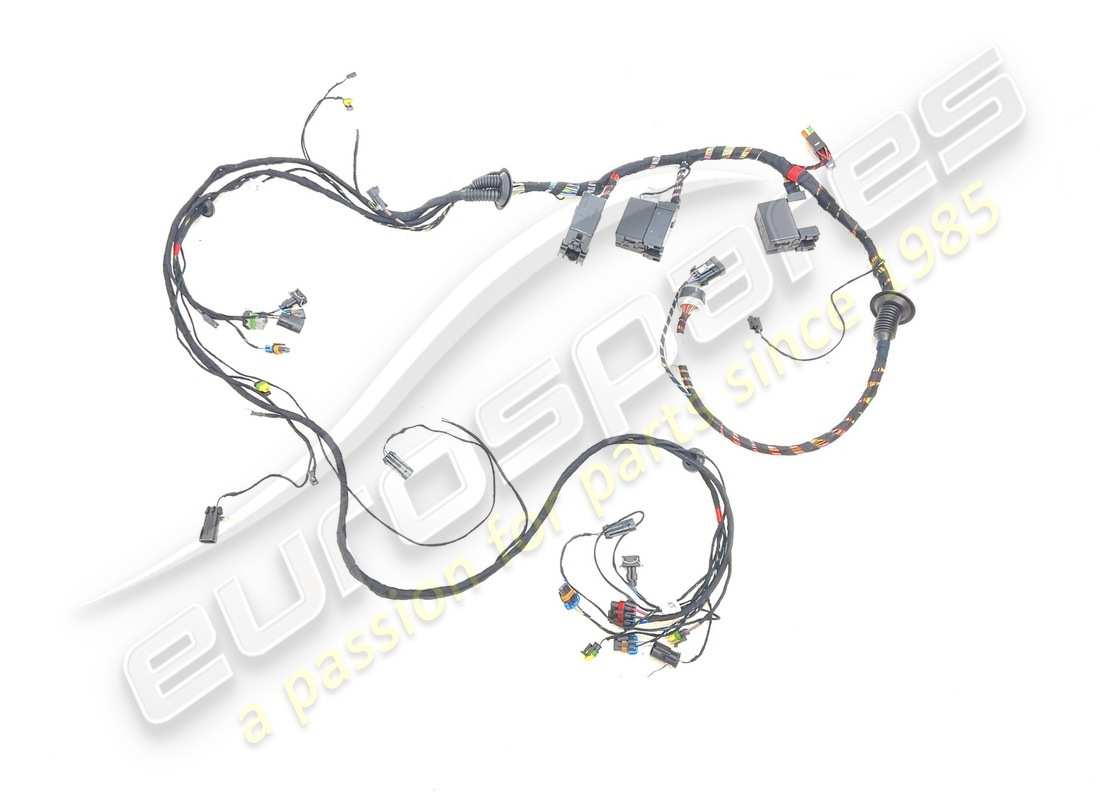

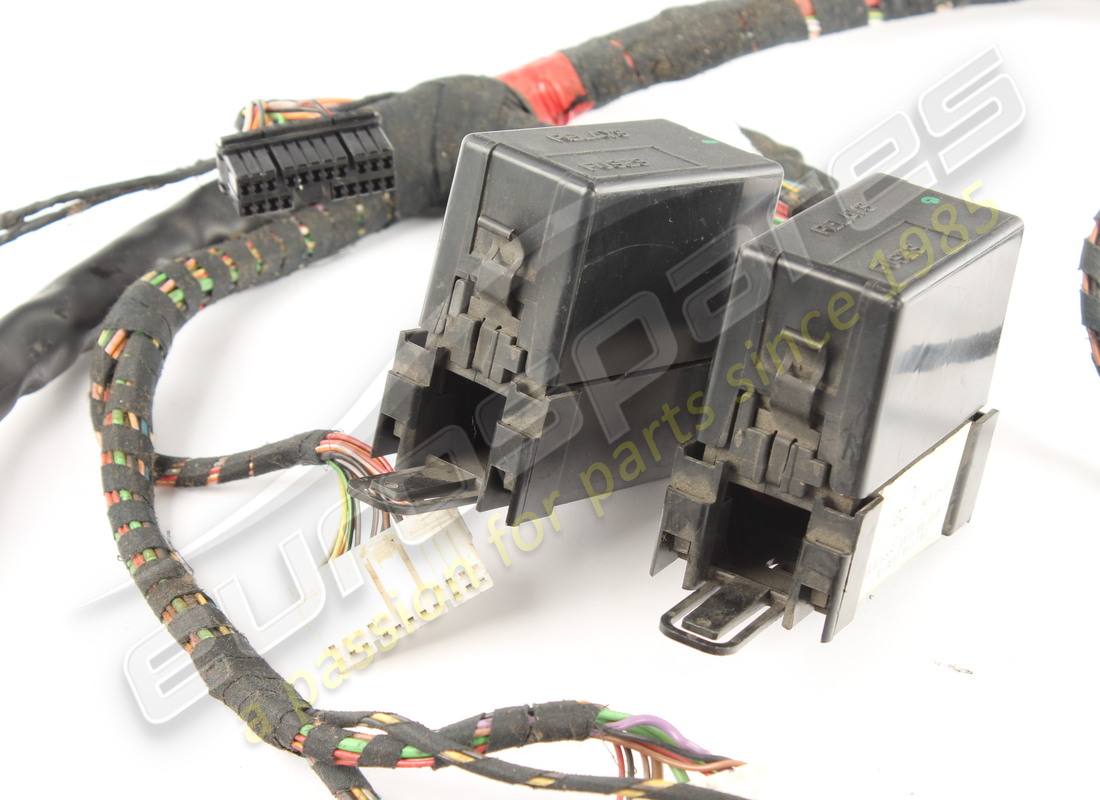

# 001
MPN: 178346
FRONT PART CONNECTING CABLES
- Valid till Ass. Nr. 37238
from £1,749.72
from £1,749.72
# 001
MPN: 183347
FRONT PART CONNECTING CABLES
- Valid from Ass. Nr. 37239 and till Ass. Nr. 43231
from £3,025.61
from £3,025.61
# 001
MPN: 190047
FRONT PART CONNECTING CABLES
- Valid from Ass. Nr. 43232 till Ass. Nr. 46967
from £631.64
from £631.64
# 001
MPN: 195354
FRONT PART CONNECTING CABLES
- Valid from Ass. Nr. 46968 - Not as spare part - Replaced by 200828
Supersession
Supersession
This part replaces part number 190047 which we have in stock
# 001
MPN: 200828
FRONT PART CONNECTING CABLES
- Valid from Ass. Nr. 46968
from £1,312.50
from £1,312.50
This part replaces part number 195354 - and 3 more. Click to view details
# 002
MPN: 177243
ABS/ASR INSTALLATION CONNECTING CABLES
- Valid for GD - Not as spare part - Replaced by 200826
Supersession
Supersession
# 002
MPN: 178310
ABS/ASR INSTALLATION CONNECTING CABLES
- Not for GD - Not as spare part - Replaced by 200827
from £328.13
from £328.13
# 002
MPN: 200826
ABS/ASR INSTALLATION CONNECTING CABLES
- Valid for GD
from £483.44
from £483.44
This part replaces part number 177243 - and 1 more. Click to view details
# 002
MPN: 200827
ABS/ASR INSTALLATION CONNECTING CABLES
- Not for GD
from £190.72
from £190.72
This part replaces part number 178310 which we have in stock - and 4 more. Click to view details
# 003
MPN: 172887
PEDAL DEVICE CONNECTING CABLES
- Not for GD and CDN MY 2000,2001,2002,2003,2004 - Not for USA MY 2000,2001,2002,2003,2004 - Valid till Ass. Nr. 38395 not for F1 - Valid till Ass. Nr. 36994 for F1
from £1,213.37
from £1,213.37
# 003
MPN: 183686
PEDAL DEVICE CONNECTING CABLES
- Not for GD - Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not for USA MY 2000, '01, '02,'03,'04 and CDN MY 2000, '01,'02,'03,'04 from Ass. Nr. 38396 not for F1 and from Ass. Nr. 36995 for F1
Supersession
Supersession
# 003
MPN: 200838
PEDAL DEVICE CONNECTING CABLES
- Not as spare part - Replaced by 200838 - Not for GD - Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not for USA MY 2000, '01, '02,'03,'04 and CDN MY 2000, '01,'02,'03,'04 from Ass. Nr. 38396 not for F1 and from
from £35.05
from £35.05
This part replaces part number 183686
# 004
MPN: 177911
DASHBOARD CONNECTION CABLES
- Valid till Ass. Nr. 34124 - Not for GD - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £2,162.92
from £2,162.92
# 004
MPN: 179194
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 36995 and till Ass. Nr. 41813 - Not for GD - Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £1,502.57
from £1,502.57
# 004
MPN: 180206
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 34125 and till Ass. Nr. 36994 - Not for GD - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £1,975.66
from £1,975.66
# 004
MPN: 180207
DASHBOARD CONNECTION CABLES
- Valid till Ass. Nr. 36945 - Valid for GD
from £1,588.40
from £1,588.40
# 004
MPN: 181323
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 36946 and till Ass. Nr. 40324 - Valid for GD
from £2,338.31
from £2,338.31
# 004
MPN: 186522
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 40325 and till Ass. Nr. 41709 - Valid for GD
from £5,016.36
from £5,016.36
# 004
MPN: 188897
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 41814 till Ass. Nr. 46967 - Not for GD - Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004
from £1,491.95
from £1,491.95
# 004
MPN: 189234
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 41710 - Valid for GD - Not as spare part - Replaced by 198553
from £650.82
from £650.82
# 004
MPN: 195353
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 46968 - Not for GD - Not as spare part - Replaced by 198552
Supersession
Supersession
This part replaces part number 188897 which we have in stock
# 004
MPN: 198552
DASHBOARD CONNECTION CABLES
- Not for GD
from £759.72
from £759.72
This part replaces part number 195353 - and 1 more. Click to view details
# 004
MPN: 198553
DASHBOARD CONNECTION CABLES
- Not for GD
from £1,412.40
from £1,412.40
This part replaces part number 189234 which we have in stock
# 005
MPN: 177913
CABLES FOR RH REAR TUNNEL CONNECTION
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 198554
from £284.60
from £284.60
# 005
MPN: 182200
CABLES FOR RH REAR TUNNEL CONNECTION
- Valid for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 198555
Supersession
Supersession
# 005
MPN: 198554
CABLES FOR RH REAR TUNNEL CONNECTION
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £2,020.92
from £2,020.92
This part replaces part number 177913 which we have in stock - and 3 more. Click to view details
# 005
MPN: 198555
CABLES FOR RH REAR TUNNEL CONNECTION
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £224.18
from £224.18
This part replaces part number 182200
# 006
MPN: 177914
CABLES FOR LH REAR TUNNEL CONNECTION
- Valid till Ass. Nr. 41815
from £1,429.49
from £1,429.49
# 006
MPN: 188899
CABLES FOR LH REAR TUNNEL CONNECTION
- Valid from Ass. Nr. 41816 - Not as spare part - Replaced by 200847
from £502.82
from £502.82
# 006
MPN: 200847
CABLES FOR LH REAR TUNNEL CONNECTION
- Valid from Ass. Nr. 41816 - CONSOLE
from £2,328.20
from £2,328.20
This part replaces part number 188899 which we have in stock - and 2 more. Click to view details
# 007
MPN: 164814
CABLES FOR TUNNEL CONNECTION
- Valid till Ass. Nr. 35380 - Not for AUS - CONSOLE
from £35.34
from £35.34
# 007
MPN: 178835
CABLES FOR TUNNEL CONNECTION
- Valid till Ass. Nr. 35380 - Valid for AUS - CONSOLE
# 007
MPN: 181281
CABLES FOR TUNNEL CONNECTION
- Valid from Ass. Nr. 35381 - Not for AUS - Not as spare part - Replaced by 200830 - CONSOLE
from £32.00
from £32.00
# 007
MPN: 181282
CABLES FOR TUNNEL CONNECTION
- Valid from Ass. Nr. 35381 - Valid for AUS - Not as spare part - Replaced by 200832 - CONSOLE
from £74.03
from £74.03
# 007
MPN: 200830
CABLES FOR TUNNEL CONNECTION
- Valid from Ass. Nr. 35381 - Not for AUS - CONSOLE
from £62.30
from £62.30
This part replaces part number 181281 which we have in stock
# 007
MPN: 200832
CABLES FOR TUNNEL CONNECTION
- Valid from Ass. Nr. 35381 - Valid for AUS
from £139.35
from £139.35
This part replaces part number 181282 which we have in stock
# 008
MPN: 178709
DOOR CONNECTION CABLES
- Valid till Ass. Nr. 35720
from £1,348.14
from £1,348.14
# 008
MPN: 183327
DOOR CONNECTION CABLES
- Valid from Ass. Nr. 35721 - Not as spare part - Replaced by 201104
from £116.27
from £116.27
# 008
MPN: 198209
DOOR CONNECTION CABLES
- Valid from Ass. Nr. 52140
from £62.05
from £62.05
# 008
MPN: 201104
DOOR CONNECTION CABLES
- Valid from Ass. Nr. 35721 till Ass. Nr.52139
from £401.25
from £401.25
This part replaces part number 183327 which we have in stock - and 1 more. Click to view details
# 009
MPN: 177912
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
- Not for USA, CDN and AUS - Valid till stock exhaustion
from £932.78
from £932.78
# 009
MPN: 180797
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
- Valid for USA, CDN and AUS - Not for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004 - Not as spare part - Replaced by 200839
from £411.26
from £411.26
# 009
MPN: 181112
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
- Valid for USA MY 2000,2001, 2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 200844
from £196.32
from £196.32
# 009
MPN: 200839
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
- Valid for USA, CDN and AUS - Not for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004 - Valid till stock exhaustion
from £636.70
from £636.70
This part replaces part number 180797 which we have in stock - and 1 more. Click to view details
# 009
MPN: 200844
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
- Valid for USA MY 2000,2001, 2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £444.01
from £444.01
This part replaces part number 181112 which we have in stock
# 009
MPN: 205659
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
- Valid after stock exhaustion of 177912 and 200839 - Not for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004
from £1,516.38
from £1,516.38
This part replaces part number 200839 which we have in stock
# 010
MPN: 179833
CONNECTION CABLES FOR MOTOR UTILITIES
- Not as spare part - Replaced by 188108
Supersession
Supersession
# 010
MPN: 213155
COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
from £971.42
from £971.42
This part replaces part number 188108
# 011
MPN: 178296
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 200840
from £387.15
from £387.15
# 011
MPN: 182199
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 200843
from £173.15
from £173.15
# 011
MPN: 200840
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £559.91
from £559.91
This part replaces part number 178296 which we have in stock - and 1 more. Click to view details
# 011
MPN: 200843
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £444.01
from £444.01
This part replaces part number 182199 which we have in stock
# 012
MPN: 155073
CABLE FOR ENGINE FRAME EARTH
from £7.43
from £7.43
This part replaces part number 115668
# 013
MPN: 177781
RH SIDE ENGINE INJECTION CABLES
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid till Ass. Nr. 44103 - Valid till stock exhaustion
from £440.76
from £440.76
# 013
MPN: 181117
RH SIDE ENGINE INJECTION CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004 - Valid till Ass. Nr. 44103 - Valid till stock exhaustion
Supersession
Supersession
# 013
MPN: 192449
RH SIDE ENGINE INJECTION CABLES
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - - Valid from Ass. Nr. 44104 - Valid after stock exhaustion of 177781 - Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 177781 which we have in stock
# 013
MPN: 192451
RH SIDE ENGINE INJECTION CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid from Ass. Nr. 44104 - Valid after stock exhaustion of 181117 - Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 181117
# 013
MPN: 199873
RH SIDE ENGINE INJECTION CABLES
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - - Valid after stock exhaustion of 192449
from £555.24
from £555.24
This part replaces part number 192449
# 013
MPN: 199875
RH SIDE ENGINE INJECTION CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - - Valid after stock exhaustion of 192451
from £514.96
from £514.96
This part replaces part number 192451
# 014
MPN: 177782
LH SIDE ENGINE INJECTION CABLES
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid till Ass. Nr. 44103 - Valid till stock exhaustion
from £433.30
from £433.30
# 014
MPN: 181115
LH SIDE ENGINE INJECTION CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid till Ass. Nr. 44103 - Valid till stock exhaustion
Supersession
Supersession
# 014
MPN: 192450
LH SIDE ENGINE INJECTION CABLES
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid from Ass. Nr. 44104 - Valid after stock exhaustion of 177782 - Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 177782 which we have in stock
# 014
MPN: 192452
LH SIDE ENGINE INJECTION CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid from Ass. Nr. 44104 - Valid after stock exhaustion of 181115 - Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 181115
# 014
MPN: 199874
LH SIDE ENGINE INJECTION CABLES
- Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid after stock exhaustion of 192450
from £367.50
from £367.50
This part replaces part number 192450 - and 1 more. Click to view details
# 014
MPN: 199876
LH SIDE ENGINE INJECTION CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid after stock exhaustion of 192452
from £514.96
from £514.96
This part replaces part number 192452
# 015
MPN: 173430
REAR LIGHTS CONNECTING CABLES
- Not for USA and CDN
from £1,229.70
from £1,229.70
# 015
MPN: 182208
REAR LIGHTS CONNECTING CABLES
- Valid for USA and CDN - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £52.59
from £52.59
# 015
MPN: 200836
REAR LIGHTS CONNECTING CABLES
from £338.32
from £338.32
This part replaces part number 173429 - and 2 more. Click to view details
# 015
MPN: 200836
REAR LIGHTS CONNECTING CABLES
- Not for USA and CDN - Not as spare part - Replaced by 200836
from £338.32
from £338.32
This part replaces part number 173429 - and 2 more. Click to view details
# 015
MPN: 200837
REAR LIGHTS CONNECTING CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 200837
from £491.52
from £491.52
This part replaces part number 182208 which we have in stock
# 016
MPN: 168843
STOP LAMP CONNECTION CABLES
- Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
Supersession
Supersession
# 016
MPN: 200825
STOP LAMP CONNECTION CABLES
- Not as spare part - Replaced by 200825
Supersession
Supersession
This part replaces part number 168843
# 017
MPN: 164823
CABLES FOR NUMBER PLATE LIGHTS
- Valid till Ass. Nr. 36336
from £209.98
from £209.98
# 017
MPN: 182985
CABLES FOR NUMBER PLATE LIGHTS
- Valid from Ass. Nr. 36337
from £70.88
from £70.88
# 018
MPN: 181343
COMPLETE CABLES F1 TRANSMISSION CONNECTION
- Valid for F1 - Not as spare part - Replaced by 200829
from £577.50
from £577.50
# 018
MPN: 200829
COMPLETE CABLES F1 TRANSMISSION CONNECTION
- Valid for F1 - Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 181343 which we have in stock
# 018
MPN: 207330
COMPLETE CABLES F1 TRANSMISSION CONNECTION
- Valid for F1 - Included relay 194909 Tab. 138 Ref. 16
from £1,128.11
from £1,128.11
This part replaces part number 200829
