007 - injection device - ignition

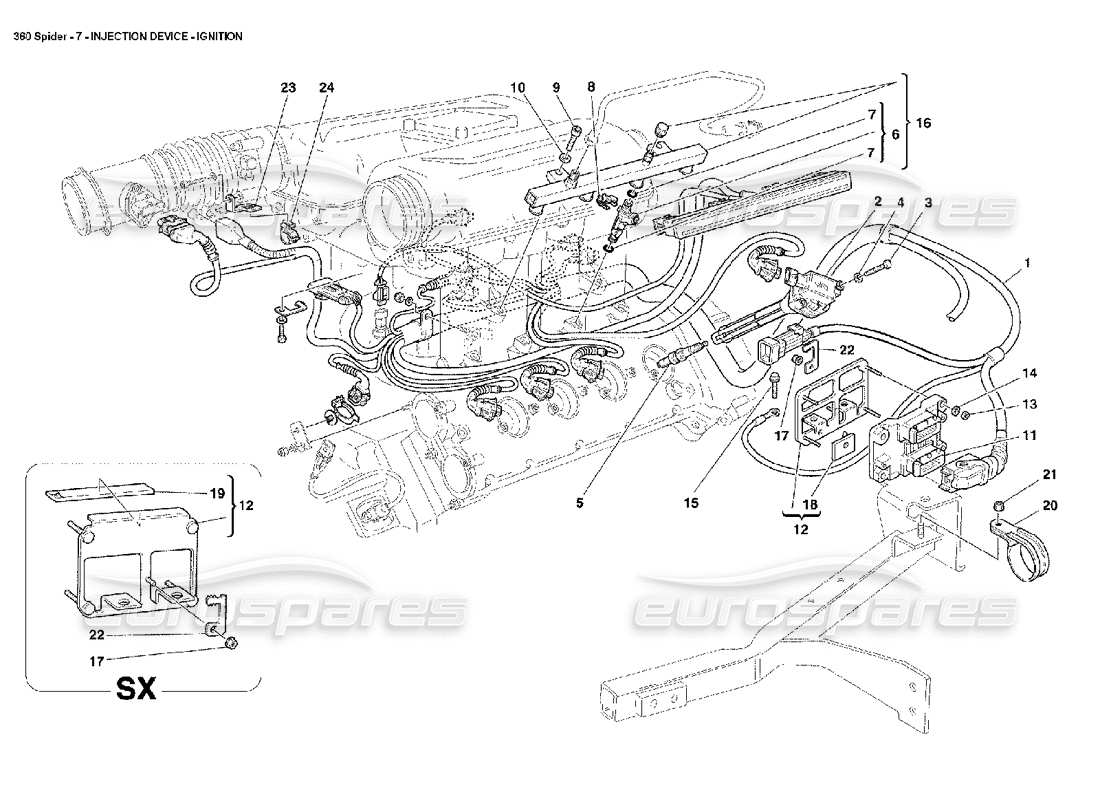

Ferrari 360 Spider Injection Device - Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 179167
RH SIDE ENGINE INJECTION CABLES
from £2,761.08
from £2,761.08
# 001
MPN: 179168
LH SIDE ENGINE INJECTION CABLES
from £1,865.42
from £1,865.42
# 002
MPN: 177074
SINGLE IGNITION COIL
from £105.40
from £105.40
# 003
MPN: 10902534
SCREW
from £0.48
from £0.48
# 004
MPN: 12601274
WASHER
from £0.48
from £0.48
This part replaces part number 12601221 - and 5 more. Click to view details
# 005
MPN: 192637
SPARK PLUG
from £14.95
from £14.95
This part replaces part number 168325
# 005
MPN: 192637/A
SPARK PLUG
Uprated Denso Iridum Spark Plug
from £12.84
from £12.84
# 006
MPN: 171723

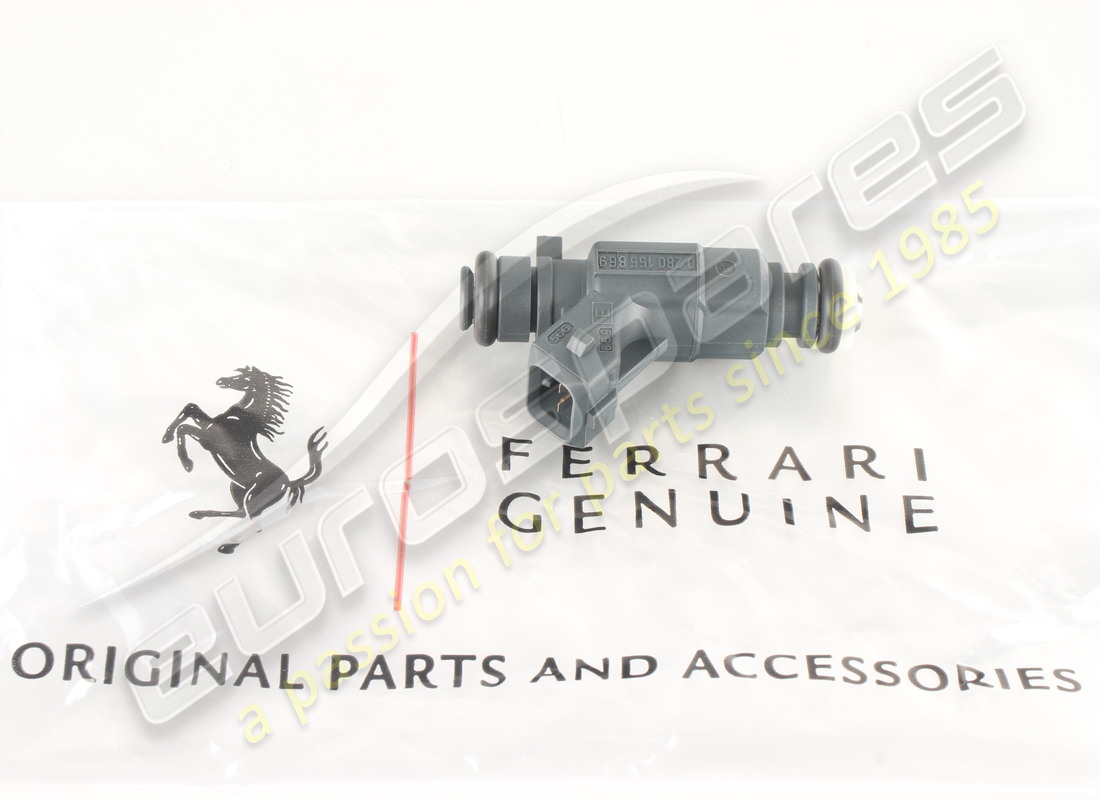

ELECTRO - INJECTOR
- Valid till stock exhaustion
from £217.73
from £217.73
# 006
MPN: 197808
ELECTRO - INJECTOR
from £156.91
from £156.91
This part replaces part number 171723
# 007
MPN: 133902
GASKET
from £3.29
from £3.29
# 008
MPN: 144730
INJECTORS RETAINING CLIP
from £2.24
from £2.24
# 009
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306324 - and 2 more. Click to view details
# 010
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 011
MPN: 178285
CONTROL UNIT IGNITION
- Not for F1 - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid for EU GS not F1 and J not F1 till car Ass.Nr.39139 - Valid for GB not F1 till car Ass.Nr.39239 - SOLD IN PAIRS ONLY (price each)
from £6,005.02
from £6,005.02
# 011
MPN: 178765
CONTROL UNIT IGNITION
- Valid for F1 - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid for EU GS F1 and J F1 till car Ass.Nr.39346 - Valid for GB F1 till car Ass.Nr.39121
from £4,003.34
from £4,003.34
# 011
MPN: 178768
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA, CDN and AUS - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Valid till Ass. Nr.53910 for AUS
from £4,003.34
from £4,003.34
# 011
MPN: 178784
CONTROL UNIT IGNITION
- Valid for F1 - Valid for AUS - Not for USA and CDN - Valid till Ass. Nr.53910 for AUS
from £2,001.67
from £2,001.67
# 011
MPN: 180101
CONTROL UNIT IGNITION
- Not for F1 - Valid for not catalyzed cars - Not for USA, CDN and AUS
from £5,037.83
from £5,037.83
# 011
MPN: 180700
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA and CDN - Not for USA MY 2002,2003,2004 and CDN MY 2002,2003,2004
from £4,000.00
from £4,000.00
# 011
MPN: 181642
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA and CDN - Not for USA MY 2002,2003,2004 and CDN MY 2002,2003,2004
from £4,003.34
from £4,003.34
# 011
MPN: 182630
CONTROL UNIT IGNITION
- Valid for F1 - Valid for not catalyzed cars - Not for USA, CDN and AUS
from £2,001.67
from £2,001.67
# 011
MPN: 186394
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA MY 2002 and CDN MY 2002 - Not for USA MY 2003,2004 and CDN MY 2003,2004
Supersession
Supersession
# 011
MPN: 190768
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA MY 2002 and CDN MY 2002 - Not for USA MY 2003,2004 and CDN MY 2003,2004
Supersession
Supersession
# 011
MPN: 197913
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA MY 2003 and CDN MY 2003
from £2,001.67
from £2,001.67
This part replaces part number 190768
# 011
MPN: 197914
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA MY 2003 and CDN MY 2003
from £2,001.67
from £2,001.67
This part replaces part number 186394
# 011
MPN: 201747
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA MY 2004 and CDN MY 2004 - Valid till Ass. Nr. 56169
from £2,001.67
from £2,001.67
# 011
MPN: 201752
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA MY 2004 and CDN MY 2004 - Valid till Ass. Nr. 56169
from £2,001.67
from £2,001.67
# 011
MPN: 206421
CONTROL UNIT IGNITION
- Not for F1 - Not for USA and CDN - Valid for racing exhaust version - Optional
from £1,753.29
from £1,753.29
# 011
MPN: 206423
CONTROL UNIT IGNITION
- Valid for F1 - Not for USA and CDN - Valid for racing exhaust version - Optional
from £2,000.00
from £2,000.00
# 011
MPN: 206424
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA and CDN - Valid for racing exhaust version - Optional - Valid till Ass. Nr. 56169
from £1,552.04
from £1,552.04
# 011
MPN: 206425
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA and CDN - Valid for racing exhaust version - Optional - Valid till Ass. Nr. 56169
from £1,552.04
from £1,552.04
# 011
MPN: 209973
CONTROL UNIT IGNITION
- Not for F1 - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid for EU GS not F1 and J not F1 from car Ass.Nr. 39140 - Valid for GB not F1 from car Ass.Nr.39240 - Valid till Ass. Nr. 57450
from £4,003.34
from £4,003.34
This part replaces part number 185392
# 011
MPN: 209973
CONTROL UNIT IGNITION
- Not for F1 - Valid from Nr.53911 for AUS - For cars not USA, CDN and AUS valid from Ass. Nr. 57451
from £4,003.34
from £4,003.34
This part replaces part number 185392
# 011
MPN: 209974
CONTROL UNIT IGNITION
- Valid for F1 - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid till Ass. Nr. 57450
from £3,002.51
from £3,002.51
This part replaces part number 185403
# 011
MPN: 209974
CONTROL UNIT IGNITION
- Valid for F1 - Valid from Nr.53911 for AUS - For cars not USA, CDN and AUS valid from Ass. Nr. 57451
from £3,002.51
from £3,002.51
This part replaces part number 185403
# 011
MPN: 214018
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA MY 2004 and CDN MY 2004 - Valid from Ass. Nr. 56170
from £1,555.28
from £1,555.28
# 011
MPN: 214020
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA MY 2004 and CDN MY 2004 - Valid from Ass. Nr. 56170
from £2,168.28
from £2,168.28
# 011
MPN: 214041
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA and CDN - Valid for racing exhaust version - Optional - Valid from Ass. Nr. 56170
from £1,481.70
from £1,481.70
# 011
MPN: 214122
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA and CDN - Valid for racing exhaust version - Optional - Valid from Ass. Nr. 56170
# 012
MPN: 186399
LH PLATE
from £19.81
from £19.81
# 012
MPN: 186400
RH PLATE
from £19.81
from £19.81
# 013
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.82
from £0.82
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 014
MPN: 12604174
WASHER
from £0.47
from £0.47
This part replaces part number 12604179 - and 1 more. Click to view details
# 015
MPN: 16286024
SCREW
from £0.51
from £0.51
# 016
MPN: 178482
RH COMPLETE FUEL TUBE WITH ELECTRO - INJECTORS
- Valid till stock exhaustion
Supersession
Supersession
# 016
MPN: 178494
LH COMPLETE FUEL TUBE WITH ELECTRO - INJECTORS
- Valid till stock exhaustion
Supersession
Supersession
# 016
MPN: 198347
RH COMPLETE FUEL TUBE WITH ELECTRO -INJECTORS
from £511.57
from £511.57
This part replaces part number 178482 - and 1 more. Click to view details
# 016
MPN: 198348
LH COMPLETE FUEL TUBE WITH ELECTRO - INJECTORS
from £592.15
from £592.15
This part replaces part number 178494 - and 1 more. Click to view details
# 017
MPN: 14059211
NUT
from £0.53
from £0.53
# 018
MPN: 186398
RUBBER THICKNESS
from £0.87
from £0.87
# 019
MPN: 186397
RUBBER THICKNESS
from £0.87
from £0.87
# 020
MPN: 124034
BRACKET WITH SHEATH
from £1.46
from £1.46
# 021
MPN: 14059214
NUT
from £0.53
from £0.53
# 022
MPN: 162606
CLIP
from £0.43
from £0.43
# 023
MPN: 179243
SMALL PLATE
from £2.69
from £2.69
# 024
MPN: 178430
FIXING CLIP
from £0.53
from £0.53
