012 - Fuel Tanks - Fixing and Protection

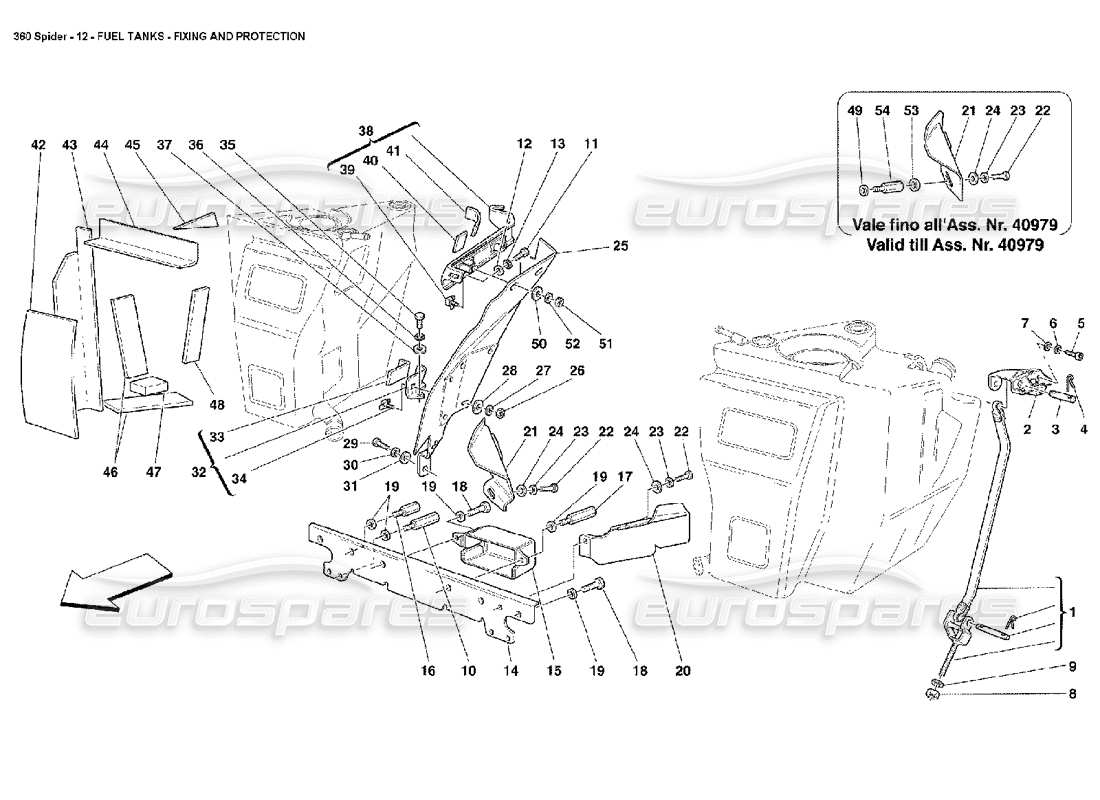

Ferrari 360 Spider Fuel Tanks - Fixing and Protection Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001

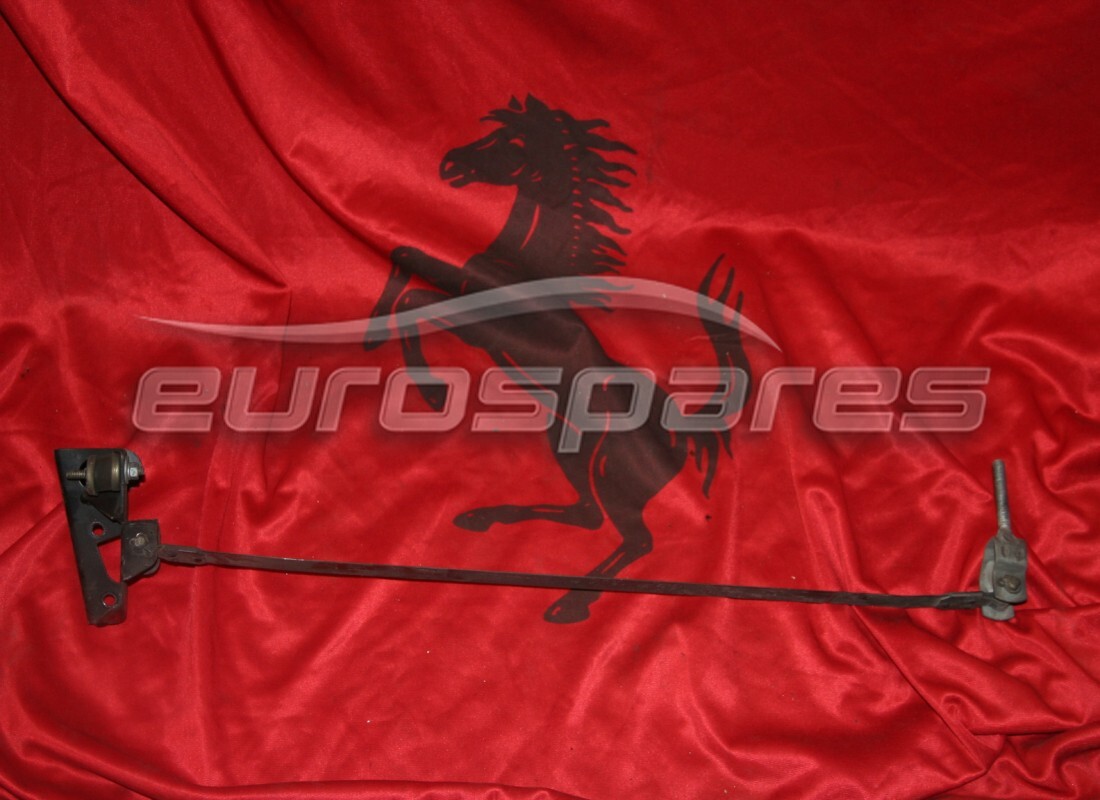

MPN: 180348
FUEL TANK FASTENER
from £26.91
from £26.91
This part replaces part number 174098 - and 2 more. Click to view details
# 002
MPN: 181034
LH BRACKET
from £19.37
from £19.37
# 002
MPN: 181035
RH BRACKET
from £19.37
from £19.37
# 003
MPN: 103447
PIN
from £12.86
from £12.86
# 004
MPN: 10796440
SPLIT PIN
Supersession
Supersession
This part replaces part number 264555
# 005
MPN: 14305324
SCREW
from £0.47
from £0.47
This part replaces part number 14305321
# 006
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 007
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 008
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 009
MPN: 14496524
WASHER
from £0.47
from £0.47
This part replaces part number 14496525 - and 1 more. Click to view details
# 010
MPN: 182363
STUD
- From Ass. Nr. 36945 for GS and from Ass. Nr. 37248 for GD
from £15.90
from £15.90
# 011
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 012
MPN: 12647624
WASHER
from £0.53
from £0.53
This part replaces part number 12647611
# 013
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 014
MPN: 176993
PROTECTION PLATE
from £17.75
from £17.75
# 015
MPN: 186045
Frame
from £18.71
from £18.71
This part replaces part number 176994 - and 1 more. Click to view details
# 016
MPN: 178772
STUD
from £5.72
from £5.72
# 017
MPN: 179242
STUD
from £3.40
from £3.40
# 018
MPN: 10902421
SCREW
from £0.47
from £0.47
# 019
MPN: 13550221
WASHER
from £0.47
from £0.47
# 020
MPN: 180233
LOWER LH ANTI - HEAT SHIELD
from £21.86
from £21.86
# 021
MPN: 182238
LOWER RH ANTI - HEAT SHIELD
- Valid till Ass. Nr. 40979
from £19.77
from £19.77
# 021
MPN: 188471
LOWER RH ANTI HEAT SHIELD
- Valid from Ass. Nr. 40980
from £25.51
from £25.51
# 022
MPN: 10902124
SCREW
from £0.51
from £0.51
This part replaces part number 10902111 - and 1 more. Click to view details
# 023
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 024
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 025
MPN: 184300
LH ANTI - HEAT SHIELD
from £134.90
from £134.90
# 025
MPN: 184301
RH ANTI - HEAT SHIELD
from £191.38
from £191.38
# 026
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 027
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 028
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 029
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 030
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 031
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 032
MPN: 177774
LOWER BRACKET FOR LH TANK FIXING
from £5.61
from £5.61
# 032
MPN: 177775
LOWER BRACKET FOR RH TANK FIXING
from £22.66
from £22.66
# 033
MPN: 177772
LH RUBBER THICKNESS
from £1.02
from £1.02
# 033
MPN: 177773
RH RUBBER THICKNESS
from £1.02
from £1.02
# 034
MPN: 14664790
SCREW WITH CAGE
from £0.47
from £0.47
# 035
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 036
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 037
MPN: 12647624
WASHER
from £0.51
from £0.51
This part replaces part number 12647611
# 038
MPN: 183185
BRACKET FOR LH TANK FIXING
from £29.67
from £29.67
# 038
MPN: 183186
BRACKET FOR RH TANK FIXING
from £87.24
from £87.24
# 039
MPN: 14664790
SCREW WITH CAGE
from £0.47
from £0.47
# 040
MPN: 177769
RUBBER THICKNESS
from £0.71
from £0.71
# 041
MPN: 177768
RUBBER THICKNESS
from £0.47
from £0.47
# 042
MPN: 177752
RUBBER THICKNESS
from £6.21
from £6.21
# 043
MPN: 181191
RH RUBBER THICKNESS
from £5.48
from £5.48
# 043
MPN: 181192
LH RUBBER THICKNESS
from £5.48
from £5.48
# 044
MPN: 181377
RUBBER THICKNESS
from £2.49
from £2.49
# 045
MPN: 177753
RH RUBBER THICKNESS
from £1.33
from £1.33
# 045
MPN: 177763
LH RUBBER THICKNESS
from £1.33
from £1.33
# 046
MPN: 177749
RUBBER THICKNESS
from £1.84
from £1.84
# 047
MPN: 177748
RUBBER THICKNESS
from £1.21
from £1.21
# 048
MPN: 159147
RUBBER THICKNESS
from £0.47
from £0.47
# 049
MPN: 12644424
WASHER
- Valid till Ass. Nr. 40979
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 050
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 051
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 052
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 053
MPN: 12643724
WASHER
- Valid till Ass. Nr. 40979
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 054
MPN: 178772
STUD
- From Ass. Nr. 36945 for GS and from Ass. Nr. 37248 for GD - Valid till Ass. Nr. 40979
from £5.72
from £5.72
