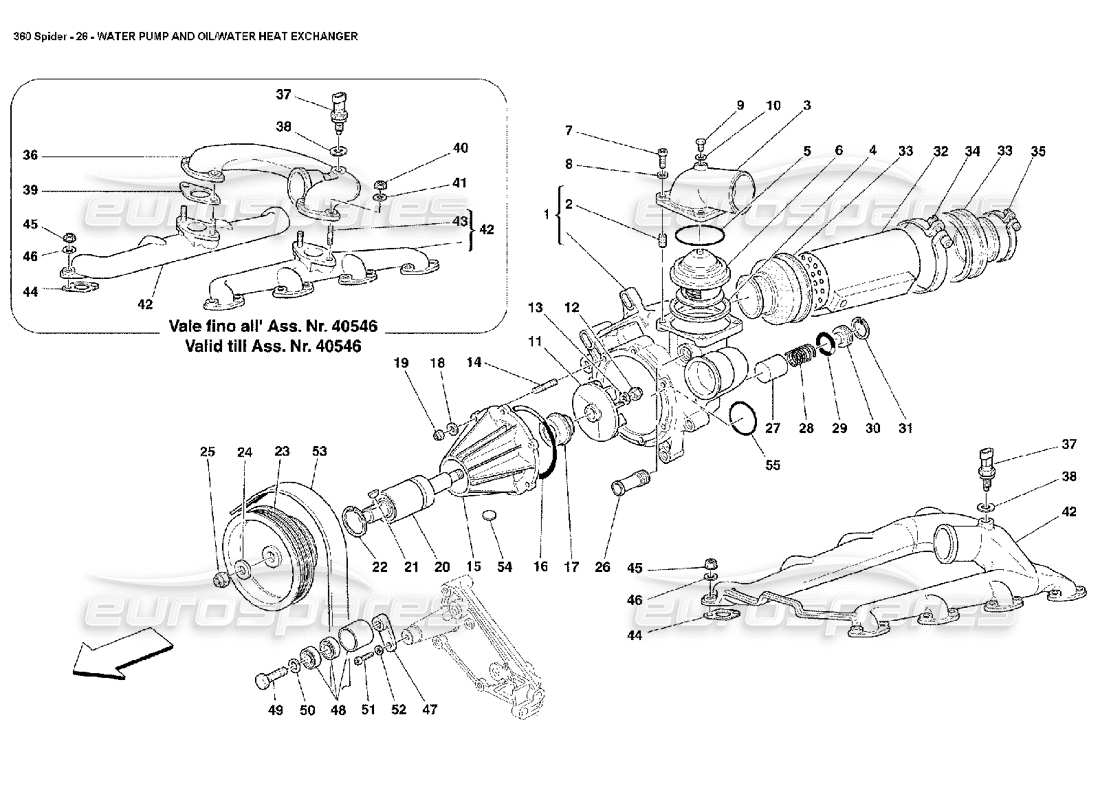

026 - Water Pump and Oil-Water Heat Exchanger

Ferrari 360 Spider Water Pump and Oil-Water Heat Exchanger Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 000
                                                                                            MPN: 181841
                                                                                            WATER PUMP ASSY
                                                                                            from £695.00
                                                                                            from £695.00
                                                                                            This part replaces part number 176173/A - and 1 more. Click to view details
                                                                                            # 001
                                                                                            MPN: 176044
                                                                                            Water pump housing
                                                                                            from £405.40
                                                                                            from £405.40
                                                                                            # 002
                                                                                            MPN: 13525470
                                                                                            THREADED INSERT
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            This part replaces part number 107333
                                                                                            # 003
                                                                                            MPN: 171926
                                                                                            THERMOSTATIC VALVE COVER
                                                                                            from £16.69
                                                                                            from £16.69
                                                                                            # 004
                                                                                            MPN: 137873
                                                                                            GASKET
                                                                                            from £2.95
                                                                                            from £2.95
                                                                                            # 005
                                                                                            MPN: 149279
                                                                                            O.R. GASKET
                                                                                            from £2.49
                                                                                            from £2.49
                                                                                            # 006
                                                                                            MPN: 183758
                                                                                            THERMOSTAT
                                                                                            from £49.94
                                                                                            from £49.94
                                                                                            This part replaces part number 167473
                                                                                            # 007
                                                                                            MPN: 14433124
                                                                                            SCREW
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 14433121
                                                                                            # 008
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 009
                                                                                            MPN: 132349
                                                                                            UNION
                                                                                            from £9.81
                                                                                            from £9.81
                                                                                            # 010
                                                                                            MPN: 10297760
                                                                                            GASKET
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 011
                                                                                            MPN: 176045
                                                                                            WATER PUMP IMPELLER
                                                                                            from £82.36
                                                                                            from £82.36
                                                                                            # 012
                                                                                            MPN: 100436
                                                                                            CAP NUT
                                                                                            from £7.64
                                                                                            from £7.64
                                                                                            This part replaces part number 92896
                                                                                            # 013
                                                                                            MPN: 11194074
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 11194071 - and 2 more. Click to view details
                                                                                            # 014
                                                                                            MPN: 13540924
                                                                                            STUD
                                                                                            from £0.68
                                                                                            from £0.68
                                                                                            This part replaces part number 13540921
                                                                                            # 015
                                                                                            MPN: 176173
                                                                                            WATER PUMP COVER
                                                                                            use part number: 176173/A for complete pump
                                                                                            from £265.75
                                                                                            from £265.75
                                                                                            This part replaces part number 154546
                                                                                            # 016
                                                                                            MPN: 137868
                                                                                            O.R. GASKET
                                                                                            from £8.06
                                                                                            from £8.06
                                                                                            # 017
                                                                                            MPN: 183759
                                                                                            FRONT SEAL RING
                                                                                            from £22.77
                                                                                            from £22.77
                                                                                            This part replaces part number 130932 - and 1 more. Click to view details
                                                                                            # 018
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.52
                                                                                            from £0.52
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 019
                                                                                            MPN: 102741
                                                                                            NUT
                                                                                            from £0.50
                                                                                            from £0.50
                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                            # 020
                                                                                            MPN: 143742
                                                                                            BEARING WITH SHAFT
                                                                                            from £141.30
                                                                                            from £141.30
                                                                                            # 021
                                                                                            MPN: 10202320
                                                                                            DISC KEY
                                                                                            from £0.67
                                                                                            from £0.67
                                                                                            # 022
                                                                                            MPN: 11059976
                                                                                            SEEGER RING
                                                                                            from £0.63
                                                                                            from £0.63
                                                                                            This part replaces part number 11059975 which we have in stock
                                                                                            # 023
                                                                                            MPN: 177207
                                                                                            WATER PUMP CONTROL PULLEY
                                                                                            from £90.00
                                                                                            from £90.00
                                                                                            # 024
                                                                                            MPN: 12646821
                                                                                            WASHER
                                                                                            (minimum order quantity = 30)
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            # 025
                                                                                            MPN: 102742
                                                                                            NUT
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                            # 026
                                                                                            MPN: 106227
                                                                                            UNION
                                                                                            from £4.06
                                                                                            from £4.06
                                                                                            # 027
                                                                                            MPN: 176046
                                                                                            BUSHING
                                                                                            from £16.85
                                                                                            from £16.85
                                                                                            # 028
                                                                                            MPN: 176047
                                                                                            SPRING
                                                                                            from £12.03
                                                                                            from £12.03
                                                                                            # 029
                                                                                            MPN: 147278
                                                                                            O.R. GASKET
                                                                                            from £0.98
                                                                                            from £0.98
                                                                                            # 030
                                                                                            MPN: 176048
                                                                                            SPRING PLUG
                                                                                            from £8.63
                                                                                            from £8.63
                                                                                            # 031
                                                                                            MPN: 11058376
                                                                                            SEEGER RING
                                                                                            from £1.50
                                                                                            from £1.50
                                                                                            # 032
                                                                                            MPN: 180846
                                                                                            HEAT EXCHANGER
                                                                                            from £498.51
                                                                                            from £498.51
                                                                                            This part replaces part number 175913
                                                                                            # 033
                                                                                            MPN: 187173
                                                                                            SLEEVE
                                                                                            - Valid till stock exhaustion
                                                                                            from £171.96
                                                                                            from £171.96
                                                                                            This part replaces part number 170483
                                                                                            # 033
                                                                                            MPN: 187173
                                                                                            SLEEVE
                                                                                            from £171.96
                                                                                            from £171.96
                                                                                            This part replaces part number 170483
                                                                                            # 034
                                                                                            MPN: 153430
                                                                                            CLAMP
                                                                                            from £2.90
                                                                                            from £2.90
                                                                                            # 035
                                                                                            MPN: 134109
                                                                                            SCREW COLLAR
                                                                                            from £2.88
                                                                                            from £2.88
                                                                                            This part replaces part number 178203 - and 1 more. Click to view details
                                                                                            # 036
                                                                                            MPN: 169526
                                                                                            WATER OUTLET MANIFOLD CONNECTION DUCT
                                                                                            - Valid till Ass. Nr. 40546
                                                                                            from £71.94
                                                                                            from £71.94
                                                                                            # 038
                                                                                            MPN: 10298460
                                                                                            GASKET
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 93353
                                                                                            # 039
                                                                                            MPN: 169564
                                                                                            GASKET
                                                                                            - Valid till Ass. Nr. 40546
                                                                                            from £0.92
                                                                                            from £0.92
                                                                                            # 040
                                                                                            MPN: 177778
                                                                                            NUT
                                                                                            - Valid till Ass. Nr. 40546
                                                                                            from £1.00
                                                                                            from £1.00
                                                                                            This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
                                                                                            # 041
                                                                                            MPN: 12601374
                                                                                            WASHER
                                                                                            - Valid till Ass. Nr. 40546
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                            # 042
                                                                                            MPN: 169749
                                                                                            COMPLETE WATER OUTLET MANIFOLD
                                                                                            - Valid till Ass. Nr. 40546
                                                                                            from £470.94
                                                                                            from £470.94
                                                                                            # 042
                                                                                            MPN: 179748
                                                                                            COMPLETE WATER OUTLET MANIFOLD
                                                                                            - Valid from Ass. Nr. 40547
                                                                                            from £156.00
                                                                                            from £156.00
                                                                                            # 043
                                                                                            MPN: 13516824
                                                                                            STUD
                                                                                            - Valid till Ass. Nr. 40546
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            This part replaces part number 13516821
                                                                                            # 044
                                                                                            MPN: 141332
                                                                                            GASKET
                                                                                            (minimum order quantity = 8)
                                                                                            from £0.80
                                                                                            from £0.80
                                                                                            # 045
                                                                                            MPN: 132877
                                                                                            NUT
                                                                                            - Not as spare part - Replaced by 194031
                                                                                            from £1.66
                                                                                            from £1.66
                                                                                            This part replaces part number 67190100
                                                                                            # 045
                                                                                            MPN: 194031
                                                                                            NUT
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            # 046
                                                                                            MPN: 12604274
                                                                                            WASHER
                                                                                            from £0.52
                                                                                            from £0.52
                                                                                            This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                            # 047
                                                                                            MPN: 180296
                                                                                            SMALL PLATE
                                                                                            from £95.54
                                                                                            from £95.54
                                                                                            This part replaces part number 178666 - and 2 more. Click to view details
                                                                                            # 048
                                                                                            MPN: 179698
                                                                                            BELT TIGHTENING BEARING
                                                                                            from £42.83
                                                                                            from £42.83
                                                                                            # 049
                                                                                            MPN: 15970921
                                                                                            SCREW
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 050
                                                                                            MPN: 11190574
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 14499504
                                                                                            # 051
                                                                                            MPN: 14302824
                                                                                            SCREW
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            # 052
                                                                                            MPN: 11198074
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                            # 053
                                                                                            MPN: 201446
                                                                                            WATER PUMP AND GENERATOR BELT
                                                                                            from £13.42
                                                                                            from £13.42
                                                                                            This part replaces part number 194229
                                                                                            # 054
                                                                                            MPN: 10158801
                                                                                            PLUG
                                                                                            from £0.81
                                                                                            from £0.81
                                                                                            This part replaces part number 10158800
                                                                                            # 055
                                                                                            MPN: 101044
                                                                                            GASKET
                                                                                            from £1.06
                                                                                            from £1.06
                                                                                            This part replaces part number 3150
