Eurospares View All
-Not for F1
027 - Clutch and Controls

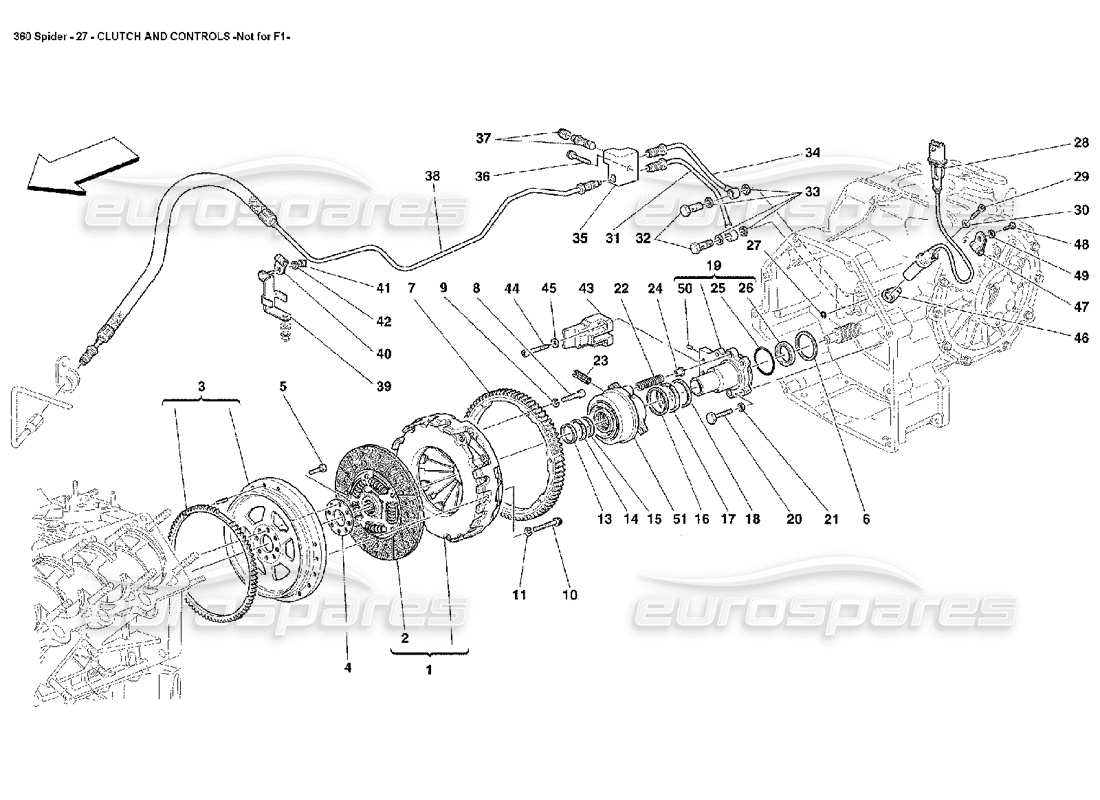

Ferrari 360 Spider Clutch and Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 201680
CLUTCH KIT
from £1,336.25
from £1,336.25
This part replaces part number 180613 - and 2 more. Click to view details
CLUTCH KIT (F1) (70001612) Genuine Ferrari Part - New In stock
Valid for F1 | Replacement of the bearing sensor support may be required - Part Number: 950760
Valid for F1 | Replacement of the bearing sensor support may be required - Part Number: 950760
CLUTCH KIT WITH FLYWHEEL (MANUAL) (70001613) Genuine Ferrari Part - New (to order)
Not for F1 - With Flywheel
Not for F1 - With Flywheel
CLUTCH KIT WITHOUT FLYWHEEL (MANUAL) (70001654) Genuine Ferrari Part - New (to order)
Not for F1 - Without Flywheel
Not for F1 - Without Flywheel
# 001
MPN: 70001654
CLUTCH KIT ASSEMBLY (MANUAL)
includes items (1, 4, 7, 8, 9, 51, 19)
from £1,336.25
from £1,336.25
# 002
MPN: 180613
CLUTCH DISC
not as spare part - use : 201680
Supersession
Supersession
# 003
MPN: 181596
COMPLETE ENGINE FLYWHEEL
from £399.68
from £399.68
This part replaces part number 154940 - and 5 more. Click to view details
# 004
MPN: 103876
FLYWHEEL FIXING WASHER
from £2.82
from £2.82
This part replaces part number 12833 - and 1 more. Click to view details
# 005
MPN: 201755
SCREW
- Not as spare part - Replaced by 201755
from £1.16
from £1.16
This part replaces part number 103875
# 005
MPN: 201755
SCREW
from £1.16
from £1.16
This part replaces part number 103875
# 006
MPN: 173360
SPACER
- Possible fitting
from £10.51
from £10.51
# 007
MPN: 176917
RING GEAR
- Valid till car Ass. Nr. 43021 (gearbox No. 7921) - Not as spare part - Replaced by clutch 186158 + ring gear 186157 and appropriate fixages
from £168.88
from £168.88
# 007
MPN: 186157
RING GEAR
- Valid from car Ass. Nr. 43022 (gearbox No. 7922)
from £302.77
from £302.77
This part replaces part number 176917 which we have in stock
# 008
MPN: 186196
SCREW
- For 6 holes ring gear q.ty 6
from £4.46
from £4.46
# 009
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 009
MPN: 127494
WASHER
- For 3 holes ring gear - (minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 010
MPN: 178739
SCREW
from £6.50
from £6.50
# 011
MPN: 10569274
WASHER
from £0.86
from £0.86
# 012
MPN: 234943
Clutch Bearing
Valid for manual cars (without seals
from £495.00
from £495.00
This part replaces part number 208310 - and 1 more. Click to view details
# 013
MPN: 172970
SCRAPER RING
from £12.61
from £12.61
# 014
MPN: 170416
RING
from £1.23
from £1.23
This part replaces part number 189183
# 014
MPN: 170416
RING
from £1.23
from £1.23
This part replaces part number 189183
# 015
MPN: 172972
SEAL RING
from £12.61
from £12.61
# 016
MPN: 154508
SEAL RING
from £23.25
from £23.25
# 017
MPN: 154507
RING
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 018
MPN: 154551
SCRAPER RING
from £16.42
from £16.42
# 019
MPN: 207539
COMPLETE BEARING SUPPORT FLANGE
(replaces: 193793)
from £554.40
from £554.40
This part replaces part number 193793 - and 1 more. Click to view details
# 020
MPN: 16052024
SCREW
from £1.31
from £1.31
# 021
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 022
MPN: 155207
PRELOAD SPRING
from £2.27
from £2.27
# 023
MPN: 14160670
FLEXIBLE PIN
- Not as spare part - Replaced by 14604170
from £11.68
from £11.68
# 023
MPN: 14604170
FLEXIBLE PIN
from £0.54
from £0.54
# 024
MPN: 155206
SPACER FOR SPRING
from £1.75
from £1.75
# 025
MPN: 136140
O.R. GASKET
from £0.72
from £0.72
# 026
MPN: 172363
SEAL RING
from £15.00
from £15.00
# 027
MPN: 121813
O.R. GASKET
See also 166432
Supersession
Supersession
# 027
MPN: 166432
O.R. GASKET
from £0.47
from £0.47
This part replaces part number 121813
# 028
MPN: 182194
ANGOLAR SPEED SENSOR
from £39.86
from £39.86
This part replaces part number 164937
# 029
MPN: 14305724
SCREW
from £0.53
from £0.53
This part replaces part number 11567624 - and 2 more. Click to view details
# 030
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 031
MPN: 242066
CLUTCH CONTROL TUBE
from £71.95
from £71.95
This part replaces part number 180183
# 032
MPN: 11903811
UNION
from £1.24
from £1.24
# 033
MPN: 10284460
GASKET
from £0.47
from £0.47
# 034
MPN: 242074
BLEEDER SYSTEM PIPE
from £74.29
from £74.29
This part replaces part number 180184
# 035
MPN: 235706
BLOCK
- 152954 also required
from £79.79
from £79.79
This part replaces part number 196918 - and 1 more. Click to view details
# 035
MPN: 235706
BLOCK
- 152954 also required
from £79.79
from £79.79
This part replaces part number 196918 - and 1 more. Click to view details
# 036
MPN: 16286324
SCREW
from £0.54
from £0.54
This part replaces part number 16286321
# 037
MPN: 121699
BLEEDER SCREW
from £11.76
from £11.76
# 038
MPN: 175133
CLUTCH CONTROL HOSE
from £234.33
from £234.33
# 039
MPN: 178342
PIPES FIXING BRACKET
from £56.57
from £56.57
# 040
MPN: 10440990
BRACKET WITH SHEATH
from £0.77
from £0.77
# 041
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 042
MPN: 10730114
WASHER
from £0.47
from £0.47
# 043
MPN: 201282
SUPPORT
from £46.25
from £46.25
This part replaces part number 178545
# 044
MPN: 14358524
SCREW
from £0.47
from £0.47
# 045
MPN: 10519378
WASHER
from £0.47
from £0.47
This part replaces part number 10519377 which we have in stock - and 2 more. Click to view details
# 046
MPN: 182896
THICKNESS
from £0.47
from £0.47
# 047
MPN: 10440990
BRACKET WITH SHEATH
from £0.77
from £0.77
# 048
MPN: 10977724
SCREW
from £0.47
from £0.47
This part replaces part number 10977711
# 049
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 050
MPN: 65928500
THREADED PLUG
from £24.36
from £24.36
This part replaces part number 10267550
# 051
MPN: 201024
COMPLETE CLUTCH BEARING
Valid for manual version (without seals)
from £648.71
from £648.71
This part replaces part number 171886 - and 2 more. Click to view details
