-Valid for GD
030 - Pedals

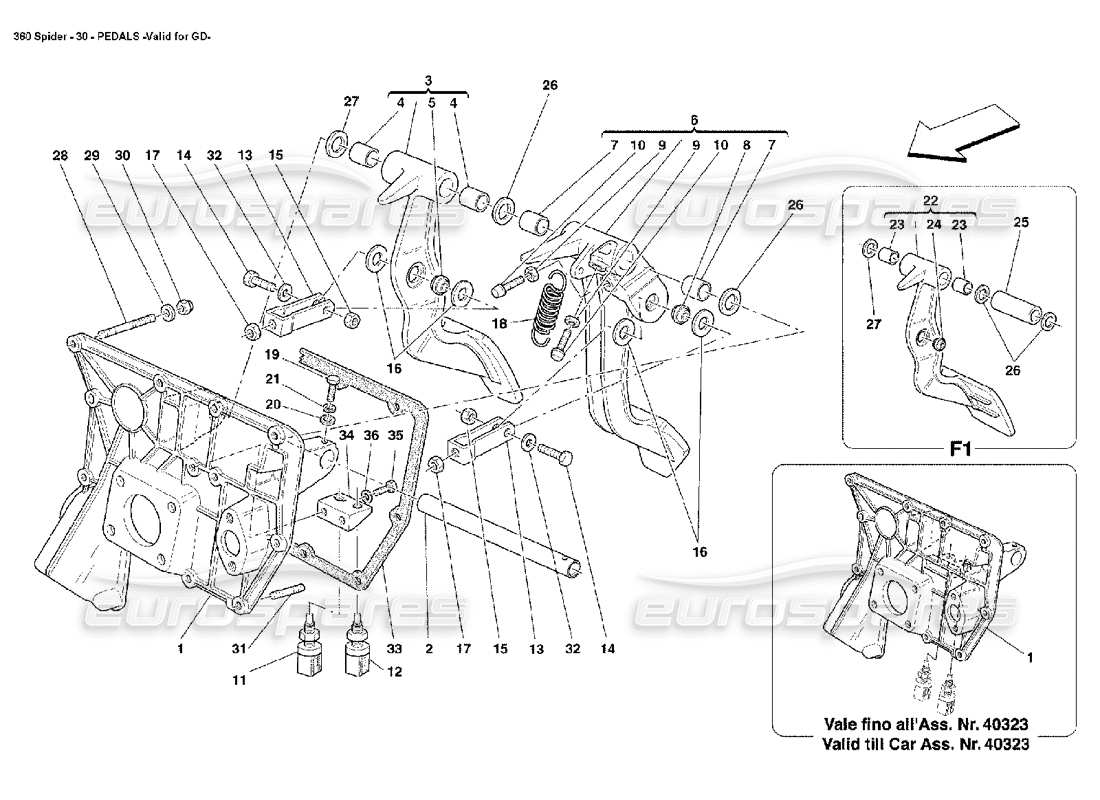

Ferrari 360 Spider Pedals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 176168
PEDALS SUPPORT
- Valid till Ass. Nr. 40323
from £472.50
from £472.50
# 001
MPN: 184388
PEDALS SUPPORT
- Valid from Ass. Nr. 40324
from £525.00
from £525.00
# 002
MPN: 177120
PEDALS SUPPORT PIN
from £47.06
from £47.06
# 003
MPN: 177118
COMPLETE BRAKE PEDAL
- Not for F1
from £362.26
from £362.26
# 004
MPN: 103163
SELF - LUBRICATING BUSHING
- Not for F1
from £2.83
from £2.83
# 005
MPN: 176475
BALL JOINT
- Not for F1
from £102.72
from £102.72
# 006
MPN: 177119
COMPLETE CLUTCH PEDAL
-Applicable for GD- -Not for F1 gearbox-
from £555.80
from £555.80
# 007
MPN: 103163
SELF - LUBRICATING BUSHING
from £2.83
from £2.83
# 008
MPN: 176475
BALL JOINT
- Not for F1
from £102.72
from £102.72
# 009
MPN: 16102314
NUT
- Not for F1
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 010
MPN: 187014
PEDAL ADJUSTEMENT PIN
- Not for F1
from £23.60
from £23.60
This part replaces part number 144011 which we have in stock
# 011
MPN: 133555
PUSH - BUTTON SWITCH
from £18.60
from £18.60
# 012
MPN: 133555
PUSH - BUTTON SWITCH
- Not for F1
from £18.60
from £18.60
# 013
MPN: 176471
FORK
- Q.ty 1 for F1
from £60.71
from £60.71
# 014
MPN: 16043724
SCREW
- Q.ty 1 for F1
from £0.71
from £0.71
This part replaces part number 16043721 which we have in stock
# 015
MPN: 147985
NUT
- Q.ty 1 for F1
from £0.54
from £0.54
# 016
MPN: 176522
PLASTIC WASHER
- Q.ty 2 for F1
from £14.07
from £14.07
# 017
MPN: 16102314
NUT
- Q.ty 1 for F1
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 018
MPN: 101305
RETUTN SPRING FOR PEDAL
- Not for F1
from £8.07
from £8.07
This part replaces part number 660343
# 019
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 020
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 020
MPN: 14488624
WASHER
- Not as spare part now - Replaced by 10519424
from £0.54
from £0.54
# 021
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 022
MPN: 178511
COMPLETE BRAKE PEDAL
- Valid for F1
from £213.98
from £213.98
# 023
MPN: 103163
SELF -LUBRICATING BUSHING
- Valid for F1
from £2.83
from £2.83
# 024
MPN: 176475
BALL JOINT
- Valid for F1
from £102.72
from £102.72
# 025
MPN: 178496
SPACER
- Valid for F1
from £6.08
from £6.08
# 026
MPN: 113836
WASHER
from £2.30
from £2.30
# 027
MPN: 106083
SPACER WASHER
- Th. 1mm
from £0.71
from £0.71
# 027
MPN: 113833
SPACER WASHER
- Th. 1,1mm - Possible fitting
from £1.84
from £1.84
# 027
MPN: 113834
SPACER WASHER
- Th. 1,2mm - Possible fitting
from £2.07
from £2.07
# 027
MPN: 113835
SPACER WASHER
- Th. 1,3mm - Possible fitting
from £1.84
from £1.84
# 027
MPN: 113836
SPACER WASHER
- Th. 1,4mm - Possible fitting
from £2.30
from £2.30
# 028
MPN: 13517524
STUD
from £2.05
from £2.05
# 029
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 030
MPN: 104030
NUT
from £0.50
from £0.50
This part replaces part number 16104125
# 031
MPN: 13516924
STUD
from £1.25
from £1.25
This part replaces part number 13516921
# 032
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 033
MPN: 177131
PEDALS SUPPORT GASKET
from £9.25
from £9.25
# 034
MPN: 186401
SMALL PLATE
- Valid from Ass. Nr. 40324
from £22.63
from £22.63
# 035
MPN: 16043224
SCREW
- Valid from Ass. Nr. 40324
from £0.53
from £0.53
# 036
MPN: 106852
WASHER
- Valid from Ass. Nr. 40324
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
