043 - Brake System

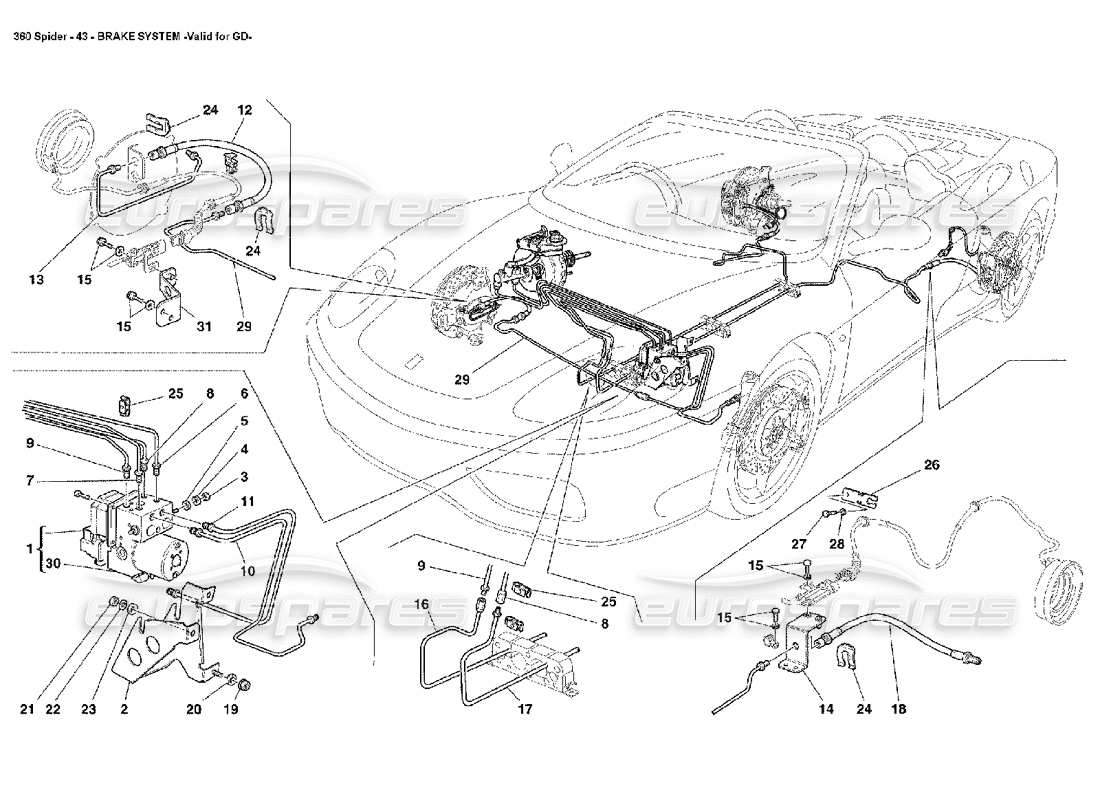

Ferrari 360 Spider Brake System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 168828
ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION
from £2,845.71
from £2,845.71
# 002
MPN: 177512
CONTROL STATION SUPPORTING BRACKET
from £233.32
from £233.32
# 003
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 004
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 006
MPN: 177156
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
- Valid till Ass. Nr. 57487
Supersession
Supersession
# 006
MPN: 213657
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
- Valid from Ass. Nr. 57488
from £7.84
from £7.84
This part replaces part number 177156
# 007
MPN: 177155
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
- Valid till Ass. Nr. 57487
Supersession
Supersession
# 007
MPN: 213656
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
- Valid from Ass. Nr. 57488
from £7.72
from £7.72
This part replaces part number 177155
# 008
MPN: 180386
PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE
- Valid till Ass. Nr. 57487
from £7.40
from £7.40
# 008
MPN: 213661
PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE
- Valid from Ass. Nr. 57488
# 009
MPN: 180385
PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE
- Valid till Ass. Nr. 57487
Supersession
Supersession
# 009
MPN: 213660
PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE
- Valid from Ass. Nr. 57488
from £8.25
from £8.25
This part replaces part number 180385
# 010
MPN: 177158
PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE
- Valid till Ass. Nr. 57487
from £9.29
from £9.29
# 010
MPN: 213659
PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE
- Valid from Ass. Nr. 57488
from £7.81
from £7.81
# 011
MPN: 177157
PIPE FROM CONTROL STATION TO UNION PIPE
- Valid till Ass. Nr. 57487
from £8.72
from £8.72
# 011
MPN: 213658
PIPE FROM CONTROL STATION TO UNION PIPE
- Valid from Ass. Nr. 57488
# 012
MPN: 137313
FRONT HOSE
from £45.00
from £45.00
# 013
MPN: 173805
PIPE TO LH FRONT BRAKE
- Valid till Ass. Nr. 57487
from £31.36
from £31.36
This part replaces part number 205294
# 013
MPN: 173806
PIPE TO RH FRONT BRAKE
- Valid till Ass. Nr. 57487
from £31.36
from £31.36
This part replaces part number 205293
# 013
MPN: 213645
PIPE TO RH FRONT BRAKE
- Valid from Ass. Nr. 57488
# 013
MPN: 213647
PIPE TO LH FRONT BRAKE
- Valid from Ass. Nr. 57488
# 014
MPN: 178939
REAR SUPPORT
- Valid till stock exhaustion
Supersession
Supersession
# 014
MPN: 185283
REAR SUPPORT
from £109.78
from £109.78
This part replaces part number 178939
# 015
MPN: 11625724
SCREW WITH WASHER
from £0.58
from £0.58
# 016
MPN: 180361
PIPE TO RH REAR HOSE
- Valid till Ass. Nr. 57487
from £126.89
from £126.89
# 016
MPN: 213643
PIPE TO RH REAR HOSE
- Valid from Ass. Nr. 57488
# 017
MPN: 180362
PIPE TO LH REAR HOSE
- Valid till Ass. Nr. 57487
from £17.87
from £17.87
# 017
MPN: 213644
PIPE TO LH REAR HOSE
- Valid from Ass. Nr. 57488
# 018
MPN: 271712
REAR BRAKE HOSE
from £14.70
from £14.70
This part replaces part number 118100 which we have in stock
# 019
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 020
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 021
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 022
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 023
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 024
MPN: 116374
CLIP
from £1.15
from £1.15
# 025
MPN: 169476
CLIP
from £1.61
from £1.61
# 026
MPN: 178938
SUPPORT FOR CABLE
from £18.28
from £18.28
This part replaces part number 179236
# 027
MPN: 10977524
SCREW
from £0.53
from £0.53
# 028
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 029
MPN: 177161
UNION PIPE TO RH FRONT BRAKE PIPE
from £125.82
from £125.82
# 030
MPN: 184541
ABS/ASR/EBD ELECTRONIC CONTROL STATION
Supersession
Supersession
# 030
MPN: 185147
ABS/ASR/EBD ELECTRONIC CONTROL STATION
from £1,140.60
from £1,140.60
This part replaces part number 184541
# 031
MPN: 179096
LH FRONT SUPPORT
- Not as spare part now
from £2.80
from £2.80
# 031
MPN: 179237
RH FRONT SUPPORT
- Not as spare part now
from £2.80
from £2.80
