045 - Hand-Brake Control

Ferrari 360 Spider Hand-Brake Control Parts Diagram

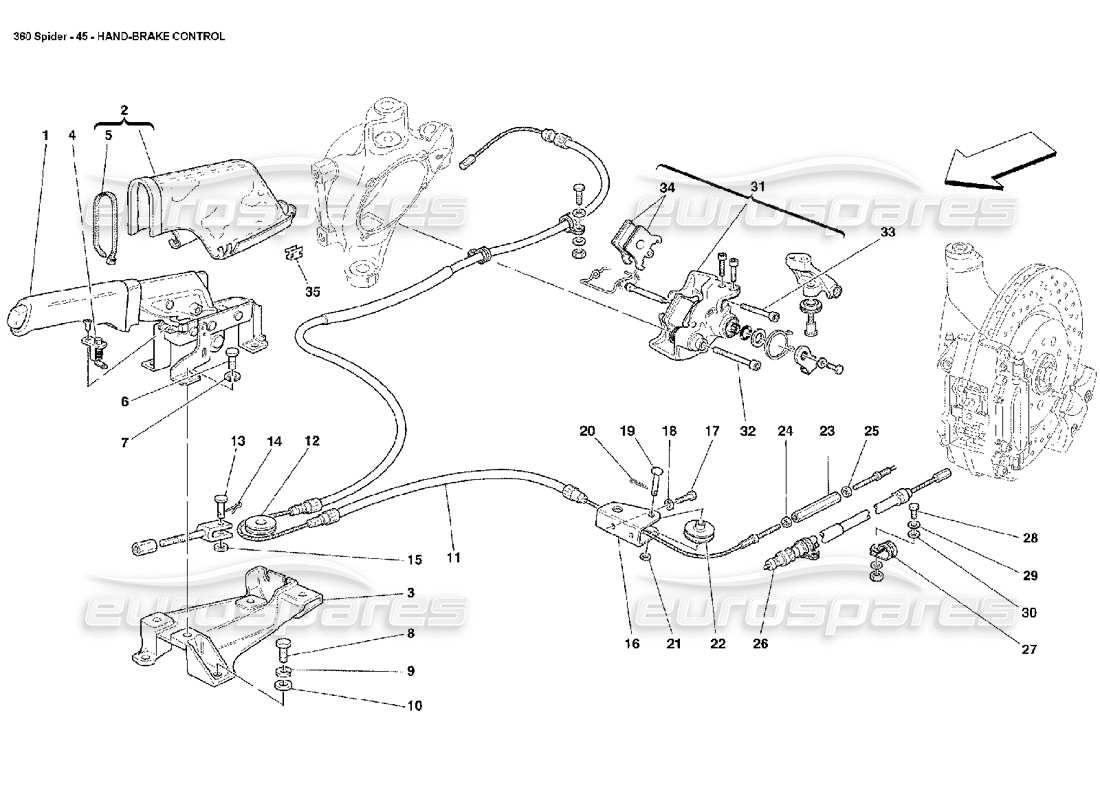

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 173526
                                                                      HAND BRAKE LEVER
                                                                      from £236.25
                                                                      from £236.25
                                                                      This part replaces part number 65995900 - and 1 more. Click to view details
                                                                      # 002
                                                                      MPN: 659337..
                                                                      LINING
                                                                      Supersession
                                                                      Supersession
                                                                      # 003
                                                                      MPN: 173401
                                                                      LEVER FOR SHAFT FIXING
                                                                      from £25.54
                                                                      from £25.54
                                                                      # 005
                                                                      MPN: 145854
                                                                      CLAMP
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 006
                                                                      MPN: 16043224
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      # 007
                                                                      MPN: 127496
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                      # 008
                                                                      MPN: 16043534
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 16043521 which we have in stock - and 1 more. Click to view details
                                                                      # 009
                                                                      MPN: 127496
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                      # 010
                                                                      MPN: 14496524
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                      # 011
                                                                      MPN: 179293
                                                                      RH REAR CABLE
                                                                      from £37.94
                                                                      from £37.94
                                                                      # 012
                                                                      MPN: 122091
                                                                      PULLEY FOR CABLE
                                                                      from £4.14
                                                                      from £4.14
                                                                      # 013
                                                                      MPN: 10050814
                                                                      PIVOT
                                                                      from £1.34
                                                                      from £1.34
                                                                      This part replaces part number 10050811
                                                                      # 014
                                                                      MPN: 10734208
                                                                      SPLIT PIN
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10734201
                                                                      # 015
                                                                      MPN: 14496524
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                      # 016
                                                                      MPN: 176245
                                                                      BRACKET FOR CABLE FIXING
                                                                      from £20.67
                                                                      from £20.67
                                                                      # 017
                                                                      MPN: 10977524
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 018
                                                                      MPN: 12605374
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                      # 019
                                                                      MPN: 10041214
                                                                      PIVOT
                                                                      from £2.05
                                                                      from £2.05
                                                                      # 020
                                                                      MPN: 10734208
                                                                      SPLIT PIN
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10734201
                                                                      # 021
                                                                      MPN: 14496524
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                      # 022
                                                                      MPN: 176261
                                                                      PULLEY FOR CABLE
                                                                      from £26.22
                                                                      from £26.22
                                                                      # 023
                                                                      MPN: 10091014
                                                                      ADJUSTMENT SLEEVE
                                                                      from £45.04
                                                                      from £45.04
                                                                      This part replaces part number 10091011
                                                                      # 024
                                                                      MPN: 10725914
                                                                      NUT
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 10725911 - and 1 more. Click to view details
                                                                      # 025
                                                                      MPN: 10727314
                                                                      NUT
                                                                      from £5.51
                                                                      from £5.51
                                                                      This part replaces part number 10727311
                                                                      # 026
                                                                      MPN: 179292
                                                                      LH REAR CABLE
                                                                      from £66.92
                                                                      from £66.92
                                                                      # 027
                                                                      MPN: 10441390
                                                                      BRACKET WITH SHEATH
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 028
                                                                      MPN: 10902224
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      # 029
                                                                      MPN: 12605374
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                      # 030
                                                                      MPN: 12644424
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 12644401 - and 1 more. Click to view details
                                                                      # 031
                                                                      MPN: 175921
                                                                      RH CALIPER FOR HAND BRAKE
                                                                      use part number: 228022
                                                                      Supersession
                                                                      Supersession
                                                                      # 031
                                                                      MPN: 228021
                                                                      LH CALIPER FOR HAND BRAKE
                                                                      from £306.67
                                                                      from £306.67
                                                                      # 031
                                                                      MPN: 228022
                                                                      RH CALIPER FOR HAND BRAKE
                                                                      from £503.42
                                                                      from £503.42
                                                                      This part replaces part number 175921
                                                                      # 032
                                                                      MPN: 14308424
                                                                      SCREW
                                                                      from £2.21
                                                                      from £2.21
                                                                      # 033
                                                                      MPN: 14308924
                                                                      SCREW
                                                                      from £2.92
                                                                      from £2.92
                                                                      # 035
                                                                      MPN: 65934100
                                                                      FIXING CLIP
                                                                      from £0.71
                                                                      from £0.71
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
