054 - Battery

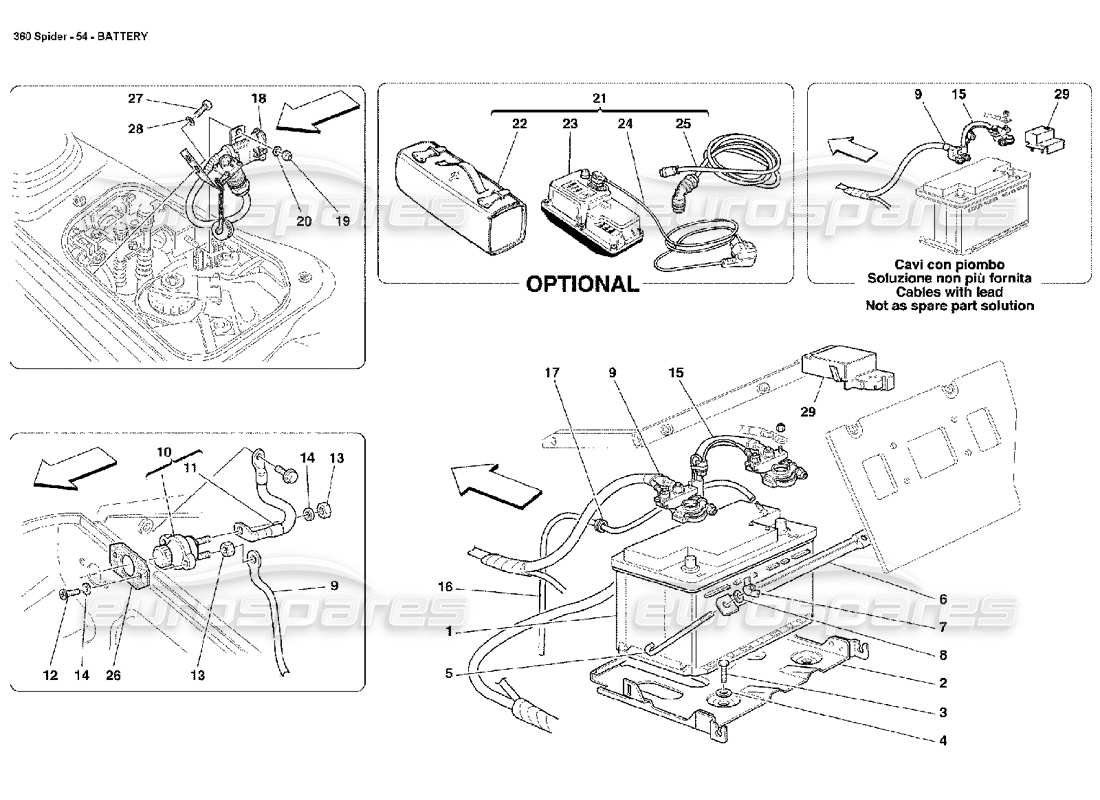

Ferrari 360 Spider Battery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 312188
BATTERIA 70AH L3 VRLA 760A
from £313.26
from £313.26
This part replaces part number 214466
# 002
MPN: 65521500
BATTERY BIN
from £54.44
from £54.44
# 003
MPN: 10902124
SCREW
from £0.52
from £0.52
This part replaces part number 10902111 - and 1 more. Click to view details
# 004
MPN: 12647701
WASHER
from £0.47
from £0.47
# 005
MPN: 65071000
TIE ROD
from £3.12
from £3.12
# 006
MPN: 69836200
BRACKET
from £10.71
from £10.71
This part replaces part number 65071100 - and 1 more. Click to view details
# 007
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 008
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 009

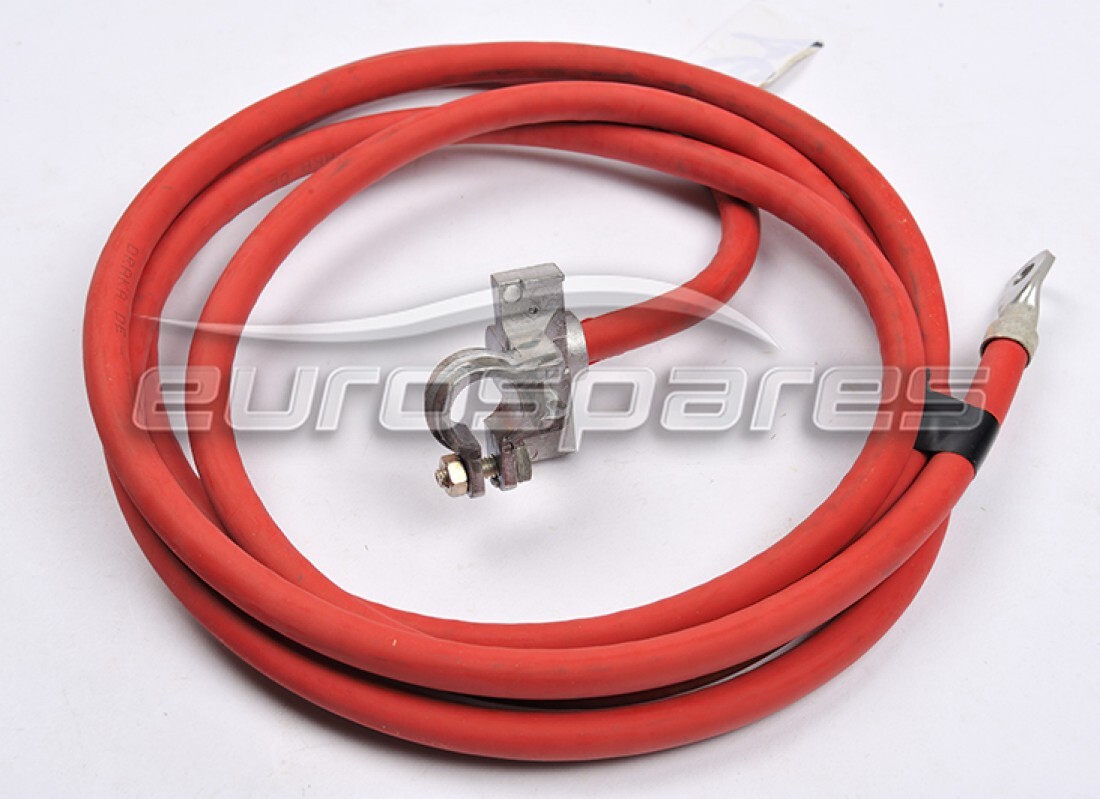

MPN: 168832
CABLE
BATTERY CABLE
from £205.43
from £205.43
# 009
MPN: 179194
DASHBOARD CONNECTION CABLES
- Not for GD - Valid till Ass. Nr. 41813
from £1,528.48
from £1,528.48
# 009
MPN: 186522
DASHBOARD CONNECTION CABLES
- Valid for GD - Valid till Ass. Nr. 41709
from £5,016.36
from £5,016.36
# 009
MPN: 188897
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 41814 till Ass. Nr. 46967 - Not for GD - Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004
from £1,491.95
from £1,491.95
# 009
MPN: 189234
DASHBOARD CONNECTION CABLES
- Valid for GD - Valid from Ass. Nr. 41710 - Not as spare part - Replaced by 198553
from £650.82
from £650.82
# 009
MPN: 195353
DASHBOARD CONNECTION CABLES
- Valid from Ass. Nr. 46968 - Not for GD - Not as spare part - Replaced by 198552
Supersession
Supersession
This part replaces part number 188897 which we have in stock
# 009
MPN: 198552
DASHBOARD CONNECTION CABLES
- Not for GD
from £759.72
from £759.72
This part replaces part number 195353 - and 1 more. Click to view details
# 009
MPN: 198553
DASHBOARD CONNECTION CABLES
- Not for GD - OUT SWITCH ASSEMBLY
from £1,436.75
from £1,436.75
This part replaces part number 189234 which we have in stock
# 010
MPN: 188055
CUT
from £333.63
from £333.63
# 011
MPN: 172892
GROUND CABLE
- Not as spare part - Replaced by 188056
Supersession
Supersession
# 011
MPN: 188056
GROUND CABLE
from £66.12
from £66.12
This part replaces part number 172892 - and 1 more. Click to view details
# 012
MPN: 13272472
SCREW
from £0.47
from £0.47
# 013
MPN: 10721911
NUT
from £0.53
from £0.53
# 014
MPN: 14496277
WASHER
from £0.47
from £0.47
# 015
MPN: 177913
CABLES FOR RH REAR TUNNEL CONNECTION
- Not for USA and CDN - Not as spare part - Replaced by 198554
from £284.60
from £284.60
# 015
MPN: 182200
CABLES FOR RH REAR TUNNEL CONNECTION
- Valid for USA and CDN - Not as spare part - Replaced by 198555
Supersession
Supersession
# 015
MPN: 198554
CABLES FOR RH REAR TUNNEL CONNECTION
- Not for USA and CDN
from £2,055.76
from £2,055.76
This part replaces part number 177913 which we have in stock - and 3 more. Click to view details
# 015
MPN: 198555
CABLES FOR RH REAR TUNNEL CONNECTION
- Valid for USA and CDN
from £224.18
from £224.18
This part replaces part number 182200
# 016
MPN: 181056
BATTERY VENT PIPE
from £2.57
from £2.57
# 017
MPN: 10396280
CABLE BUSHING
from £1.73
from £1.73
# 018
MPN: 178566
BATTERY CHARGING CONNECTION CABLE
- Optional - Valid till Ass. Nr. 43439
from £337.26
from £337.26
# 018
MPN: 200857
BATTERY CHARGING CONNECTION CABLE
- Optional - Valid from Ass. Nr. 43440
from £93.10
from £93.10
This part replaces part number 184585
# 019
MPN: 102741
NUT
- optional
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 020
MPN: 10519424
WASHER
- optional
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 021
MPN: 178682
BATTERY CHARGER KIT
- Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
from £1,359.75
from £1,359.75
This part replaces part number 70000941
# 021
MPN: 178684
BATTERY CHARGER KIT
- Valid for AUS - Optional
from £544.21
from £544.21
This part replaces part number 70000943
# 021
MPN: 178685
BATTERY CHARGER KIT
- Valid for GB and Hong Kong - Optional
from £604.32
from £604.32
This part replaces part number 70000944
# 021
MPN: 70002821
BATTERY CHARGER KIT
- Valid for USA, CDN and J - Optional
from £202.09
from £202.09
This part replaces part number 70001701
# 022
MPN: 65699200
BATTERY BAG CASE
- optional
from £414.21
from £414.21
# 023
MPN: 177791
battery charger
- 230V - Not for USA, CDN and J - Optional
from £485.10
from £485.10
# 023
MPN: 177792
battery charger
- 110V - Not for USA, CDN and J - Optional
from £1,206.22
from £1,206.22
# 024
MPN: 177794
POWER SUPPLY CABLE
- Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
from £16.44
from £16.44
# 024
MPN: 177795
POWER SUPPLY CABLE
- Valid for USA, CDN and J - Optional
from £12.33
from £12.33
# 024
MPN: 177796
POWER SUPPLY CABLE
- Valid for AUS - Optional
from £24.36
from £24.36
# 024
MPN: 178294
POWER SUPPLY CABLE
- Valid for GB and Hong Kong - Optional
from £39.48
from £39.48
# 025
MPN: 178676
CABLE WITH CONNECTOR
- optional
from £258.50
from £258.50
# 026
MPN: 66079900
GASKET
from £1.33
from £1.33
# 027
MPN: 10902224
SCREW
from £0.53
from £0.53
# 028
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 029
MPN: 185418
PROTECTION COVER
from £8.16
from £8.16
This part replaces part number 172207
