140 - Front and Rear Lights

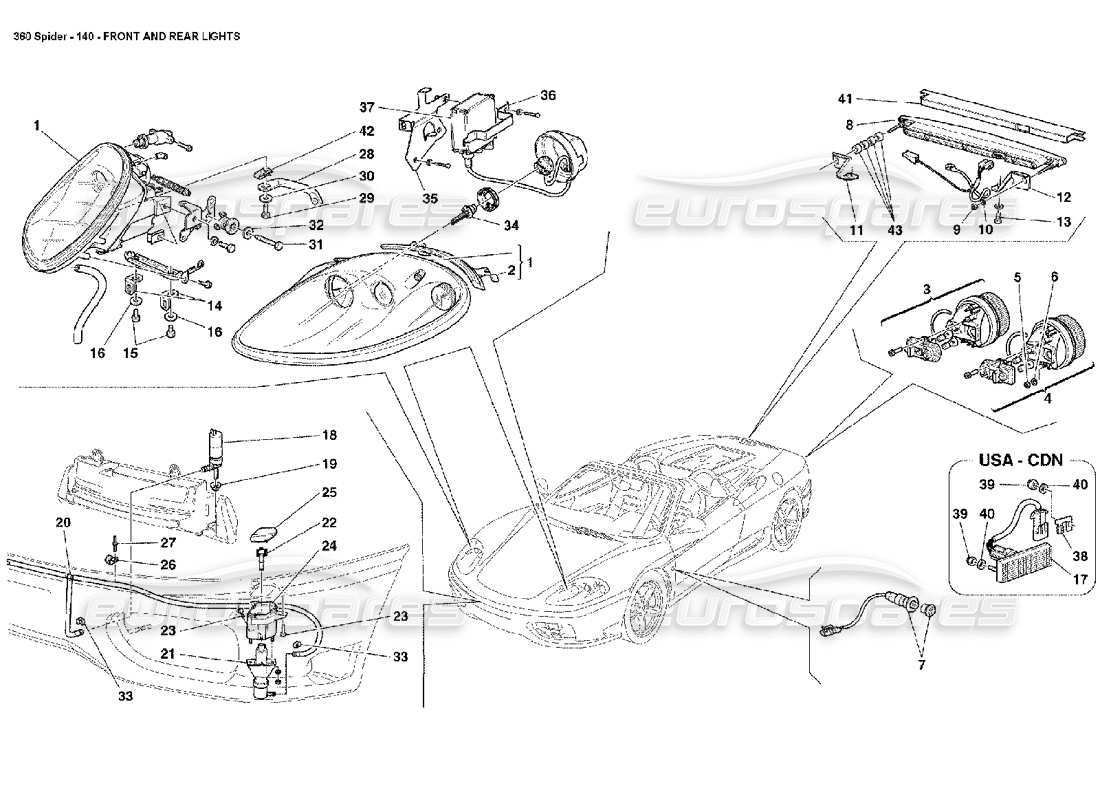

Ferrari 360 Spider Front and Rear Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price

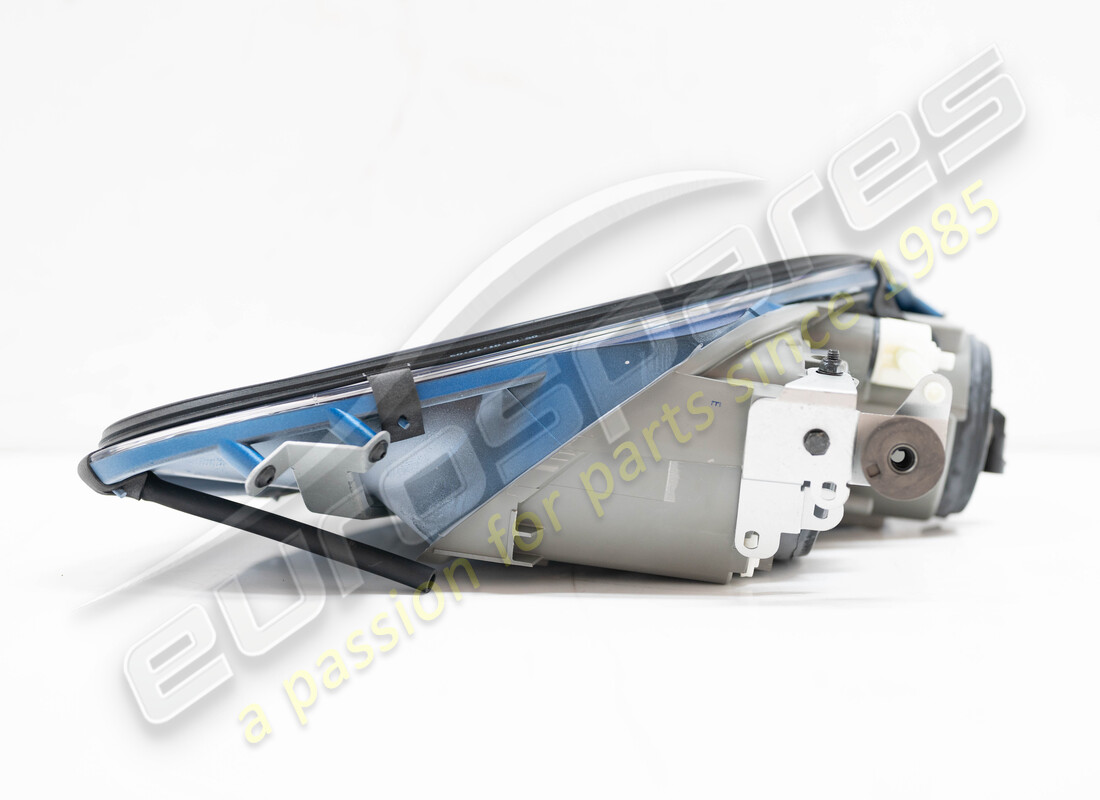

                                          # 001
                                          MPN: 65994798
                                          RH HEADLIGHT ''LAGUNA BLUE''
                                          - Gas lamps - Valid for USA and CDN
                                          # 001
                                          MPN: 65994971
                                          LH HEADLIGHT LOW/HIGH BEAM BLACK
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £2,016.00
                                          from £2,016.00
                                          # 001
                                          MPN: 65994972
                                          LH HEADLIGHT LOW/HIGH BEAM TITANIUM GREY
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,806.00
                                          from £1,806.00
                                          # 001
                                          MPN: 65994976
                                          LH HEADLIGHT LOW/HIGH BEAM ROSSO FIORANO
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,750.00
                                          from £1,750.00
                                          # 001
                                          MPN: 65994979
                                          LH HEADLIGHT LOW/HIGH BEAM NART BLUE
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,596.00
                                          from £1,596.00
                                          # 001
                                          MPN: 65994980
                                          LH HEADLIGHT LOW/HIGH BEAM CALIFORNIA LIGHT BLUE
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          Supersession
                                          Supersession
                                          # 001
                                          MPN: 65994981
                                          LH HEADLIGHT LOW/HIGH BEAM ZELTWEG GREEN
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 65994982
                                          LH HEADLIGHT LOW/HIGH BEAM BRITISH RACING GREEN
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 65994986
                                          LH HEADLIGHT LOW/HIGH BEAM DAYTONA BLACK
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £800.00
                                          from £800.00
                                          # 001
                                          MPN: 65994990
                                          LH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          Supersession
                                          Supersession
                                          # 001
                                          MPN: 65994991
                                          LH HEADLIGHT LOW/HIGH BEAM POZZI BLUE
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,843.98
                                          from £1,843.98
                                          # 001
                                          MPN: 65994992
                                          LH HEADLIGHT LOW/HIGH BEAM INGRID GREY
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 65994993
                                          LH HEADLIGHT LOW/HIGH BEAM ALLOY GREY
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 65994995
                                          LH HEADLIGHT LOW/HIGH BEAM ''LIGHT BLUE''
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 65995398
                                          LH HEADLIGHT ''LAGUNA BLUE''
                                          - Gas lamps - Valid for USA and CDN
                                          from £1,890.00
                                          from £1,890.00
                                          # 001
                                          MPN: 72000369
                                          RH HEADLIGHT LOW/HIGH BEAM CORSA RED
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,119.42
                                          from £1,119.42
                                          This part replaces part number 65994369 - and 1 more. Click to view details
                                          # 001
                                          MPN: 72000370
                                          RH HEADLIGHT LOW/HIGH BEAM MODENA YELLOW
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £2,035.31
                                          from £2,035.31
                                          This part replaces part number 65994370 - and 1 more. Click to view details
                                          # 001
                                          MPN: 72000371
                                          RH HEADLIGHT LOW/HIGH BEAM BLACK
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,931.47
                                          from £1,931.47
                                          This part replaces part number 65994371 which we have in stock - and 1 more. Click to view details
                                          # 001
                                          MPN: 72000372
                                          RH HEADLIGHT LOW/HIGH BEAM TITANIUM GREY
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,596.00
                                          from £1,596.00
                                          This part replaces part number 65994372
                                          # 001
                                          MPN: 72000376
                                          RH HEADLIGHT LOW/HIGH BEAM ROSSO FIORANO
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £2,035.31
                                          from £2,035.31
                                          This part replaces part number 65994376
                                          # 001
                                          MPN: 72000379
                                          RH HEADLIGHT LOW/HIGH BEAM NART BLUE
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,750.00
                                          from £1,750.00
                                          This part replaces part number 65994379 - and 1 more. Click to view details
                                          # 001
                                          MPN: 72000380
                                          RH HEADLIGHT LOW/HIGH BEAM CALIFORNIA LIGHT BLUE
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,995.00
                                          from £1,995.00
                                          This part replaces part number 65994380 - and 2 more. Click to view details
                                          # 001
                                          MPN: 72000390
                                          RH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,596.00
                                          from £1,596.00
                                          # 001
                                          MPN: 72000391
                                          RH HEADLIGHT LOW/HIGH BEAM POZZI BLUE
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 72000393
                                          RH HEADLIGHT LOW/HIGH BEAM ALLOY GREY
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,596.00
                                          from £1,596.00
                                          # 001
                                          MPN: 72000394
                                          RH HEADLIGHT LOW/HIGH BEAM AVUS WHITE
                                          Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £1,596.00
                                          from £1,596.00
                                          # 001
                                          MPN: 72000480
                                          LH HEADLIGHT LOW/HIGH BEAM LIGHT BLUE
                                          - Not gas lamps - Not for USA, CDN, GB, AUS and J
                                          from £2,035.31
                                          from £2,035.31
                                          This part replaces part number 65994980
                                          # 001
                                          MPN: 72001172
                                          RH HEADLIGHT ''GRIGIO TITANIUM''
                                          -Gas lamps - Not for USA, CDN, GD and J -
                                          from £2,564.85
                                          from £2,564.85
                                          This part replaces part number 65994672
                                          # 001
                                          MPN: 72001179
                                          RH HEADLIGHT BLU NART
                                          -Gas lamps - Not for USA, CDN, GD and J -
                                          from £2,230.30
                                          from £2,230.30
                                          This part replaces part number 65994679
                                          # 001
                                          MPN: 72001186
                                          RH HEADLIGHT ''NERO DAYTONA''
                                          -Gas lamps - Not for USA, CDN, GD and J -
                                          from £1,226.67
                                          from £1,226.67
                                          This part replaces part number 65994686 - and 1 more. Click to view details
                                          # 001
                                          MPN: 72001279
                                          LH HEADLIGHT BLUE NART
                                          -Gas lamps - Not for USA, CDN, GD and J
                                          from £2,395.00
                                          from £2,395.00
                                          This part replaces part number 65995279
                                          # 001
                                          MPN: 72001370
                                          RH HEADLIGHT LOW/HIGH BEAM GIALLO MODENA YELLOW
                                          -Not gas lamps - Valid for GD and J
                                          from £1,295.00
                                          from £1,295.00
                                          This part replaces part number 65994570 - and 2 more. Click to view details
                                          # 001
                                          MPN: 72001371
                                          RH HEADLIGHT ''BLACK''
                                          -Not gas lamps - Valid for GD and J -
                                          from £1,867.24
                                          from £1,867.24
                                          This part replaces part number 65994571 - and 1 more. Click to view details
                                          # 001
                                          MPN: 72001372
                                          RH HEADLIGHT LOW/HIGH BEAM GRIGIO TITANIO
                                          -Not gas lamps - Valid for GD and J
                                          from £1,596.00
                                          from £1,596.00
                                          This part replaces part number 65994572
                                          # 001
                                          MPN: 72001376
                                          RH HEADLIGHT LOW/HIGH BEAM ROSSO FIORANO RED
                                          -Not gas lamps - Valid for GD and J
                                          from £2,192.09
                                          from £2,192.09
                                          This part replaces part number 65994576 - and 1 more. Click to view details
                                          # 001
                                          MPN: 72001379
                                          RH HEADLIGHT LOW/HIGH BEAM BLUE NART BLUE
                                          -Not gas lamps - Valid for GD and J
                                          from £1,596.00
                                          from £1,596.00
                                          This part replaces part number 65994579
                                          # 001
                                          MPN: 72001390
                                          RH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
                                          -Not gas lamps - Valid for GD and J
                                          from £1,596.00
                                          from £1,596.00
                                          # 001
                                          MPN: 72001393
                                          RH HEADLIGHT LOW/HIGH BEAM GRIGIO ALLOY SILVER
                                          -Not gas lamps - Valid for GD and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 72001394
                                          RH HEADLIGHT LOW/HIGH BEAM AUVUS WHITE
                                          -Not gas lamps - Valid for GD and J
                                          from £1,596.00
                                          from £1,596.00
                                          # 001
                                          MPN: 72001395
                                          RH HEADLIGHT LOW/HIGH BEAM TOUR DE FRANCE BLUE
                                          -Not gas lamps - Valid for GD and J
                                          from £1,984.50
                                          from £1,984.50
                                          # 001
                                          MPN: 72001470
                                          LH HEADLIGHT LOW/HIGH BEAM GIALLO MODENA YELLOW
                                          -Not gas lamps - Valid for GD and J
                                          from £1,119.42
                                          from £1,119.42
                                          This part replaces part number 65995170 - and 3 more. Click to view details
                                          # 001
                                          MPN: 72001471
                                          LH HEADLIGHT ''BLACK''
                                          -Not gas lamps - Valid for GD and J -
                                          from £650.00
                                          from £650.00
                                          This part replaces part number 65995171 - and 3 more. Click to view details
                                          # 001
                                          MPN: 72001472
                                          LH HEADLIGHT LOW/HIGH BEAM GRIGIO TITANIO
                                          -Not gas lamps - Valid for GD and J
                                          from £1,701.00
                                          from £1,701.00
                                          This part replaces part number 65995172
                                          # 001
                                          MPN: 72001490
                                          LH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
                                          -Not gas lamps - Valid for GD and J
                                          from £1,701.00
                                          from £1,701.00
                                          # 001
                                          MPN: 72001493
                                          LH HEADLIGHT LOW/HIGH BEAM GRIGIO ALLOY SILVER
                                          -Not gas lamps - Valid for GD and J
                                          from £1,750.00
                                          from £1,750.00
                                          # 001
                                          MPN: 72001495
                                          LH HEADLIGHT LOW/HIGH BEAM TOUR DE FRANCE BLUE
                                          -Not gas lamps - Valid for GD and J
                                          from £1,984.50
                                          from £1,984.50
                                          # 001
                                          MPN: 72001569
                                          RH HEADLIGHT ''ROSSO CORSA''
                                          (RHD model) -
                                          from £2,230.30
                                          from £2,230.30
                                          This part replaces part number 65994869
                                          # 002
                                          MPN: 185376
                                          RH HEADLIGHT GASKET
                                          from £49.65
                                          from £49.65
                                          # 002
                                          MPN: 185377
                                          LH HEADLIGHT GASKET
                                          from £49.65
                                          from £49.65
                                          # 003
                                          MPN: 157513
                                          RH INNER REAR LIGHT
                                          - Not for USA and CDN
                                          from £250.00
                                          from £250.00
                                          # 003
                                          MPN: 157514
                                          LH INNER REAR LIGHT
                                          - Not for USA and CDN
                                          from £230.59
                                          from £230.59
                                          # 003
                                          MPN: 157524
                                          RH INNER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £279.50
                                          from £279.50
                                          # 003
                                          MPN: 157525
                                          LH INNER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £279.50
                                          from £279.50
                                          # 004
                                          MPN: 157515
                                          RH OUTER REAR LIGHT
                                          - Not for USA and CDN
                                          from £153.73
                                          from £153.73
                                          # 004
                                          MPN: 157516
                                          LH OUTER REAR LIGHT
                                          - Not for USA and CDN
                                          from £153.73
                                          from £153.73
                                          # 004
                                          MPN: 157522
                                          RH OUTER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £103.95
                                          from £103.95
                                          # 004
                                          MPN: 157523
                                          LH OUTER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £271.51
                                          from £271.51
                                          # 005
                                          MPN: 102741
                                          NUT
                                          from £0.48
                                          from £0.48
                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                          # 006
                                          MPN: 10519424
                                          WASHER
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                          # 007
                                          MPN: 165558
                                          FRONT SIDE DIRECTION LIGHT
                                          - Not for J
                                          from £10.17
                                          from £10.17
                                          This part replaces part number 180415 - and 3 more. Click to view details
                                          # 007
                                          MPN: 180415
                                          FRONT SIDE DIRECTION LIGHT
                                          - Valid for J - Not as spare part - Replaced by 165558
                                          Supersession
                                          Supersession
                                          # 008
                                          MPN: 241531
                                          ADDITIONAL STOP LIGHT
                                          from £135.75
                                          from £135.75
                                          This part replaces part number 164434 - and 1 more. Click to view details
                                          # 009
                                          MPN: 10794014
                                          NUT
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 10794034
                                          # 010
                                          MPN: 10615274
                                          WASHER
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 10615270 - and 2 more. Click to view details
                                          # 011
                                          MPN: 64865900
                                          RH BRACKET
                                          from £2.72
                                          from £2.72
                                          # 012
                                          MPN: 64866000
                                          LH BRACKET
                                          from £2.72
                                          from £2.72
                                          # 013
                                          MPN: 16286027
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          # 014
                                          MPN: 65520000
                                          FRONT FIXING BRACKET
                                          from £1.05
                                          from £1.05
                                          # 015
                                          MPN: 10977524
                                          SCREW
                                          from £0.48
                                          from £0.48
                                          # 016
                                          MPN: 12640677
                                          WASHER
                                          not as spare part - use part number: 12640678
                                          Supersession
                                          Supersession
                                          This part replaces part number 12640606 - and 1 more. Click to view details
                                          # 017
                                          MPN: 140594
                                          REAR SIDE - MARKER LAMP
                                          - Valid for USA and CDN
                                          from £23.15
                                          from £23.15
                                          # 017
                                          MPN: 147563
                                          FRONT SIDE - MARKER LAMP
                                          - Valid for USA and CDN
                                          from £23.15
                                          from £23.15
                                          # 018
                                          MPN: 65164700
                                          HEADLIGHTS WASHER PUMP
                                          - Valid for cars with headlights washer
                                          from £41.52
                                          from £41.52
                                          # 019
                                          MPN: 65511700
                                          GASKET
                                          - Valid for cars with headlights washer
                                          from £3.48
                                          from £3.48
                                          # 020
                                          MPN: 65363000
                                          HEADLIGHTS WASHER PIPE ASSEMBLY
                                          - Valid for cars with headlights washer
                                          from £69.83
                                          from £69.83
                                          # 021
                                          MPN: 65380000
                                          HEADLIGHTS WASHER FIXED BODY
                                          - Valid for cars with headlights washer
                                          from £129.14
                                          from £129.14
                                          # 022
                                          MPN: 65380100
                                          LH HEADLIGHTS WASHER MOBILE BODY
                                          - Valid for cars with headlights washer
                                          from £21.02
                                          from £21.02
                                          # 022
                                          MPN: 65667200
                                          RH HEADLIGHTS WASHER MOBILE BODY
                                          - Valid for cars with headlights washer
                                          from £21.02
                                          from £21.02
                                          # 023
                                          MPN: 15517201
                                          SCREW
                                          - Valid for cars with headlights washer
                                          from £0.47
                                          from £0.47
                                          # 024
                                          MPN: 65896600
                                          RH SUPPORT
                                          - Valid for cars with headlights washer
                                          from £169.87
                                          from £169.87
                                          # 024
                                          MPN: 65896700
                                          LH SUPPORT
                                          - Valid for cars with headlights washer
                                          from £169.87
                                          from £169.87
                                          # 025
                                          MPN: 65896400
                                          RH PLUG
                                          - Valid for cars with headlights washer
                                          from £35.13
                                          from £35.13
                                          # 025
                                          MPN: 65896500
                                          LH PLUG
                                          - Valid for cars with headlights washer
                                          from £35.13
                                          from £35.13
                                          # 026
                                          MPN: 10441590
                                          BRACKET
                                          - Valid for cars with headlights washer
                                          from £0.48
                                          from £0.48
                                          This part replaces part number 10113600
                                          # 027
                                          MPN: 14296191
                                          RIVET
                                          - Valid for cars with headlights washer
                                          from £0.53
                                          from £0.53
                                          # 028
                                          MPN: 65161500
                                          R. H. FRONT SIDE LIGHT SUPPORT
                                          from £49.80
                                          from £49.80
                                          # 028
                                          MPN: 65161700
                                          L. H. FRONT SIDE LIGHT SUPPORT
                                          from £34.91
                                          from £34.91
                                          # 029
                                          MPN: 10902424
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 10902324 - and 3 more. Click to view details
                                          # 030
                                          MPN: 116413
                                          WASHER
                                          from £0.64
                                          from £0.64
                                          # 031
                                          MPN: 63234200
                                          SCREW
                                          from £0.64
                                          from £0.64
                                          # 032
                                          MPN: 12646801
                                          WASHER
                                          from £0.78
                                          from £0.78
                                          This part replaces part number 12644682
                                          # 033
                                          MPN: 185378
                                          CLIP
                                          from £7.04
                                          from £7.04
                                          # 034
                                          MPN: 183672
                                          BULB
                                          - For gas lamps
                                          from £164.54
                                          from £164.54
                                          # 035
                                          MPN: 65705500
                                          RH BRACKET
                                          - For gas lamps
                                          from £38.68
                                          from £38.68
                                          # 035
                                          MPN: 65705600
                                          LH BRACKET
                                          - For gas lamps
                                          from £21.27
                                          from £21.27
                                          # 036
                                          MPN: 65705400
                                          BRACKET
                                          - For gas lamps
                                          from £2.92
                                          from £2.92
                                          # 037
                                          MPN: 185554
                                          FRONT LIGHT CONTROL STATION
                                          - For gas lamps
                                          from £1,500.66
                                          from £1,500.66
                                          # 038
                                          MPN: 155751
                                          CLIP
                                          - Valid for USA and CDN
                                          from £2.37
                                          from £2.37
                                          # 039
                                          MPN: 14084111
                                          NUT
                                          - Valid for USA and CDN
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 14084100
                                          # 040
                                          MPN: 12638124
                                          WASHER
                                          - Valid for USA and CDN
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                          # 041
                                          MPN: 66120200
                                          Insulation
                                          from £88.24
                                          from £88.24
                                          # 042
                                          MPN: 14190190
                                          NUT WITH CAGE
                                          from £1.08
                                          from £1.08
                                          # 043
                                          MPN: 64529600
                                          SPACER
                                          from £0.84
                                          from £0.84
