141 - Shields - Outside Finishing

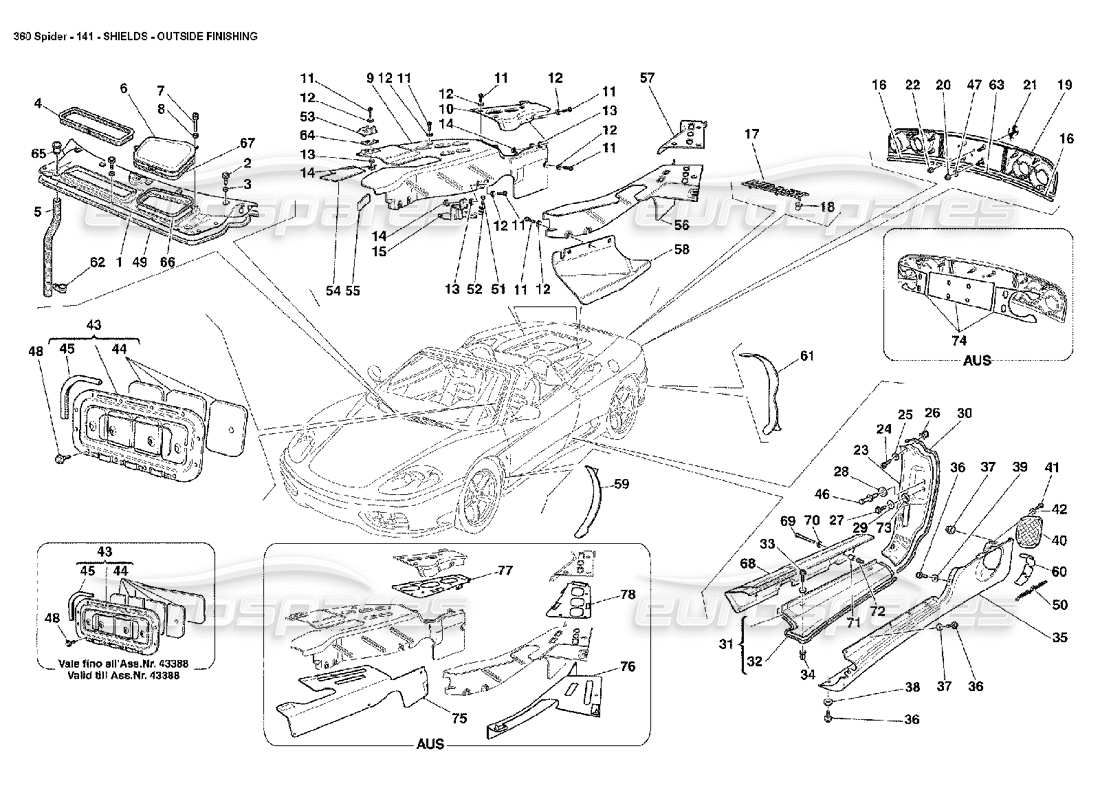

Ferrari 360 Spider Shields - Outside Finishing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65544100
WINDSHIELD PLATE
- Not for GD
from £118.32
from £118.32
# 001
MPN: 65875200
WINDSHIELD PLATE
- Valid for GD
from £144.91
from £144.91
# 002
MPN: 64830600
SCREW
from £0.89
from £0.89
This part replaces part number 64882800 - and 1 more. Click to view details
# 003
MPN: 65545900
WASHER
from £1.66
from £1.66
This part replaces part number 86211600
# 004
MPN: 65750900
GASKET
from £19.17
from £19.17
# 005
MPN: 65992600
WATER EXHAUST TUBE
from £2.54
from £2.54
# 006
MPN: 65064300
OIL TANK COMPARTMENT COVER
- Not for GD
from £20.39
from £20.39
# 006
MPN: 65875400
OIL TANK COMPARTMENT COVER
- Valid for GD
from £18.40
from £18.40
# 007
MPN: 65750300
THREADED PIN
from £4.96
from £4.96
# 008
MPN: 14496478
WASHER
from £0.71
from £0.71
# 009
MPN: 66155500
RH SHIELD FIXED
from £315.41
from £315.41
# 010
MPN: 66155600
RH SHIELD MOVABLE
from £197.14
from £197.14
# 011
MPN: 62940900
SCREW
from £0.73
from £0.73
This part replaces part number 67352400
# 012
MPN: 12647777
WASHER
See also 12647778
from £0.71
from £0.71
# 012
MPN: 12647778
WASHER
from £0.47
from £0.47
This part replaces part number 12647777 which we have in stock
# 013
MPN: 65841100
WASHER
from £0.57
from £0.57
# 014
MPN: 60659100
NUT WITH CAGE
from £0.47
from £0.47
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 015
MPN: 186270
RH BRACKET
from £5.83
from £5.83
# 016
MPN: 65856400
RUBBER PROFILE
- Not as spare part for USA and CDN
from £41.09
from £41.09
# 017
MPN: 60307006
Ferrari SCRIPT
3 PIN
from £111.52
from £111.52
# 017
MPN: 61025000
Ferrari MARK
(2 Pin)
from £31.84
from £31.84
This part replaces part number 30028500 which we have in stock - and 3 more. Click to view details
# 018
MPN: 60324506
SAFETY CLIP
from £1.56
from £1.56
This part replaces part number 62773000
# 019
MPN: 65001510
COMPLETE REAR SIDE COVERING
(painted in red)
from £214.53
from £214.53
This part replaces part number 65001570 - and 55 more. Click to view details
# 019
MPN: 65919700
CHALLENGE GRILL DRILLED
(steel type)
from £1,835.15
from £1,835.15
# 020
MPN: 14059211
NUT
from £0.47
from £0.47
# 021
MPN: 64865600
CAVALLINO RAMPANTE
from £47.29
from £47.29
# 022
MPN: 14084011
NUT
from £0.53
from £0.53
# 023
MPN: 64858800
RH STRIP COVER
- Not for GD
from £68.25
from £68.25
# 023
MPN: 64858900
LH STRIP COVER
- Not for GD
from £60.90
from £60.90
# 023
MPN: 65536500
LH STRIP COVER
-Valid for GD - Not as spare part - use part number: 65536511
from £183.75
from £183.75
# 023
MPN: 65536511
LH STRIP COVER
-Valid for GD
from £54.42
from £54.42
This part replaces part number 65536500 which we have in stock - and 1 more. Click to view details
# 023
MPN: 65536600
RH STRIP COVER
- Valid for GD
Supersession
Supersession
# 024
MPN: 15688175
SCREW
from £0.47
from £0.47
This part replaces part number 15688108
# 025
MPN: 12637878
WASHER
from £0.47
from £0.47
This part replaces part number 12637806
# 026
MPN: 14201980
BLOCK
from £0.47
from £0.47
# 027
MPN: 62940900
SCREW
from £0.73
from £0.73
This part replaces part number 67352400
# 028
MPN: 66751900
WASHER
from £0.85
from £0.85
# 029
MPN: 12648978
WASHER
from £0.47
from £0.47
This part replaces part number 12643770 which we have in stock
# 030
MPN: 64859000
RUBBER PROFILE
from £24.30
from £24.30
This part replaces part number 65858400
# 031
MPN: 65525000
COMPLETE RH KICK PLATE
Supersession
Supersession
# 031
MPN: 68146600
COMPLETE LH KICK PLATE
from £150.84
from £150.84
This part replaces part number 65525100 - and 2 more. Click to view details
# 031
MPN: FSIL002
CARBON FIBRE KICK PLATE SET
(includes LH and RH kick plate)
# 032
MPN: 65858500
RUBBER PROFILE
from £26.43
from £26.43
This part replaces part number 69356300
# 033
MPN: 15688875
SCREW
from £0.53
from £0.53
This part replaces part number 15688814
# 034
MPN: 14115480
BLOCK
from £0.47
from £0.47
# 035
MPN: 66099410
RH UNDERDOOR COVERING
from £353.41
from £353.41
This part replaces part number 65015010 - and 2 more. Click to view details
# 035
MPN: 66099510
LH UNDERDOOR COVERING
from £353.41
from £353.41
This part replaces part number 65015110 - and 1 more. Click to view details
# 036
MPN: 64830600
SCREW
from £0.88
from £0.88
This part replaces part number 64882800 - and 1 more. Click to view details
# 037
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.50
from £0.50
This part replaces part number 12643777 - and 1 more. Click to view details
# 038
MPN: 12640677
WASHER
not as spare part - use part number: 12640678
Supersession
Supersession
This part replaces part number 12640606 - and 1 more. Click to view details
# 039
MPN: 13046114
NUT
from £0.47
from £0.47
# 040
MPN: 66079500
RH LOWER AIR INTAKE GRILLE
from £50.74
from £50.74
# 040
MPN: 66079600
LH LOWER AIR INTAKE GRILLE
from £27.91
from £27.91
# 041
MPN: 15688075
SCREW
from £0.47
from £0.47
This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
# 042
MPN: 14496277
WASHER
from £0.47
from £0.47
# 043
MPN: 66208600
COMPLETE ENGINE INSPECTION PANEL
- Valid till Ass. Nr. 43388
# 043
MPN: 66236100
COMPLETE ENGINE INSPECTION PANEL
- Valid from Ass. Nr. 36867 - Not as spare part - Replaced by 68093000
from £110.20
from £110.20
# 043
MPN: 68093000
COMPLETE ENGINE INSPECTION PANEL
from £414.75
from £414.75
# 044
MPN: 66208300
CENTRAL INSULATION
- Valid till Ass. Nr. 43388
Supersession
Supersession
# 044
MPN: 66208400
RH AND LH INSULATION
- Valid till Ass. Nr. 43388
Supersession
Supersession
# 044
MPN: 66208500
INSULATION FOR COVER
- Valid till Ass. Nr. 43388
Supersession
Supersession
# 044
MPN: 66215900
RH INSULATION
- Valid from Ass. Nr. 43389 - Not as spare part - Replaced by 68088100
Supersession
Supersession
This part replaces part number 66208300
# 044
MPN: 66216000
LH INSULATION
- Valid from Ass. Nr. 43389 - Not as spare part - Replaced by 68088100
Supersession
Supersession
This part replaces part number 66208400
# 044
MPN: 66216100
CENTRAL INSULATION
- Valid from Ass. Nr. 43389 - Not as spare part - Replaced by 68088100
Supersession
Supersession
This part replaces part number 66208500
# 044
MPN: 68088100
Insulation
from £128.30
from £128.30
This part replaces part number 66215900 - and 2 more. Click to view details
# 045
MPN: 65387300
GASKET
from £12.65
from £12.65
# 046
MPN: 65305800
STRIKER
from £10.20
from £10.20
# 047
MPN: 119365
WASHER
from £4.09
from £4.09
# 048
MPN: 16297024
SCREW
from £0.47
from £0.47
# 049
MPN: 65841800
GASKET
from £3.35
from £3.35
# 050
MPN: 64780500
PININFARINA ORNAMENT
from £32.85
from £32.85
# 051
MPN: 10902424
SCREW
from £0.52
from £0.52
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 052
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 053
MPN: 66215400
PAD
from £20.24
from £20.24
# 054
MPN: 66294800
PANEL INSULATION
from £17.16
from £17.16
# 055
MPN: 66216600
ANTI - VIBRATIONS
from £16.92
from £16.92
# 056
MPN: 66155700
LH SHIELD FIXED
from £201.69
from £201.69
# 057
MPN: 66155800
LH SHIELD MOVABLE
from £229.19
from £229.19
# 058
MPN: 183884
RH SHIELD FOR CONTROL UNITS PROTECTION
from £64.86
from £64.86
# 058
MPN: 183885
LH SHIELD FOR CONTROL UNITS PROTECTION
from £185.59
from £185.59
# 059
MPN: 65971500
RH UPPER ADHESIVE TRACK CLEARER
use : 70001943
from £40.20
from £40.20
# 059
MPN: 65971600
LH UPPER ADHESIVE TRACK CLEARER
use : 70001943
from £20.33
from £20.33
# 059
MPN: 66098200
LH LOWER ADHESIVE TRACK CLEARER
use : 70001943
from £3.91
from £3.91
# 059
MPN: 66098300
RH LOWER ADHESIVE TRACK CLEARER
use : 70001943
from £3.91
from £3.91
# 060
MPN: 66076100
AIR INTAKE ADHESIVE TRACK CLEARER
use : 70001943
from £8.62
from £8.62
# 061
MPN: 65971700
RH REAR ADHESIVE TRACK CLEARER
use : 70001943
from £42.66
from £42.66
# 061
MPN: 65971800
LH REAR ADHESIVE TRACK CLEARER
use : 70001943
from £40.53
from £40.53
# 062
MPN: 10442190
BRACKET WITH SHEATH
from £0.47
from £0.47
# 063
MPN: 65856300
RUBBER PROFILE
- Not as spare part for USA and CDN
from £33.61
from £33.61
# 064
MPN: 66295800
SPACER FOR
from £3.00
from £3.00
# 065
MPN: 65004900
WATER EXHAUST TUBE
from £7.19
from £7.19
# 066
MPN: 64879700
PLATE GASKET
from £8.33
from £8.33
# 067
MPN: 64879800
GASKET
from £15.96
from £15.96
# 068
MPN: 660926
RH CROSSMEMBER COVERING
- Optional - Leather version
Supersession
Supersession
# 068
MPN: 660927..
LH CROSSMEMBER COVERING
- Optional - Leather version
Supersession
Supersession
# 069
MPN: 65071800
SCREW
- optional
from £0.65
from £0.65
# 070
MPN: 65916400
WASHER
- optional
from £0.47
from £0.47
This part replaces part number 65754000
# 071
MPN: 66093900
SPACER
- optional
from £1.05
from £1.05
# 072
MPN: 66759600
THREADED INSERT
- optional
from £1.53
from £1.53
# 073
MPN: 63314400
WASHER
from £0.47
from £0.47
# 074
MPN: 68456800
INSULATION ASSEMBLY FOR REAR UPHOLSTERY
- Valid from Nr.53911 for AUS - With drilled complete rear side covering - Optional
from £529.52
from £529.52
# 074
MPN: 68458600
INSULATION ASSEMBLY FOR REAR UPHOLSTERY
- Valid from Nr.53911 for AUS
from £458.04
from £458.04
# 075
MPN: 68457300
RH SHIELD INSULATION
- Valid from Nr.53911 for AUS
from £641.72
from £641.72
# 076
MPN: 68457400
LH SHIELD INSULATION
- Valid from Nr.53911 for AUS
from £641.72
from £641.72
# 077
MPN: 68457500
RH SHIELD INSULATION
- Valid from Nr.53911 for AUS
from £641.42
from £641.42
# 078
MPN: 68457600
LH SHIELD INSULATION
- Valid from Nr.53911 for AUS
from £641.42
from £641.42
