146 - Rear Passengers Compartment Control Stations

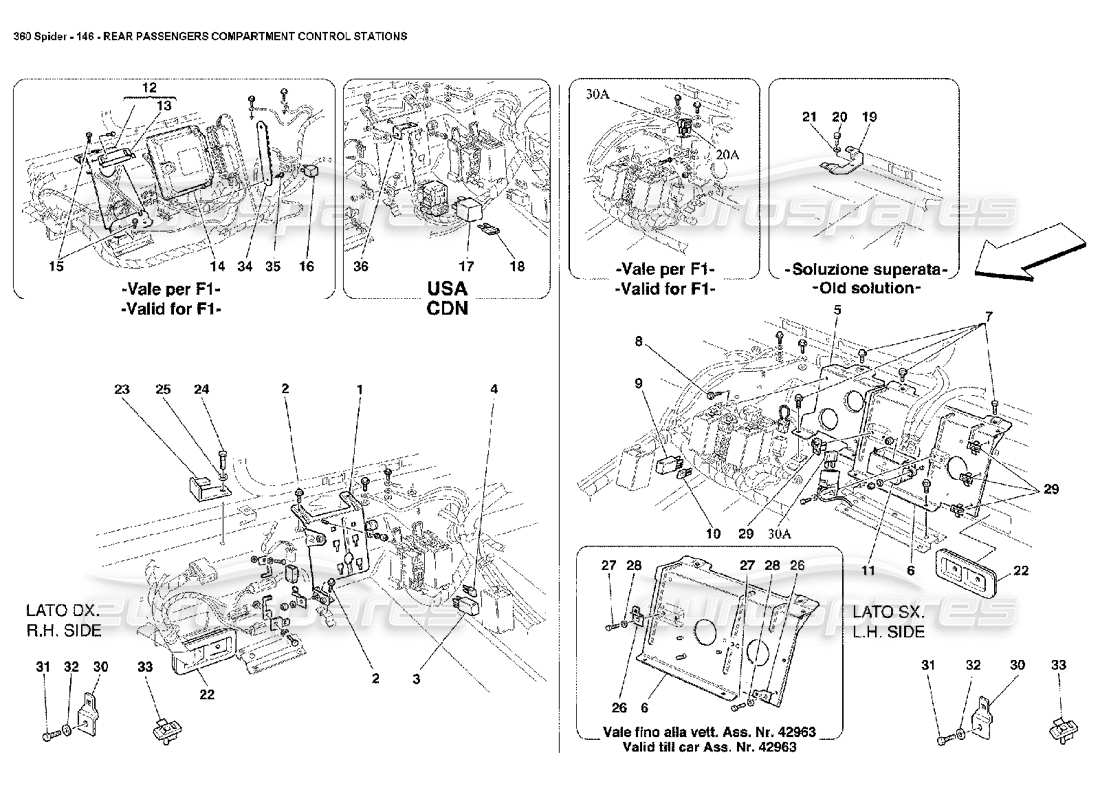

Ferrari 360 Spider Rear Passengers Compartment Control Stations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65312600
RH SIDE BRACKET FOR CONTROL UNIT FIXING
from £12.45
from £12.45
# 002
MPN: 16286024
SCREW
from £0.51
from £0.51
# 003
MPN: 161590

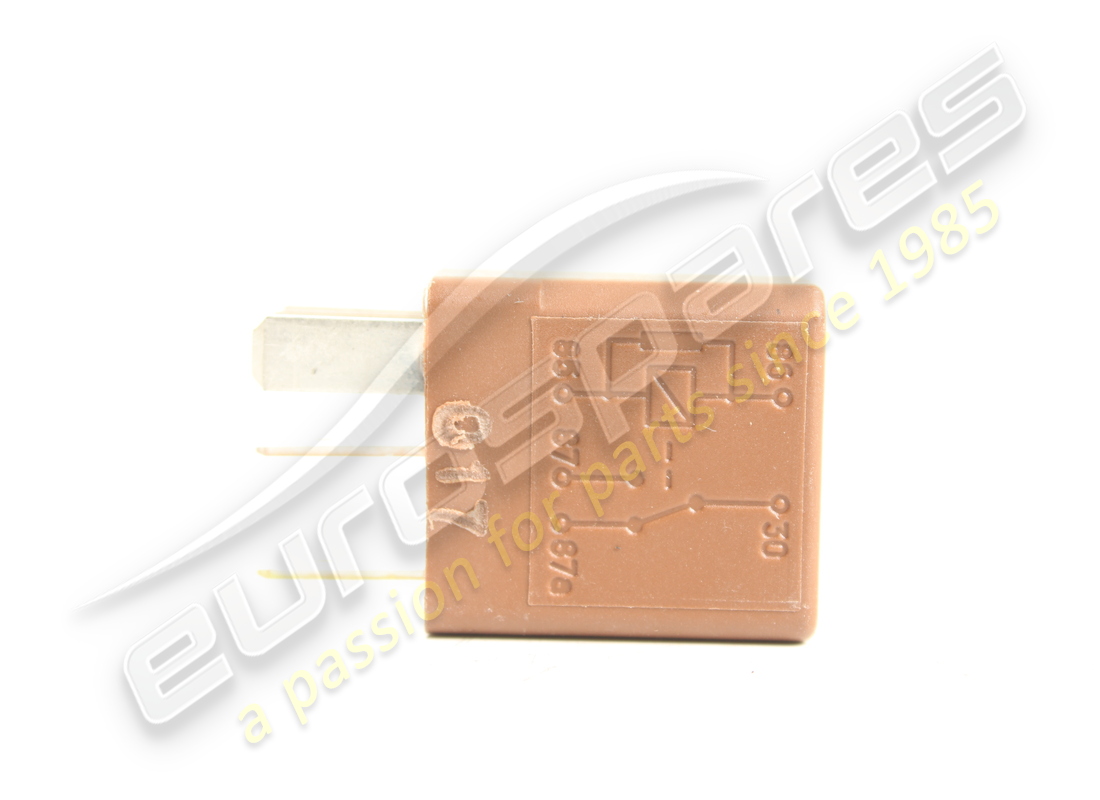

MICRO - RELAY 20 A.
from £14.28
from £14.28
# 003
MPN: 172882
MICRO - RELAY 30 A.
from £10.37
from £10.37
# 003
MPN: 177761

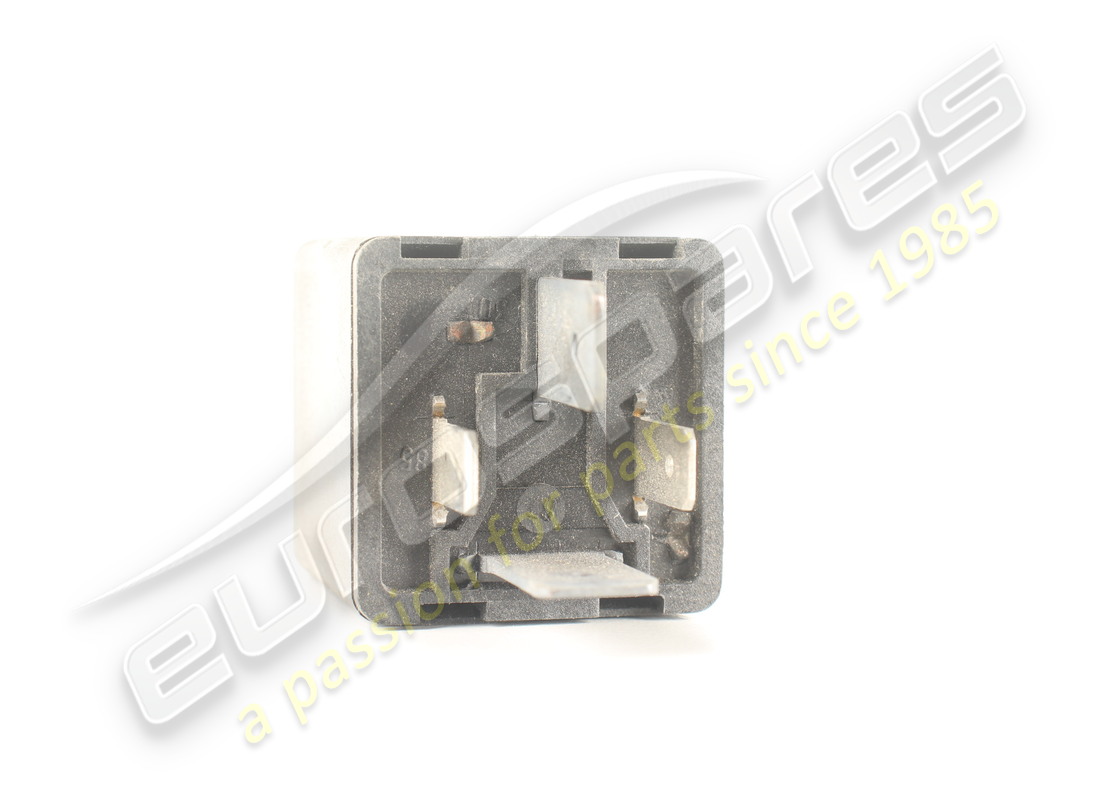

RELAY 50 A.
- Valid for USA and CDN
from £33.96
from £33.96
# 004
MPN: 172875
FUSE 5 A.
from £5.82
from £5.82
# 004
MPN: 172876
FUSE 7,5 A.
from £5.90
from £5.90
# 004
MPN: 172877
FUSE 10 A.
from £6.11
from £6.11
# 004
MPN: 172878
FUSE 15 A.
from £4.15
from £4.15
# 004
MPN: 172879
FUSE 20 A.
from £4.86
from £4.86
# 004
MPN: 172881
FUSE 30 A.
from £5.90
from £5.90
# 005
MPN: 65312800
LH SIDE BRACKET FOR CONTROL UNIT FIXING
from £4.22
from £4.22
# 006
MPN: 65319600
LH SIDE BRACKET FOR TERMINAL BOX FIXING
- Not as spare part - Replaced by 65792800
from £21.06
from £21.06
# 006
MPN: 65792800
LH SIDE BRACKET FOR TERMINAL BOX FIXING
- Valid till car Ass. Nr. 42963
from £45.29
from £45.29
This part replaces part number 65319600 which we have in stock
# 006
MPN: 66765200
LH SIDE BRACKET FOR TERMINAL BOX FIXING
- Valid from car Ass. Nr. 42964
from £46.23
from £46.23
# 007
MPN: 16286024
SCREW
from £0.49
from £0.49
# 008
MPN: 16286024
SCREW
from £0.53
from £0.53
# 009
MPN: 161590
MICRO - RELAY 20 A.
from £14.28
from £14.28
# 009
MPN: 172882
MICRO - RELAY 30 A.
from £10.37
from £10.37
# 009
MPN: 227285
MICRO - RELAY 20/10 A.
from £15.09
from £15.09
This part replaces part number 161591 which we have in stock
# 010
MPN: 172875
FUSE 5 A.
from £5.82
from £5.82
# 010
MPN: 172876
FUSE 7,5 A.
from £5.90
from £5.90
# 010
MPN: 172877
FUSE 10 A.
from £6.11
from £6.11
# 010
MPN: 172878
FUSE 15 A.
from £4.15
from £4.15
# 010
MPN: 172880
FUSE 25 A.
from £4.86
from £4.86
# 010
MPN: 172881
FUSE 30 A.
from £5.90
from £5.90
# 011
MPN: 170114
COMPLETE TERMINAL BOX
from £7.85
from £7.85
This part replaces part number 153357 - and 3 more. Click to view details
# 012
MPN: 65692900
COMPLETE RH SIDE BRACKET FOR F1 CONTROL UNIT FIXING
- Valid for F1
from £9.34
from £9.34
# 013
MPN: 65668900
BRACKET
- Valid for F1
from £188.75
from £188.75
# 014
MPN: 176552
F1 GEARBOX ELECTRONIC CONTROL STATION
Supersession
Supersession
# 014
MPN: 185741
F1 GEARBOX ELECTRONIC CONTROL STATION
Supersession
Supersession
This part replaces part number 176552
# 014
MPN: 195399
F1 GEAR - BOX ELECTRONIC CONTROL STATION
Supersession
Supersession
This part replaces part number 191701 - and 1 more. Click to view details
# 014
MPN: 211023
F1 GEARBOX ELECTRONIC CONTROL STATION
from £2,967.30
from £2,967.30
This part replaces part number 197533
# 015
MPN: 16286024
SCREW
- Valid for F1
from £0.52
from £0.52
# 016
MPN: 155437
RELAY
- Valid for F1
from £43.40
from £43.40
# 016
MPN: 194909
F1 RELAY
- Valid for F1 - not as spare part - use part number: 233100
from £8.09
from £8.09
# 017
MPN: 177761
RELAY FOR AIR PUMP
- Valid for USA MY 2000,2001, 2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £33.96
from £33.96
# 018
MPN: 170061
FUSE 50 A.
- Valid for USA MY 2000,2001, 2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
from £3.16
from £3.16
# 019
MPN: 179196
TUNNEL CAPOTE CONNECTORS FIXING BRACKET
from £3.19
from £3.19
# 020
MPN: 10902224
SCREW
from £0.53
from £0.53
# 021
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 022
MPN: 168847
INNER COMPARTMENT CABLE BUSHING
from £5.83
from £5.83
# 023
MPN: 179996
BRACKET
- Not for F1
from £3.08
from £3.08
# 024
MPN: 10902224
SCREW
- Not for F1
from £0.53
from £0.53
# 025
MPN: 12601274
WASHER
- Not for F1
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 026
MPN: 170925
CONNECTORS FIXING PLATE
- Valid till car Ass. Nr. 42963
from £1.91
from £1.91
# 027
MPN: 10902224
SCREW
- Valid till car Ass. Nr. 42963
from £0.51
from £0.51
# 028
MPN: 12601274
WASHER
- Valid till car Ass. Nr. 42963
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 029
MPN: 170301
PLASTIC CLIP
- Valid from car Ass. Nr. 42964
from £0.53
from £0.53
# 030
MPN: 170925
CONNECTORS FIXING PLATE
- Metal
from £1.91
from £1.91
# 031
MPN: 10902224
SCREW
- For bracket 170925
from £0.50
from £0.50
# 032
MPN: 12601274
WASHER
- For bracket 170925
from £0.50
from £0.50
This part replaces part number 12601221 - and 5 more. Click to view details
# 033
MPN: 188739
CLIP
- Plastic
from £0.47
from £0.47
# 034
MPN: 168438
SUPPORT
from £21.79
from £21.79
# 035
MPN: 16285924
SCREW
from £0.47
from £0.47
# 036
MPN: 195710
BRACKET
- Valid for USA and CDN
from £3.26
from £3.26
