151 - radio amplifier system

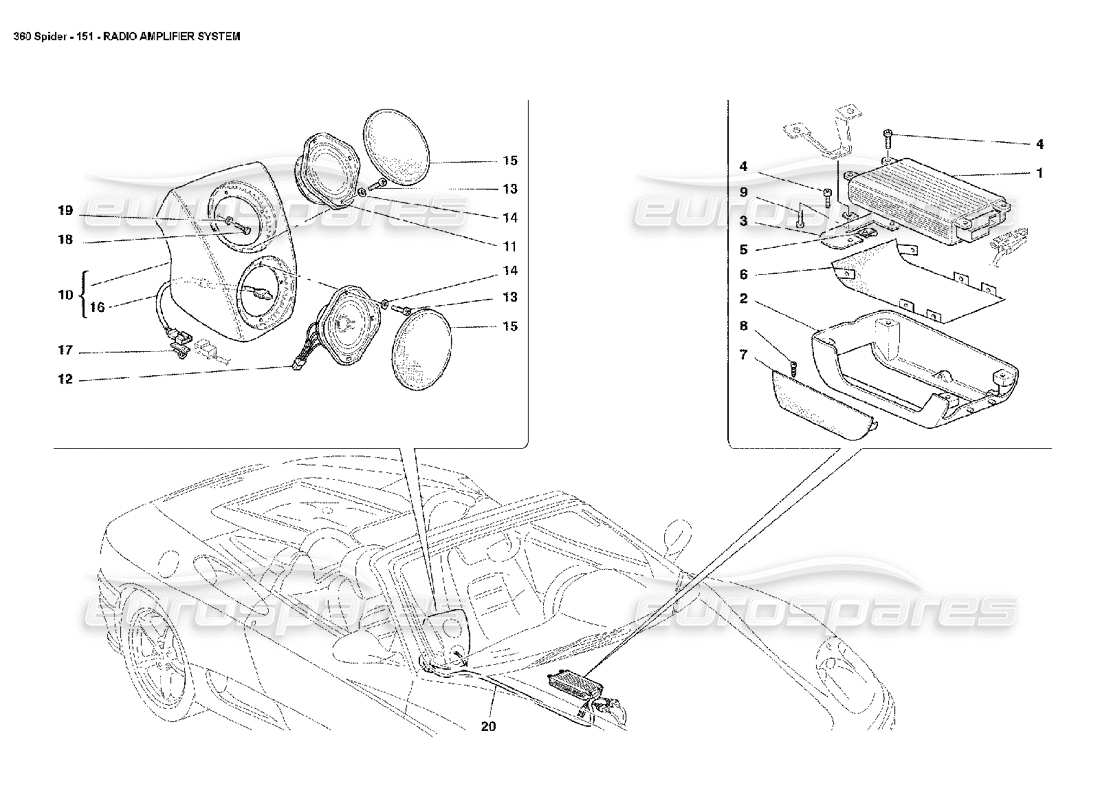

Ferrari 360 Spider Radio Amplifier System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 188900
AUDIO AMPLIFIER
from £1,870.02
from £1,870.02
# 002
MPN: 667920..
AMPLIFIER BOX
- Not as spare part for GD - Replaced by 673700..
Supersession
Supersession
# 002
MPN: 673700..
AMPLIFIER BOX
- Valid for GD
Supersession
Supersession
# 003
MPN: 66770800
BRACKET FOR FIXING AMPLIFIER
from £69.77
from £69.77
# 004
MPN: 13273977
SCREW
from £0.53
from £0.53
# 005
MPN: 14371274
BRACKET
from £0.85
from £0.85
# 006
MPN: 66771400
LOWER GRILL FOR AMPLIFIER PROTECTION
from £38.96
from £38.96
# 007
MPN: 66771500
LATERAL GRILL FOR AMPLIFIER PROTECTION
from £5.50
from £5.50
# 008
MPN: 15538601
SCREW
from £1.41
from £1.41
This part replaces part number 15583601
# 009
MPN: 13274377
SCREW
from £0.53
from £0.53
This part replaces part number 13288177
# 010
MPN: 66694400
SUBWOOFER BOX
from £805.76
from £805.76
This part replaces part number 666944..
# 011
MPN: 188609
LOUD SPEAKER SUBWOOFER WITHOUT MAGNET
from £185.19
from £185.19
# 012
MPN: 188610
LOUD SPEAKER SUBWOOFER
from £236.24
from £236.24
# 013
MPN: 13272077
SCREW
from £0.96
from £0.96
# 014
MPN: 12637878
WASHER
from £0.52
from £0.52
This part replaces part number 12637806
# 015
MPN: 66694500
LOUD SPEAKER GRILL
from £83.36
from £83.36
# 016
MPN: 190455
SUBWOOWER BOX CONNECTION CABLE
from £47.94
from £47.94
# 017
MPN: 155978
CLIP
from £0.54
from £0.54
# 018
MPN: 10903421
SCREW
from £1.07
from £1.07
# 019
MPN: 109483
WASHER
from £1.24
from £1.24
# 020
MPN: 188611
AMPLIFIER CONNECTION CABLE
- Not as spare part - Replaced by 200853
Supersession
Supersession
# 020
MPN: 216918
AMPLIFIER CONNECTION CABLE
from £65.63
from £65.63
This part replaces part number 200853 - and 1 more. Click to view details
