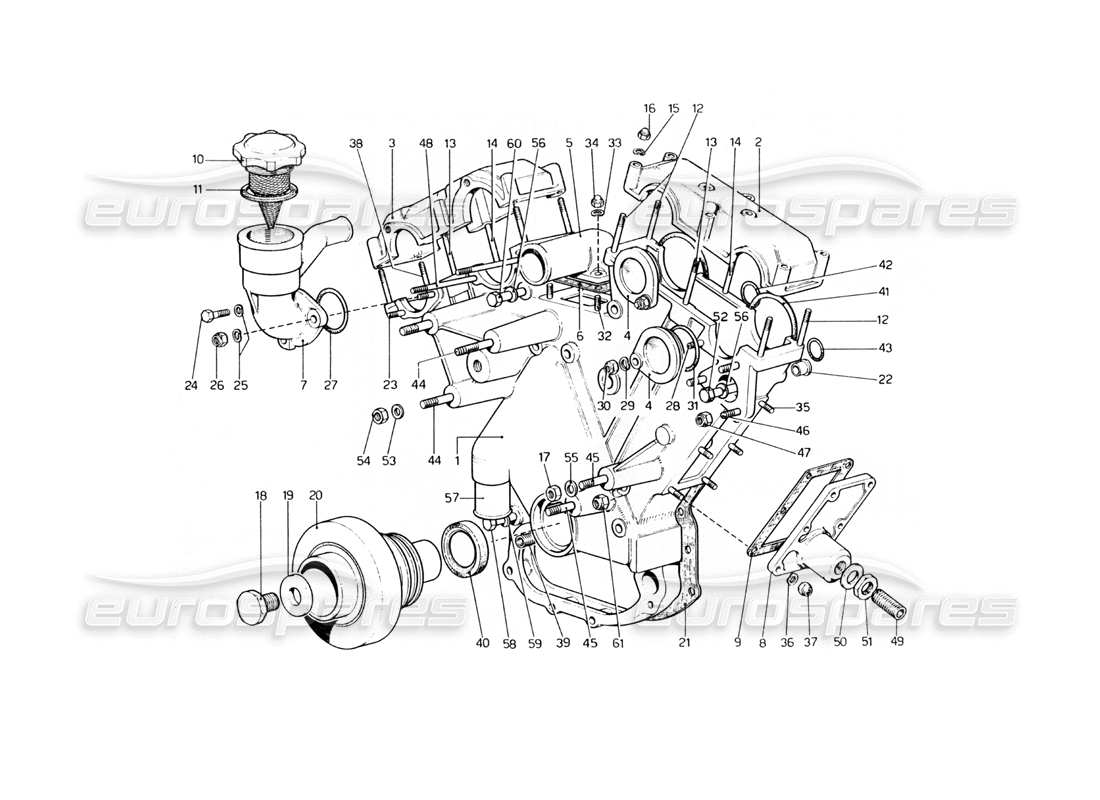

006 - timing system
Ferrari 400 GT (Mechanical) Timing System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 108796
SCATOLA DISTRIBUZIONE
Supersession
Supersession
# 001
MPN: 108888
COMPLETE DISTRIBUTION BOX
from £1,481.83
from £1,481.83
This part replaces part number 108796 - and 1 more. Click to view details
# 002
MPN: 100047
LEFT TIMING CAP
from £309.75
from £309.75
# 003
MPN: 100046
RIGHT DISTRIBUTION CAP
# 004
MPN: 100050
COVER
from £135.37
from £135.37
This part replaces part number 220481 - and 1 more. Click to view details
# 005
MPN: 100442
UNION
from £64.60
from £64.60
This part replaces part number 220476
# 006
MPN: 100443
QUARNIZIONE PER BOCCHETTONE
from £3.15
from £3.15
# 007
MPN: 100081
LOADED BODY AND ENGINE VENT
from £230.00
from £230.00
This part replaces part number 220483
# 008
MPN: 104988
COVER WITH SUPPORT FOR SKATE ADJUSTMENT
from £218.14
from £218.14
This part replaces part number 104532 - and 2 more. Click to view details
# 009
MPN: 147620

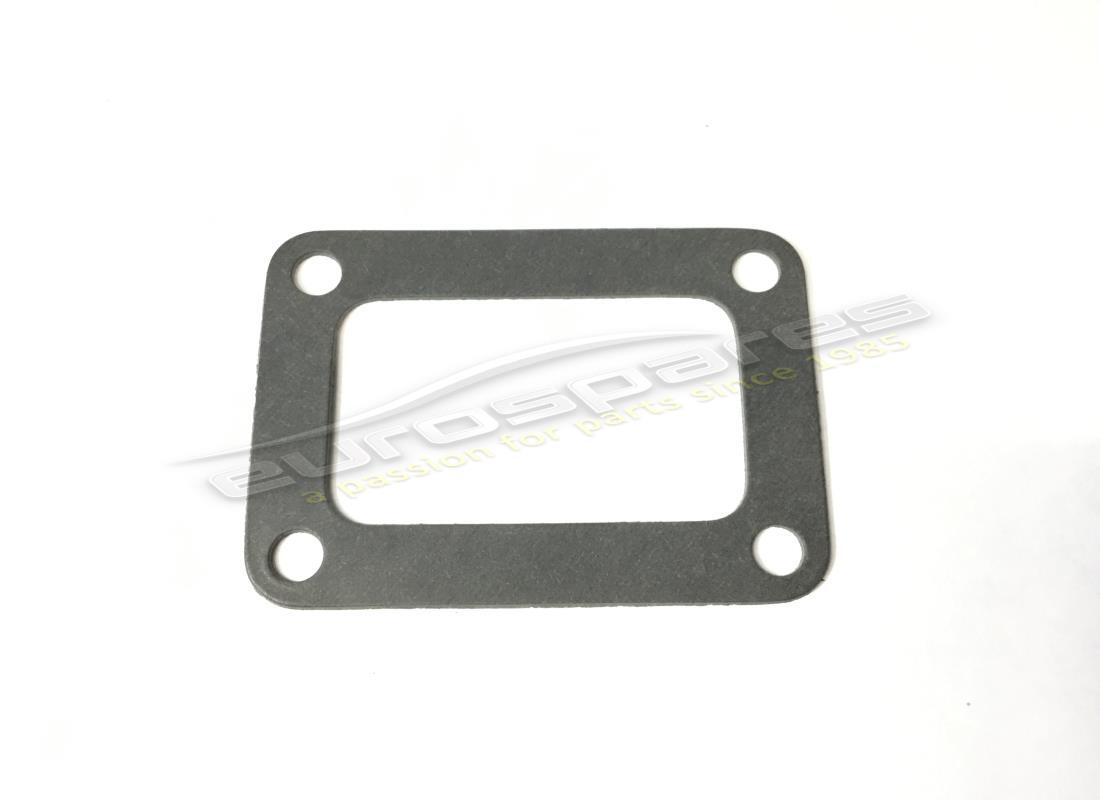

GASKET
replaces: 100225
from £4.35
from £4.35
This part replaces part number 100225
# 009
MPN: 147620
GASKET
from £4.35
from £4.35
This part replaces part number 100225
# 010
MPN: 100320
TAPPO INTRODUZIONE OLIO
from £207.90
from £207.90
This part replaces part number 220507
# 011
MPN: 100322

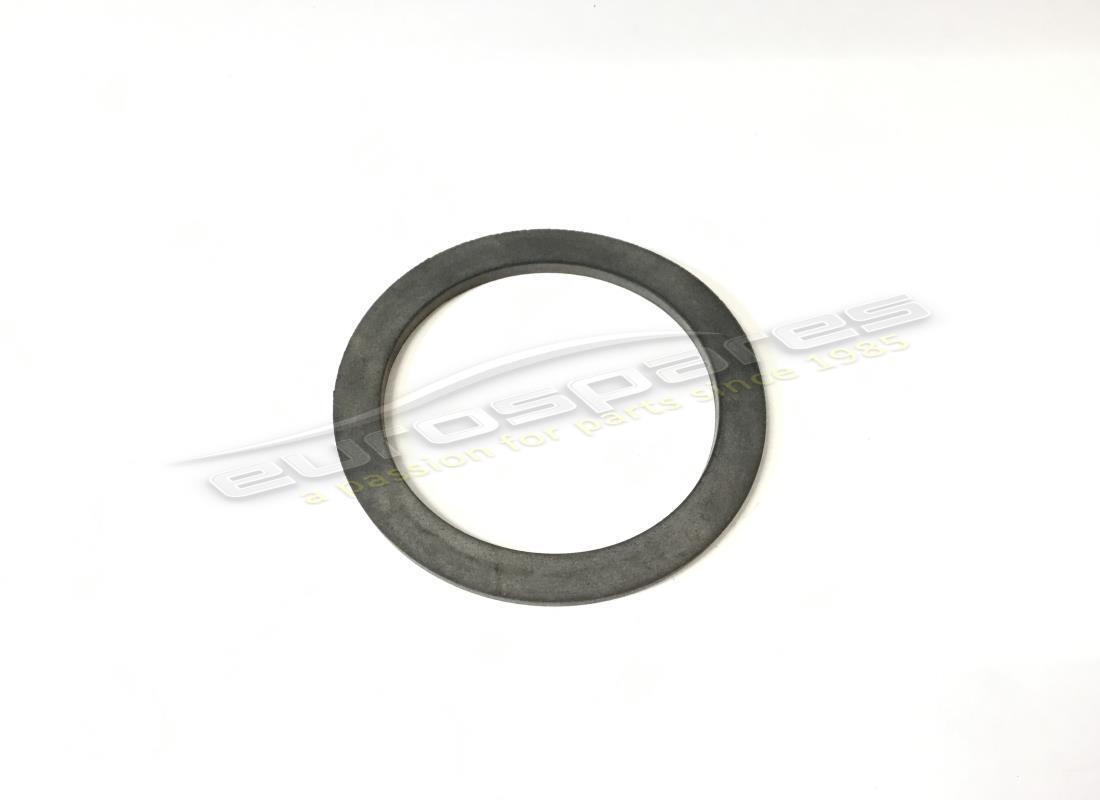

GASKET
from £8.07
from £8.07
This part replaces part number 4168814
# 012
MPN: 104185

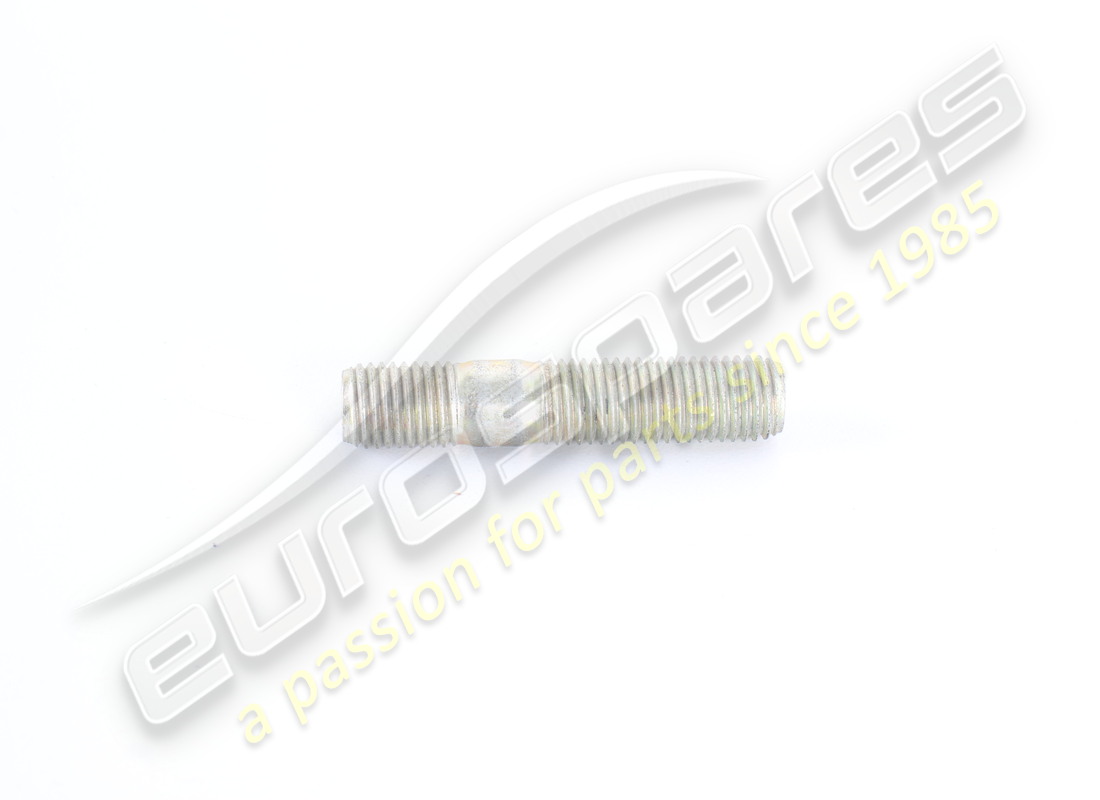

SHORT THREADED STUD
from £28.19
from £28.19
This part replaces part number P1
# 013
MPN: 100042
STUD
from £5.94
from £5.94
# 014
MPN: 100043
STUD
from £19.40
from £19.40
This part replaces part number 9220562
# 015
MPN: 12601278
WASHER
# 016
MPN: 100044
NUT
from £0.29
from £0.29
This part replaces part number 151230 - and 1 more. Click to view details
# 017
MPN: 12574521
NUT
from £0.56
from £0.56
This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
# 018
MPN: 138793
SCREW
from £98.97
from £98.97
This part replaces part number 100476 - and 2 more. Click to view details
# 019
MPN: 100477
PLATE
from £14.32
from £14.32
This part replaces part number 4229642
# 020
MPN: 100189
SMORZATORE TORSIONALE
from £891.39
from £891.39
# 021
MPN: 147612

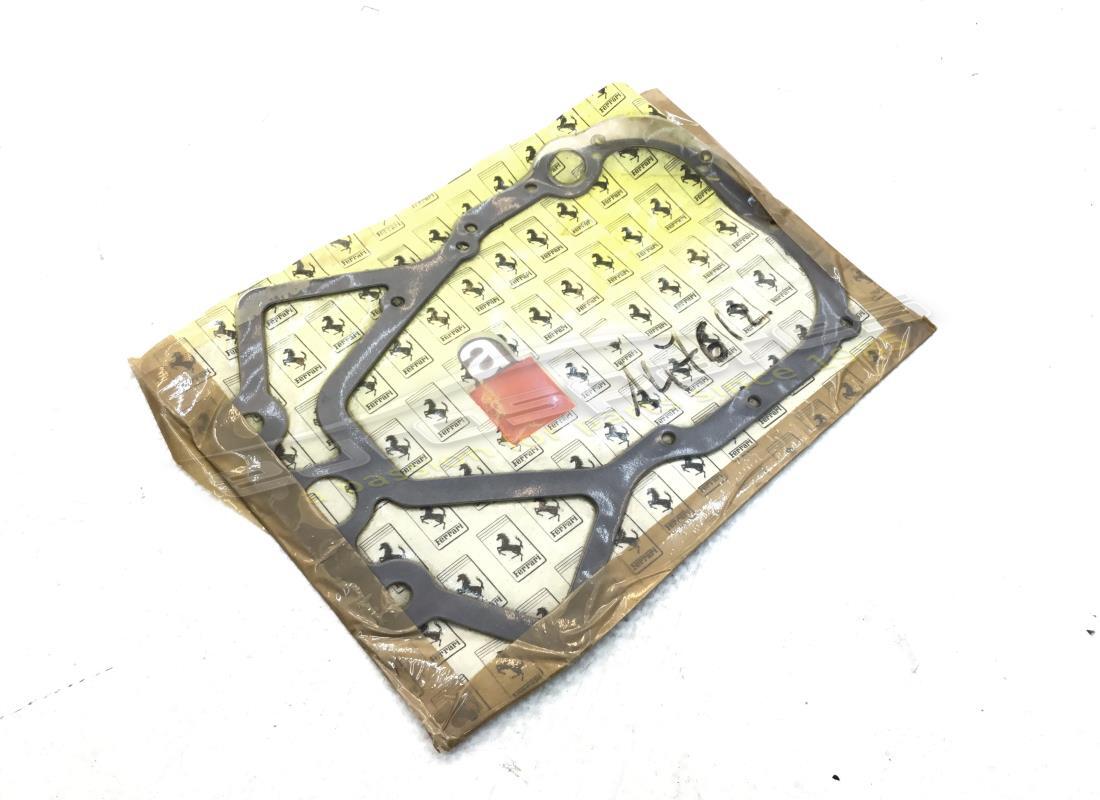

GASKET
from £22.80
from £22.80
This part replaces part number 100053 - and 1 more. Click to view details
# 022
MPN: 100103
BUSH
from £48.48
from £48.48
This part replaces part number 220206
# 023
MPN: 13541124
STUD
from £12.30
from £12.30
This part replaces part number 13541121
# 024
MPN: 10902421
BOLT
from £0.54
from £0.54
# 025
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 026
MPN: 12574211
NUT
from £0.71
from £0.71
# 027
MPN: 100049

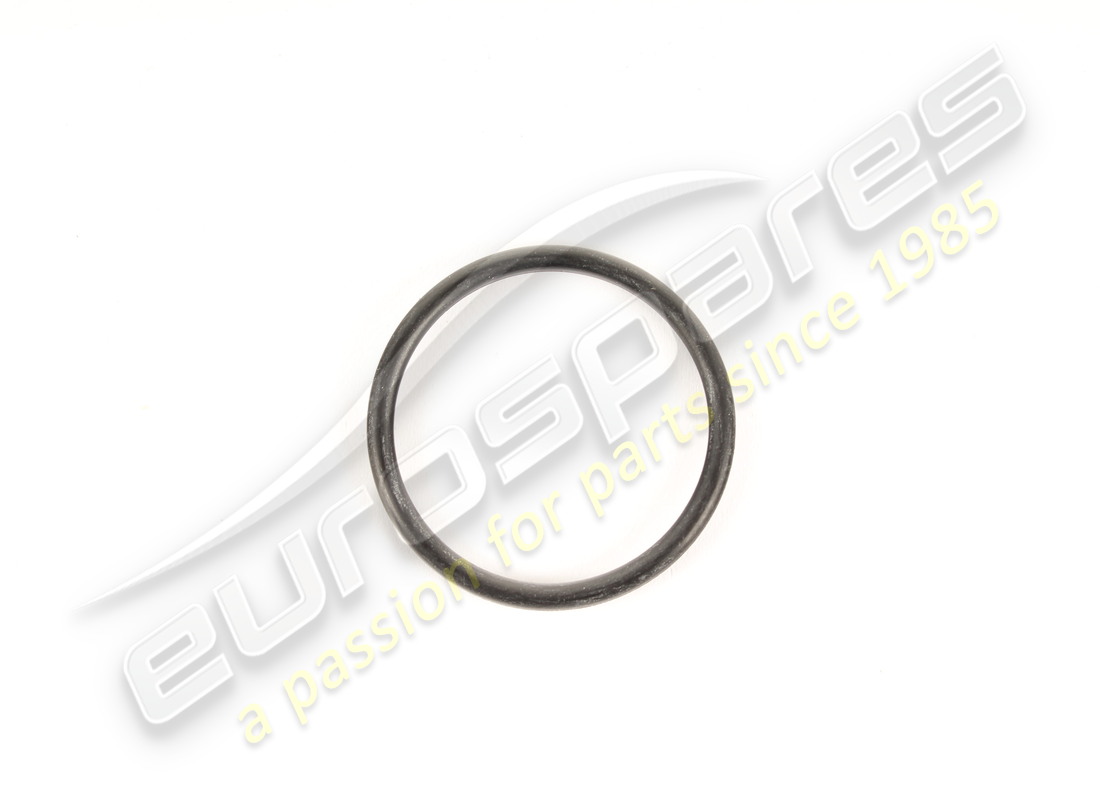

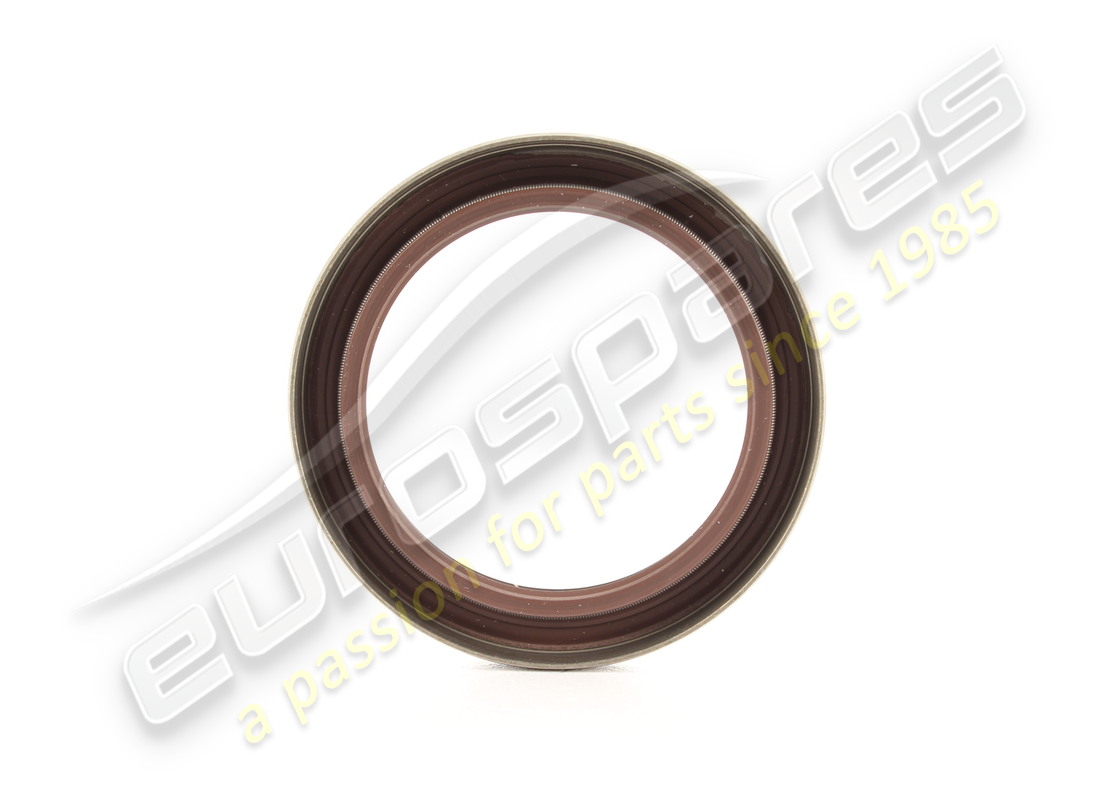

SEALING RING
from £2.37
from £2.37
This part replaces part number 4159110
# 028
MPN: 11500224
THREADED STUD
from £0.51
from £0.51
This part replaces part number 11500221 - and 1 more. Click to view details
# 029
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 030
MPN: 12574211
NUT
from £0.71
from £0.71
# 031
MPN: 100049
SEALING RING
from £2.37
from £2.37
This part replaces part number 4159110
# 032
MPN: 11500321
THREADED STUD
Supersession
Supersession
# 033
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 034
MPN: 100044
NUT
from £0.30
from £0.30
This part replaces part number 151230 - and 1 more. Click to view details
# 035
MPN: 11500521
THREADED STUD
from £1.85
from £1.85
# 036
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 037
MPN: 12574211
NUT
from £0.71
from £0.71
# 038
MPN: 102935
THREADED STUD
from £1.33
from £1.33
This part replaces part number 4161959
# 039
MPN: 101649
HELI - COIL
Supersession
Supersession
# 040
MPN: 108224
SEALING RING
In alternativa con n. 105231
from £18.64
from £18.64
This part replaces part number 105231
# 041
MPN: 101028
SEALING RING
from £3.52
from £3.52
# 042
MPN: 101027
SEALING RING
from £3.61
from £3.61
# 043
MPN: 105558
SEALING RING
from £1.12
from £1.12
This part replaces part number 101026
# 044
MPN: 13450020
THREADED STUD
from £1.23
from £1.23
# 045
MPN: 13449821
THREADED STUD
from £0.77
from £0.77
# 046
MPN: 16100814
THREADED STUD
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 047
MPN: 104030

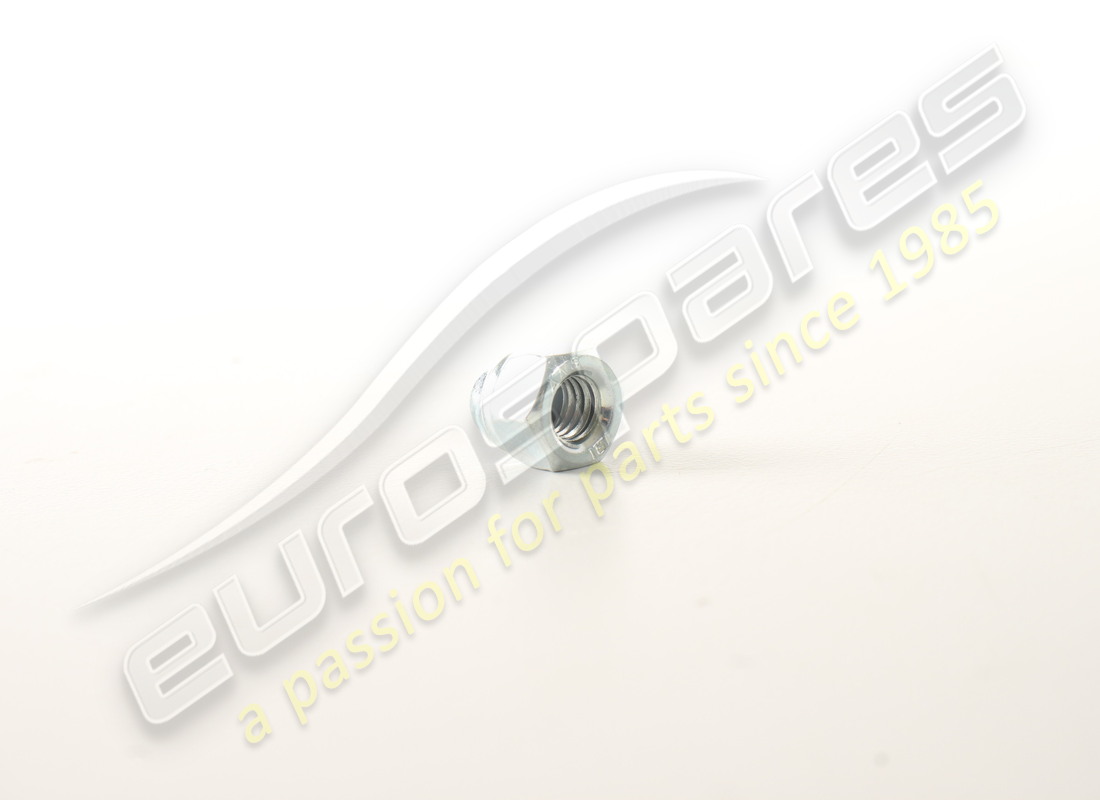

SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 048
MPN: 100496
THREADED STUD
from £2.55
from £2.55
# 049
MPN: 111012
PUNTALINO PER REGISTRO TENDICATENA
Supersession
Supersession
This part replaces part number 100223 - and 1 more. Click to view details
# 050
MPN: 12601771
GASKET
from £0.73
from £0.73
This part replaces part number 12601711
# 051
MPN: 101413
NUT
from £18.56
from £18.56
This part replaces part number 94630
# 052
MPN: 16044421
BOLT
from £1.31
from £1.31
# 053
MPN: 105391
WASHER
from £2.24
from £2.24
This part replaces part number 4124022
# 054
MPN: 12574521
NUT
from £0.55
from £0.55
This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
# 055
MPN: 105391
WASHER
from £2.24
from £2.24
This part replaces part number 4124022
# 056
MPN: 11198074
WASHER
from £0.53
from £0.53
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 057
MPN: 100439
UNION
from £68.35
from £68.35
This part replaces part number 220491
# 058
MPN: 16044121
BOLT
from £0.71
from £0.71
This part replaces part number 11101220
# 059
MPN: 11198074
WASHER
from £0.54
from £0.54
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 060
MPN: 16044721
BOLT
from £0.83
from £0.83
# 061
MPN: 101240
SELF LOCKING NUT
from £1.30
from £1.30
-part-diagram-007.webp "FERRARI 400 GT (MECHANICAL) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 400 GT (MECHANICAL) FUEL PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 400 GT (MECHANICAL) FUEL TANKS AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 400 GT (MECHANICAL) AIR INTAKES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 400 GT (MECHANICAL) WEBBER CARBURETTORS (38 DCOE 110 - 111 - 110M - 111M) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 400 GT (MECHANICAL) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 400 GT (MECHANICAL) FAST IDLE DEVICE PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 400 GT (MECHANICAL) BLOW - BY SYSTEM (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 400 GT (MECHANICAL) BLOW - BY SYSTEM (400 GT) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 400 GT (MECHANICAL) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 400 GT (MECHANICAL) LUBRICATION CIRCUIT AND FILTERS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 400 GT (MECHANICAL) WATER PUMP AND ENGINE OIL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 400 GT (MECHANICAL) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 400 GT (MECHANICAL) ENGINE FLYWHEEL AND CLUTCH HOUSING SPACER (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 400 GT (MECHANICAL) AUTOMATIC TRANSMISSION (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 400 GT (MECHANICAL) VACUUME AMPLIFYING VALVE AND OIL CIRCUIT (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 400 GT (MECHANICAL) OUTSIDE GEARBOX CONTROLS (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 400 GT (MECHANICAL) CLUTCH SYSTEM AND CONTROLS (400 GT) PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 400 GT (MECHANICAL) CLUTCH RELEASE CONTROL (400 GT) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 400 GT (MECHANICAL) GEARBOX (400 GT) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 400 GT (MECHANICAL) MAIN SHAFT OIL PUMP (400 GT) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 400 GT (MECHANICAL) LAY SHAFT (400 GT) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 400 GT (MECHANICAL) INSIDE ABD OUTSIDE GEARBOX CONTROLS (400 GT) PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 400 GT (MECHANICAL) PROPELLER SHAFT PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 400 GT (MECHANICAL) DIFFERENTIAL HOUSING PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 400 GT (MECHANICAL) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULIC DRIVE (400 (AUTOMATIC) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULIC DRIVE (400 GT) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 400 GT (MECHANICAL) BRAKE BOOSTER VACUUM PUMP PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 400 GT (MECHANICAL) BRAKES SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 400 GT (MECHANICAL) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 400 GT (MECHANICAL) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 400 GT (MECHANICAL) HYDRAULIC STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 400 GT (MECHANICAL) STEERING LINKAGE PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 400 GT (MECHANICAL) STEERING CONTROLS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 400 GT (MECHANICAL) FRONT SUSPENSION - SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 400 GT (MECHANICAL) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 400 GT (MECHANICAL) REAR SUSPENSION - BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 400 GT (MECHANICAL) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 400 GT (MECHANICAL) REAR SUSPENSION - SHOCK ABSORBER AND SELF-LEVELING PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 400 GT (MECHANICAL) WHEELS PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 400 GT (MECHANICAL) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 400 GT (MECHANICAL) CURRENT GENERATOR AND STARTING MOTOR PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 400 GT (MECHANICAL) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 400 GT (MECHANICAL) SUPPLEMENTARY AIR CONDITIONG SYSTEM PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 400 GT (MECHANICAL) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 400 GT (MECHANICAL) THROTTLE CONTROL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 400 GT (MECHANICAL) CLUTCH RELEASE CONTROL (400 GT - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULIC DRIVE (400 AUTOMATIC - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULC DRIVE (400 GT - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 400 GT (MECHANICAL) FRONT AND REAR LIGHTS, HORNS AND ARIAL PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 400 GT (MECHANICAL) OUTER DOOR MIRRORS AND INTERNAL ACCESSORIES PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 400 GT (MECHANICAL) ELECTRICAL SYSTEM, FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 400 GT (MECHANICAL) SEAT BELTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 400 GT (MECHANICAL) COOLINF ELECTRIC FANS, HEATING AND WINDSCREEN WASHER PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 400 GT (MECHANICAL) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 400 GT (MECHANICAL) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 400 GT (MECHANICAL) OIL SUMP PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 400 GT (MECHANICAL) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 400 GT (MECHANICAL) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 400 GT (MECHANICAL) CYLINDR HEAD (LEFT) PARTS DIAGRAM")
