012 - throttle control

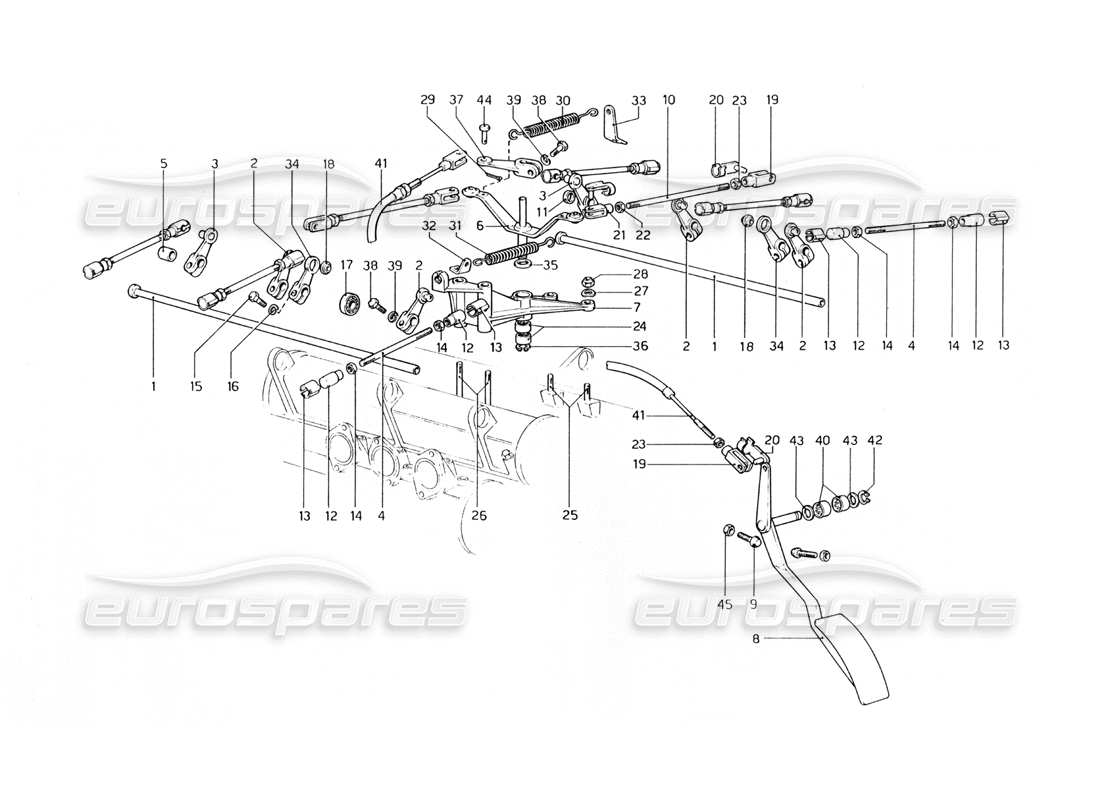

Ferrari 400 GT (Mechanical) Throttle Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 100397
ALBERINO PER LEVE COMANDO CARB.
from £13.67
from £13.67
# 002
MPN: 100399
LEVER
# 003
MPN: 100400
LEVER
Supersession
Supersession
# 004
MPN: 100402
TIE ROD
from £9.28
from £9.28
This part replaces part number 9180770 - and 1 more. Click to view details
# 005
MPN: 100403
SPACER
from £18.46
from £18.46
This part replaces part number 9181217
# 006
MPN: 109018
LEVER
from £180.29
from £180.29
# 007
MPN: 108988
SUPPORT
from £106.40
from £106.40
# 008
MPN: 108755
PEDALE ACCELERATORE
from £133.22
from £133.22
# 009
MPN: 100640
SCREW
from £3.15
from £3.15
This part replaces part number 9181141 - and 1 more. Click to view details
# 009
MPN: 110108
TIE ROD ASSEMBLY
Supersession
Supersession
# 010
MPN: 110109
TIE ROD
from £57.75
from £57.75
This part replaces part number 110108 - and 1 more. Click to view details
# 011
MPN: 100631
SPACER
from £5.94
from £5.94
This part replaces part number 9181596
# 012
MPN: 16124311
TESTINA PER TIRANTE COMANDO CARB.
# 013
MPN: 10124776
SPRING
Supersession
Supersession
# 014
MPN: 15896421
NUT
from £0.47
from £0.47
# 015
MPN: 16043421
BOLT
from £2.77
from £2.77
This part replaces part number 95524
# 016
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 - and 2 more. Click to view details
# 017
MPN: 101678
BEARING ON THE HEAD COVERS
In alternative n 114765
from £18.85
from £18.85
This part replaces part number 114765
# 018
MPN: 100423
SNODO SFERICO
from £21.11
from £21.11
# 019
MPN: 100655
FORK (RH THREAD)
from £56.31
from £56.31
This part replaces part number 550015 - and 3 more. Click to view details
# 020
MPN: 100656
PIVOT
from £2.25
from £2.25
# 021
MPN: 106119
FORK (LH THREAD)
from £11.54
from £11.54
# 022
MPN: 10727311
NUT LH THREAD
Supersession
Supersession
This part replaces part number 95560
# 023
MPN: 10725911
NUT
Supersession
Supersession
This part replaces part number 95900403
# 024
MPN: 101677
ROLLER BEARING
from £2.10
from £2.10
# 025
MPN: 11500511
SHORT THREADED STUD
from £0.49
from £0.49
# 026
MPN: 11509711
LONG THREADED STUD
from £8.08
from £8.08
# 027
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 028
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 4 more. Click to view details
# 029
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 030
MPN: 102951
SPRING
from £35.06
from £35.06
This part replaces part number 9180972 - and 1 more. Click to view details
# 031
MPN: 108987
SPRING
from £53.82
from £53.82
# 032
MPN: 102952
PLATE
from £17.92
from £17.92
This part replaces part number 9181737
# 033
MPN: 104340
PLATE
from £1.59
from £1.59
This part replaces part number 350182
# 034
MPN: 102086
LEVER
# 034
MPN: 102087
LEVER ASSEMBLY
from £117.59
from £117.59
This part replaces part number 9181660
# 035
MPN: 107826
WASHER
from £3.15
from £3.15
# 036
MPN: 11066075
SEEGER RING
Supersession
Supersession
# 037
MPN: 103615
LEVER
from £46.84
from £46.84
# 038
MPN: 16043421
BOLT
from £2.65
from £2.65
This part replaces part number 95524
# 039
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 040
MPN: 101677
ROLLER BEARING
from £2.10
from £2.10
# 041
MPN: 108760
F LESSIBILE COMANDO ACCELERATORE
from £38.25
from £38.25
# 042
MPN: 11066076
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11066075
# 043
MPN: 108756
WASHER
# 044
MPN: 104887
PIVOT
from £7.50
from £7.50
This part replaces part number 9181150
# 045
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
