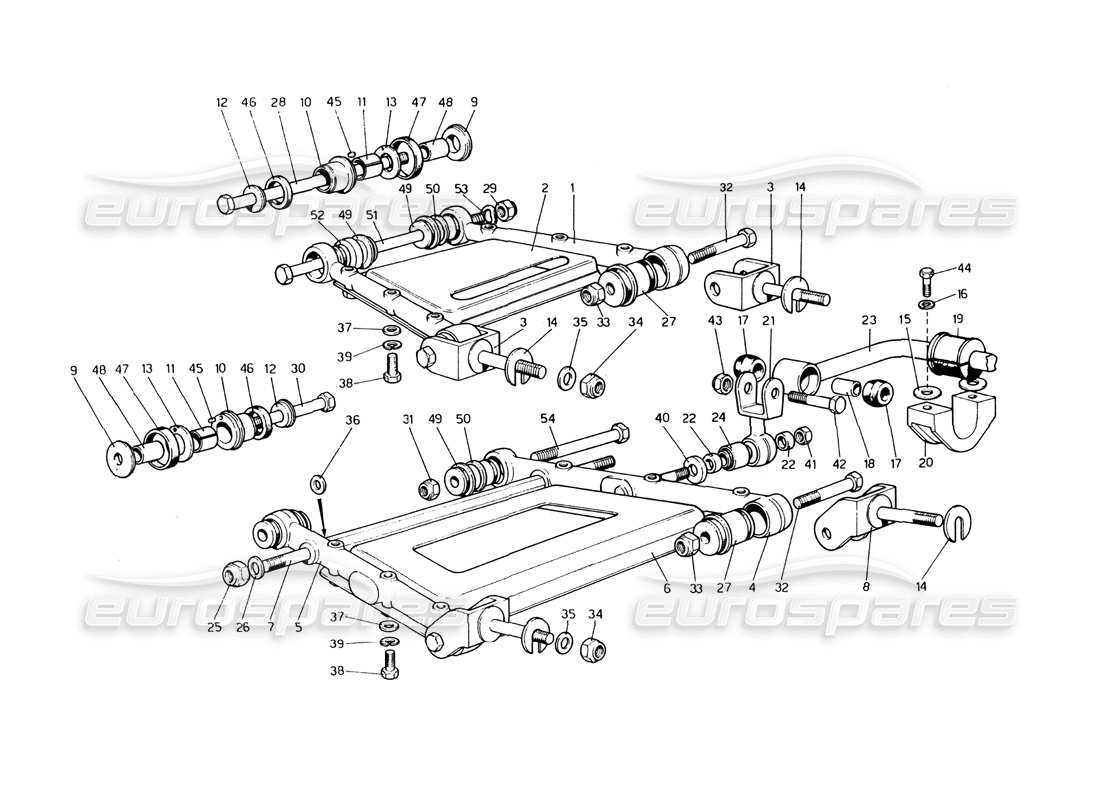

045 - Rear Suspension - Wishbones
Ferrari 400 GT (Mechanical) Rear Suspension - Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 100778

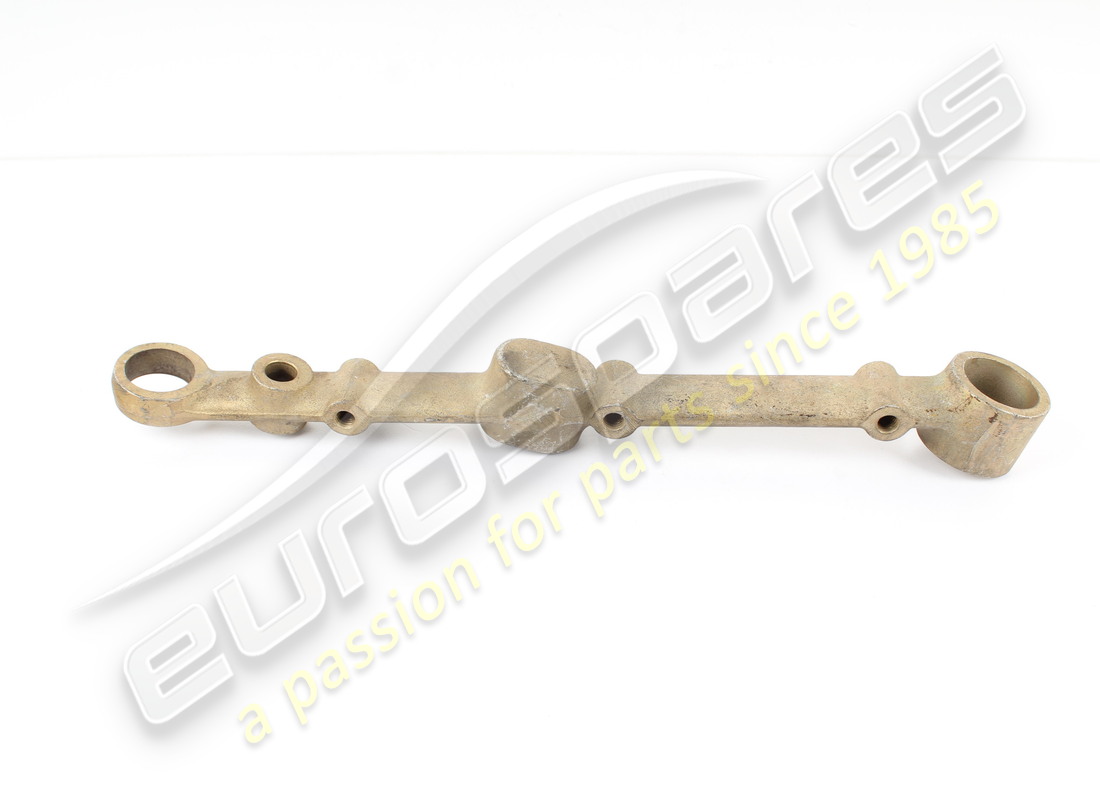

UPPER LEVER ARM
from £110.48
from £110.48
This part replaces part number 601202 - and 1 more. Click to view details
# 002
MPN: 100782
PLATES FOR TOP LEVER
from £90.89
from £90.89
This part replaces part number 601637
# 003
MPN: 101054
FORK
from £56.43
from £56.43
This part replaces part number 601644 - and 1 more. Click to view details
# 004
MPN: 100780

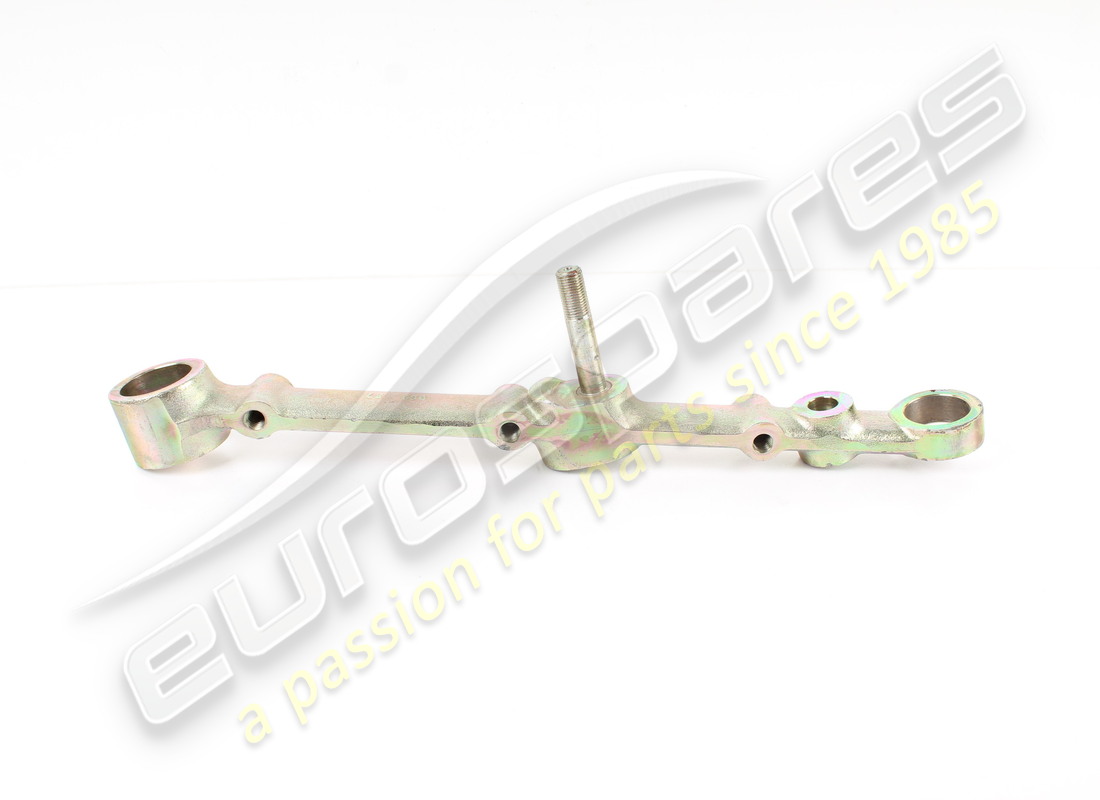

BRACCIO POSTERIORE LEVA INF ERIORE
from £197.85
from £197.85
This part replaces part number 601640 - and 1 more. Click to view details
# 005
MPN: 100781
BRACCIO ANTERIORE LEVA INF ERIORE
from £153.04
from £153.04
This part replaces part number 601639 - and 1 more. Click to view details
# 006
MPN: 100783
PIASTRA PER LEVA INF ERIORE
from £199.40
from £199.40
This part replaces part number 601641
# 007
MPN: 100806
PIVOT
from £63.13
from £63.13
This part replaces part number 601642 - and 1 more. Click to view details
# 008
MPN: 159399
LOWER FORK
from £202.65
from £202.65
This part replaces part number 100784 - and 2 more. Click to view details
# 009
MPN: 109902
RONDALLA DI RASAMENTO
Vale fino alla vettura n. 21781
from £28.50
from £28.50
This part replaces part number 107438
# 010
MPN: 105340
BUSH
Vale fino alla vettura n. 21781
from £38.54
from £38.54
This part replaces part number 601684
# 011
MPN: 100787
BUSH
Vale fino alla vettura n. 21781
from £5.48
from £5.48
This part replaces part number 101315 - and 1 more. Click to view details
# 012
MPN: 105341
WASHER
Vale fino alla vettura n. 21781
from £18.21
from £18.21
This part replaces part number 601685
# 013
MPN: 101009
WASHER
Vale fino alla vettura n. 21781
from £6.82
from £6.82
This part replaces part number 600771
# 014
MPN: 101039
IDEM SPESS. MM. 1
Di eventuale montaggio
from £1.78
from £1.78
This part replaces part number 107025 - and 1 more. Click to view details
# 014
MPN: 107338
IDEM SPESS. MM. 1,5
Di eventuale montaggio
from £12.97
from £12.97
This part replaces part number 107418
# 014
MPN: 107339
IDEM SPESS. MM. 2
Di eventuale montaggio
from £1.17
from £1.17
This part replaces part number 107419
# 014
MPN: 107340
WASHER. 2,5 MM.
from £1.11
from £1.11
This part replaces part number 107420
# 014
MPN: 107341
IDEM SPESS. MM. 3
Di eventuale montaggio
from £2.84
from £2.84
This part replaces part number 107421
# 014
MPN: 107342
IDEM SPESS. MM. 3,25
Di eventuale montaggio
from £0.48
from £0.48
This part replaces part number 107422
# 015
MPN: 100812
WASHER
from £1.05
from £1.05
This part replaces part number 94724
# 016
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 017
MPN: 100984
GOMMINO PER BISCONINO
from £6.56
from £6.56
This part replaces part number 126097 - and 1 more. Click to view details
# 018
MPN: 100985
DISTANZIALE PER BISCONINO
from £21.06
from £21.06
This part replaces part number 64431
# 019
MPN: 108745
TAMPONE TENUTA BARRA
from £22.26
from £22.26
This part replaces part number 100802
# 020
MPN: 100805
CAVALLOTTO TENUTA BARRA
from £139.33
from £139.33
This part replaces part number 601743 - and 1 more. Click to view details
# 021
MPN: 104420
ANTI ROLL BAR LINK
from £377.69
from £377.69
This part replaces part number 64543 - and 1 more. Click to view details
# 022
MPN: 100771
SPACER
from £33.42
from £33.42
This part replaces part number 64544
# 023
MPN: 103864
ANTI - ROLL BAR
from £313.78
from £313.78
# 024
MPN: 100773
SILENTBLOC PER BISCONINO BARRA STABILIZZATRICE
from £19.87
from £19.87
This part replaces part number 60220 - and 1 more. Click to view details
# 025
MPN: 150238
NUT
from £0.47
from £0.47
This part replaces part number 12575821 - and 2 more. Click to view details
# 026
MPN: 103024
WASHER
from £1.99
from £1.99
# 027
MPN: 134883
BUSH
from £39.95
from £39.95
This part replaces part number 101091 - and 1 more. Click to view details
# 028
MPN: 100793
BOLT
Vale fino alla vettura n. 21781
from £22.73
from £22.73
This part replaces part number 95452
# 029
MPN: 148020
NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 030
MPN: 100798
BOLT
Vale fino alla vettura n. 21781
# 031
MPN: 148020
NUT
from £2.46
from £2.46
This part replaces part number 102825 - and 3 more. Click to view details
# 032
MPN: 106003
BOLT
from £4.84
from £4.84
# 033
MPN: 166004
NUT
# 034
MPN: 150238
NUT
from £0.47
from £0.47
This part replaces part number 12575821 - and 2 more. Click to view details
# 035
MPN: 13550621
WASHER
from £0.47
from £0.47
This part replaces part number 680874
# 037
MPN: 10730514
WASHER
from £0.50
from £0.50
This part replaces part number 10730521
# 038
MPN: 100794
WASHER
from £0.69
from £0.69
This part replaces part number 95320
# 038
MPN: 102215
BOLT
from £0.47
from £0.47
# 039
MPN: 127497
WASHER
from £0.51
from £0.51
This part replaces part number 10516871 - and 2 more. Click to view details
# 040
MPN: 105334
WASHER
Supersession
Supersession
# 041
MPN: 148020
NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 042
MPN: 105962
BOLT
from £1.58
from £1.58
This part replaces part number 15540921 - and 1 more. Click to view details
# 043
MPN: 148020
NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 044
MPN: 11288021
BOLT
Supersession
Supersession
# 045
MPN: 100796
CENTERING DOWEL
Vale fino alia vettura n. 21781
from £2.26
from £2.26
This part replaces part number 94943
# 046
MPN: 105343
GOMMINO PICCOLO PARAPOLVERE
Vale fino alia vettura n. 21781
from £14.00
from £14.00
This part replaces part number 641217
# 047
MPN: 105342
GOMMINO GRANDE PARAPOLVERE
Vale fino alia vettura n. 21781
from £17.91
from £17.91
This part replaces part number 641216
# 048
MPN: 109905
DISTANZIALFL
Vale fino alia vettura n. 21781
from £29.50
from £29.50
This part replaces part number 100785 - and 3 more. Click to view details
# 049
MPN: 154536
FLANBLOK.
Vale dalla vettura n. 21781
from £73.44
from £73.44
This part replaces part number 103170 - and 1 more. Click to view details
# 050
MPN: 111633
SMALL SPACER
Vale dalla vettura n. 21781
from £5.87
from £5.87
# 051
MPN: 111632
BOLT
Vale dalla vettura n. 21781
from £67.26
from £67.26
# 052
MPN: 111634
BIG SPACER
Vale dalla vettura n. 21781
from £4.35
from £4.35
# 053
MPN: 156266
WASHER
Annuilata - Vale dalla vettura n. 21781
from £0.64
from £0.64
This part replaces part number 108924
# 054
MPN: 111635
BOLT
Vale dalla vettura n. 21781
from £32.20
from £32.20
-part-diagram-046.webp "FERRARI 400 GT (MECHANICAL) REAR SUSPENSION - SHOCK ABSORBER AND SELF-LEVELING PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 400 GT (MECHANICAL) WHEELS PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 400 GT (MECHANICAL) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 400 GT (MECHANICAL) CURRENT GENERATOR AND STARTING MOTOR PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 400 GT (MECHANICAL) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 400 GT (MECHANICAL) SUPPLEMENTARY AIR CONDITIONG SYSTEM PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 400 GT (MECHANICAL) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 400 GT (MECHANICAL) THROTTLE CONTROL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 400 GT (MECHANICAL) CLUTCH RELEASE CONTROL (400 GT - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULIC DRIVE (400 AUTOMATIC - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULC DRIVE (400 GT - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 400 GT (MECHANICAL) FRONT AND REAR LIGHTS, HORNS AND ARIAL PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 400 GT (MECHANICAL) OUTER DOOR MIRRORS AND INTERNAL ACCESSORIES PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 400 GT (MECHANICAL) ELECTRICAL SYSTEM, FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 400 GT (MECHANICAL) SEAT BELTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 400 GT (MECHANICAL) COOLINF ELECTRIC FANS, HEATING AND WINDSCREEN WASHER PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 400 GT (MECHANICAL) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 400 GT (MECHANICAL) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 400 GT (MECHANICAL) OIL SUMP PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 400 GT (MECHANICAL) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 400 GT (MECHANICAL) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 400 GT (MECHANICAL) CYLINDR HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 400 GT (MECHANICAL) TIMING SYSTEM PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 400 GT (MECHANICAL) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 400 GT (MECHANICAL) FUEL PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 400 GT (MECHANICAL) FUEL TANKS AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 400 GT (MECHANICAL) AIR INTAKES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 400 GT (MECHANICAL) WEBBER CARBURETTORS (38 DCOE 110 - 111 - 110M - 111M) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 400 GT (MECHANICAL) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 400 GT (MECHANICAL) FAST IDLE DEVICE PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 400 GT (MECHANICAL) BLOW - BY SYSTEM (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 400 GT (MECHANICAL) BLOW - BY SYSTEM (400 GT) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 400 GT (MECHANICAL) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 400 GT (MECHANICAL) LUBRICATION CIRCUIT AND FILTERS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 400 GT (MECHANICAL) WATER PUMP AND ENGINE OIL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 400 GT (MECHANICAL) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 400 GT (MECHANICAL) ENGINE FLYWHEEL AND CLUTCH HOUSING SPACER (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 400 GT (MECHANICAL) AUTOMATIC TRANSMISSION (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 400 GT (MECHANICAL) VACUUME AMPLIFYING VALVE AND OIL CIRCUIT (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 400 GT (MECHANICAL) OUTSIDE GEARBOX CONTROLS (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 400 GT (MECHANICAL) CLUTCH SYSTEM AND CONTROLS (400 GT) PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 400 GT (MECHANICAL) CLUTCH RELEASE CONTROL (400 GT) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 400 GT (MECHANICAL) GEARBOX (400 GT) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 400 GT (MECHANICAL) MAIN SHAFT OIL PUMP (400 GT) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 400 GT (MECHANICAL) LAY SHAFT (400 GT) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 400 GT (MECHANICAL) INSIDE ABD OUTSIDE GEARBOX CONTROLS (400 GT) PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 400 GT (MECHANICAL) PROPELLER SHAFT PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 400 GT (MECHANICAL) DIFFERENTIAL HOUSING PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 400 GT (MECHANICAL) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULIC DRIVE (400 (AUTOMATIC) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 400 GT (MECHANICAL) BRAKES HYDRAULIC DRIVE (400 GT) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 400 GT (MECHANICAL) BRAKE BOOSTER VACUUM PUMP PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 400 GT (MECHANICAL) BRAKES SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 400 GT (MECHANICAL) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 400 GT (MECHANICAL) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 400 GT (MECHANICAL) HYDRAULIC STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 400 GT (MECHANICAL) STEERING LINKAGE PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 400 GT (MECHANICAL) STEERING CONTROLS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 400 GT (MECHANICAL) FRONT SUSPENSION - SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 400 GT (MECHANICAL) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 400 GT (MECHANICAL) REAR SUSPENSION - BRAKE DISC PARTS DIAGRAM")
