023 - REAR SEATS

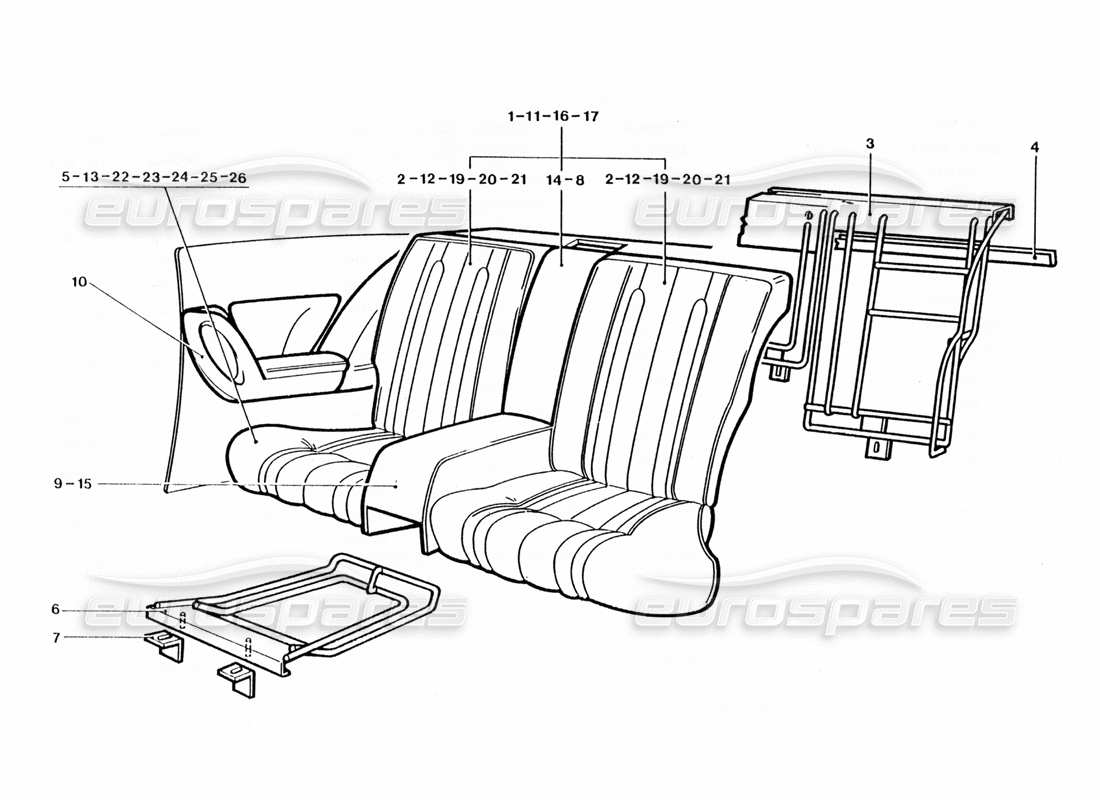

Ferrari 400 GT / 400i (Coachwork) Rear Seats Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 257-66-500-00
SEAT SQUAB
Back
# 002
MPN: 257-66-510-00
SEAT SQUAB
Back
# 003
MPN: 257-66-512-07
Frame
OSSATURA
from £139.63
from £139.63
# 004
MPN: 255-66-620-00
GASKET
GUARNIZLONE
from £1.00
from £1.00
# 005
MPN: 257-66-650-00
CUSHION DS.
Cuscino Ds.
# 005
MPN: 257-66-651-00
CUSHION SN.
Cusclno Sn.
# 006
MPN: 257-66-660-07
FRAME DS.
Ossatura Ds.
from £61.10
from £61.10
# 006
MPN: 257-66-661-07
FRAME SN.
Ossatura Sn.
from £61.10
from £61.10
# 007
MPN: 255-66-696-01
BRACKET
STAFFA
from £2.84
from £2.84
# 008
MPN: 257-66-880-00
SEAT SQUAB
Back
# 009
MPN: 255-66-900-00
ARMREST
Appoggiabraccia
from £170.13
from £170.13
# 010
MPN: 257-66-950-00
ARMREST
Appoggiabraccia
from £410.81
from £410.81
# 010
MPN: 257-66-951-00
ARMREST
Appoggiabraccia
from £410.81
from £410.81
# 011
MPN: 257-66-500-10
SEAT SQUAB
Back
# 012
MPN: 257-66-510-00
SEAT SQUAB
Back
# 013
MPN: 257-66-650-10
CUSHION DS.
Cuscino Ds.
# 013
MPN: 257-66-651-10
CUSHION SN.
Cuscino Sn.
# 014
MPN: 257-66-880-10
SEAT SQUAB
Back
# 015
MPN: 257-66-900-00
ARMREST
Appoggiabraccia
# 016
MPN: 257-66-500-00
SEATSQUAB
Back
# 017
MPN: 257-66-500-30
SEAT SQUAB
Back
# 018
MPN: 257-66-500-20
SEAT SQUAB
Back
# 019
MPN: 257-66-510-20
SEAT SQUAB
Back
# 020
MPN: 257-66-510-30
SEAT SQUAB
Back
# 021
MPN: 257-66-510-20
SEAT SQUAB
Back
# 022
MPN: 257-66-650-20
CUSHION
Cuscino Ds.
# 023
MPN: 257-66-651-20
CUSHION
Cuscino Sn.
# 024
MPN: 257-66-650-30
CUSHION
Cuscino Ds.
# 025
MPN: 257-66-650-20
CUSHION
Cuscino Ds.
# 026
MPN: 257-66-651-20
CUSHION
Cuscino Sn
# 026
MPN: 257-66-651-30
CUSHION
Cuscino Sn.
