ferrari 400 gt / 400i (coachwork) dash binnacle parts diagram

025 - Dash Binnacle

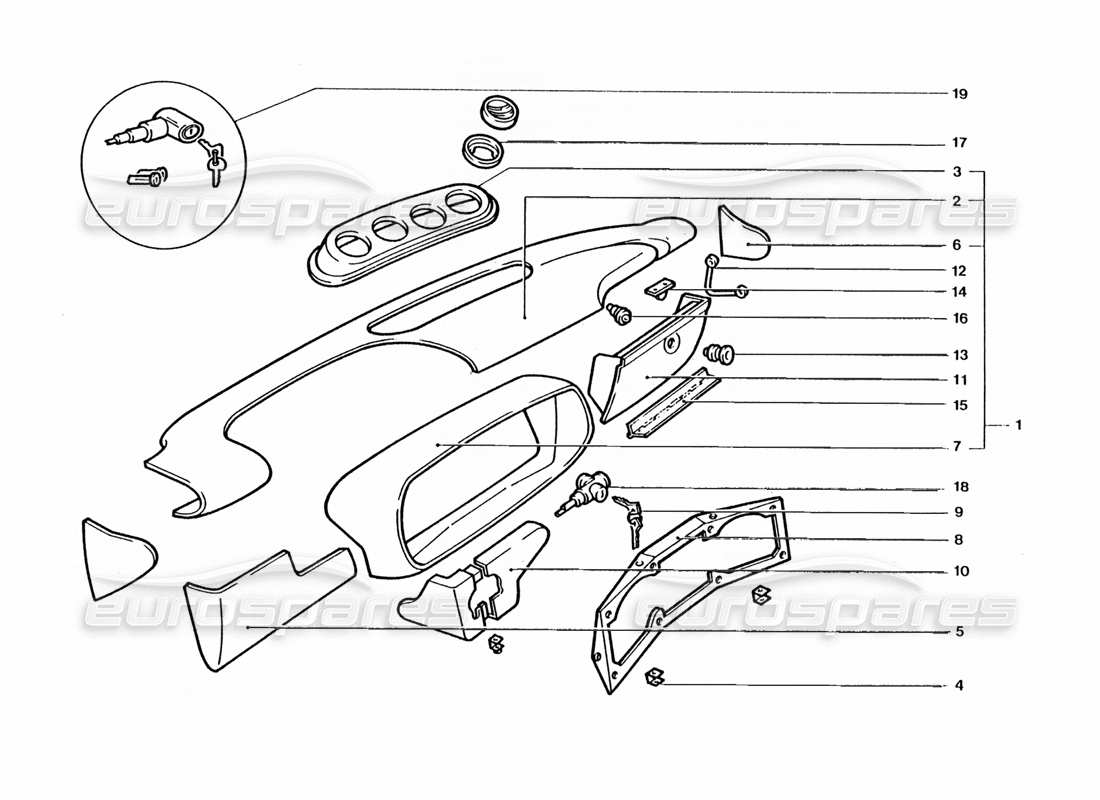

Ferrari 400 GT / 400i (Coachwork) Dash Binnacle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 257-76-002-00
BLACK SKIN INSTRUMENT PANEL UNIT G.S.
GS black leather dashboard
from £1,855.44
from £1,855.44
# 001
MPN: 258-76-002-00
BLACK SKIN INSTRUMENT PANEL UNIT G.D.
GD black leather dashboard
# 002
MPN: 257-76-008-00
BLACK SKIN DASHBOARD G.S.
GS black leather dashboard
from £1,026.22
from £1,026.22
# 002
MPN: 258-76-008-00
BLACK SKIN DASHBOARD G.D.
GD black leather dashboard
# 003
MPN: 257-76-060-00
BLACK SKIN SUPPORT
Black leather support
from £293.76
from £293.76
# 004
MPN: 144-76-060-01
BRACKET
STAFFETTA
from £1.04
from £1.04
# 005
MPN: 257-76-250-00
BLACK SKIN COVERING G.S.
GS black leather covering
# 005
MPN: 258-76-250-00
BLACK SKIN COVERING G.D.
GD black leather covering
# 006
MPN: 257-76-280-00
BLACK SKIN PLATE DS.
Chiusura Ds. pelle nera
from £32.27
from £32.27
# 006
MPN: 257-76-281-00
BLACK SKIN PLATE SN.
Chiusura Sn. pelle nera
from £30.73
from £30.73
# 007
MPN: 257-76-300-00
BLACK SKIN INSTRUMENT HOUSING G.S.
Cupolotto G.S. pelle nera
from £1,015.81
from £1,015.81
# 007
MPN: 258-76-300-00
INSTRUMENT HOUSING G.D. - BLACK SKIN
Cupolotto G.D. - Pelle nera
from £1,229.83
from £1,229.83
# 008
MPN: 253-76-330-03
FRAME G.D.
Cornice G.D.
from £12.14
from £12.14
# 009
MPN: 253-76-510-00
Key
KEY
from £25.61
from £25.61
# 009
MPN: 257-88-238-00
Key
KEY
from £30.45
from £30.45
# 010
MPN: 257-76-520-00
COVER BLACK SKIN DS. G.S.
Carenatura Ds. G.S. - Pelle nera
from £199.22
from £199.22
# 010
MPN: 257-76-521-00
COVER BLACK SKIN SN. G.S.
Carenatura Sn. G.S. - Pelle nera
from £199.22
from £199.22
# 010
MPN: 258-76-520-00
COVER BLACK SKIN DS. G.D.
Carenatura Ds. G.D. - Pelle nera
from £212.46
from £212.46
# 010
MPN: 258-76-521-00
COVER BLACK SKIN SN. G.D.
Carenatura Sn. G.D. - Pelle nera
from £212.46
from £212.46
# 011
MPN: 257-76-802-00
BLACK SKIN COMPARTMENT COVER G.S.
GS Cassettes - Black leather
from £494.70
from £494.70
# 011
MPN: 258-76-802-00
BLACK SKIN COMPARTMENT COVER G.D.
GD Cassettes - Black leather
from £414.75
from £414.75
# 012
MPN: 253-76-834-00
LEVER
TIRANTE
from £43.95
from £43.95
This part replaces part number 257-76-834-00 - and 1 more. Click to view details
# 013
MPN: 255-76-840-02
lock
BLOCCHETTO
from £41.00
from £41.00
This part replaces part number 253-76-840-02 - and 1 more. Click to view details
# 014
MPN: 253-76-858-01
STRIKER PLATE
Receipt
from £21.47
from £21.47
# 015
MPN: 253-76-870-03
HINGE
CERNIERA
# 016
MPN: 802-80-816-00
GLOVE COMPARTMENT SWITCH
Cassette switch
from £3.77
from £3.77
# 017
MPN: 257-86-424-07
RING
ANELLO
from £17.81
from £17.81
# 018
MPN: 253-88-252-00
IGNITION BLOCK
BLOCCHETTO
# 019
MPN: 255-88-250-00
IGNITION BLOCK
BLOCCHETTO
Supersession
Supersession
