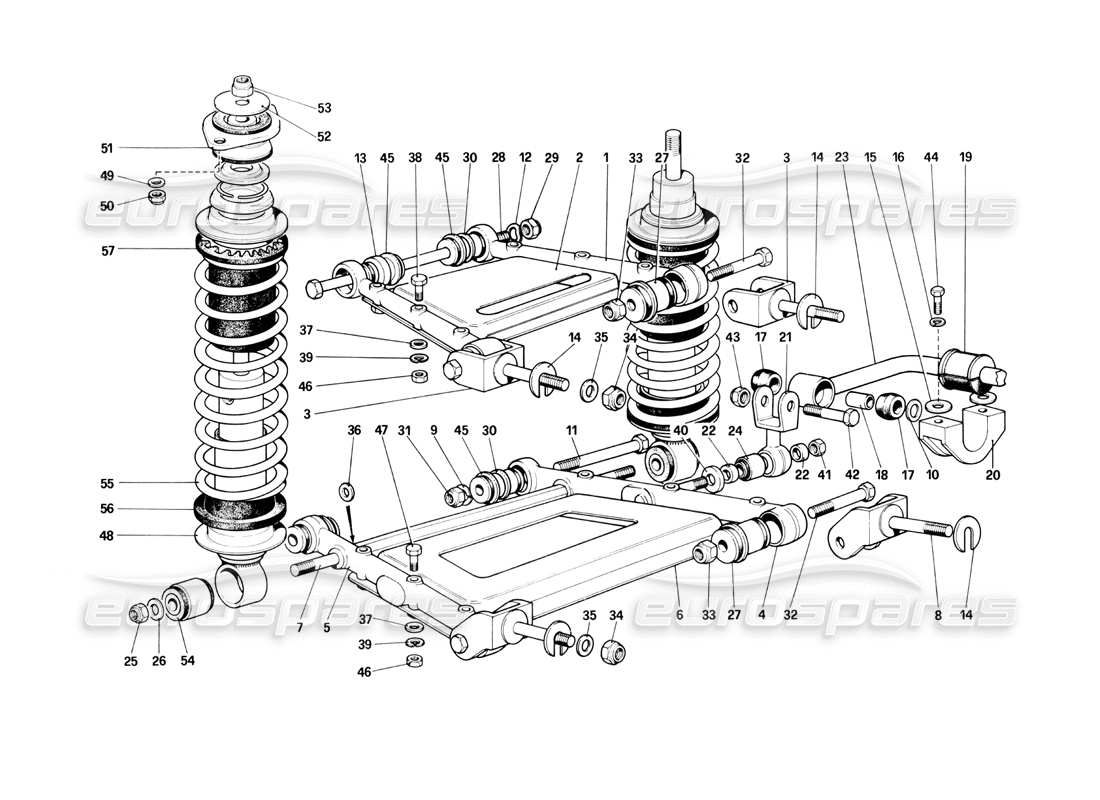

050 - Rear Suspension - Levers and Shock Absorbers
Ferrari 400i (1983 Mechanical) Rear Suspension - Levers and Shock Absorbers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 119328
UPPER LEVER ARM
from £106.86
from £106.86
# 002
MPN: 100782
PLATE FOR TOP LEVER
from £90.89
from £90.89
This part replaces part number 601637
# 003
MPN: 101054
FORK
from £56.43
from £56.43
This part replaces part number 601644 - and 1 more. Click to view details
# 004
MPN: 100780
BRACCIO POSTERIORE LEVA INF ERIORE
from £197.85
from £197.85
This part replaces part number 601640 - and 1 more. Click to view details
# 004
MPN: 100780
REAR LOWER LEVER
from £197.85
from £197.85
This part replaces part number 601640 - and 1 more. Click to view details
# 005
MPN: 119329
REAR LOWER LEVER
from £138.55
from £138.55
# 006
MPN: 119330
PIASTRA PER LEVA INF ERIORE
from £226.38
from £226.38
# 007
MPN: 100806
PIVOT
from £63.13
from £63.13
This part replaces part number 601642 - and 1 more. Click to view details
# 008
MPN: 159399
LOWER FORK
from £202.65
from £202.65
This part replaces part number 100784 - and 3 more. Click to view details
# 009
MPN: 106854
WASHER
Supersession
Supersession
# 010
MPN: 105334
WASHER
Supersession
Supersession
# 011
MPN: 111635
BOLT
from £32.20
from £32.20
# 012
MPN: 106854
WASHER
Supersession
Supersession
# 013
MPN: 111634
SPACER
from £4.35
from £4.35
# 014
MPN: 101039
IDEM SP. MM. 1
from £1.78
from £1.78
This part replaces part number 107025 - and 1 more. Click to view details
# 014
MPN: 107338
IDEM SP. MM. 1, 5
from £12.97
from £12.97
This part replaces part number 107418
# 014
MPN: 107339
IDEM SP. MM. 2
from £1.17
from £1.17
This part replaces part number 107419
# 014
MPN: 107340
WASHER
from £1.11
from £1.11
This part replaces part number 107420
# 014
MPN: 107341
IDEM SP. MM. 3
from £2.84
from £2.84
This part replaces part number 107421
# 014
MPN: 107342
IDEM SP. MM. 3,25
from £0.48
from £0.48
This part replaces part number 107422
# 015
MPN: 100812
WASHER
from £1.05
from £1.05
This part replaces part number 94724
# 016
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 017
MPN: 100984
GOMMINO PER BISCOTTINO
from £6.56
from £6.56
This part replaces part number 126097 - and 1 more. Click to view details
# 018
MPN: 100985
SPACER FOR BISCUITS
from £21.06
from £21.06
This part replaces part number 64431
# 019
MPN: 118371
TAMPONE TENUTA BARRA
from £27.91
from £27.91
# 020
MPN: 100805
CAVALLOTTO TENUTA BARRA
from £139.33
from £139.33
This part replaces part number 601743 - and 1 more. Click to view details
# 021
MPN: 104420
ANTI ROLL BAR LINK
from £377.69
from £377.69
This part replaces part number 64543 - and 1 more. Click to view details
# 022
MPN: 100771
SPACER
from £33.42
from £33.42
This part replaces part number 64544
# 023
MPN: 118300
ANTI - ROLL BAR
from £271.21
from £271.21
# 024
MPN: 100773
SILENTBLOC PER BISCOTTINO BARRA STABILIZZATRICE
from £19.87
from £19.87
This part replaces part number 60220 - and 1 more. Click to view details
# 025
MPN: 150238
NUT
from £0.47
from £0.47
This part replaces part number 12575821 - and 2 more. Click to view details
# 026
MPN: 103024
WASHER
from £1.99
from £1.99
# 027
MPN: 134883
BUSH
from £39.95
from £39.95
This part replaces part number 101091 - and 1 more. Click to view details
# 028
MPN: 111632
BOLT
from £67.26
from £67.26
# 029
MPN: 148020
NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 030
MPN: 111633
SPACER
from £5.87
from £5.87
# 031
MPN: 148020
NUT
from £2.46
from £2.46
This part replaces part number 102825 - and 3 more. Click to view details
# 032
MPN: 106003
BOLT
from £4.84
from £4.84
# 033
MPN: 106004
NUT
from £2.64
from £2.64
# 034
MPN: 150238
NUT
from £0.47
from £0.47
This part replaces part number 12575821 - and 2 more. Click to view details
# 035
MPN: 13550621
WASHER
from £0.47
from £0.47
This part replaces part number 680874
# 036
MPN: 100794
WASHER
from £0.69
from £0.69
This part replaces part number 95320
# 037
MPN: 10730514
WASHER
from £0.50
from £0.50
This part replaces part number 10730521 which we have in stock
# 038
MPN: 11243721
BOLT
# 039
MPN: 127497
WASHER
from £0.51
from £0.51
This part replaces part number 10516871 - and 2 more. Click to view details
# 040
MPN: 105334
WASHER
Supersession
Supersession
# 041
MPN: 148020
NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 042
MPN: 105962
BOLT
from £1.58
from £1.58
This part replaces part number 15540921 which we have in stock - and 1 more. Click to view details
# 043
MPN: 148020
NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 044
MPN: 11288021
BOLT
Supersession
Supersession
# 045
MPN: 154536
FLAMBLOC
from £73.44
from £73.44
This part replaces part number 103170 - and 1 more. Click to view details
# 046
MPN: 12164721
NUT
from £0.61
from £0.61
# 047
MPN: 11343821
BOLT
from £0.57
from £0.57
# 048
MPN: 117722
AMMORTIZZATORE
from £637.64
from £637.64
# 049
MPN: 12601471
WASHER
Supersession
Supersession
# 050
MPN: 12575611
NUT
Supersession
Supersession
# 051
MPN: 117720
HYPERBLOC PER AMMORTIZZATORE
from £66.04
from £66.04
# 052
MPN: 114815
WASHER
from £0.86
from £0.86
# 053
MPN: 148020
NUT
from £2.46
from £2.46
This part replaces part number 102825 - and 3 more. Click to view details
# 054
MPN: 100809
ESTENDBLOC
from £13.28
from £13.28
This part replaces part number 101051 - and 1 more. Click to view details
# 055
MPN: 118233
SPRING
from £253.24
from £253.24
# 056
MPN: 117724
DISTANZIALE INF ERIORE
from £41.23
from £41.23
# 057
MPN: 118747
DISTANZIALE SUPERIORE
from £42.66
from £42.66
This part replaces part number 100776
-part-diagram-051.webp "FERRARI 400I (1983 MECHANICAL) WHEELS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 400I (1983 MECHANICAL) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 400I (1983 MECHANICAL) CURRENT GENERATORS AND STARTING MOTORS PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 400I (1983 MECHANICAL) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 400I (1983 MECHANICAL) SUPPLEMENTARY AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI 400I (1983 MECHANICAL) TOOL-KIT PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 400I (1983 MECHANICAL) FRONT AND REAR LIGHTS - HORNS AND AERIAL PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 400I (1983 MECHANICAL) ELECTRICAL SYSTEM, FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 400I (1983 MECHANICAL) COOLING ELECTRIC FANS - HEATING - WINDSCREEN WASHER AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 400I (1983 MECHANICAL) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 400I (1983 MECHANICAL) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 400I (1983 MECHANICAL) OIL SUMP PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 400I (1983 MECHANICAL) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 400I (1983 MECHANICAL) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 400I (1983 MECHANICAL) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 400I (1983 MECHANICAL) TIMING SYSTEM - BUCKET TYPE TAPPETS PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 400I (1983 MECHANICAL) TIMING SYSTEM - HOUSING AND COVERS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 400I (1983 MECHANICAL) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 400I (1983 MECHANICAL) FUEL TANKS, PUMPS, LINES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 400I (1983 MECHANICAL) FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 400I (1983 MECHANICAL) FUEL INJUCTION SYSTEM - AIR INTAKE, LINES PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 400I (1983 MECHANICAL) THROTTLES CONTROLS (VALID FOR LHD VERSIONS) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 400I (1983 MECHANICAL) THROTTLES CONTROLS (VALID FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 400I (1983 MECHANICAL) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 400I (1983 MECHANICAL) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 400I (1983 MECHANICAL) LUBRICATION CIRCUIT AND FILTERS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 400I (1983 MECHANICAL) WATER PUMP AND ENGINE OIL PUMP PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 400I (1983 MECHANICAL) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 400I (1983 MECHANICAL) ENGINE FLYWHEEL AND CLUTCH HOUSING SPACER (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 400I (1983 MECHANICAL) AUTOMATIC TRANSMISSION (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 400I (1983 MECHANICAL) VACUUM AMPLIFYING VALVE AND OIL CIRCUIT (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 400I (1983 MECHANICAL) OUTSIDE GEARBOX CONTROLS (400 AUTOMATIC) PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 400I (1983 MECHANICAL) CLUTCH SYSTEM AND CONTROL (400 GT) PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 400I (1983 MECHANICAL) CLUTCH RELEASE CONTROL (400 GT - VALID FOR LHD VERSIONS) PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 400I (1983 MECHANICAL) CLUTCH RELEASE CONTROL (400 GT - VALID FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 400I (1983 MECHANICAL) GEARBOX (400 GT) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 400I (1983 MECHANICAL) MAIN SHAFT AND OIL PUMP (400 GT) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 400I (1983 MECHANICAL) LAY SHAFT (400 GT) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 400I (1983 MECHANICAL) INSIDE AND OUTSIDE GEARBOX CONTROLS (400 GT) PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 400I (1983 MECHANICAL) PROPELLER SHAFT PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 400I (1983 MECHANICAL) DIFFERENTIAL HOUSING PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 400I (1983 MECHANICAL) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 400I (1983 MECHANICAL) BRAKES HYDRAULIC CONTROLL (400 AUTOMATIC - VALID FOR LHD VERSIONS) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 400I (1983 MECHANICAL) BRAKES HYDRAULIC CONTROLL (400 AUTOMATIC - VALID FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 400I (1983 MECHANICAL) BRAKES HYDRAULIC CONTROLL (400 GT - VALID FOR LHD VERSIONS) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 400I (1983 MECHANICAL) BRAKES HYDRAULIC CONTROLL (400 GT - VALID FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 400I (1983 MECHANICAL) BRAKE BOOSTER VACUUM PUMP PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 400I (1983 MECHANICAL) BRAKES SYSTEM PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 400I (1983 MECHANICAL) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 400I (1983 MECHANICAL) HAND-BRAKE CONTROLL PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 400I (1983 MECHANICAL) HYDRAULIC STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 400I (1983 MECHANICAL) POWER STEERING OIL TANK - OIL PNEUMATIC SELF LEVELLING DEVICES (VALID FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 400I (1983 MECHANICAL) STEERING LINKAGE PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 400I (1983 MECHANICAL) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 400I (1983 MECHANICAL) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 400I (1983 MECHANICAL) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 400I (1983 MECHANICAL) REAR SUSPENSION - OIL TANK AND OIL PUMP PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 400I (1983 MECHANICAL) REAR SUSPENSION - SELF LEVELING VALVE AND OIL LINES PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 400I (1983 MECHANICAL) REAR SUSPENSION - BRAKE DISC PARTS DIAGRAM")
