008 - REAR BOOT LID

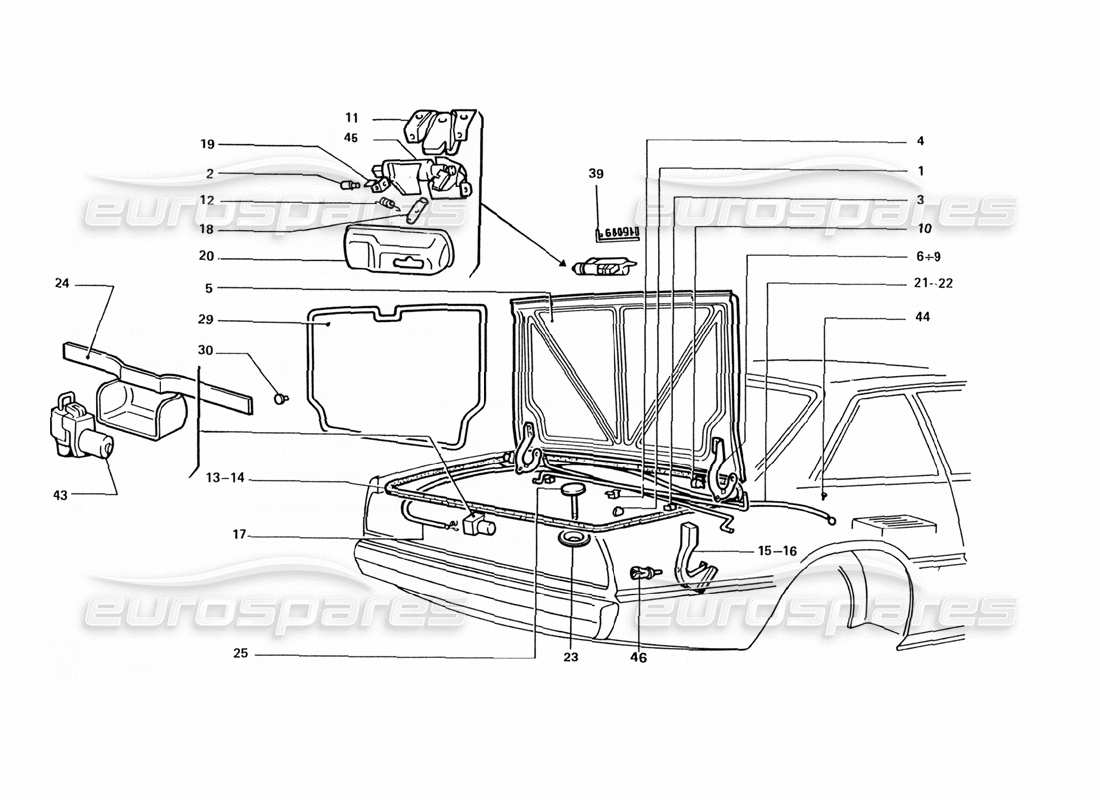

Ferrari 412 (Coachwork) Rear boot Lid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 20047106
TASSELLO BATTUTA SPORTELLO BAULE
(16305181)
from £13.65
from £13.65
This part replaces part number 20-22-19 - and 2 more. Click to view details
# 002
MPN: 144-28-334-00
BUSH
from £0.47
from £0.47
# 003
MPN: 152-28-590-01
PONTICELLO FISSAGGIO BARRA TORSIOHE BAUIE
from £4.96
from £4.96
# 004
MPN: 152-28-592-01
STAFFETTA FISSAGGIO CENTRAIE BARRE TORSIONE BAUIE
from £4.46
from £4.46

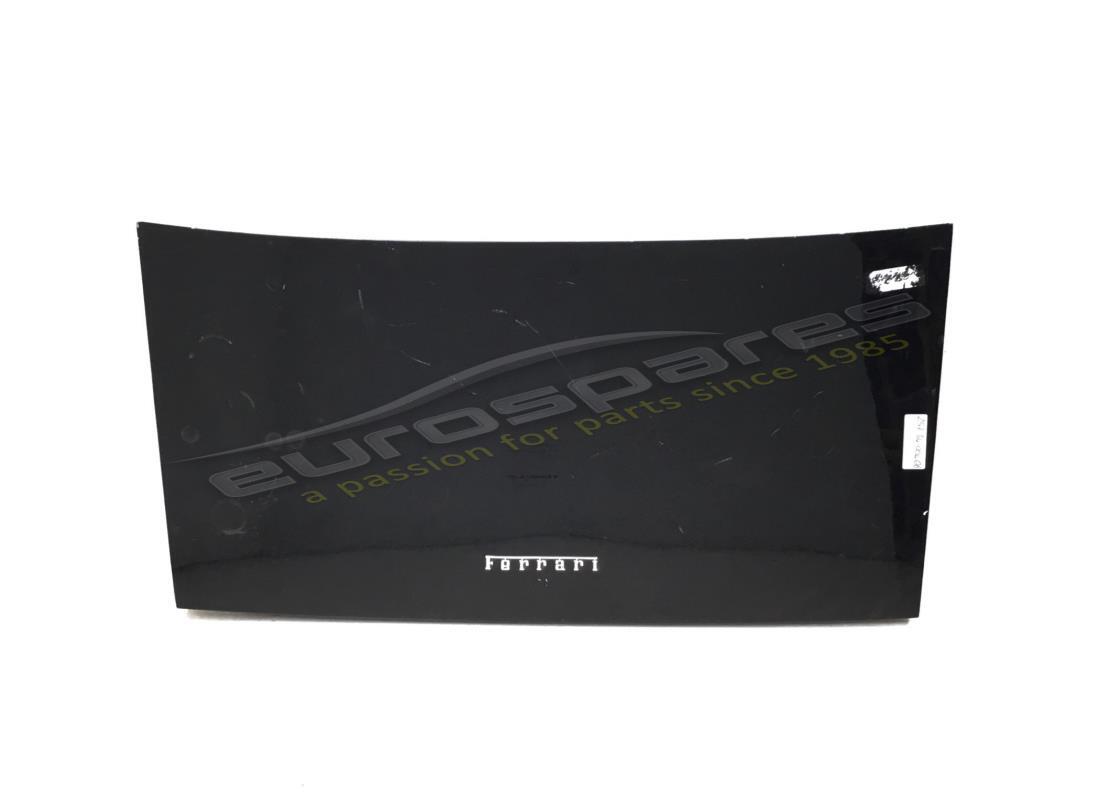

# 005
MPN: 255-34-004-06
SPORTELLO BAUIE COMPL. OSSATURA RIVESTIMENTO
F.V.N. 1810
from £575.52
from £575.52
# 005
MPN: 257-34-004-06
SPORTELLO BAUIE COMPL. OSSATURA RIVESTIMENTO
D.V.N. 1811
from £1,076.64
from £1,076.64
# 006
MPN: 255-34-072-06
CERR.IERA MOBILE D. BAUIE — SOLO G.S.
from £36.42
from £36.42
# 007
MPN: 256-34-072-06
CERNIERA MOBILE D. BAUIE - SOLO G.D.
from £34.34
from £34.34
# 008
MPN: 255-34-073-06
CERNIERA MOBILE S. BAUIE - SOLO G.S.
from £36.42
from £36.42
# 009
MPN: 256-34-073-06
CERNIERA MOBILE S. BAUIE - SOLO G.D.
from £36.06
from £36.06
# 010
MPN: 806-34-084-00
TASSELLO ARRESTO CERNIERA BAUIE ,
from £0.47
from £0.47
# 011
MPN: 257-34-170-15
BOOT LOCK
from £14.71
from £14.71
# 012
MPN: 257-34-182-03
SPRING
from £8.97
from £8.97
# 014
MPN: 257-34-206-00
GOMMA BATTUTA BAUIE (MM 4000)
Supersession
Supersession
This part replaces part number 255-34-206-00
# 015
MPN: 257-34-282-00
RICOPRIMENTO CERNIERA SPORT, BAUIE D.
from £30.28
from £30.28
# 016
MPN: 257-34-283-00
L. TRUNK DOOR HINGE COVERING
from £30.28
from £30.28
# 017
MPN: 257-34-300-10
TRUNK OPENING CONTROL SAFETY CABLE
from £11.86
from £11.86
# 018
MPN: 257-34-306-05
RINVIO COM. EMERG.
from £5.94
from £5.94
# 019
MPN: 257-34-308-05
BRACKET / SUPPORT
from £2.81
from £2.81
# 020
MPN: 257-34-444-00
PROTEZ. SERRAT. BAULE
from £34.34
from £34.34
# 021
MPN: 255-34-460-03
BARRA TORSIONE D. APERTURA BAULE
from £107.51
from £107.51
# 022
MPN: 255-34-461-03
TORSION BAR S. TRUNK OPENING
from £107.51
from £107.51
# 023
MPN: 257-34-484-20
SPARE WHEEL FIXING DISC
from £15.32
from £15.32
# 024
MPN: 257-34-494-10
PROTEZ. SCONTR. BAULE
from £100.60
from £100.60
# 025
MPN: 255-34-600-08
SPARE WHEEL LOCKING DEVICES
from £45.72
from £45.72
# 026
MPN: 257-34-620-00
PIANETTO TONDO BAULE CONFEZIONATO
Specify the color
# 027
MPN: 257-34-634-00
CINGHIETTO PER AGGANCIO LATERALE PIANETTO
Specify the color
from £17.97
from £17.97
# 028
MPN: 255-34-647-06
TRAVERSA POSTERIORE APPOGGIO PIANETTO
# 029
MPN: 257-34-760-00
CARPET UNDER THE TRUNK DOOR
Specify the color
# 030
MPN: 255-34-766-00
BUTTON FOR FIXING THE CARPET UNDER THE TRUNK DOOR
from £0.71
from £0.71
# 031
MPN: 257-34-784-10
TAPPETO COLLEG. POSTER.
Specify the color
# 032
MPN: 255-34-800-10
TAPPETO PER FONDO BAULE
Specify the color
from £72.30
from £72.30
# 033
MPN: 257-34-810-10
R. FENDER MAT.
Specify the color
# 034
MPN: 257-34-811-10
TAPPETO PER PARAFANGO 'S.
Specify the color
# 035
MPN: 255-34-850-10
RICOPRIMENTO VASCHETTA CARBURANTE - CONFEZIONATO
Specify the color
from £86.87
from £86.87
# 036
MPN: 255-34-860-10
RICOPRIMENTO ANTENNA RADIO - CONFEZIONATO
Specify the color
from £67.43
from £67.43
# 037
MPN: 257-34-870-10
FUEL TANK COVER R.
Specify the color
from £202.28
from £202.28
# 038
MPN: 257-34-871-20
FUEL TANK COVER S.
Specify the color
# 039
MPN: 60307006
Ferrari REAR SCRIPT
Motif (3-Pin) - Metal Chrome type
from £108.26
from £108.26
# 040
MPN: 257-35-890-10
REAR AIR CONDITIONER SHELTER - PACKAGED
Specify the color
from £591.04
from £591.04
# 041
MPN: 802-60-380-10
MANIGLIA PIANETTO FONDO BAULE
# 042
MPN: 257-62-320-00
COMPLETE SET OF INSULATORS UNDER FUEL TANK
from £151.66
from £151.66
# 043
MPN: 257-80-402-00
REAR DOOR CLOSURE MOTOR
# 044
MPN: 09-181-03-21
SCREW
from £2.46
from £2.46
# 045
MPN: 257-80-400-00
TRUNK DOOR OPENING SOLENOID
from £48.57
from £48.57
# 046
MPN: 0199-8-007-00
BLACK PLASTIC RIVET
D.V.N. 1811
from £0.47
from £0.47
# 047
MPN: 267-80-088-00
GASKET OR SEAL
D.V.N.1811 (Rich. Ferrari)
from £0.47
from £0.47
# 048
MPN: 267-88-086-01
HOLLETTA FISSAGGIO RIPARO
D.V.N.1811(Rich.Ferrari)
# 049
MPN: 267-88-084-01
GUARD FIXING STEM
D.V.N.1311(Rich.Ferrari)
from £27.05
from £27.05
